Somfy Ixengo L 24V RTS ECO Comfort Pack, set for weight swing gates 400 kg
per gate leaf (1216553)

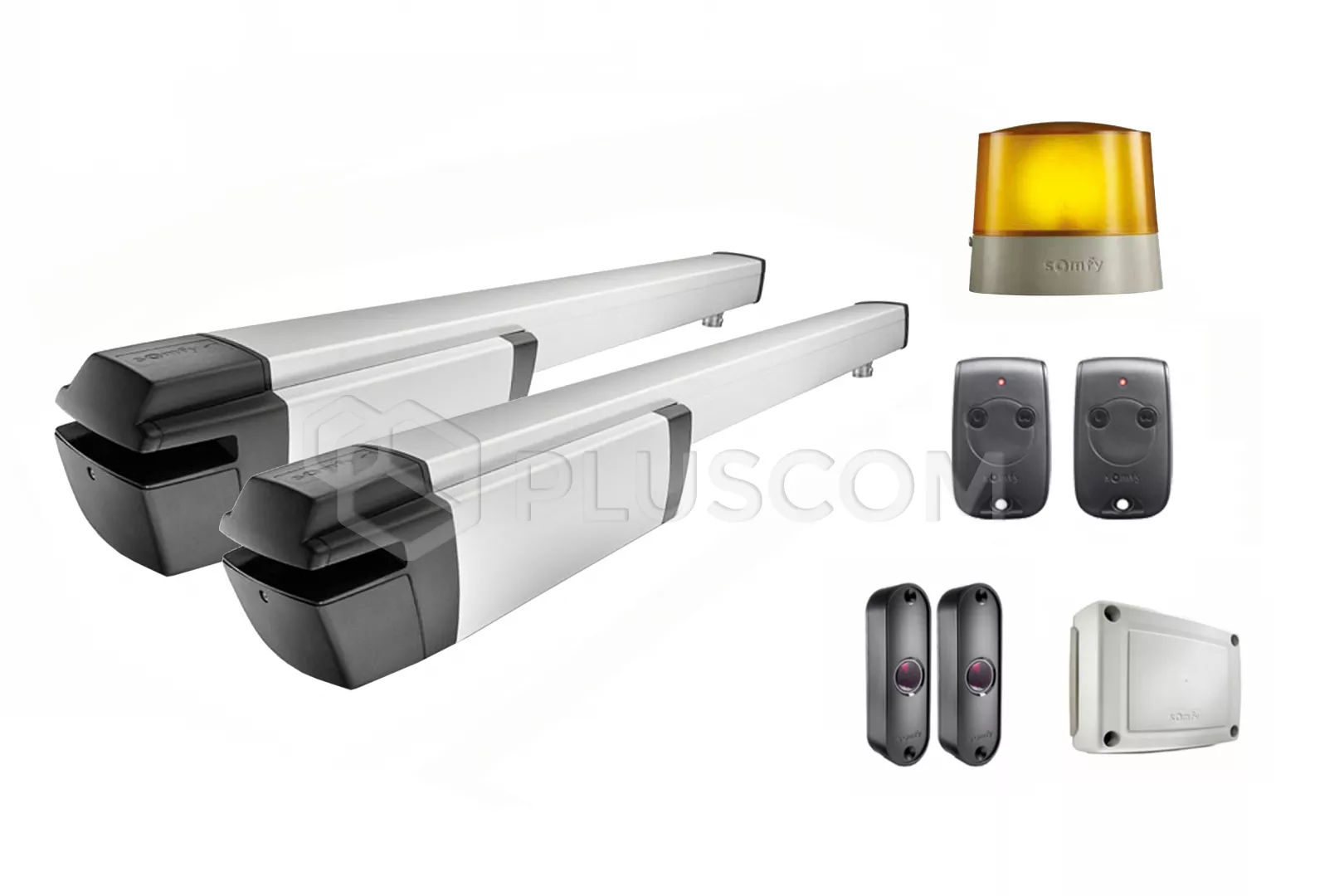

PACK INCLUDES
- actuator Ixengo L 24V - 2pcs
- 3S Ixengo RTS switch
- Keytis RTS 2-channel remote control - 2 pcs
- ECO Pro 24V lamp
- set of Master Pro photocells - Bitech
- fastening to the post - welded
|
Somfy Ixengo L 24V RTS ECO Comfort Pack
|
The Ixengo L 24V RTS Standard Pack is a ready-made kit for large-scale
automation metal gate with a leaf weight of up to 400 kg and a length of 4m.
Users praise it for durability, efficiency and safety.
The actuator is optimized for most installations. The drive stayed designed for
use with narrow posts (width at least 80 mm). In addition, the non-retracting
mechanism provides a very high resistance to strong wind pressure and attempts
to force the opening.
The most important features of the drive include:
- quick install
- possibility to set operating parameters
- intuitive operation
- solar panel compatible
- adjustable handle brackets
- non-retractable mechanism ensures very high resistance to heavy pressure
wind and attempted forcing opening
- easy and safe disengagement with individual key
- soft closing of the gate
- adjustable torque value
- limit switch system with access from the top of the drive and signaling
that the correct position has been reached with the flashing LED
- adapted to the small space behind the wing
- electronic limit switches
The drive can be controlled remotely via the Internet using the TaHoma or
Connexoon smart home central unit with geolocation function.
Using the Connexoon Access app, you can remotely check that the entrance gate
is properly closed. On the way home, the geolocation function helps to
automatically open the gate and turn on the lights driveway.
You can create
your own scenarios in the application.

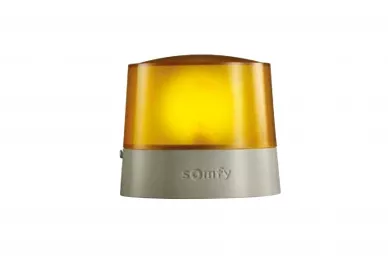

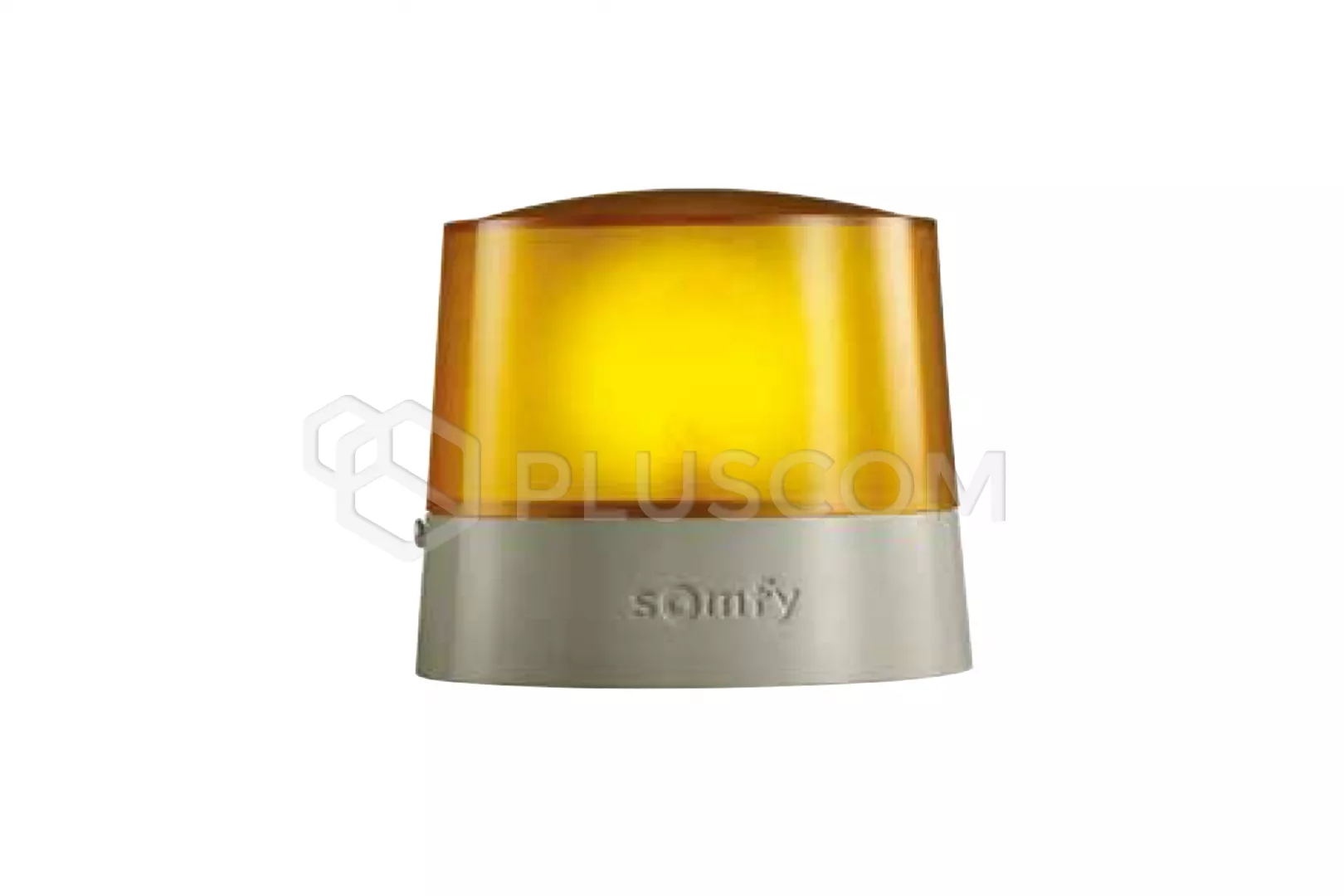

Orange Eco Pro lamp , signals the movement of the entrance gate. It has
a bright orange light, class III insulation.
Specification:
- power: 15 W
- power supply: 24V
- flashing management: control from the control panel
- electrical insulation class: class III
- dimensions: 92 x 107 mm
- working conditions: -20 ° C to + 60 ° C
- protection class: IP 54
|
ECO Pro 24V lamp
|

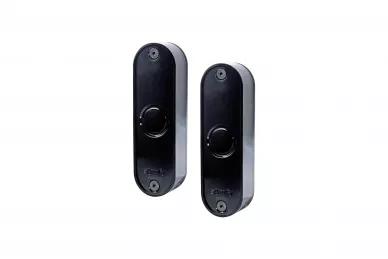

Master Pro photocells - Bitech are discreet devices for obstacle
detection when closing / opening the gate. They have as standard narrow
housing, which can be additionally equipped with a metal cover for additional
protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10m
- self-test input: no
- power supply: 24 V AC / DC
- contact load: 1 A
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|
Photocells Master Pro - Bitech
|

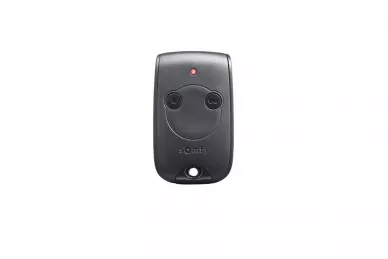

The kit includes two Keytis RTS 2-channel remote controls. Each pan is
used for control from 1 to 2 devices in the RTS system.
Remote specification
- number of channels: 2
- frequency: 433.4MHz
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 70 x 41 x 15 mm
- working conditions: -20 ° C to + 70 ° C
- protection class: IP31
|
Keytis RTS 2-channel remote control
|
The drive is controlled by the 3S Ixengo RTS control unit ,
which can both with one and two actuators. The control panel is ready for
operation in 2 minutes and all settings are pre-programmed.
It has the ability to select parameters for non-standard work. It has a wide
variety connection to the control panel of safety accessories and the
possibility of connection zone illumination (e.g. Halogen 500W).
The control panel menu is intuitive. Multi-colored marking of the connection
bones wires to eliminate errors in connection and the programming system
prevents making mistakes.
The operating status of the drive, error and malfunction codes are displayed in
real time. The number of work cycles and fishing reports are also displayed
e.t.c.
PANEL SPECIFICATION
- Mains power: 230V - 50Hz
- Power: 800 W (with 500 W lighting)
- 7-button programming interface: 3-character LCD
- TRS radio frequency: 433.42MHz
- Number of storable remote control devices: max. 40 channels
- Degree of protection: IP 44
- Working conditions: -20 ° C to + 60 ° C
Somfy Ixengo L 24V RTS Standard Pack
TECHNICAL DATA OF THE ACTUATOR
- main power: 220-230 V - 50 Hz
- electric motor supply: 24 VDC
- accessory power supply: 24 V DC / 1200 mA
- maximum power consumption: 40 W
- minimum distance behind the wing: 160 mm
- maximum hinge offset: 183mm
- power supply for external lighting: 500 W max. halogen
- drive force: 2000 N
- working range: 465 mm
- open time to 90 °: 10 to 34 seconds (depending on installation)
- Number of storable remote control devices: max. 40 channels
- working temperature: -20 ° C to +60 ° C
- security class: IP 44
