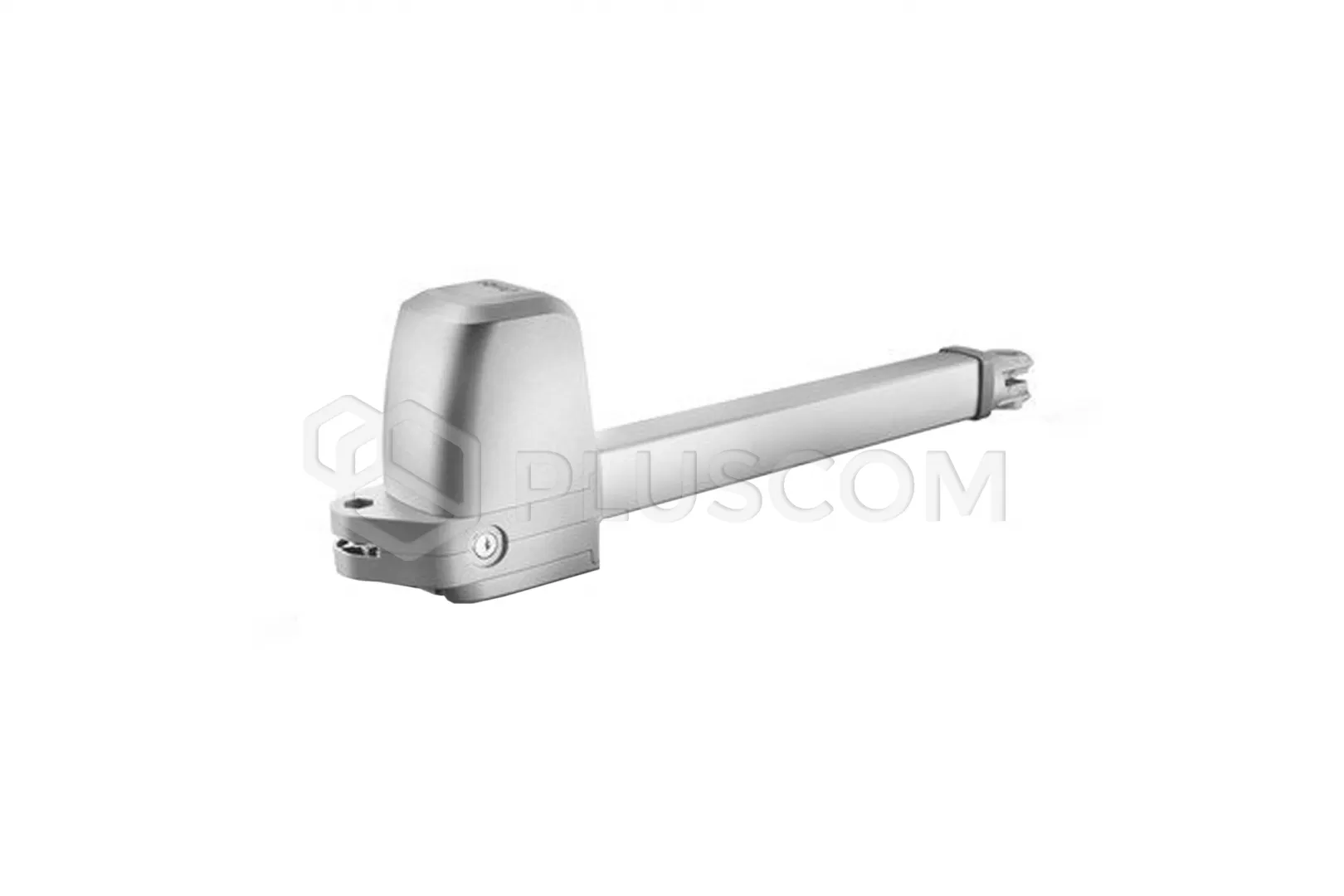

Somfy 1216548 IXENGO JS 230V RTS Right drive for gates up to 350 kg

341,26 EUR including 23.00% VAT
Product code: #24419
Manufacturer: Somfy
  • Gate weight: 350kg, length: to 3m
  • 230V motor
  • Non-retractable mechanism
  • Button for self-learning and remote control programming
  • 12 switches for advanced settings
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Somfy 1841233 Master Pro Bitech photocell set (NC, NO) Somfy 1216549IXENGO JS 230V RTS Left drive for gates up to 350 kg

Somfy IXENGO JS 230V RTS Right drive for gates up to 350 kg (1216548)


Ixengo JS 230V RTS is a drive for swing gates with a wing weight of up to 350 kg or 3m long. One-way technology ensures comfort and reliable operation RTS and the freedom to expand with Somfy accessories, such as lamps or photocells.
The wicket function or the soft stop function increase safety use of the gate.

Installing the actuator is quick and easy. Intuitive Fix & Go app for easy and successful mounting of the drive, ensuring optimized performance operational. In addition, the non-retractable mechanism provides a very high resistance to strong wind pressure and force-opening tests.

The most important features of the drive include:
  • easy and safe to disengage with individual key
  • soft closing of the gate
  • adjustable torque value
  • adapted to the small space behind the wing
  • electronic limit switches

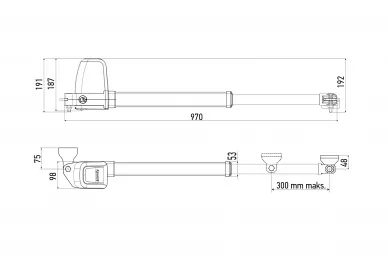

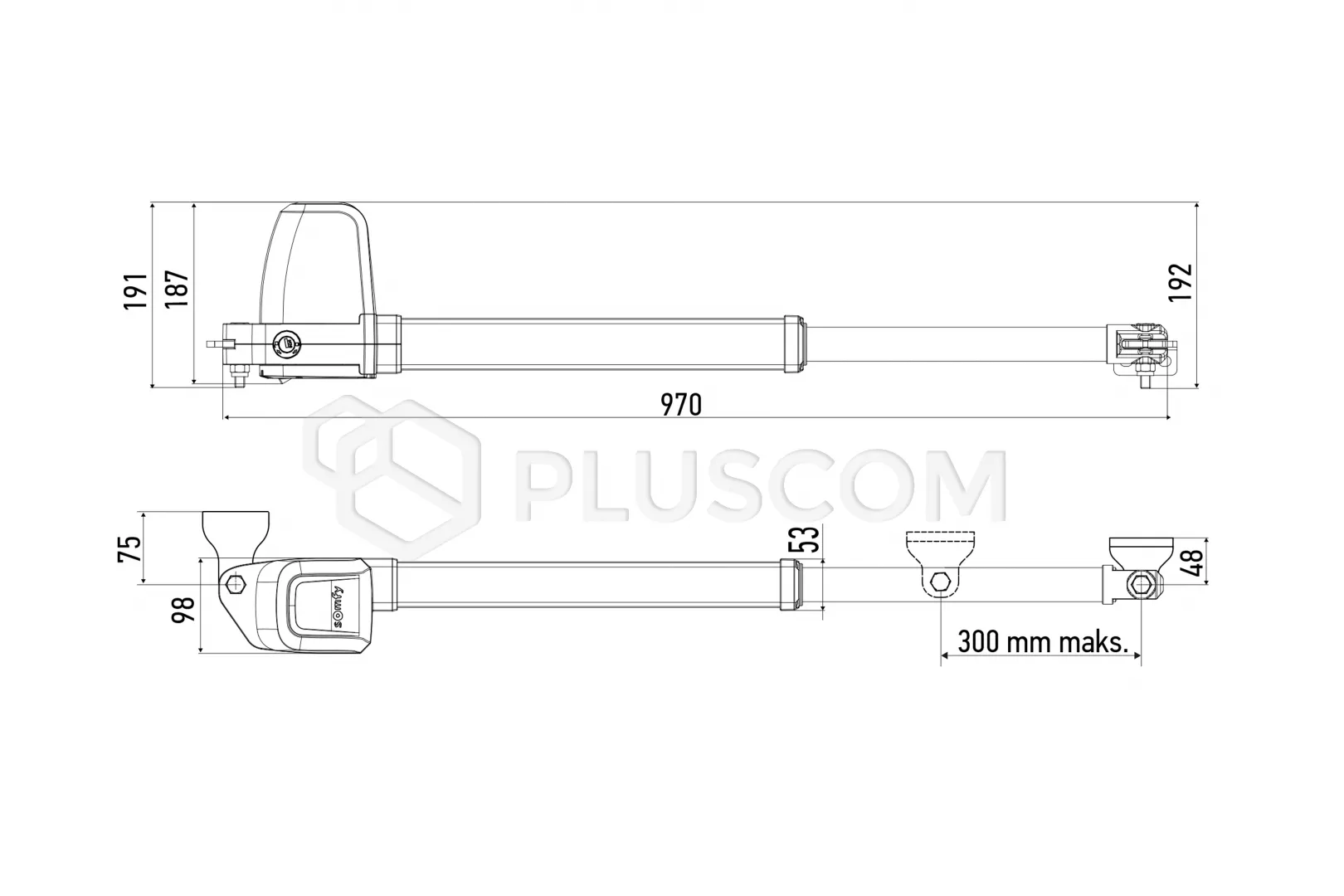

Dimensions:

Dimensions:


TECHNICAL DATA
  • main power: 220-230 V - 50 Hz
  • motor power supply: 230V
  • accessory power supply: 24 V DC / 360 mA
  • power supply for external lighting: 230V - 60W
  • maximum power consumption: 120 W
  • minimum distance behind the sash: 160 mm
  • maximum hinge offset: 183mm
  • drive force: 2000 N
  • working range: 480 mm
  • opening time to 90 °: 15 to 30 seconds (depending on installation)
  • number of storable remote control devices: max. 128 channels
  • radio frequency: 433.42MHz
  • working temperature: -20 ° C to +60 ° C
  • security class: IP 44
