Somfy 1216501 Axovia 220B RTS Standard pack Set

709,73 EUR including 23.00% VAT
Product code: #24429
Manufacturer: Somfy
  • Maximum leaf length 2m
  • Maximum leaf weight 200kg
  • Power supply/Motor 230V/24V
  • 2 Keygo 4-channel remote controls, antenna
  • For intensive work
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Somfy 9001001 backup battery Somfy 2400487 Emergency gate opener for Axovia 220 Somfy 2400485 Fixing plates for unequal posts Somfy 9015965 Solar/Photovoltaic kit

Somfy Axovia 220B RTS Standard pack, set for weight swing gates 200kg per gate leaf (1216501)

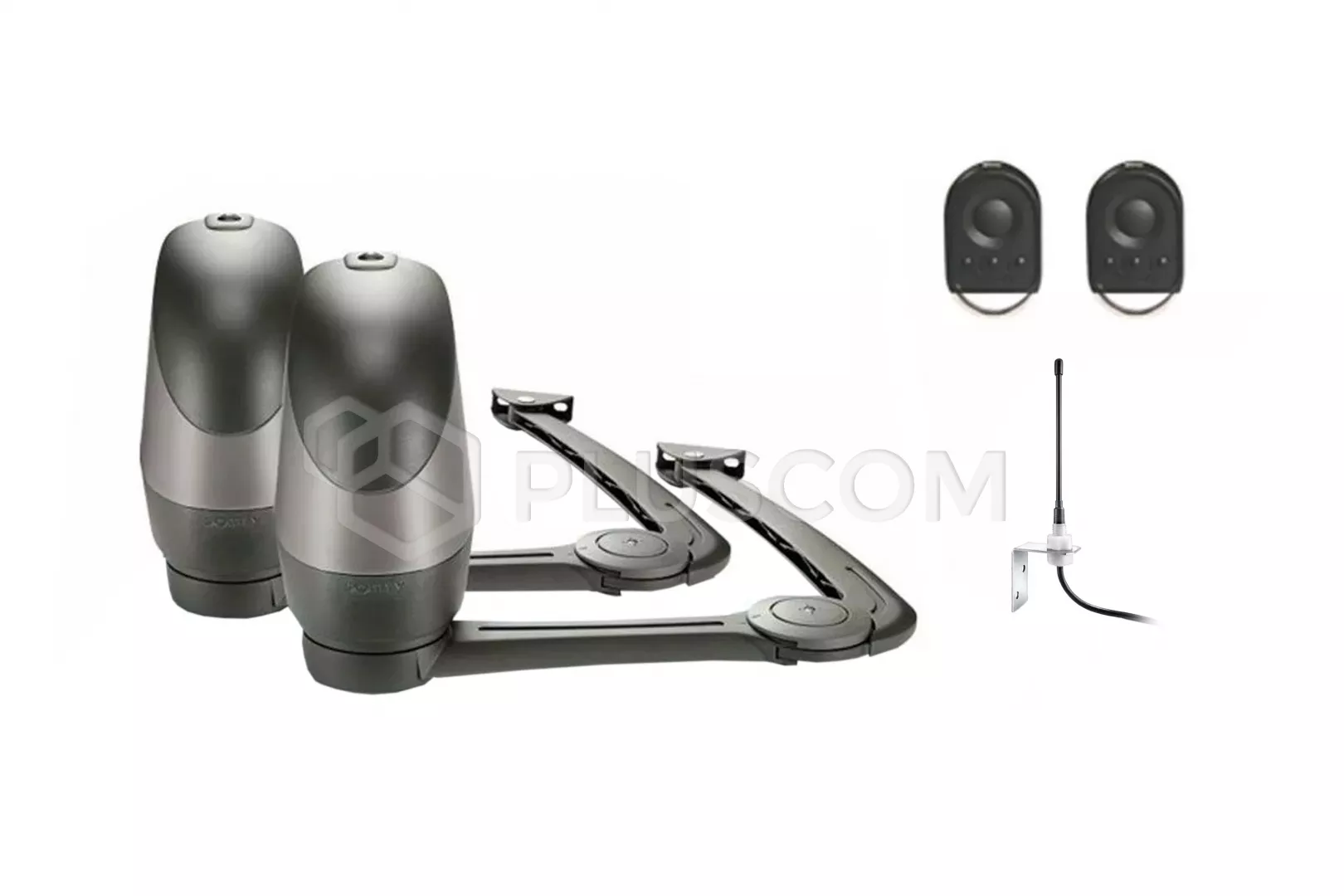

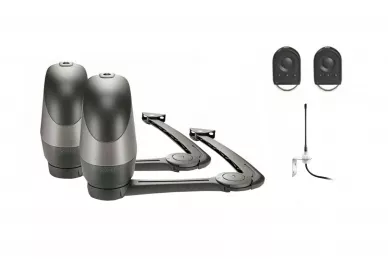

PACKAGE CONTAINS
  • 24 V DC actuator Axovia 220B RTS - 2pcs
  • Keygo 4 RTS 4-channel remote control - 2 pcs
  • external RTS antenna
Somfy Axovia 220B RTS Standard pack

Somfy Axovia 220B RTS Standard pack
Crooked arm actuators for swing gates with a leaf length up to 2m and weight up to 200kg. Axovia 220B RTS Standard pack is a universal set, which is characterized by high-quality workmanship, as well as wide possibilities.
Built-in electronics reduce startup time and using only remote control, the drive is ready for operation in 2 minutes. It has easy positioning marginal. Limit switches built into the arms eliminate the need fixing the bumpers in the ground and after the test movement of the door leaves, no additional settings need to be made.

In case of installation in places that are difficult to access for the lead power cables, the drive can be connected to the solar panel.

The most important features of the drive include:
  • short opening time: 90 ° in 10 sec.
  • self-locking arms - withstand strong wind pressure and trials forcing opening
  • manual unlock
  • can be installed in the emergency power drive as a kit batteries
  • soft closing of the gate
  • the natural way of opening the gate without straining it construction
  • automatic closing of the gate after a certain period of time
  • opening one leaf for pedestrians, wired or controlled wirelessly

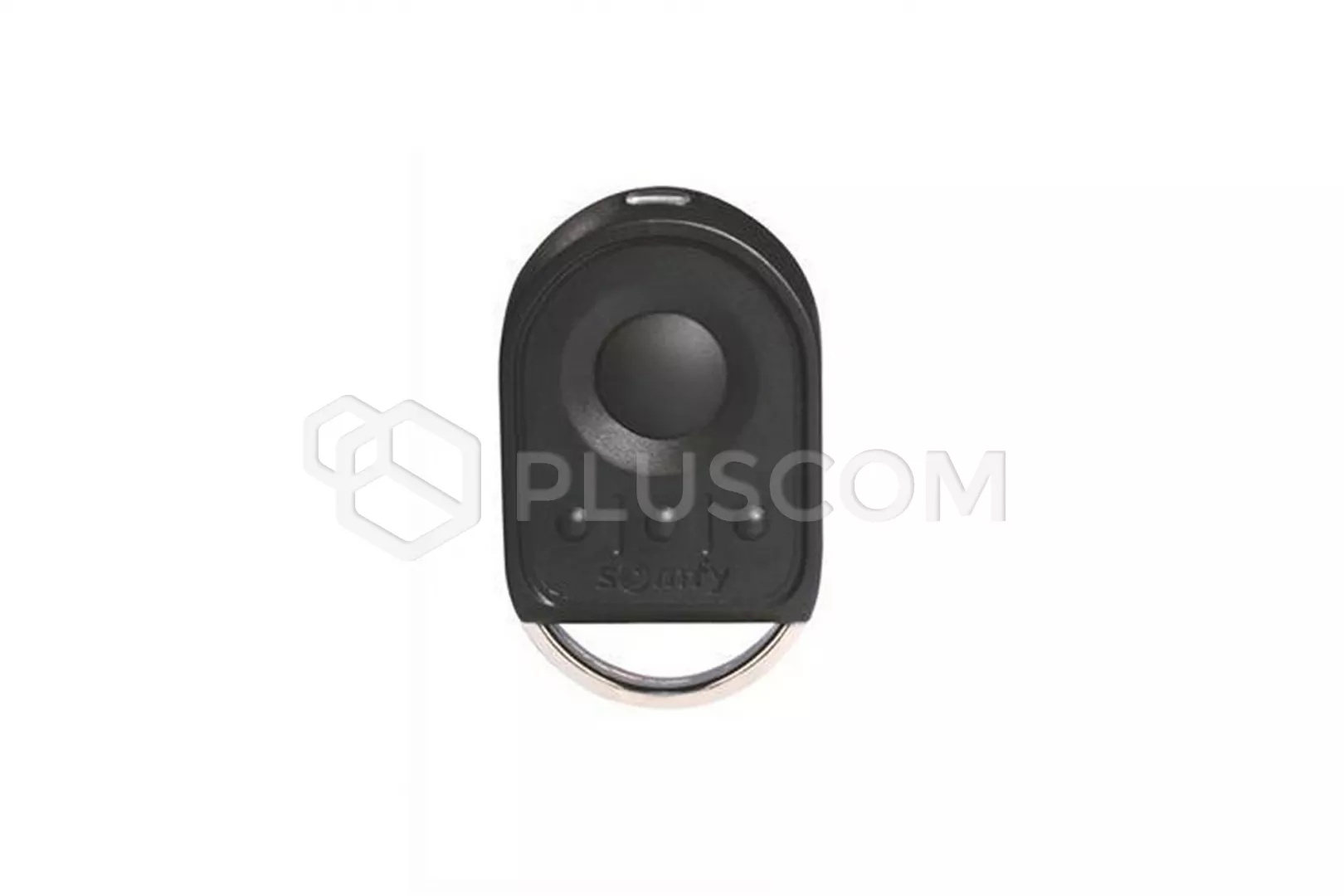

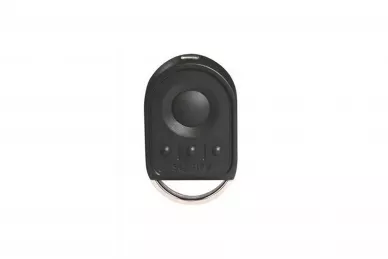

The kit includes two 4-channel Keygo 4 RTS remote controls . It's resistant to moisture and damage to the device. The large central button is easy to use pressed without looking at the remote control.

Remote specification
  • number of channels: 4
  • frequency: 433.4MHz
  • radio range: 30 m
  • power supply: 3 V - CR2430 battery
  • battery life: 2 years
  • dimensions: 59 x 35 x 14 mm
  • working conditions: -20 ° C to + 70 ° C
  • protection class: IP30
Keygo 4 RTS 4-channel remote control

Keygo 4 RTS 4-channel remote control

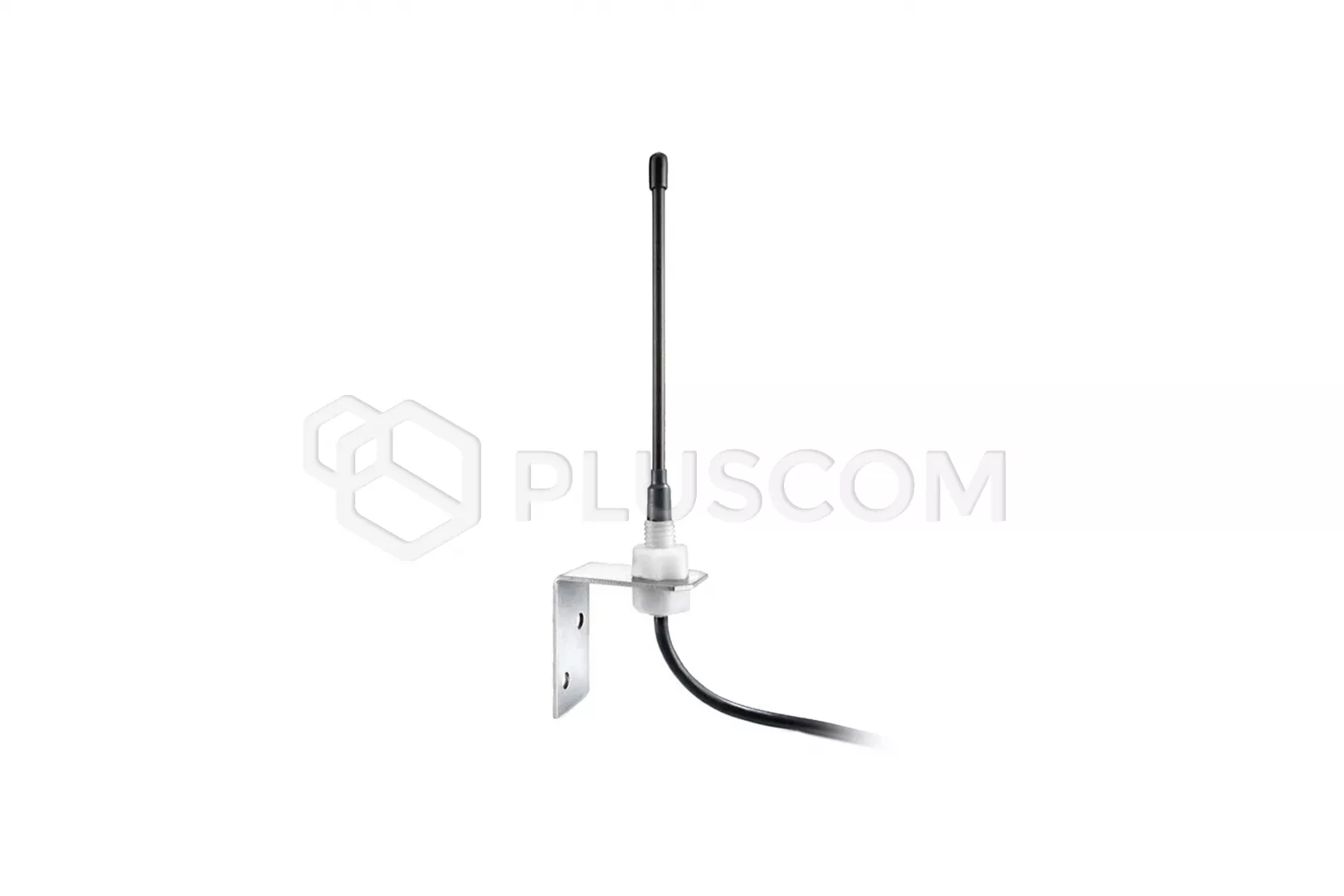

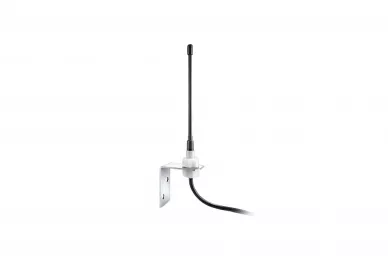

The external RTS antenna is on a shielded coaxial cable o 8m long.
External RTS antenna

External RTS antenna


TECHNICAL DATA OF THE ACTUATOR 569 / 5000 Wyniki tłumaczenia
  • main power: 220-230 V - 50-60 Hz
  • electric motor supply: 24 VDC
  • accessory power supply: 24 V DC / 1A
  • maximum power consumption: 130 W
  • minimum distance behind the sash: 490 mm
  • maximum hinge offset: 250 mm
  • lighting: 500 W max. halogen
  • opening time to 90 ° 10 seconds
  • Number of storable remote control devices: max. 32 channels
  • working temperature: -20 ° C to +60 ° C
  • security class: IP 44
