Somfy 1216499 Axovia MultiPro 3S RTS 24V- 2 drives, without a control panel

1084,48 EUR including 19.00% VAT
Product code: #24433
Manufacturer: Somfy
  • Maximum leaf length 2.5m
  • Maximum leaf weight 300kg
  • Power supply/Motor 230V/24V
  • Aluminum die-cast stops
  • A wide range of different arms
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Somfy 9001001 backup battery Somfy 9014360 Narrow post mounting kit Somfy 9019902 Axovia MultiPro 460mm motor arm Somfy 9019901 Axovia MultiPro 360mm motor arm Somfy 9019900 Axovia MultiPro 260mm motor arm Somfy 9019893 Sliding arm for gates that open up to 150 degree Somfy 9019898 long arm Axovia MultiPro 820mm Somfy 9019899 Axovia MultiPro gate handle

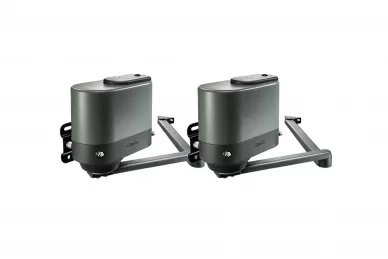

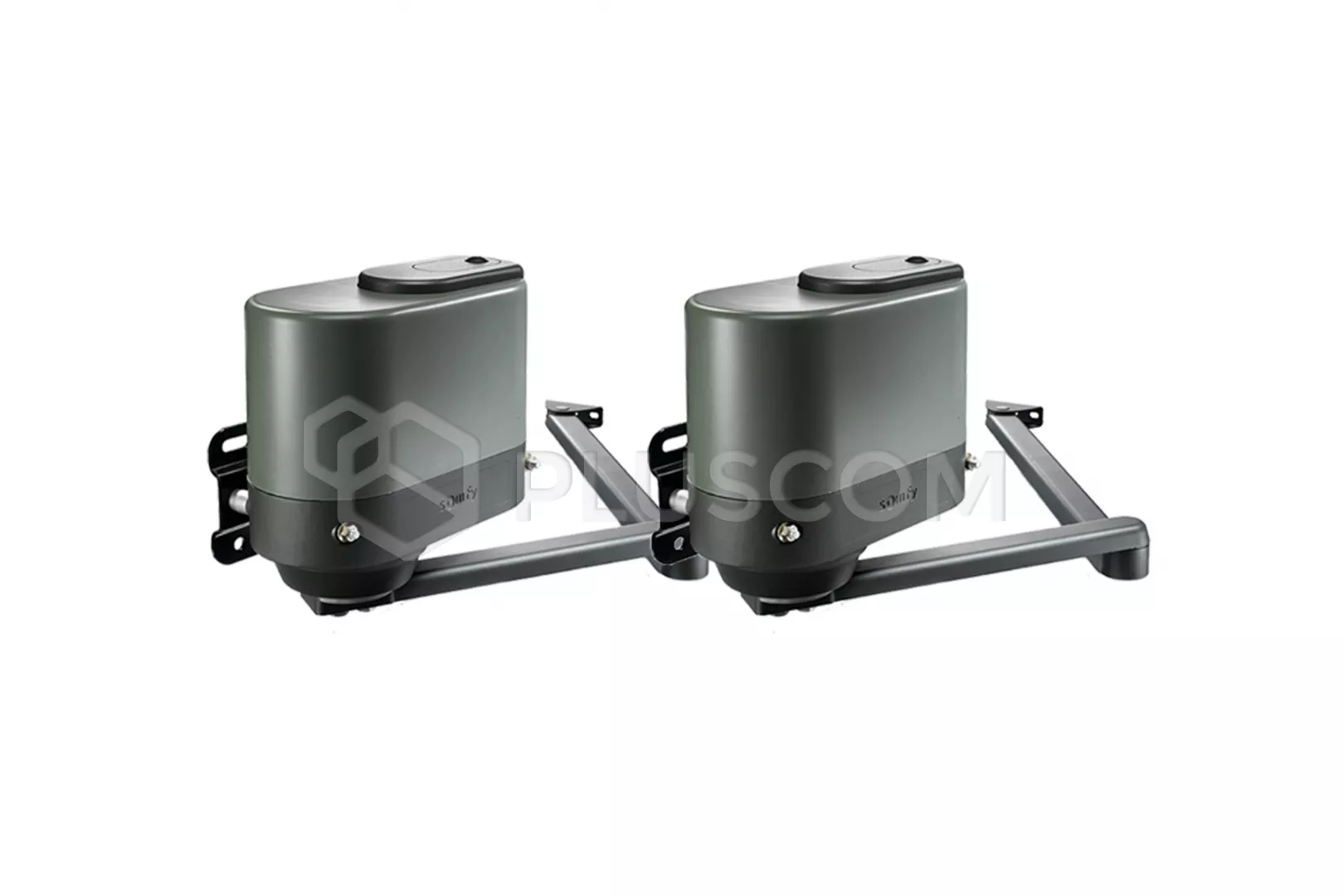

Somfy Axovia MultiPro 3S RTS 24V - 2 drives for swing gates with a weight of 300 kg per gate leaf (without the control unit) (1216499)


Crooked arm actuators for swing gates with a leaf length up to 2.5 m and weight up to 300 kg.Axovia MultiPro 3S RTS 24V is a drive that is characterized by quick and intuitive installation handling.
Limit switches built into the arms eliminate the need to attach bumpers in the ground.

In case of installation in places that are difficult to access for the lead power cables, the drive can be connected to the solar panel.

The most important features of the drive include:
  • short opening time: 90 ° in 15 sec.
  • self-locking arms - withstand strong wind pressure and trials forcing opening
  • manual unlock
  • aluminum die-cast stops
  • reinforced aluminum collar
  • can be installed in an emergency power drive
  • soft closing of the gate
  • the natural way of opening the gate without straining it construction
For Axovia MultiPro 3S actuators a wide range of different arms for special applications is available which are used for:
  • opening on slopes up to 20%
  • outward opening
  • wide opening up to 150 °
  • low space installation behind the wing
The different lengths of the arms allow a perfect adaptation to the specific installation.
Somfy Axovia MultiPro 3S RTS 24V- 2 drives, without a control panel

Somfy Axovia MultiPro 3S RTS 24V- 2 drives, without a control panel


TECHNICAL DATA OF THE ACTUATOR
  • main power: 220-230 V - 50-60 Hz
  • electric motor supply: 24 VDC
  • accessory power supply: 24V DC / 1200mA
  • maximum power consumption: 130 W
  • minimum distance behind the leaf: 450 mm
  • maximum hinge offset: 400mm
  • lighting: 500 W max. halogen
  • opening time up to 90 ° 15 seconds
  • Number of storable remote control devices: max. 40 channels
  • working temperature: -20 ° C to +60 ° C
  • security class: IP 44
