Somfy Axovia MultiPro 3S RTS 24V Comfort pack, set for swing gates with a
weight of 300 kg per gate leaf (1216497)

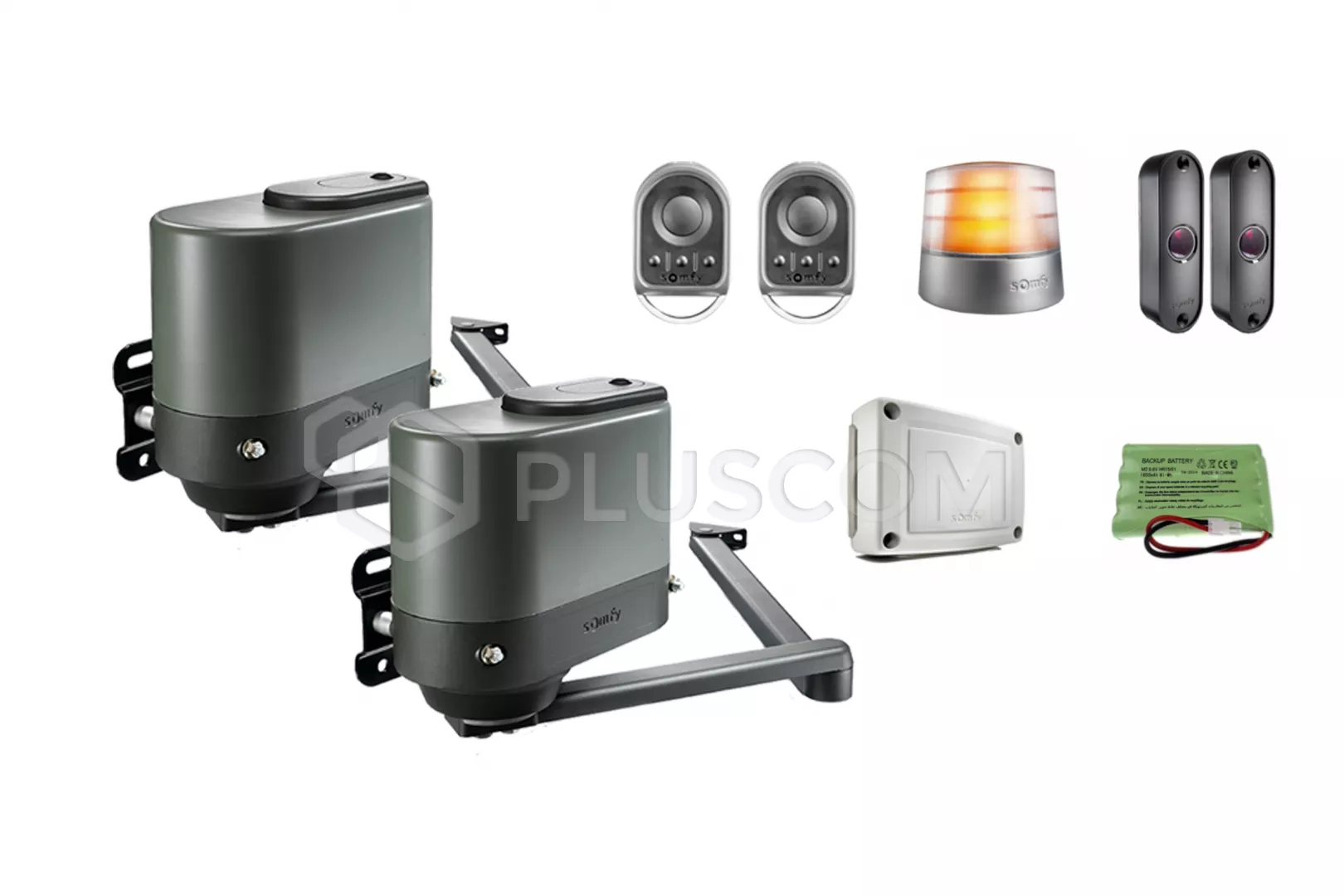

PACKAGE CONTAINS
- Axovia MultiPro RTS actuator with standard arm - 2pcs
- Keygo 4 RTS 4-channel remote control - 2 pcs
- 3S RTS switch
- Master Pro 24V lamp with built-in antenna
- set of Master Pro photocells - Bitech
- buffer battery
|
Somfy Axovia MultiPro 3S RTS 24V Comfort pack
|
Crooked arm actuators for swing gates with a leaf length up to 2.5 m
and weight up to 300 kg. Axovia MultiPro 3S RTS 24V Comfort pack to universal
set, which is characterized by quick and intuitive installation handling.
Limit switches built into the arms eliminate the need to attach bumpers in the
ground.
In case of installation in places that are difficult to access for the lead
power cables, the drive can be connected to the solar panel.
The most important features of the drive include:
- short opening time: 90 ° in 15 sec.
- self-locking arms - withstand strong wind pressure and trials forcing
opening
- manual unlock
- aluminum die-cast stops
- reinforced aluminum collar
- can be installed in an emergency power drive
- soft closing of the gate
- the natural way of opening the gate without straining it
construction
For Axovia MultiPro 3S actuators a wide range of different arms for
special applications is available which are used for:
- opening on slopes up to 20%
- outward opening
- wide opening up to 150 °
- low space installation behind the wing
The different lengths of the arms allow a perfect adaptation to the
specific installation.

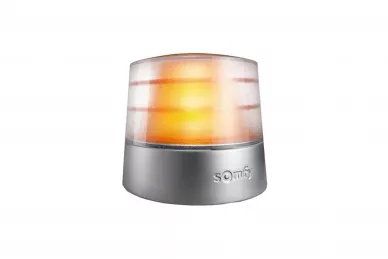

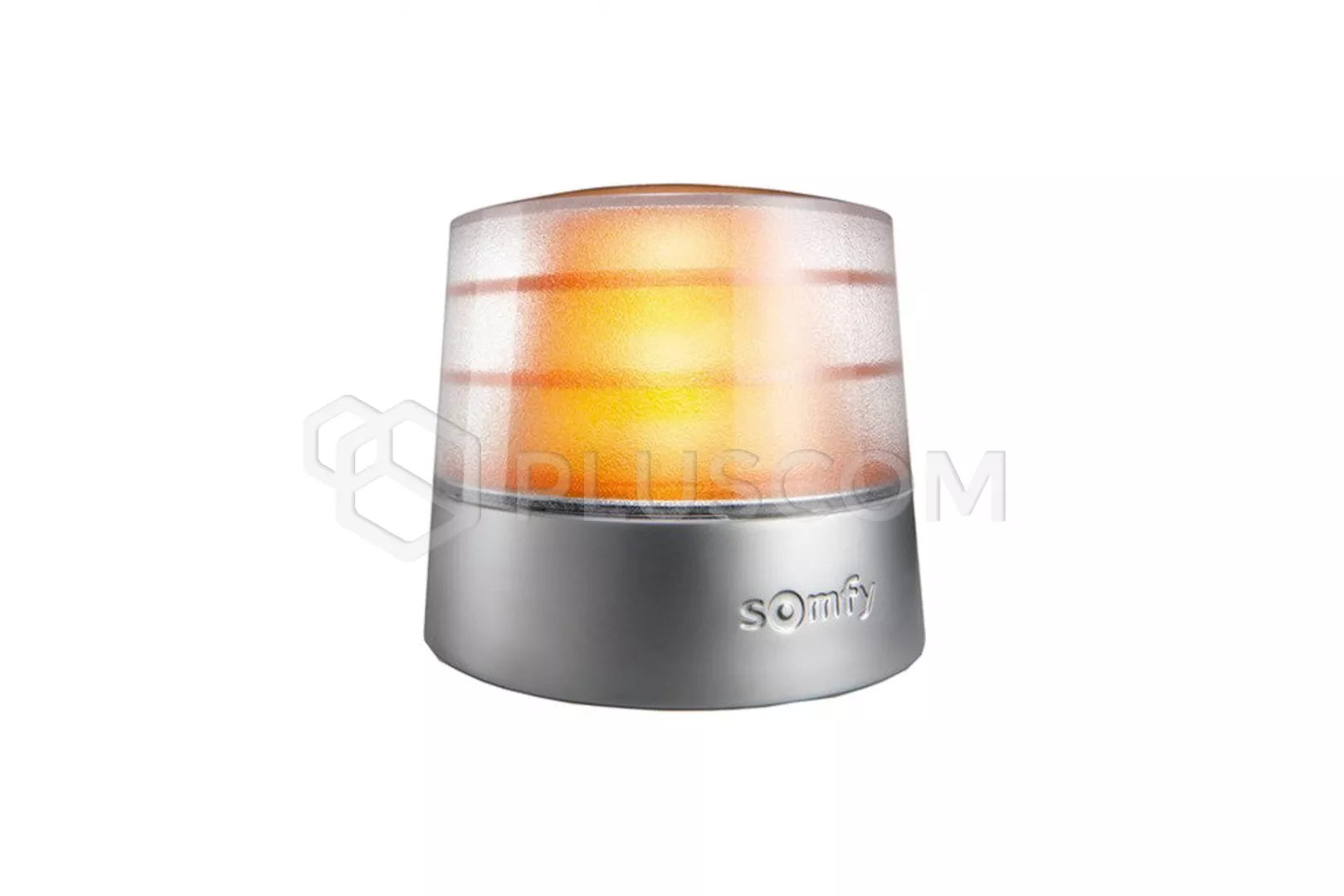

Orange Master Pro lamp signals the movement of the entrance gate. It has
a bright orange light, class III insulation.
Specification:
- power: 15 W
- power supply: 24V
- flashing management: controlled from the drive control panel
- integrated antenna: RTS 433.42MHz
- electrical insulation class: class III
- dimensions: 92 x 107 mm
- working conditions: -20 ° C to + 60 ° C
- protection class: IP 54
|
Master Pro 24V lamp
|

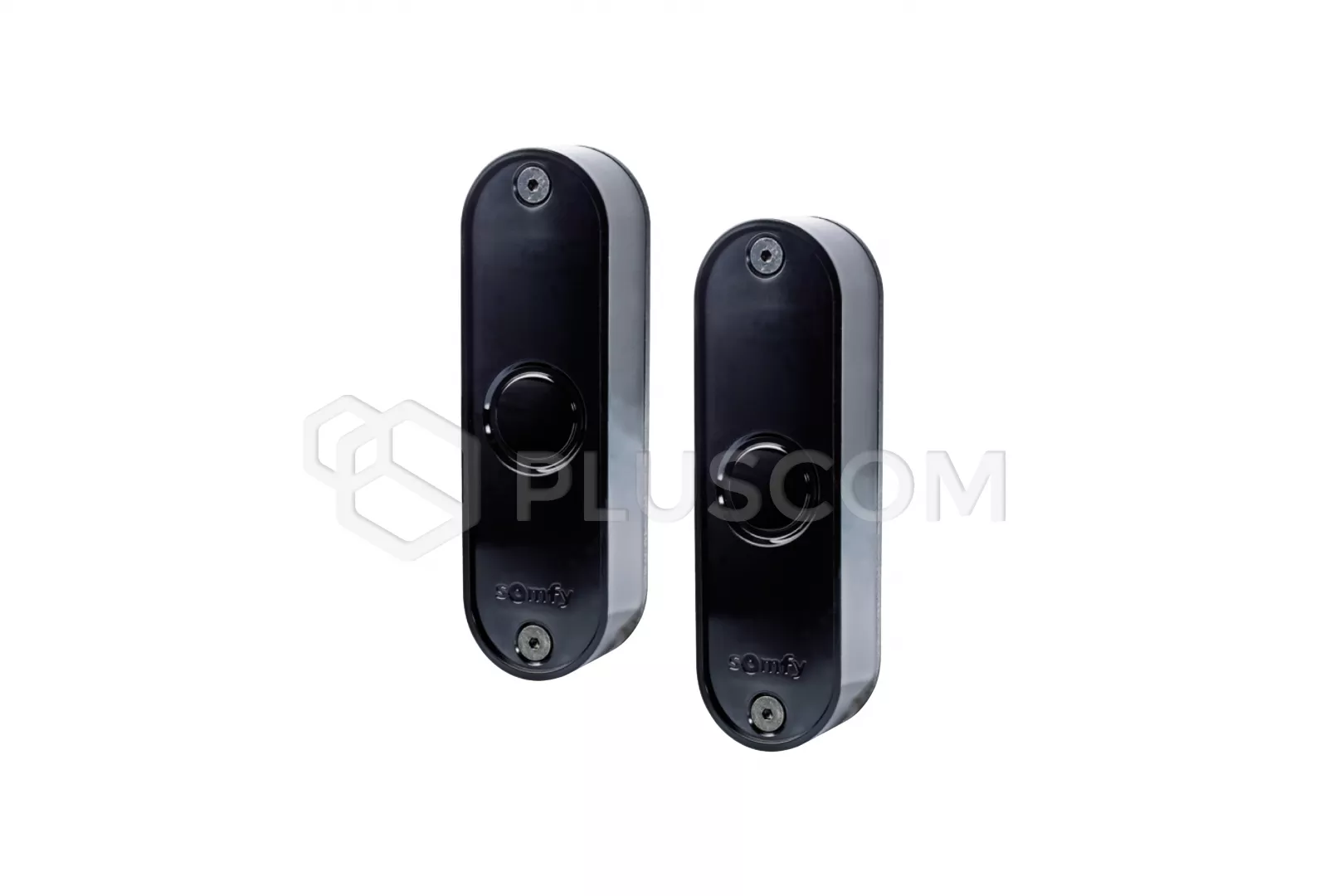

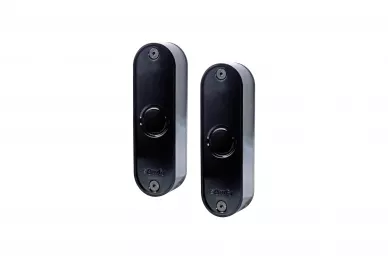

Master Pro photocells - Bitech are discreet devices for obstacle
detection when closing / opening the gate. They have as standard narrow
housing, which can be additionally equipped with a metal cover for additional
protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10m
- contacts: NO– NC
- self-test input: no
- power supply: 24 V AC / DC
- contact load: 1 A
- power cord type: H05 RR-F 4 x 0.75 mm2
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|
Master Pro photocells - Bitech
|

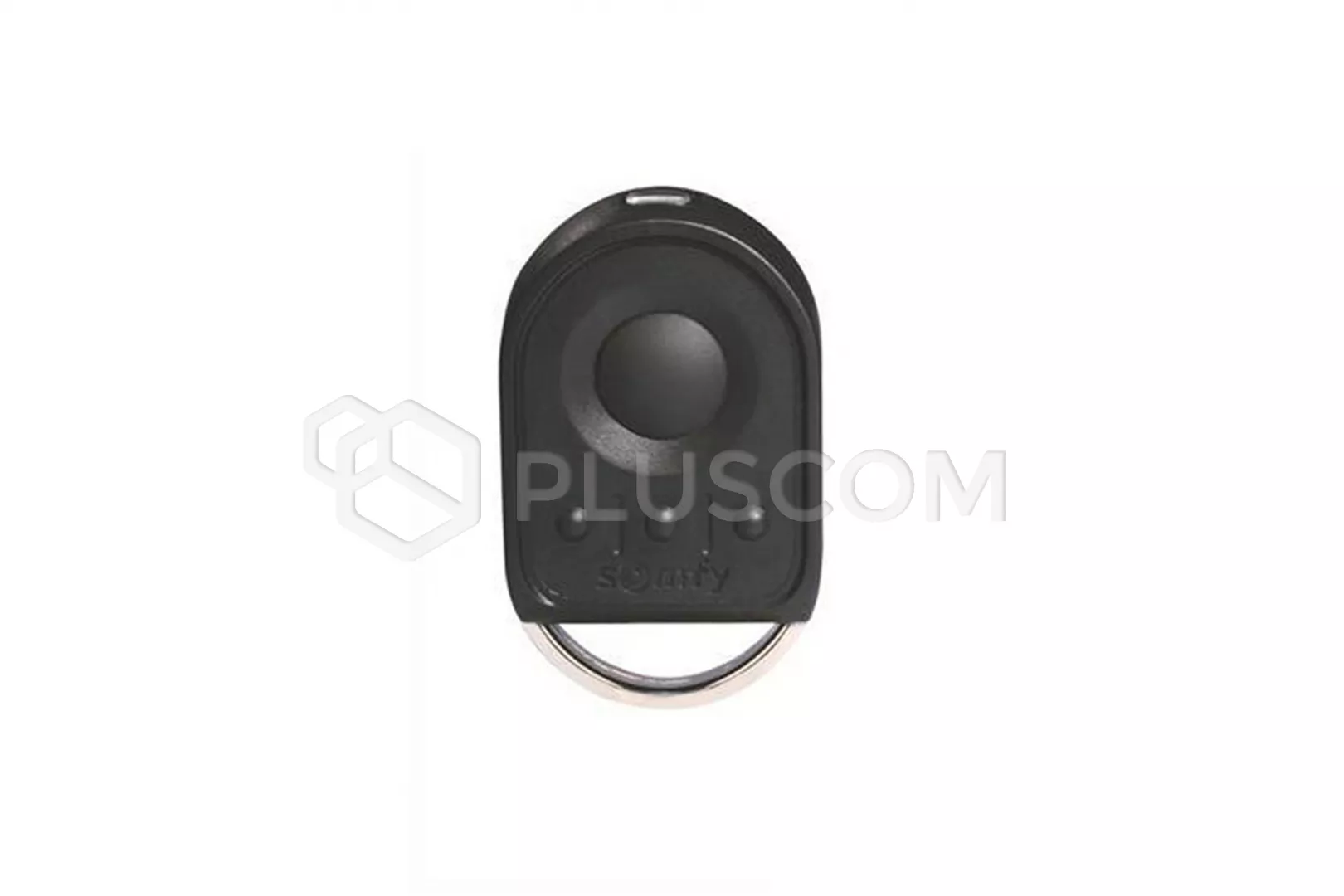

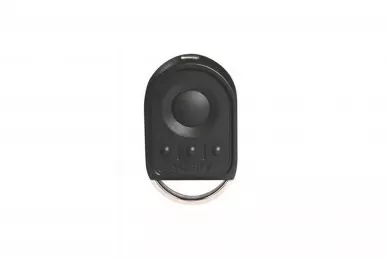

The kit includes
two 4-channel Keygo 4 RTS remote controls .
It's resistant to moisture and damage to the device. The large central
button is easy to use pressed without looking at the remote control.
Remote specification
- number of channels: 4
- frequency: 433.4MHz
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 59 x 35 x 14 mm
- working conditions: -20 ° C to + 70 ° C
- protection class: IP30
|
Keygo RTS 4-channel remote control
|
The drive is controlled by the 3S RTS switch, which can control
both one and two actuators. The control panel is ready for operation in 2
minutes all settings are pre-programmed.
It has the ability to select parameters for non-standard work. It has a wide
variety connection to the control panel of safety accessories and the
possibility of connection zone illumination (e.g. Halogen 500W).
The control panel menu is intuitive. Multi-colored marking of the connection
bones cables, eliminating errors in connection and the programming system
prevents making mistakes.
The operating status of the drive, error codes and drive malfunctions are
displayed in real time. It also displays the number of work cycles, reports,
etc.
PANEL SPECIFICATION
- Mains power: 230V - 50Hz
- Power: 800 W (with 500 W lighting)
- 7-button programming interface: 3-character LCD
- RTS radio frequency: 433.42MHz
- Number of storable remote control devices: max. 40 channels
- Degree of protection: IP 44
- Working conditions: -20 ° C to + 60 ° C
TECHNICAL DATA OF THE ACTUATOR
- main power: 220-230 V - 50-60 Hz
- electric motor supply: 24 VDC
- accessory power supply: 24V DC / 1200mA
- maximum power consumption: 130 W
- minimum distance behind the leaf: 450 mm
- maximum hinge offset: 400mm
- lighting: 500 W max. halogen
- opening time up to 90 ° 15 seconds
- Number of storable remote control devices: max. 40 channels
- working temperature: -20 ° C to +60 ° C
- security class: IP 44
