Somfy 1216452 Elixo 500 230V RTS Eco Comfort Pack

Somfy Elixo 500 230V RTS Eco Comfort Pack, set for sliding gates o weight 500kg (1216452)

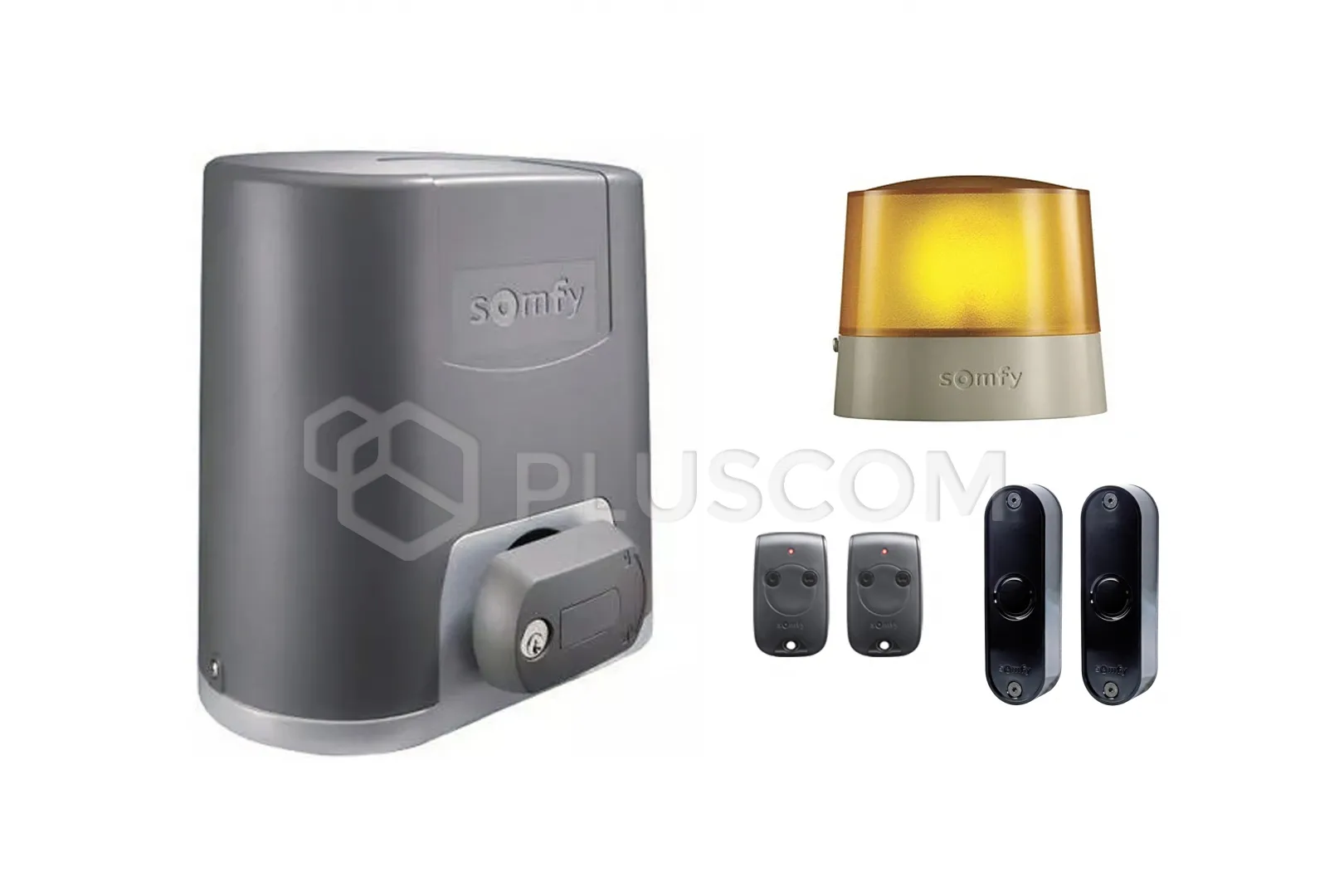

PACK INCLUDES Elixo Elixo 500 230V actuator with built-in CB 230 control panel Keytis RTS 2-channel remote - 2pcs Eco Pro warning light Somfy 1841233 Master Pro Bitech photocell set (NC, NO) mounting template

Somfy Elixo 500 230V RTS Eco Comfort Pack

ELIXO 500 230V RTS Standard Pack is a ready set for automation Gates. Users praise it for its durability, functionality and ease installation.

The actuators are optimized for most installations. We can set anything expand it with accessories from Somfy's offer, adding lamps or photocells, thus increasing the safety of the gate's use.

The most important features of the drive include:

• up to 100 cycles a day for a gate weighing 500 kg and 8 meters long
• speed: 8.5m / min
• soft closing of the gate
• with the key, easy to unlock and open the gate from outside
• wicket function
• quiet running

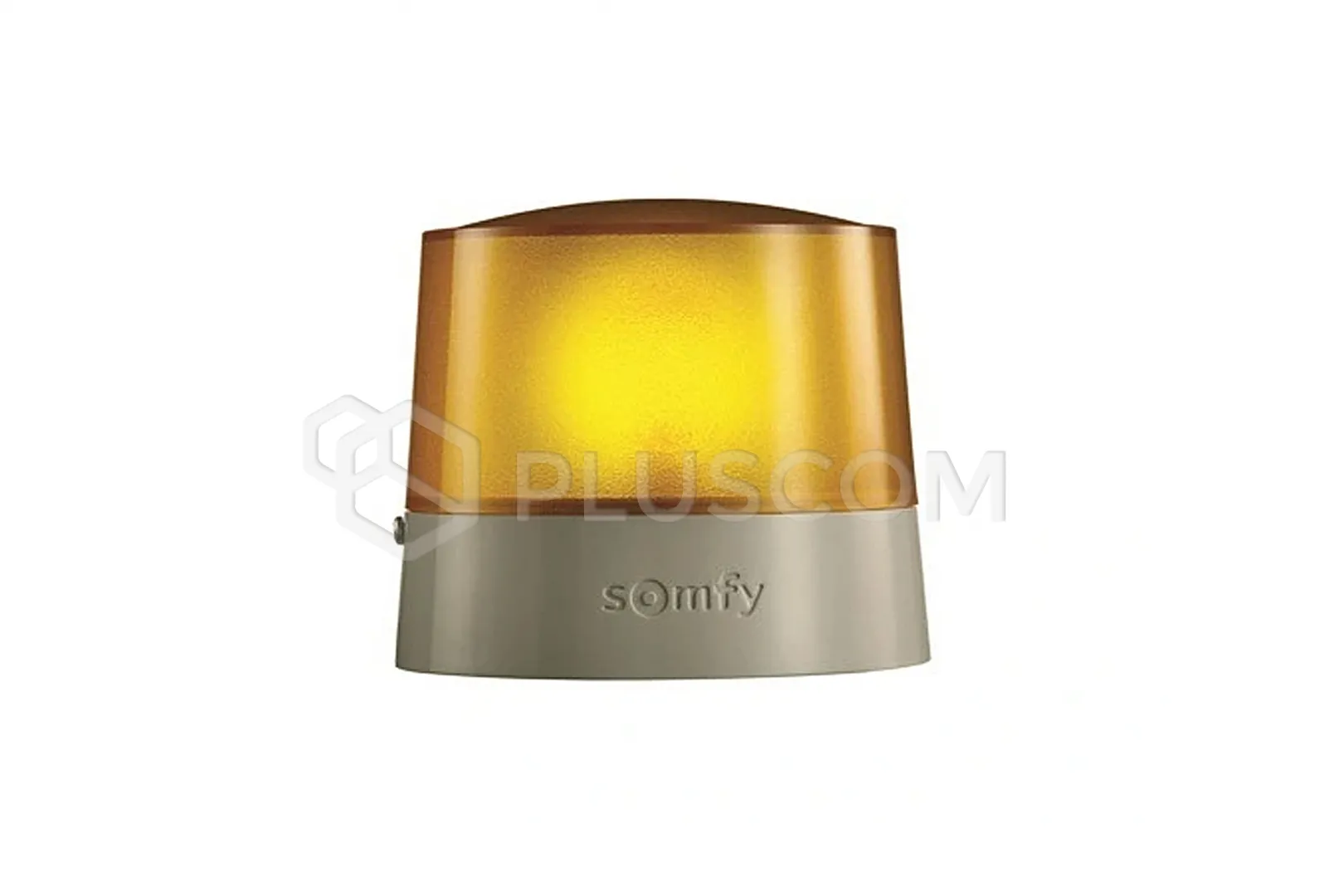

Orange Eco Pro lamp , signals the movement of the entrance gate. It has a bright orange light, class II insulation.

Specification: power: 25 W power supply: 230V flashing management: by orange lamp electrical insulation class: class II dimensions: 92 x 107 mm working conditions: -20 ° C to + 60 ° C protection class: IP 54

Eco Pro sygnaling lamp

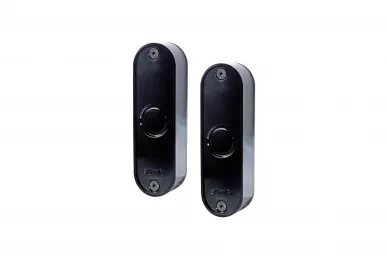

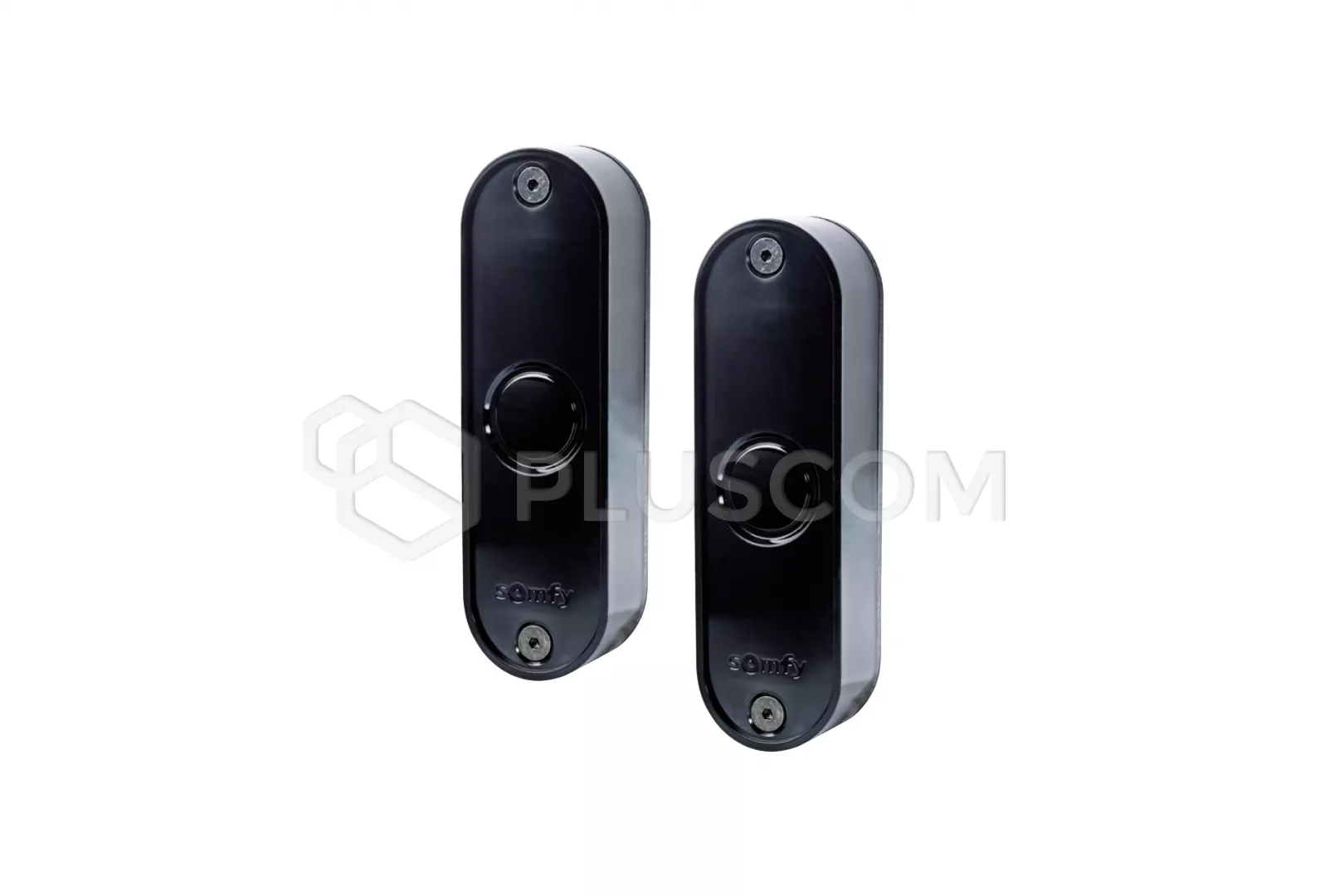

Master Pro - Bitech photocells are discrete devices for obstacle detection when closing / opening the gate. They have as standard narrow housing, which can be additionally equipped with a metal cover for additional protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to 10 meters.

Specification: range: 10m self-test input: no power supply: 24 V AC / DC contact load: 1 A electrical insulation class: Class III dimensions: 120 x 38 x 26 mm working temperature: -20 ° C to +60 ° C protection class: IP 54

Photocells Master Pro - Bitech

TECHNICAL DATA OF THE ACTUATOR

• main power: 230 V - 50 Hz
• electric motor power supply: 230 VDC
• accessory power supply: 24 V DC / 200 mA
• maximum power consumption: 290 W
• gate speed: 8.5m / min
• RTS control radio frequency: 433.42Mhz
• max. current consumption: 1.5A
• capacitor: 10 μF
• maximum torque: 20Nm
• automatic closing time: between 0 and 90 seconds
• runtime: between 0 and 120 seconds
• pedestrian crossing opening time: 7 seconds (fixed time)
• number of programmable remotes: 36
• working temperature: -20 ° C to +60 ° C
• security class: IP 24
• dimensions: 236x263x163mm
• weight: 15kg
