Somfy 1216450 Elixo 500 230V RTS Comfort Pack

Somfy Elixo 500 230V RTS Comfort Pack, set for sliding gates o weight 500kg (1216450)

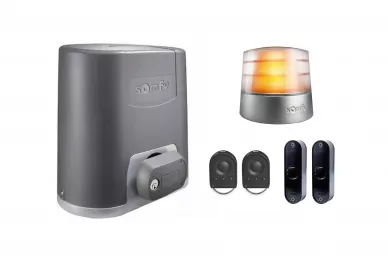

PACK INCLUDES Elixo Elixo 500 230V actuator with built-in CB 230 control panel Keygo RTS 4-channel remote controls - 2pcs Master Pro 230V warning light Somfy 1841233 Master Pro Bitech photocell set (NC, NO) Mounting template

Somfy Elixo 500 230V RTS Comfort Pack

ELIXO 500 230V RTS Standard Pack is a ready set for automation Gates. Users praise it for its durability, functionality and ease installation.

The actuators are optimized for most installations. We can set anything expand it with accessories from Somfy's offer, adding lamps or photocells, thus increasing the safety of the gate's use.

The most important features of the drive include:

• up to 100 cycles a day for a gate weighing 500 kg and 8 meters long
• speed: 8.5m / min
• soft closing of the gate
• with the key, easy to unlock and open the gate from outside
• wicket function
• quiet running

Orange Master Pro lamp , signals the movement of the entrance gate. It has a bright orange light, class I insulation.

Specification: power: 25 W power supply: 230V flashing management: circuit breaker in the lamp electrical insulation class: class I dimensions: 92 x 107 mm working conditions: -20 ° C to + 60 ° C protection class: IP 54

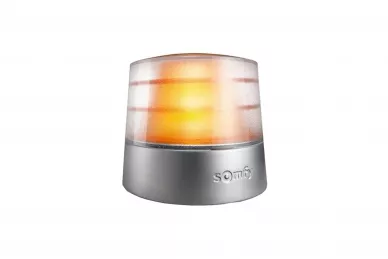

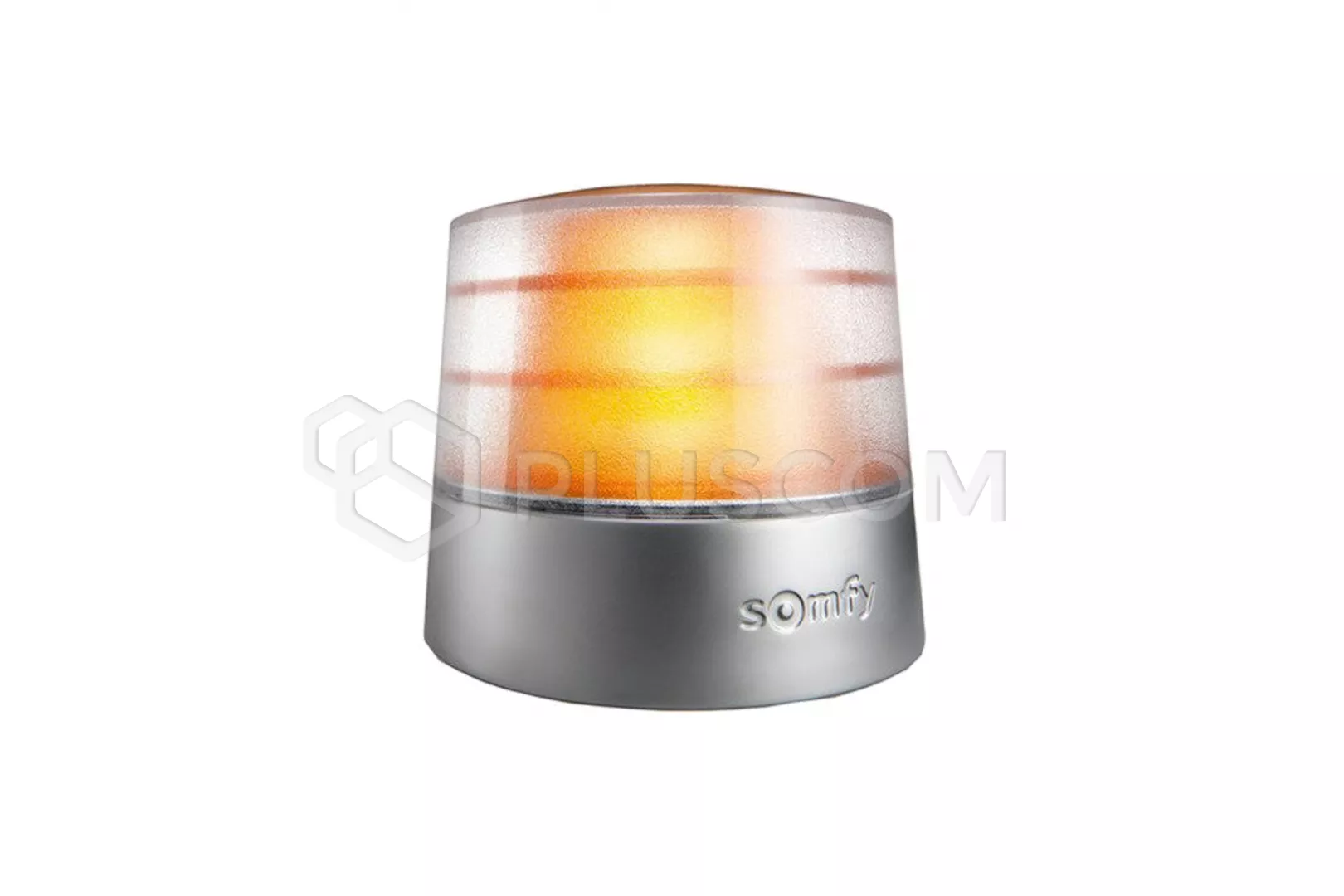

Master Pro 230V sygnaling lamp

Master Pro - Bitech photocells are discrete devices for obstacle detection when closing / opening the gate. They have as standard narrow housing, which can be additionally equipped with a metal cover for additional protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to 10 meters.

Specification: range: 10m self-test input: no power supply: 24 V AC / DC contact load: 1 A electrical insulation class: Class III dimensions: 120 x 38 x 26 mm working temperature: -20 ° C to +60 ° C protection class: IP 54

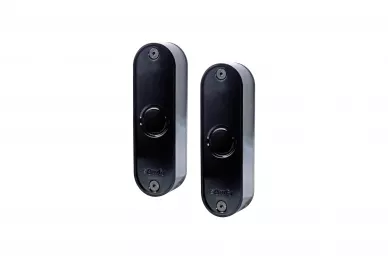

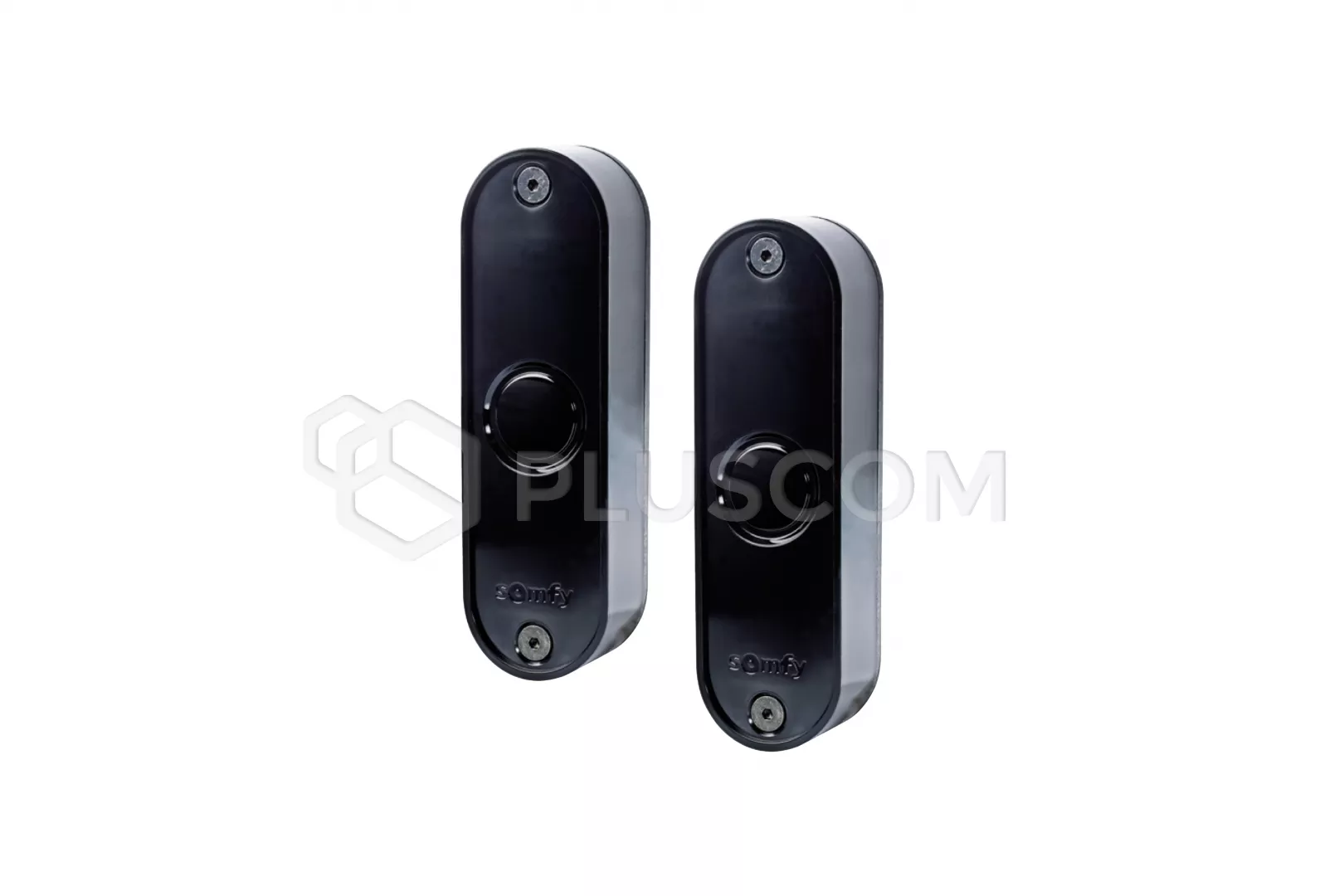

Photocells Master Pro - Bitech

The kit includes two 4-channel Keygo RTS remotes. It is a moisture and damage resistant device that we can use control up to 4 devices. Large central button easy to press without having to looking at the pilot.

Remote specification

• number of channels: 4
• frequency: 433.4MHz
• radio range: 30 m
• power supply: 3 V - CR2430 battery
• battery life: 2 years
• dimensions: 59 x 35 x 14 mm
• working conditions: -20 ° C to + 70 ° C
• protection class: IP30

TECHNICAL DATA OF THE ACTUATOR

• main power: 230 V - 50 Hz
• electric motor power supply: 230 VDC
• accessory power supply: 24 V DC / 200 mA
• maximum power consumption: 290 W
• gate speed: 8.5m / min
• RTS control radio frequency: 433.42Mhz
• max. current consumption: 1.5A
• capacitor: 10 μF
• maximum torque: 20Nm
• automatic closing time: between 0 and 90 seconds
• runtime: between 0 and 120 seconds
• pedestrian crossing opening time: 7 seconds (fixed time)
• number of programmable remotes: 36
• working temperature: -20 ° C to +60 ° C
• security class: IP 24
• dimensions: 236x263x163mm
• weight: 15kg
