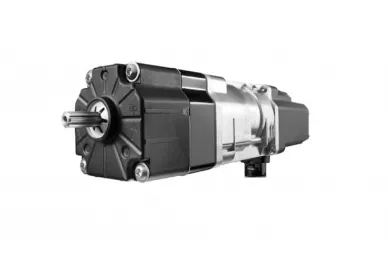

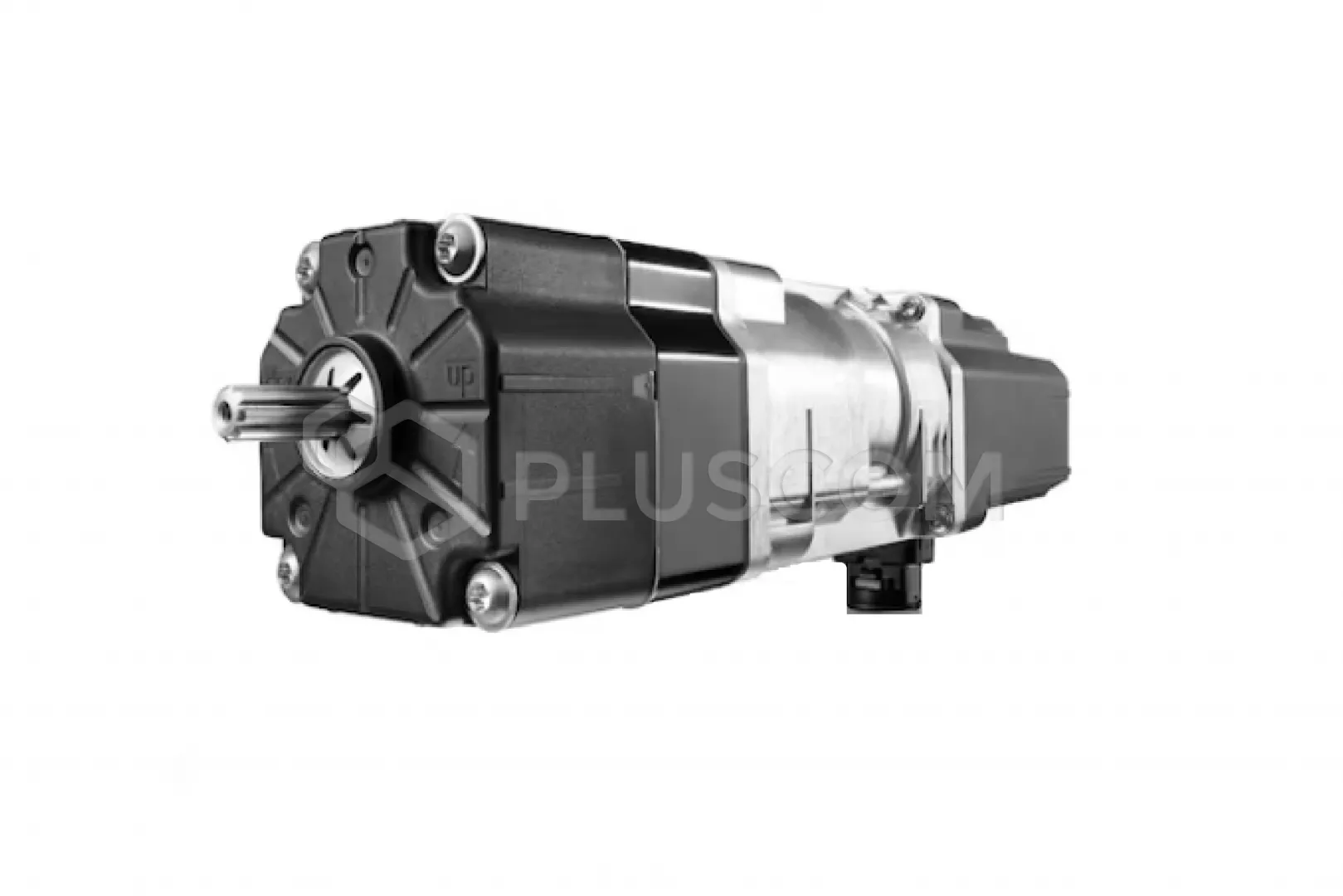

Somfy 1210680 J410 10/24 io Protect - io radio drive with detection and integrated radio receiver

SOMFY 1210680 J410 10/24 io Protect - io radio drive with detection and integrated radio receiver

Compact 230V drive with external io radio panel, for external blinds with slat adjustment. Works in the io-homecontrol system, a bidirectional data transmission system. Installation in a rail open from the bottom 58x51 mm, 58x56 mm using typical clamp holders. Installation in a top rail 57x51 mm, 58x56 mm, 78x67mm, 67x66 mm using typical clamp holders. Correction of both factory end settings is possible using the io remote control. Power supply via detachable cable with STS3 plug. Rotation of the slats using the scroll wheel on the remote control. Designed for horizontal operation. Can work automatically with a sun sensor. Maximum number of assigned io transmitters and sensors 9.

FEATURES:

• Platine io receiver integrated with the drive
• Electronic limit switch system
• Capacity of the limit switch system: 200
• Remote adjustment using the io-homecontrol transmitter
• Three radio frequency ranges 868 - 870 MHz with retransmission of the command up to 8 times
• Obstacle and ice detection with possible folding of the slats in the Up direction
• Automatic re-adjustment of the upper end position (Protect function can be activated or deactivated)
• Special controllers: Situo Variation io with scroll wheel to adjust the slat angle, Smoove Sensitive io (position 3: short press "slat adjustment", long press "Up/Down"), compatible with Nina and Nina Timer
• Maximum number of control points and sensors: 9

Technical data:

• Rated voltage: 230 V - 50 Hz
• Supply voltage tolerance: 50Hz 195.5V- 255 V
• Protection against electric shock: Class I
• Noise level: 55 dB
• Protection class: IP 54
• Limit switch type: Two-way radio and electronic limit switch with preset and adjustable lower and upper limit positions
• Power: 110 W
