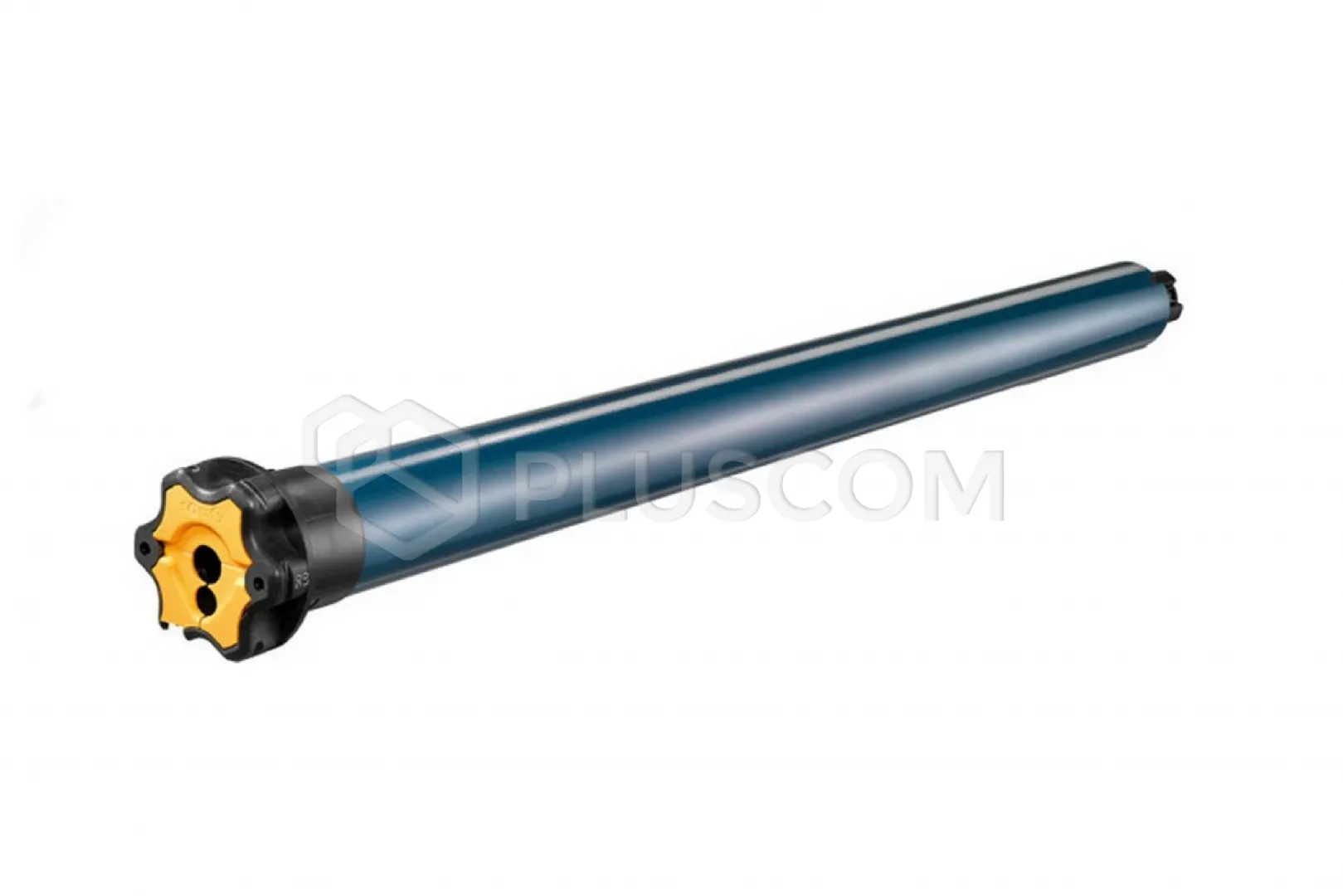

Somfy 1187012 Altus RS 60 io 55/17 VVF 5m drive

SOMFY 1187012 Altus RS 60 io 55/17 VVF 5m drive

Somfy Altus RS IO is an intelligent roller shutter drive system that is radio-controlled. This is the latest line of roller shutter drives from Somfy. The drive is equipped with continuous control of the shaft torque, thanks to which the roller shutter can detect obstacles while opening or closing. The position of the motor is always monitored in real time. Thanks to the IO technology used in the roller shutter drive, the drive is able to inform the TaHoma control unit about the position of the roller shutter.

The drive will easily detect all obstacles during opening, such as icing of the guides in winter, or flower pots or other objects left on the windowsill. The roller shutters are fully protected against unauthorized access during operation. They are fully safe thanks to 128-bit signal encryption.

FEATURES:

• Manual adjustment of end positions using a transmitter
• Quick and easy definition of the My comfort position
• Adapters, catches and mounting brackets as for LT60 series drives
• Feedback with 2W transmitters

Range of 60 mm diameter tubular drives

• For external roller shutters: ALU, RKS, PVC, integrated with the window and roller shutters for sloping windows,
• Setting the end positions using the io transmitter/remote control
• One-button control to the My comfort position

Technical data:

• Radio frequency IO 868.25 to 868.95 and 869.95 MHz
• Power supply AC - RGE 1 - 230V/50HZ
• Power consumption during operation 290 W
• Number of channels 9
• Range in open area 200 m
• Integrated radio antenna
• Diameter 60 mm
• Nominal torque 55 Nm
• Nominal rotation speed 17 rpm
• IP protection class 44
• Noise level 64 dB
