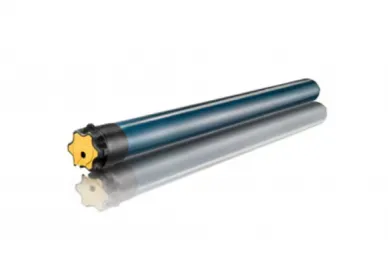

Somfy 1184065 OREA 60 RTS 120/12 VVF 5M roller shutter actuator

645,48 EUR including 22.00% VAT
Product code: #40643
Manufacturer: Somfy
  • 120NM/12r.pm.
  • Power supply 230 V
  • 3-core cable, 3m long
  • Range: 20 meters through two concrete walls
  • Pipe Ø47 mm
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Somfy 1184065 OREA 60 RTS 120/12 VVF 5M roller shutter actuator


The wireless RTS solution for cassette awnings with fabric stretch compensation. Ensures perfect cassette closure every time.

FEATURES:

  • Tubular motor, 230 V / 50 Hz, with built-in high-frequency receiver
  • Range: 20 meters through two concrete walls
  • Perfect closing of the awning (with fabric tension compensation) with torque reduction and immediate power interruption
  • Easy adjustment with remote control
  • Adjustable, automatic intermediate position possible
  • Cannot be used with relay boxes, standard switches and standard controllers
  • The Orea 50 series fits tubes with an internal diameter of at least 47 mm. Orea 60 requires a diameter of at least 60 mm
  • Supplied as standard with a 3-meter black 3-core cable (RRF). Outputs for axial and radial cables
  • Not suitable for continuous use
  • 1 Orea RTS tubular motor can be controlled by up to 12 wireless controllers and up to 3 RTS sensors
  • Switch capacity limitation: Operating time is limited to 3 min

Additional advantages:

  • The awning can be controlled remotely from any location.
    Adjustable intermediate position: ideal for quick and easy management of light penetration.
  • Automatic calibration of the end positions ensures that the awning always opens and closes perfectly.
    Compatibility with all solar and wind functions ensures the best control and ease of use.
  • No stress on fabric and threads, so the awning retains its beautiful appearance for longer.
    Perfect cassette closure. The tablecloth is always well secured.
  • Compensates for fabric stretching, so the awning will always be perfectly open or closed.
    The tensioning function (reverse impulse) ensures that the fabric is always taut.
