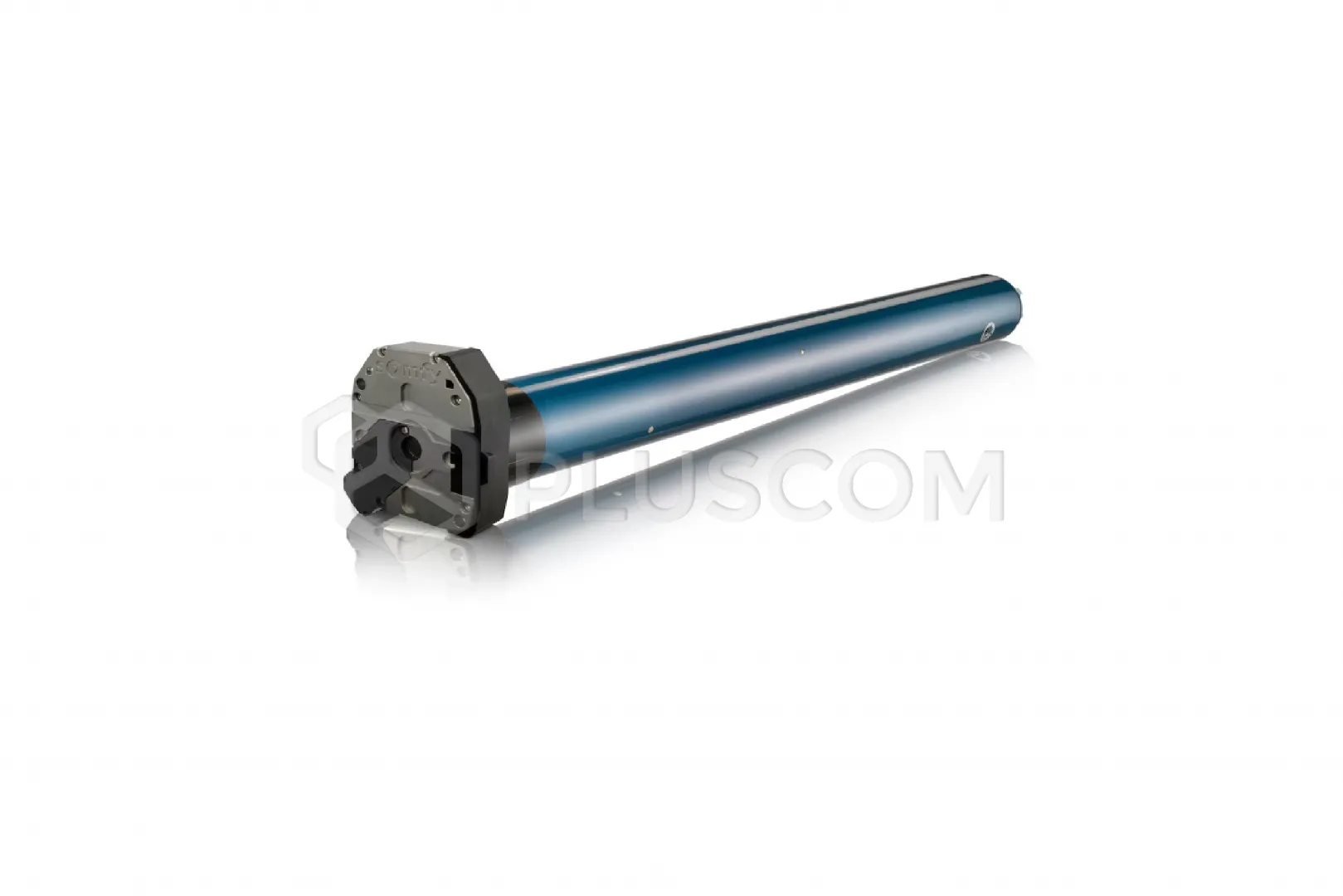

Somfy 1162010 LT 60 Vega 60/12 NHK RRF 1m drive

488,17 EUR including 23.00% VAT
Product code: #31076
Manufacturer: Somfy
  • 60NM/12r.pm.
  • Power supply 230 V
  • Cable length: 1m
  • Noise level 65 dB
  • Stopień ochrony IP 44
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

SOMFY 1162010 LT 60 Vega 60/12 NHK RRF 1m drive


Strong, proven and durable drives for roller shutters and sun blinds. The torques achieved - up to 120 Nm - enable motorization of heavy roller shutters and other devices. Quick setting of end positions using push-in adjustment buttons. NHK version - with manual emergency control. 230 V drive controlled by cable, with emergency manual control for external covers without cassettes and for roller shutters.

FEATURES:

  • Mechanical limit switch system.
  • Manual adjustment of limit positions using buttons.
  • System capacity: 34 turns.
  • Limit switch button output parallel to the Emergency Manual Control (A.M.S.) axis.
  • Access to limit switch buttons on both sides of the A.M.S. housing. using the adjustment tool.

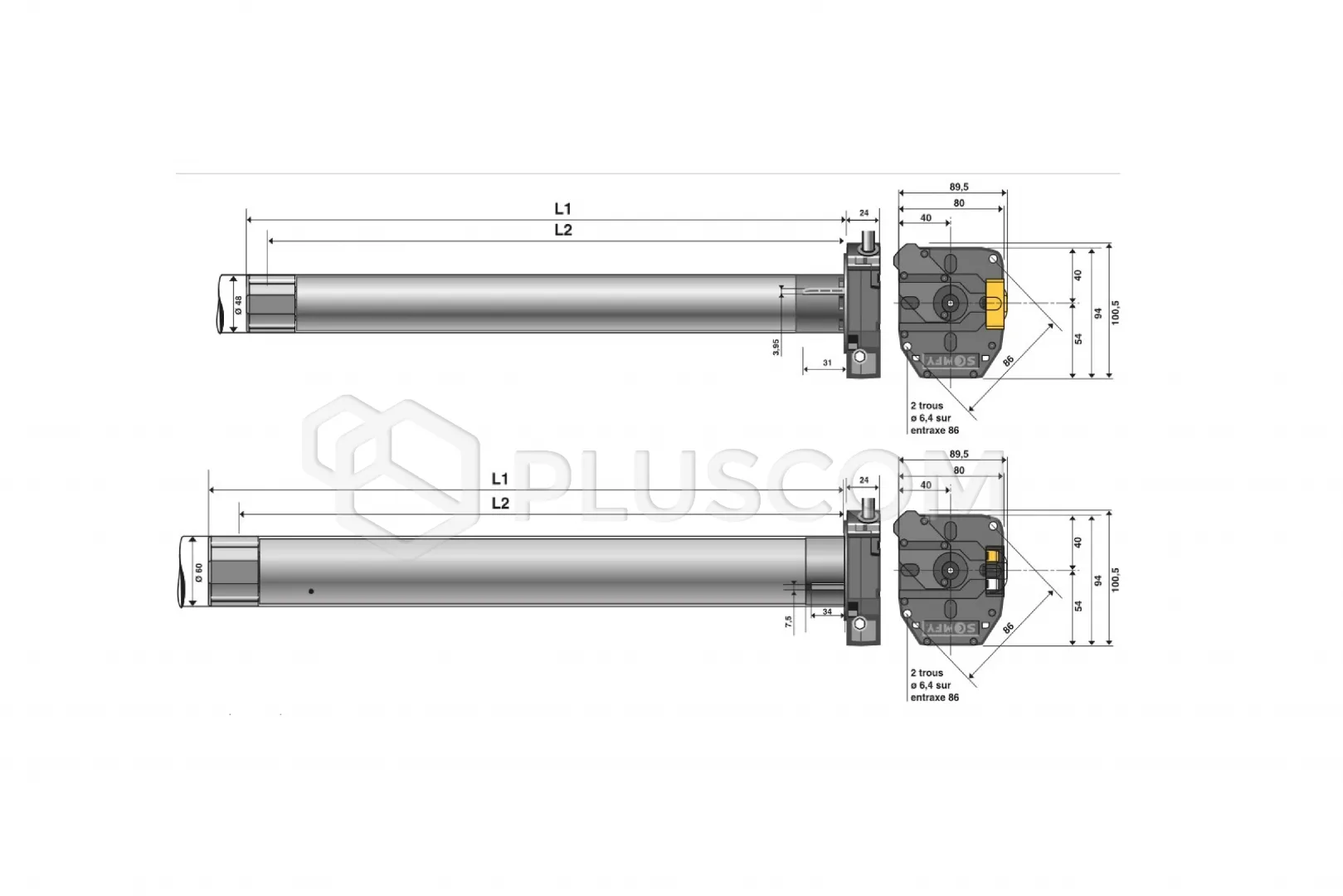

  • Central hole Ø 12 mm x 20 mm with a 24.5 x 2 recess for the lug.
  • Hole for emergency manual control with a cross-section of 6 mm square or 7 mm hexagon.
  • Transmission ratio (reduction factor) 1/27 for LT 50 NHK or 1/55 for LT 60 NHK.
  • Compatible with wired sensors: Eolis WT wind and Soliris WT sunlight.
  • Supplied with cable, without adapter kit, without holder, without eye with pin. Note: Do not use emergency manual control when the drive is energized.

Operational safety:

The built-in emergency control mode function allows manual override of the drive to raise or lower the cover or shutter in the event of a power failure.
