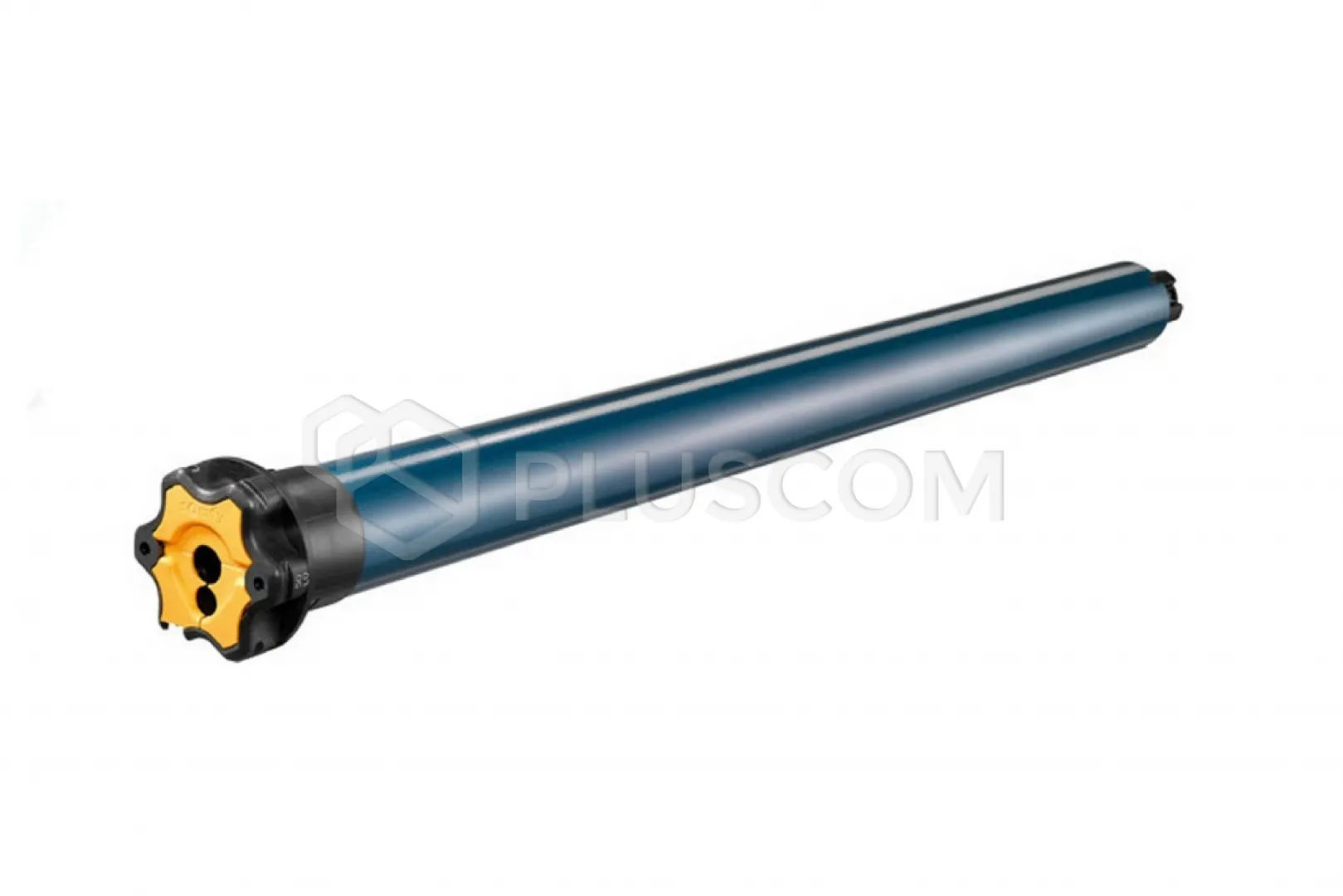

Somfy 1134061 Altus RS 50 io 6/12 VVF 3m drive

SOMFY 1134061 Altus RS 50 io 06/12 VVF 3m drive

Somfy Altus RS IO is an intelligent roller shutter drive system that is radio-controlled. This is the latest line of roller shutter drives from Somfy. The drive is equipped with continuous control of the shaft torque, thanks to which the roller shutter can detect obstacles while opening or closing. The position of the motor is always monitored in real time.

Thanks to the IO technology used in the roller shutter drive, the drive is able to inform the TaHoma control unit about the position of the roller shutter. The drive will easily detect all obstacles during opening, such as icing of the guides in winter, or flower pots or other objects left on the windowsill. The roller shutters are fully protected against unauthorized access during operation. They are fully safe thanks to 128-bit signal encryption.

FEATURES:

• Manual adjustment of end positions using a transmitter,
• Quick and easy definition of the My comfort position,
• Adapters, drivers and mounting brackets as for LT50 series drives
• Feedback in the case of 2W transmitters

There is no need to reach the drive head during its configuration and programming. Possibility of quick and easy definition of an individual "my" comfort position and its recall using a radio transmitter or remote control or as a function of the io solar automation.

NOTE: This drive is only recommended for installation in external roller shutters.

Technical data:

• Radio frequency IO 868.25 to 868.95 and 869.95 MHz
• Power supply AC - RGE 1 - 230V/50HZ
• Power consumption during operation 90 W
• Number of channels 9
• Range in open terrain 200 m
• Integrated radio antenna
• Diameter 50 mm
• Nominal torque 6 Nm
• Nominal rotation speed 12 revolutions / min
• IP protection class 44
• Noise level 46 dB
