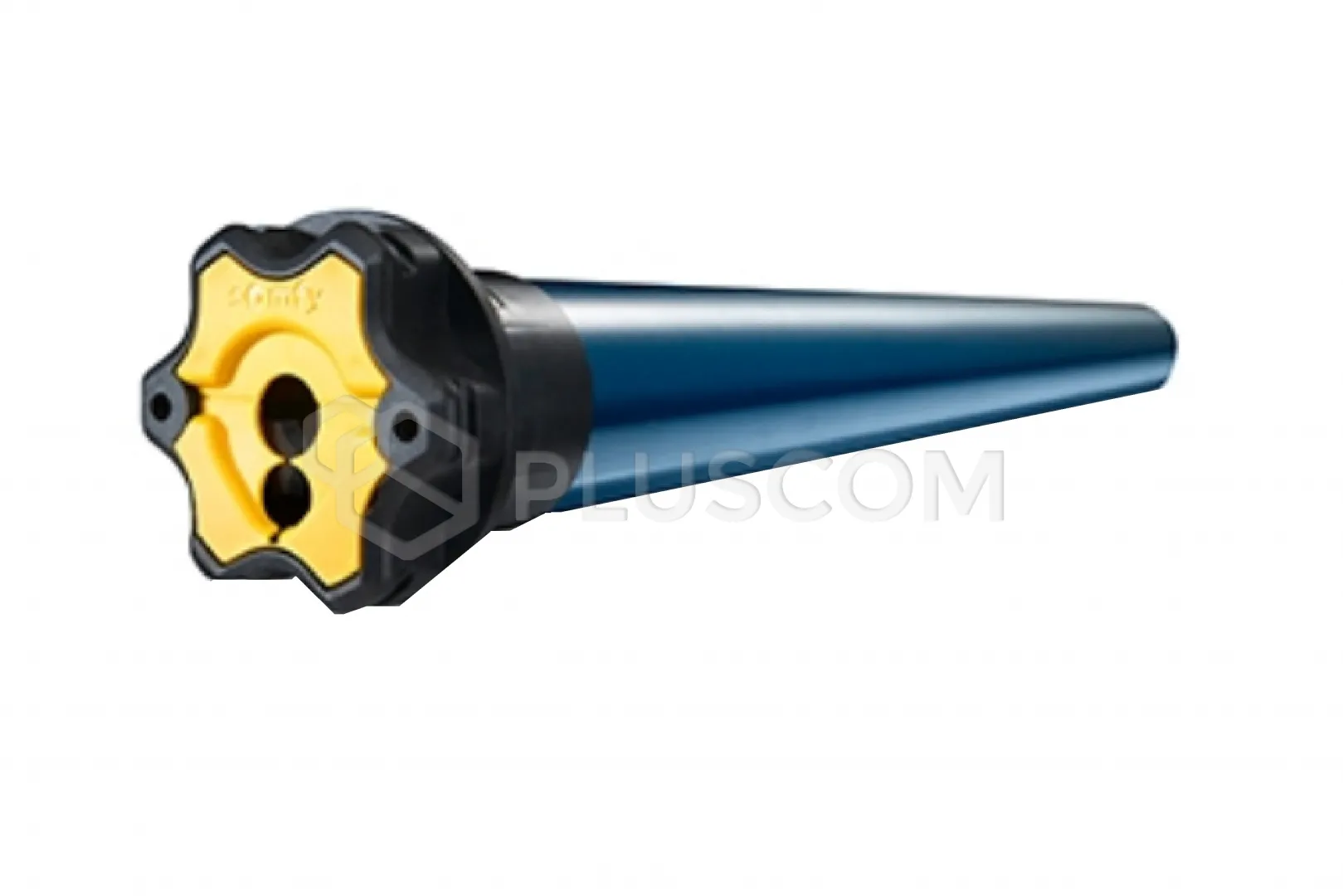

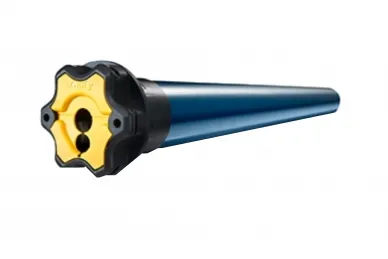

SOMFY 1116230 Sunea 50 io 35/17 VVF 3m drive
Somfy Sunea 50 VVF - universal io radio drive for all types of awnings. Thanks
to the IO system, bidirectional communication between the drive and the
controller is possible. This means that you will be able to check and control
the position of the drive at any time. The drive can be controlled manually or
automatically.
The drive adapts to all types of external awnings (vertical and horizontal),
regardless of their equipment. Bidirectional IO communication allows the
exchange of information between drives and control devices. "Soft
Close" closing reduces stress during closing and opening of awnings.
Particularly suitable for large awnings, verandas, gazebos.
Interactive radio drive system for awnings and screens with obstacle detection
and a patented integrated radio antenna. Sunea 50/60 io can be used for awnings
with articulated arms, screens (setting the end positions using the transmitter
and/or Somfy io remote control) and cassette awnings.
In the case of cassette awnings, the upper end position is set automatically by
torque control. Regardless of the change in the material length, the awning
will always be rolled up precisely and gently. The closing process can be
optimally adapted to the type of awning.
Possibility to set any comfort position to optimize visibility and light
intensity. The comfort position can be set quickly and easily. The drive is
controlled to the comfort position manually using the Stop/"my"
button on the transmitter and/or remote control.
The AutoScan function allows communication with a specific io drive. It is
possible to give an individual name to each drive. The name of the drive will
be on the controller display and will be easy to find.
Technical data:
- Torque: 35 NM
- Speed: 17 rpm
- Rated voltage: 230V AC
- Power consumption: 240 W
- Continuous operation time: 4 min.
- Protection class: IP44
- Radio frequency: 868-870 MHz
- Normal operating temperature: -10C to + 40C
- Electronic limit position adjustment
- Cable type: VVF
