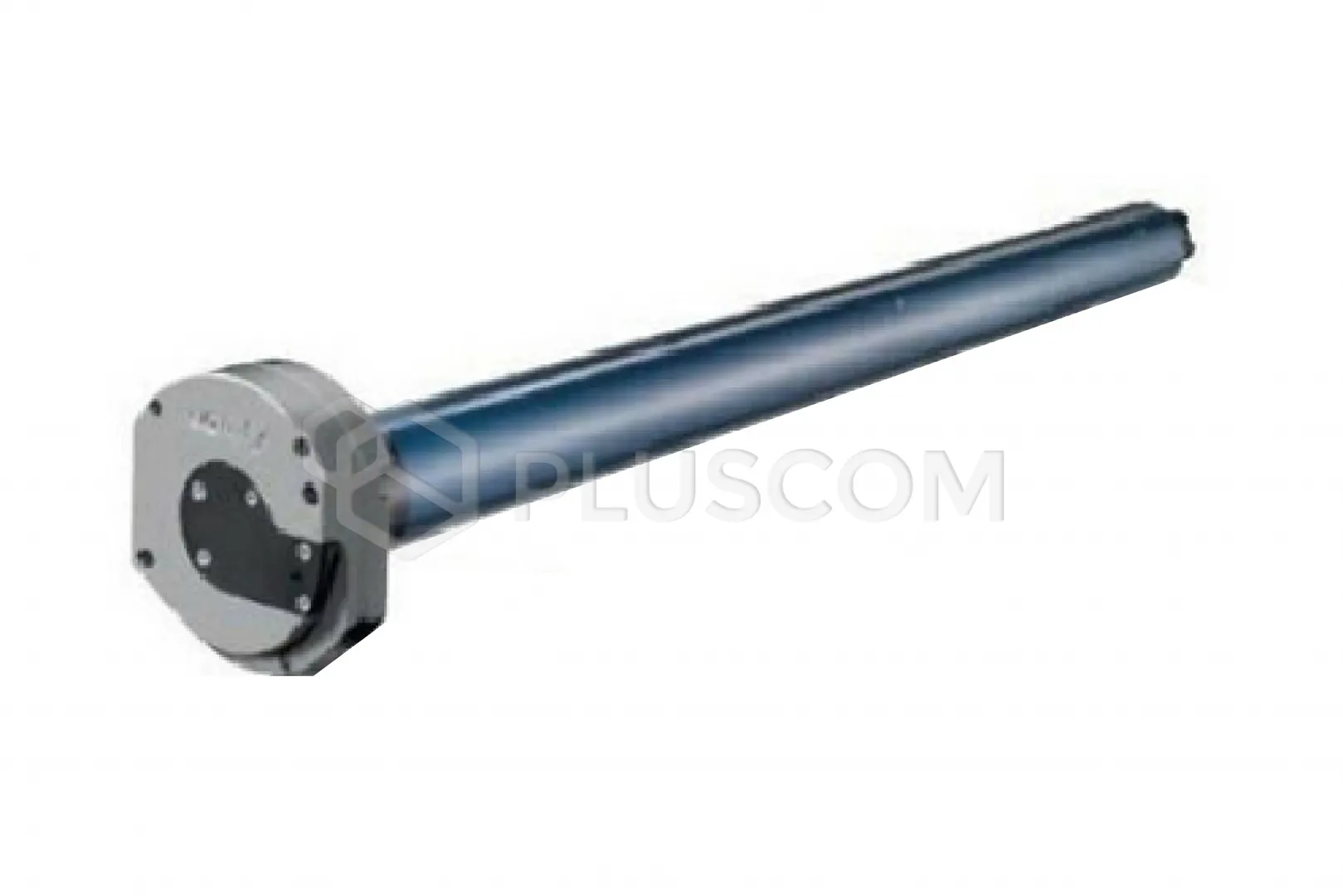

SOMFY 1115271 Sunea 50 CSI io 30/17 VVF 3m drive
Radio drive system for awnings and screens with obstacle detection, manual
emergency control and patented integrated radio antenna. Sunea CSI io can be
used for cassette awnings, awnings with articulated arms, screens (setting the
end positions using the transmitter and/or Somfy io remote control).
In the case of cassette awnings, the upper end position is set automatically by
torque control. Regardless of the change in the material length, the awning
will always be carefully and gently rolled up. The closing process can be
optimally adapted to the type of awning. Possibility of setting any comfort
position to optimize visibility and light intensity. The comfort position can
be set quickly and easily. The drive is controlled to the comfort position
manually using the Stop/"my" button on the transmitter and/or remote
control. In the event of a power failure, the awning can be rolled up using the
manual emergency control system.
The Sunea io drive uses io-homecontrol® – a new, universal and safe wireless
communication protocol used by renowned manufacturers in the construction
technology industry. The io-homecontrol® technology enables mutual
communication between all devices ensuring comfort and safety and allows them
to be controlled using a single transmitter.
FEATURES:
Compatible drive devices
- For all types of cassette and non-cassette awnings
Controls
- Remote io controllers and Connexoon sensors - terrace app and TaHoma Set
and Go io EMS2
Perfect K7 closing
- Guarantee that the cassette closes every time
Electronic “soft close” stop detection
- After closing the cassette, the drive stops immediately to protect the
mechanism and limit fabric tension. Possibility to choose between 3 levels of
closing force
Function to loosen the rolled-up material in the cassette
- When activated, it releases the drive switch just after closing the
cassette to loosen the fabric. This extends the life of the fabric
"my" comfort position
- To move the awning to a previously saved position with one click
Length compensation (semi-automatic mode only)
- To guarantee consistent unwinding, even after several years
Function for tensioning the unwinded fabric
- After each downward movement, the drive's direction of rotation is
quickly reversed to ensure that the fabric remains perfectly tensioned. The
drive's reverse rotation is adjustable
Power failure resistance
- The drive stores the end positions in memory in the event of a power
failure for 2 min. or automatically recalculates the end positions if the
failure is longer than 2 min
Emergency control
- Manual control of the awning in the event of a power failure
Technical data:
- Power supply voltage: 230V/50Hz
- Power: 240 W
- Nominal torque: 30 Nm
- Rotation speed: 17 rpm
- Radio frequency: 868 – 870 MHz [io]

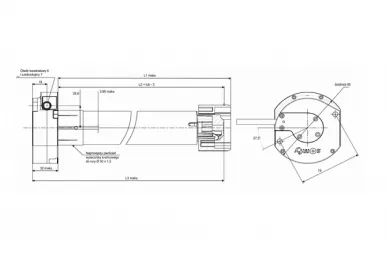

- Length of the complete drive [L3]: 720 mm
- Type of limit switches: Electronic
- Tightness class: IP44
- Cable type: VVF
