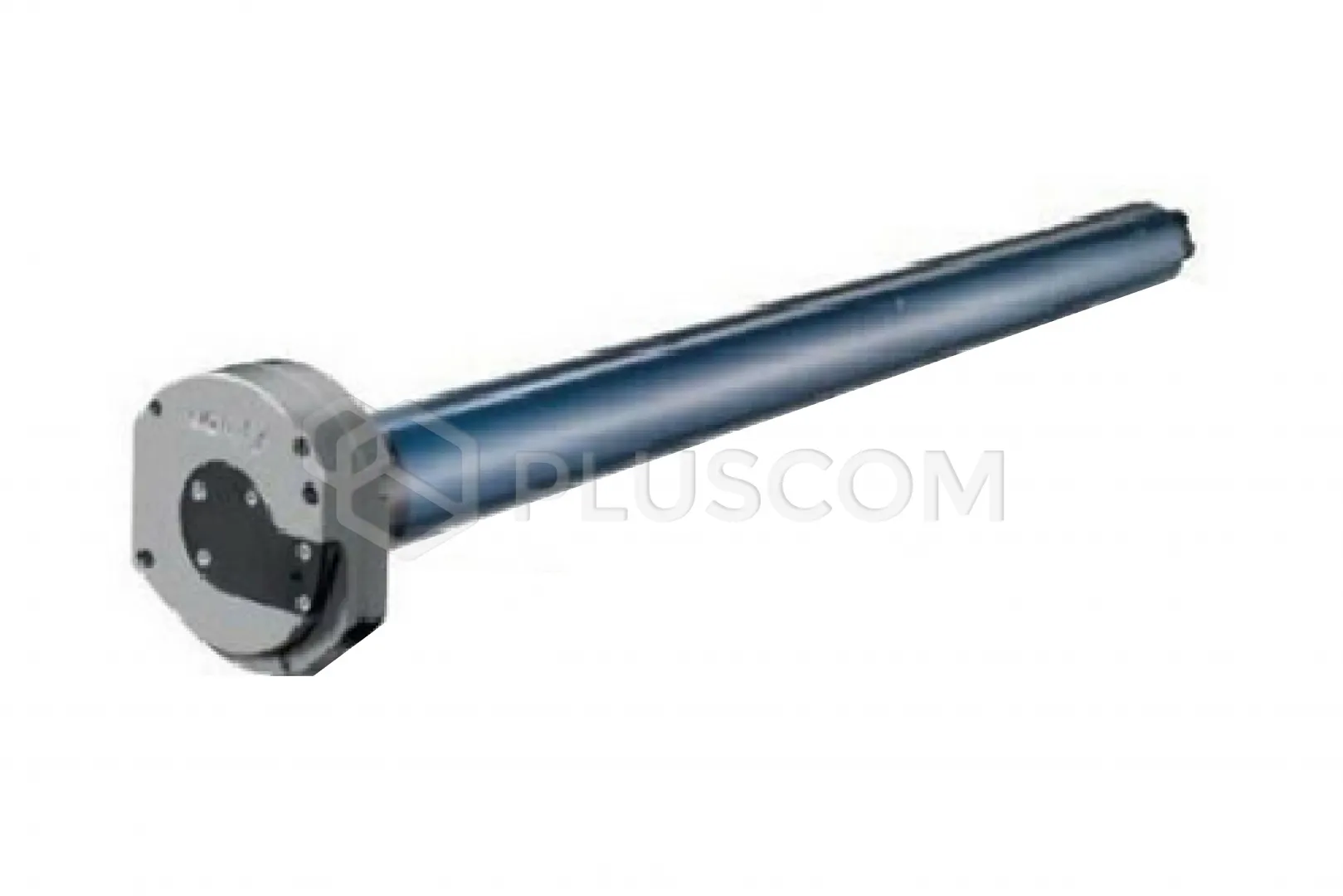

SOMFY 1113268 Sunea 50 CSI io 20/17 RNF 3m drive
Radio drive system for awnings and screens with obstacle detection, manual emergency control and patented integrated radio antenna. Sunea CSI io can be used for cassette awnings, awnings with articulated arms, screens (setting the end positions using the transmitter and/or Somfy io remote control).
In the case of cassette awnings, the upper end position is set automatically by torque control. Regardless of the change in the material length, the awning will always be carefully and gently rolled up. The closing process can be optimally adapted to the type of awning. Possibility of setting any comfort position to optimize visibility and light intensity. The comfort position can be set quickly and easily. The drive is controlled to the comfort position manually using the Stop/"my" button on the transmitter and/or remote control. In the event of a power failure, the awning can be rolled up using the manual emergency control system.
The Sunea io drive uses io-homecontrol® – a new, universal and safe wireless communication protocol used by renowned manufacturers in the construction technology industry. The io-homecontrol® technology enables mutual communication between all devices ensuring comfort and safety and allows them to be controlled using a single transmitter.
FEATURES:
Compatible drive devices
- For all types of cassette and non-cassette awnings
Controls
- Remote io controllers and Connexoon sensors - terrace app and TaHoma Set and Go io EMS2
Perfect K7 closing
- Guarantee that the cassette closes every time
Electronic “soft close” stop detection
- After closing the cassette, the drive stops immediately to protect the mechanism and limit fabric tension. Possibility to choose between 3 levels of closing force
Function to loosen the rolled-up material in the cassette
- When activated, it releases the drive switch just after closing the cassette to loosen the fabric. This extends the life of the fabric
"my" comfort position
- To move the awning to a previously saved position with one click
Length compensation (semi-automatic mode only)
- To guarantee consistent unwinding, even after several years
Function for tensioning the unwinded fabric
- After each downward movement, the drive's direction of rotation is quickly reversed to ensure that the fabric remains perfectly tensioned. The drive's reverse rotation is adjustable
Power failure resistance
- The drive stores the end positions in memory in the event of a power failure for 2 min. or automatically recalculates the end positions if the failure is longer than 2 min
Emergency control
- Manual control of the awning in the event of a power failure
Technical data:
- Power supply voltage: 230V/50Hz
- Power: 160 W
- Nominal torque: 20 Nm
- Rotation speed: 17 rpm
- Radio frequency: 868 – 870 MHz [io]

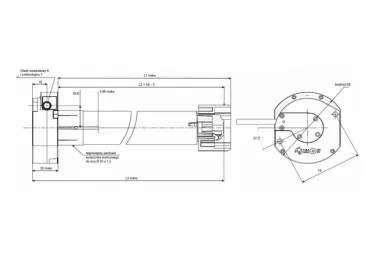

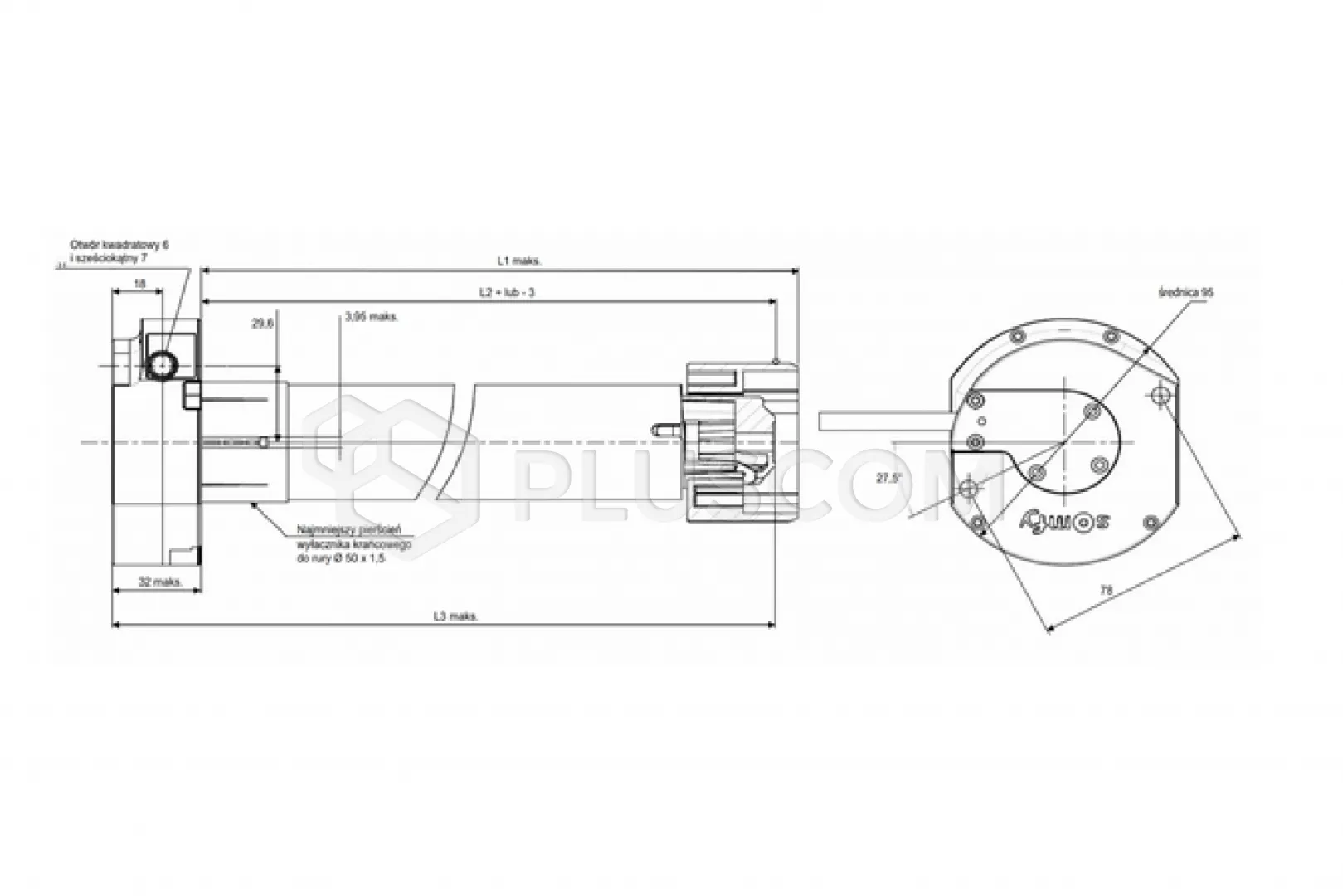

- Length of the complete drive [L3]: 720 mm
- Type of limit switches: Electronic
- Tightness class: IP44
- Cable type: RNF
