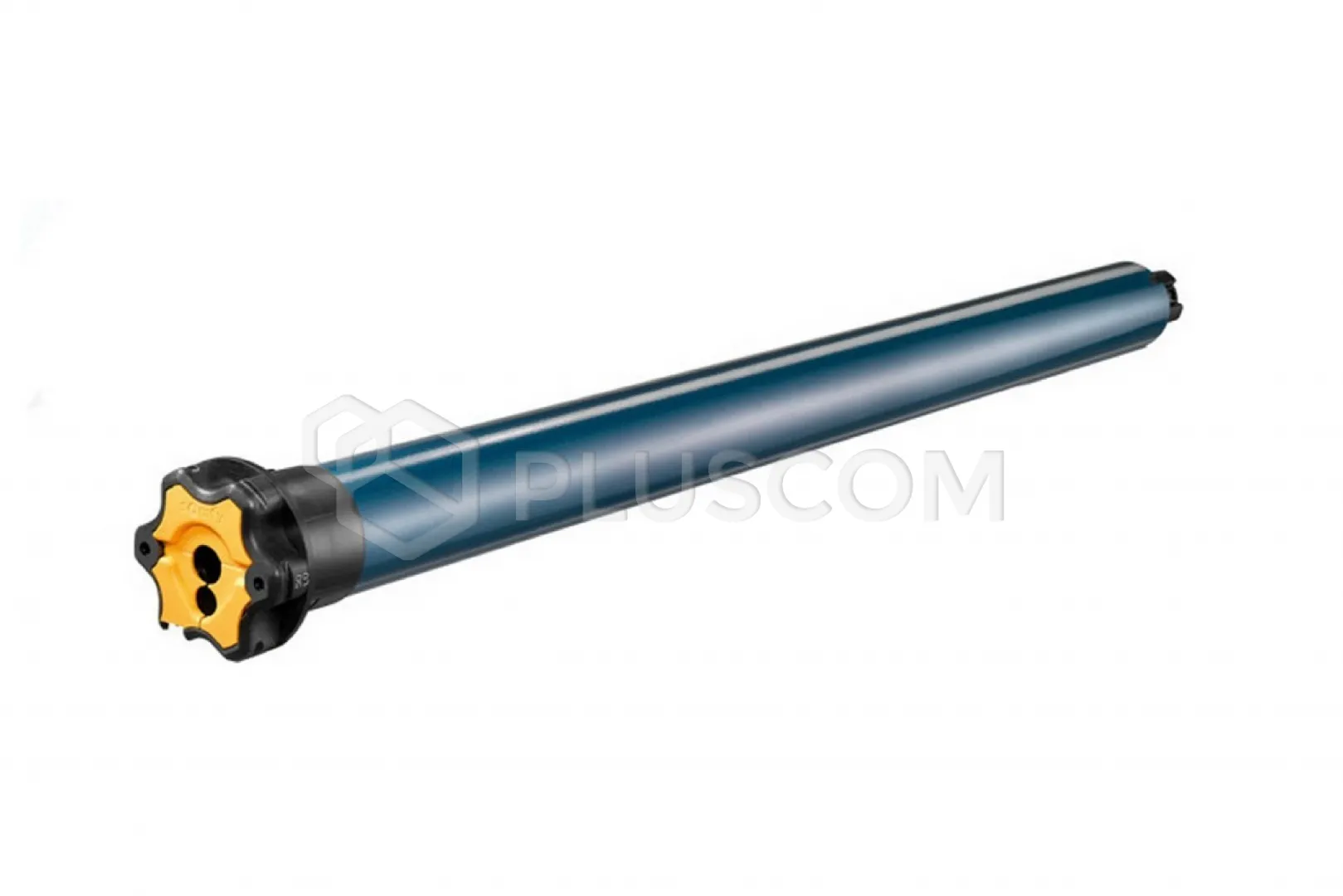

Somfy 1112321 Maestria+ 50 io 15/17 VVF 5m drive

383,72 EUR including 23.00% VAT
Product code: #31017
Manufacturer: Somfy
  • 15NM/17r.pm.
  • Power supply: 230V AC
  • Cable length: 5m
  • Radio frequency: io 868 MHz
  • Degree of protection: IP 44 / Cable: VVF
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

SOMFY 1112321 Maestria+ 50 io 15/17 VVF 5m drive


Universal drives for automation of various types of screens, especially zip type. They operate in bidirectional io-homecontrol® technology. Thanks to this, using the appropriate controller, you can check the current position of the cover at any time to be sure that everything is under your control.

Maestria+ io has obstacle and ice detection functions to protect the drive and cover from damage, thus extending the life of the installation. Thanks to additional functionalities, it is possible to adjust the fabric tension to guarantee its perfect appearance. Maestria+ io will make everyday use of screens safe and comfortable - meeting your requirements.

FEATURES:

  • Possibility of detecting obstacles during lowering (possibility of disabling this function if necessary)
  • Maestria + 50 io has advantages similar to other io technology drives: compatibility with TaHoma, Connexoon Terrace and Window
  • Recommended control with the new NiNa and Situo io remote controls
  • Possibility of setting limit switches using the io transmitter
  • 3 control modes: all automatic, semi-automatic and manual
  • Integrated io receiver. Tri-frequency io 868-870 MHz with retransmission of the order up to 8 times
  • High accuracy for easy adjustment even at high speed
  • Compatible with the EMS2 programming tool
  • Obstacle detection function for ZIP roller shutters
  • Activated reverse function when an obstacle is detected
  • Thanks to the bidirectional io-homecontrol® technology, the drive allows bidirectional communication between the remote control and the drive
  • Comfort position "my"
  • Compatible with sun, wind and rain automation
  • The "back release" function allows the tension of the material in the upper end position to be reduced, which protects the fabric from damage

Technical data:

  • IP 44 protection class
  • Radio frequency io 868-870 (tri band) MHz
  • Range in open area 200 m
  • Power consumption during operation 90 W
  • AC power supply - RGE 1 - 230V/50HZ
  • Noise level (according to Somfy measurements) 47 dB
Download
User manual 22.04 MB
