Somfy 1049541 Oximo 50 WT 40/17 VVF 3m drive

442,50 EUR including 23.00% VAT
Product code: #30981
Manufacturer: Somfy
  • 40NM/17r.pm.
  • Power supply: 230V AC
  • Cable length: 3m
  • Degree of protection: IP 44
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

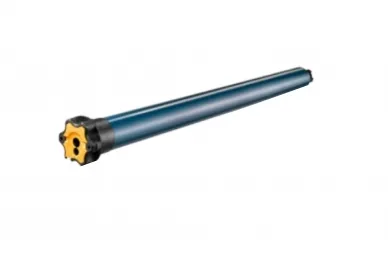

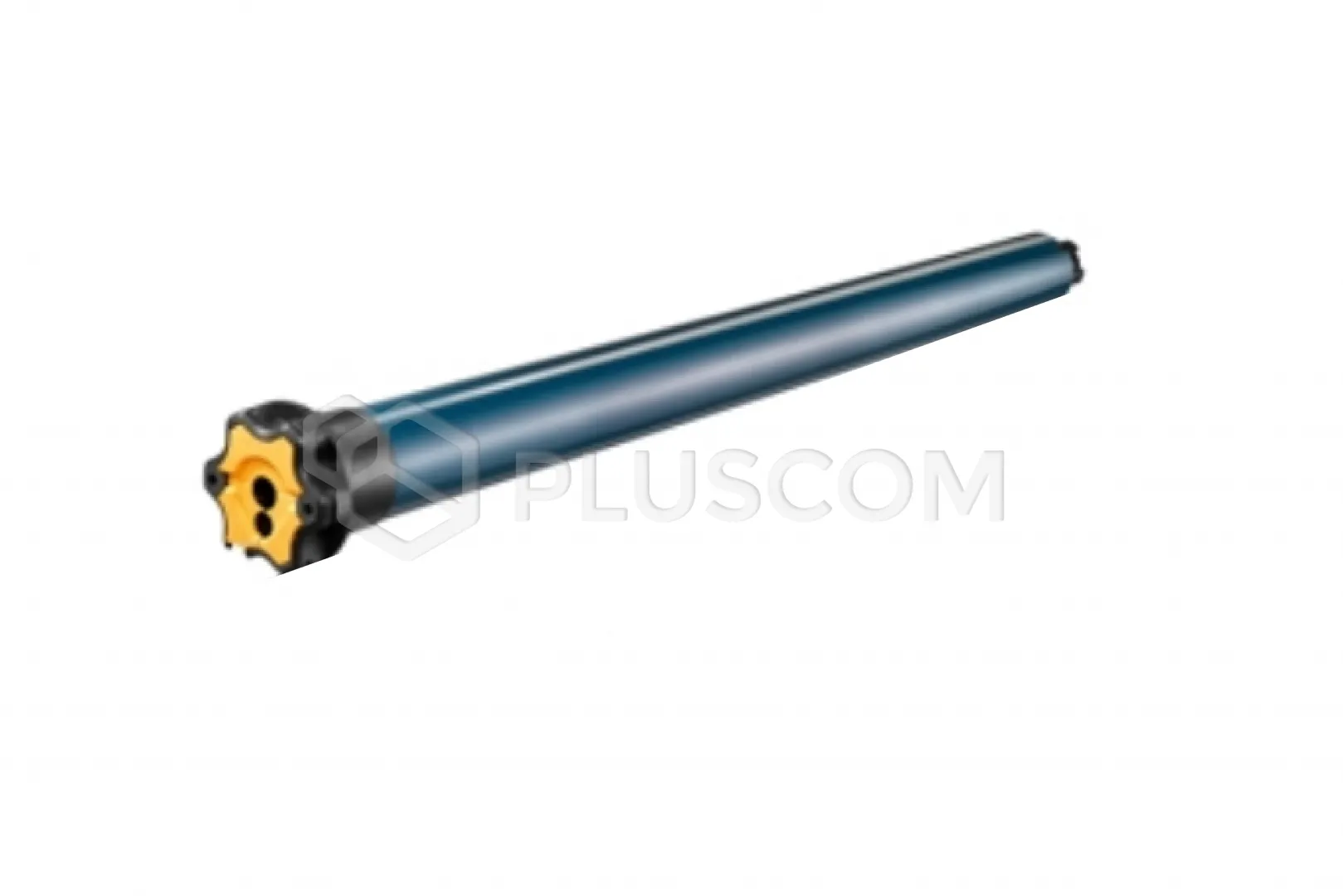

SOMFY 1049541 Oximo 50 WT 40/17 VVF 3m drive


This is a modern drive designed for roller shutters controlled by wire with the Somfy Drive Control™ system. This drive is characterized by continuous torque control via an integrated electronic system. The advantage of the Somfy drive is the detection of obstacles during closing and the detection of ice in opening mode.

Four types of limit position adjustments: automatic, two semi-automatic and manual. For automatic limit settings, automatic corrections of their positions. For manual adjustment, the correction can be performed manually. Adjustments of the limit positions must be carried out using a special adjustment cable - Somconfigator or an adjustment device - Setting Tool WT.

FEATURES:

  • Obstacle detection and operation monitoring system
  • Drive with "soft" overload switch
  • Designed for roller shutters, can automatically set end positions
  • Built-in electronics enable parallel connection of 2 or 3 Oximo WT drives.
  • For 50 mm octagonal tube
  • Motor mounting bracket included

Technical data:

  • Voltage: 230V
  • Electronic limit switch setting
  • Built-in thermal switch
  • Drive length: 765 mm, drive diameter: fi 47 mm
  • Speed: 17 rpm
  • Can be used for blinds weighing up to 90 kg
