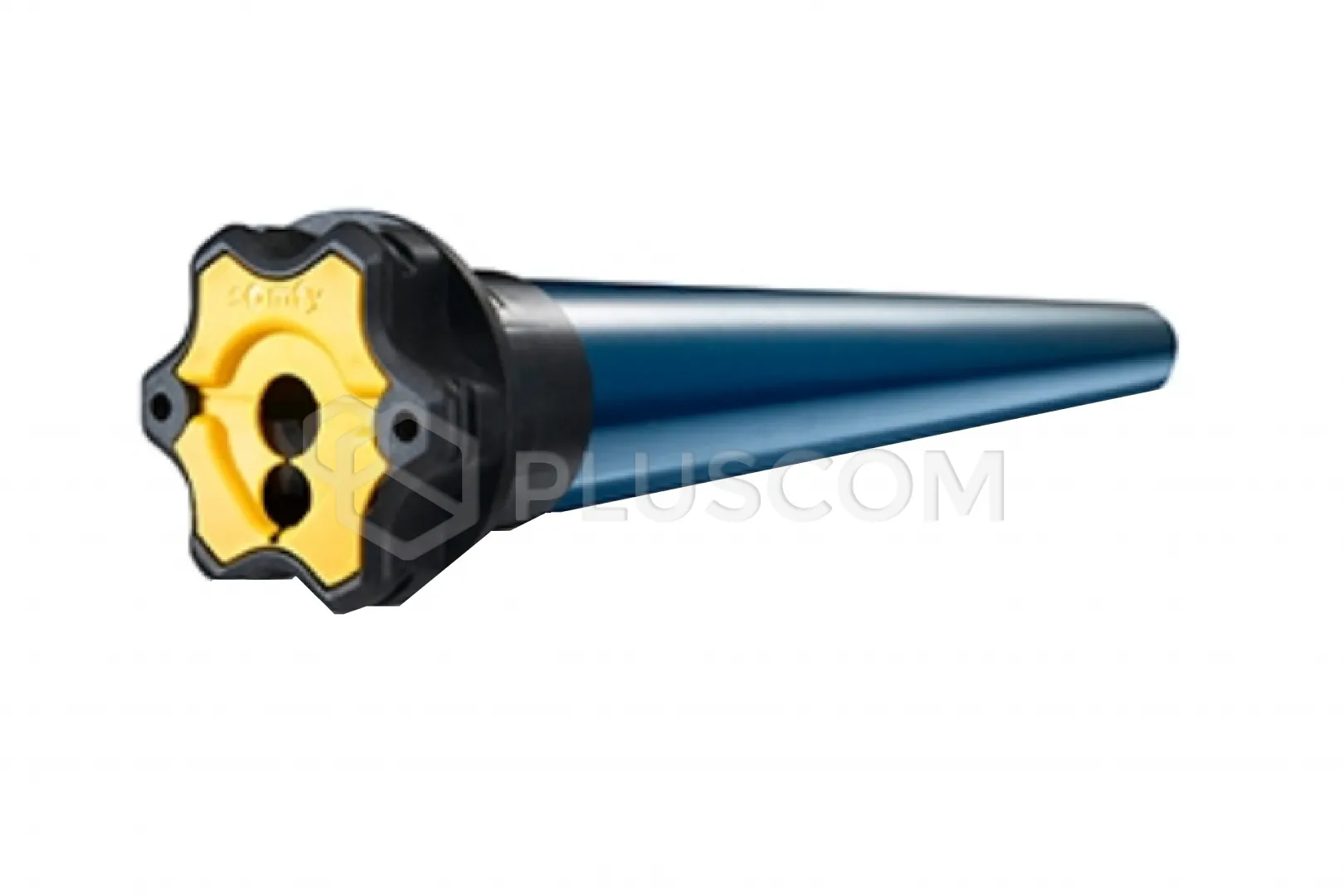

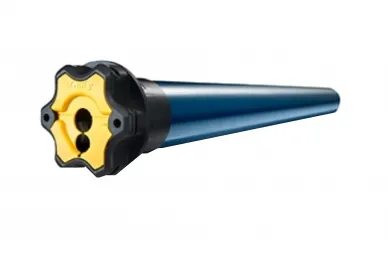

Somfy 1041854 Pergola 50 io 20/17 VVF 5m drive

SOMFY 1041854 Pergola 50 io 20/17 VVF 5m drive

Functional tubular drive designed for pergolas with a guide system (WINTER-GARDEN), with bidirectional io-homecontrol technology.

Compatible with the smarthome system from Somfy, connect your drive to the TaHoma switch control unit to gain the ability to control using a mobile app.

Automatic fabric length compensation, check the adjustment function. Guarantees the same fabric unwinding, even after several years. Tensioning the unwinding material, after each downward movement the direction of rotation of the drive is briefly reversed to ensure ideal material tension. The reverse rotation of the drive is adjustable.

Detection of ice and obstacles, the drive will stop if it detects increased friction caused by icing of the guides.

FEATURES:

• The Pergola io drive is a radio-controlled drive designed specifically for pergola covers
• The drive works in the io-homecontrol® radio system and can be combined with other products designed for this system, such as remote controls and weather sensors
• It can work with vertical and horizontal covers. It is possible to program, according to the user's choice, a comfortable position
• It is designed for covers that require tensioning (3 levels) and without tensioning
• The obstacle detection system during movement protects the installation from destruction
• Up to 9 one-way remote controls (1W) and an infinite number of two-way (2W) can be programmed

Technical data:

• IP 44 protection class
• Distance between mounting axes 660 mm
• Radio frequency io 868-870 (tri band) MHz
• Range in open terrain 200 m
• Power consumption during operation 160 W
• AC power supply - RGE 1 - 230V/50HZ
• Noise level (according to Somfy measurements) 53 dB
