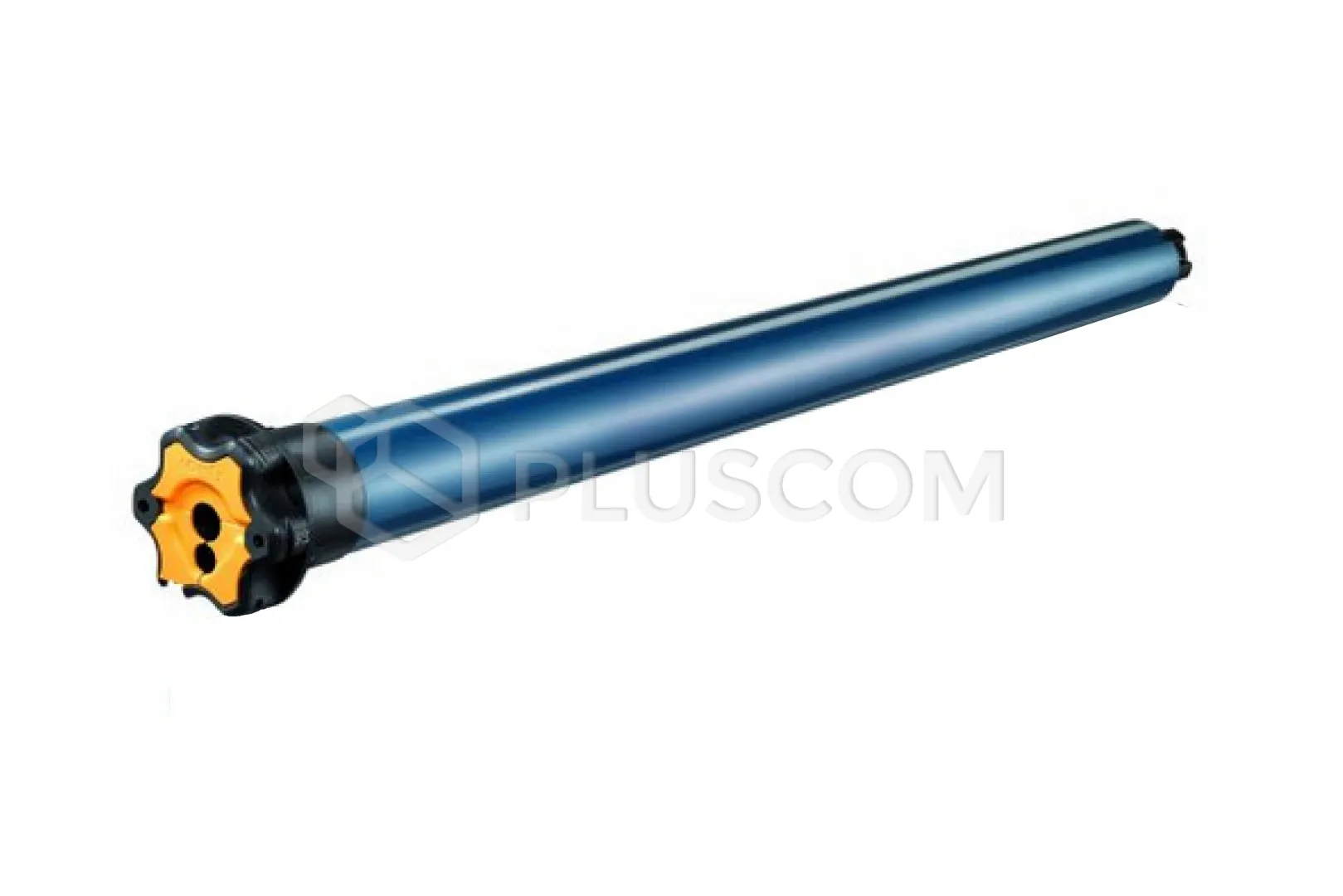

Somfy 1041374 Oximo 50 RTS 20/17 VVF 3m drive

SOMFY 1041374 Oximo 50 RTS 20/17 VVF 3m drive

Roller shutter motor with integrated RTS radio control system, Somfy Drive Control system and integrated patented radio antenna. Continuous torque control by integrated electronic system. Protection against freezing automatic drive stop in case of freezing of slats. Obstacle detection automatic drive stop in case of obstacle detection. Resistance to burglary attempts the roller shutter cannot be lifted from the outside thanks to rigid hangers. This protection can be reinforced by equipping the roller shutter with anti-burglary hangers (lifting resistance up to 100 kg).

Obstacle detection during closing and ice detection in opening mode. Four types of end position adjustment - automatic, two semi-automatic and manual. For automatic end position settings, automatic correction of their position. For manual adjustment, the correction can be carried out manually. Possibility of setting any position of the comfort position, in order to optimize visibility and light intensity. The drive is controlled to the comfort position manually using the Stop/my'' button on the transmitter and/or remote control, or automatically using the RTS sun sensor.

Technical data:

• Length of the complete drive 655 mm
• Diameter 45 mm, adapted to an octagonal shaft fi 60 mm
• Power supply 230V/50Hz
• Nominal torque 20 Nm
• Nominal speed 17 revolutions / min.
• Continuous operation time 4 min.
• Power consumption 160 W
• Protection class IP 44
• Max. load capacity approx. 43 kg (with a shutter height of up to 250 cm)
• Electronic adjustment of end positions
• Obstacle / ice detection
