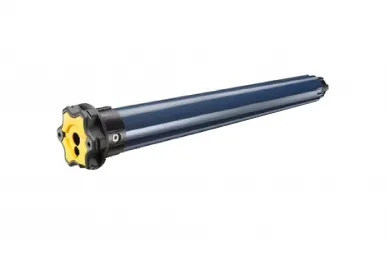

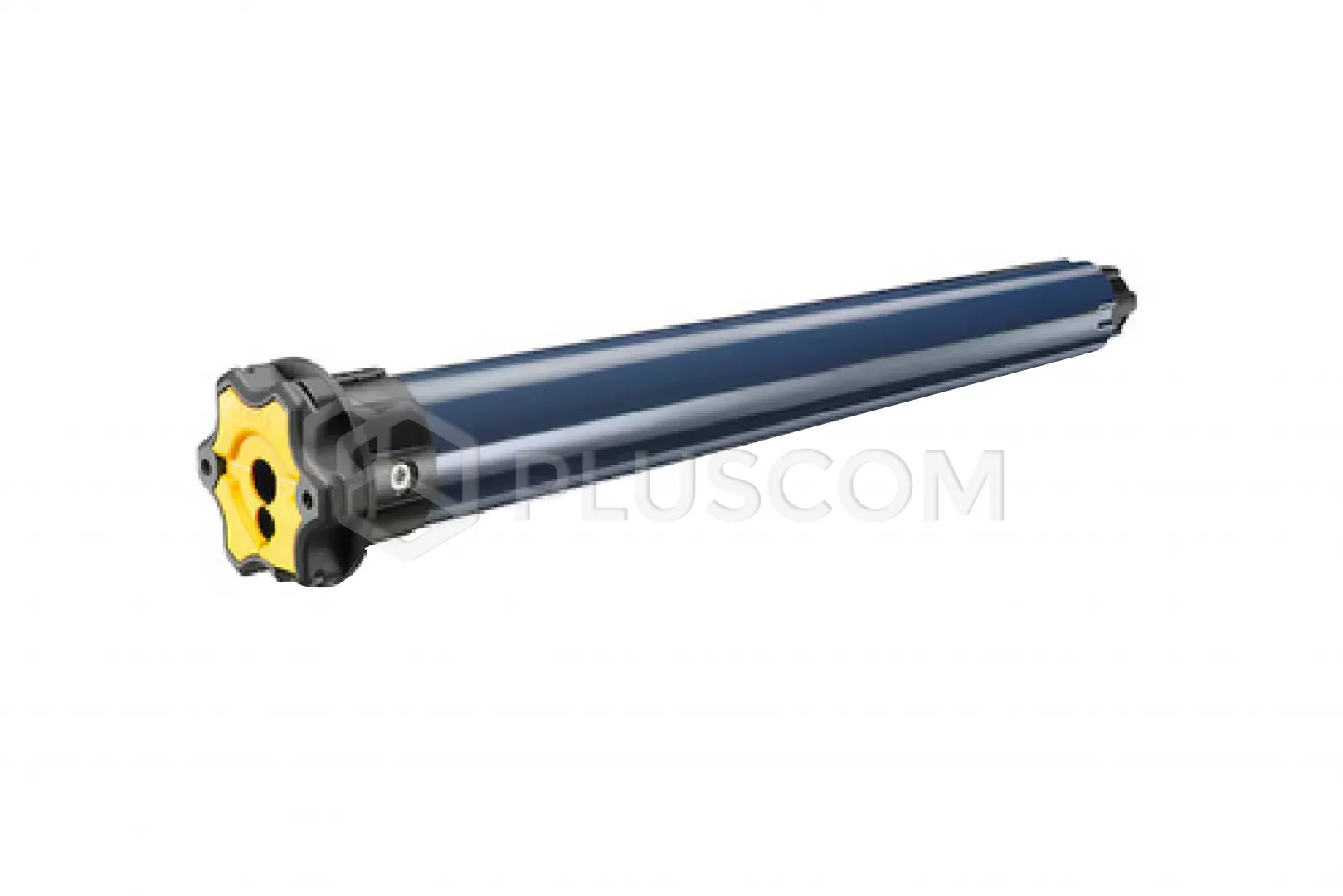

SOMFY 1033336 RS100 io 10/17 VVF 3m drive
The drive is equipped with many functionalities that you can use depending on
your needs. To ensure the comfort of the residents, switch between two speed
modes (appropriate controller required). When the child is asleep, select the
silent mode to make the drive work slower and quieter or set the normal mode
for the standard operation of the system. Thanks to the "my" comfort
position, you can save your favorite roller shutter position and call it with a
single click on the controller. Connect a sun sensor to automate the operation
of the roller shutter depending on the level of sunlight and enjoy a pleasant
coolness in your home on hot days.
Thanks to the new Smart Motion System technology, the S SO RS100 io offers
innovative functions that protect the system from damage. Continuous electronic
torque monitoring, obstacle detection, frost protection and gentle approach of
the curtain to the end positions extend the life of the installation and
guarantee reliable operation of the drive in every situation, so that everyday
use of the roller shutters is safe and reliable.
High acoustic comfort
The ultra-quiet operation of the S SO RS100 drive
guarantees the comfort of using the house. Setting it to "discreet
mode" and a slower speed also means reduced energy consumption and real
savings.
Full control of the roller shutter settings
Two speeds of the S SO
RS100 drive - discreet and standard - allow you to adjust the mode to the
user's requirements. The soft start and stop function additionally prevents
damage to the roller shutter.
Protection and safety
The S SO RS100 drive with the obstacle and ice
detection function stops the roller shutter when an obstacle is detected,
preventing it from icing up. The drive operates in io-homecontrol technology,
which guarantees the user will receive a message on their smartphone about the
position of the roller shutter, which additionally increases the level of home
security.
FEATURES:
- Bidirectional io-homecontrol® radio technology (feedback)
- "My" comfort position
- Soft start and stop
- Two speeds: normal and quiet
- Obstacle detection and frost protection
- Thermal protection
- Electronic torque monitoring
- Possibility to connect a sun sensor
- Somfy designed for Silence - extremely quiet drive operation
- Act for Green - products marked with Act for Green meet very high
pro-ecological requirements
- Automatic detection of the direction of rotation
- Adjustment of end positions: manual, semi-automatic or automatic
(depending on the accessories)
- Models available in io or ioWT technology
- Control as you like: locally using a wall transmitter, remote control
and/or remotely via the Internet using the TaHoma smart home control
unit
Technical data:
- Protection class: IP 44
- Radio frequency: io 868 MHz
- Number of channels: 9
- Range in open space: 200 m
- Power consumption during operation: 45 W
- Power supply: AC - RGE 1 - 230V/50HZ
- Noise level (according to Somfy measurements): 41 dB
