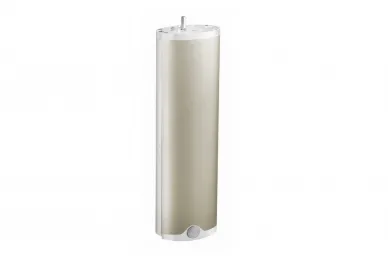

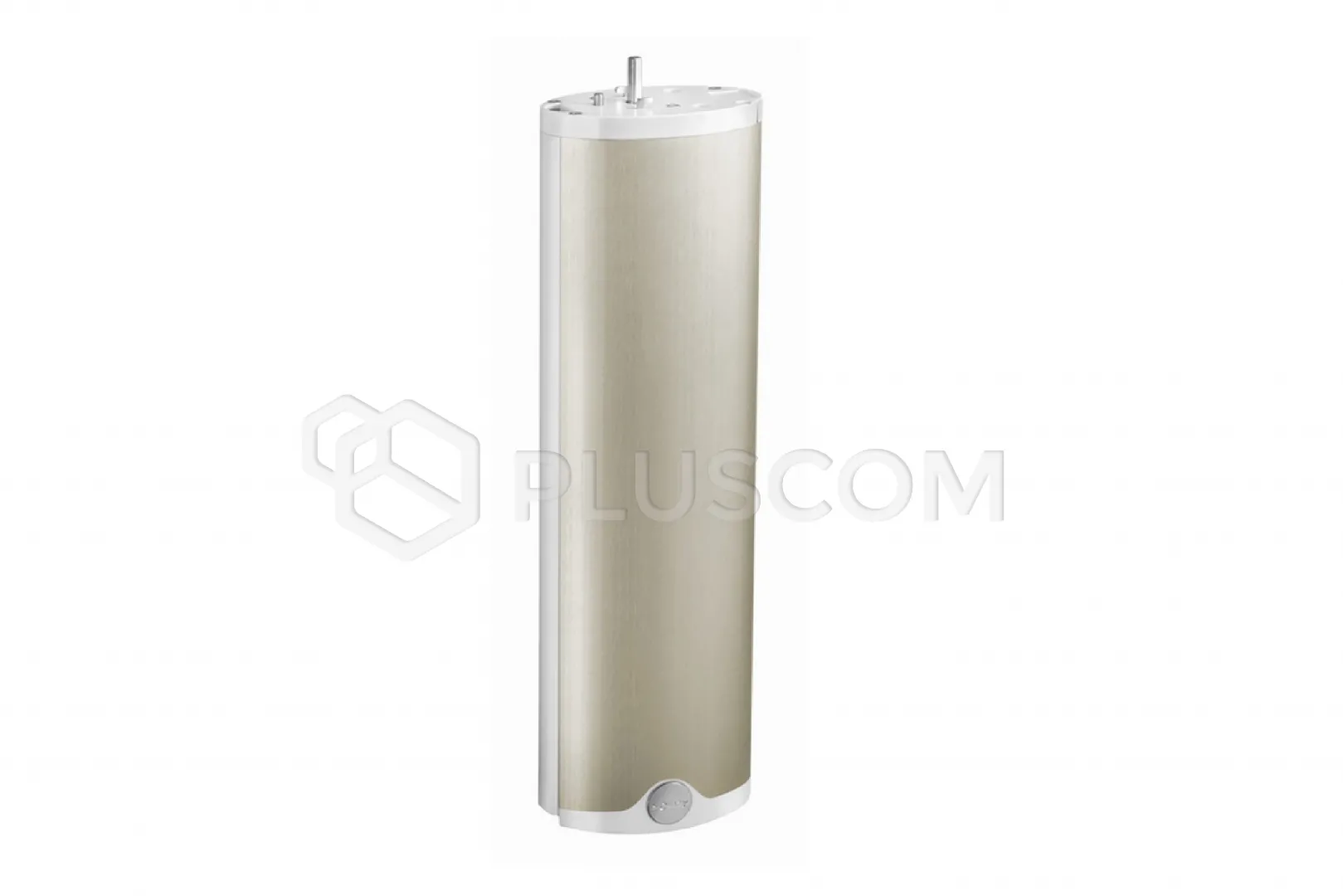

Somfy 1003157 Glydea Ultra 60e DCT Dry Contact Control Drive

SOMFY 1003157 Glydea Ultra 60e DCT Dry Contact Control Drive

Drive for use with the Glydea curtain rod. Designed for curtains weighing up to 60 kg and up to 10 m wide. Potential-free control via a built-in RJ socket. Complete freedom of choice of mounting location at the end of the rail: at the top or bottom, on the left or right side, as well as the ability to determine the method of opening the curtain: one-sided or two-sided. Electronic regulation of end positions. Possibility of regulating the drive speed. It can also be started by pulling the curtain (start-by-pull function).

FEATURES:

• Designed for curtains up to 60 kg and up to 10 m wide
• Drive speed adjustment
• Two operating modes to choose from HI-SPEED or SILENT
• Electronic adjustment of end positions
• Potential-free control
• Possibility of mounting under or on the rail, on the left or right side, for curtains opening on one or two sides

Technical data:

• External power supply 230 V
• Built-in power supply
• In HI-SPEED mode, adjustable travel speed 12.5/15/17.5/20 cm/s
• In SILENT mode, constant travel speed 7.5 cm/s, ultra quiet operation
• End positions are set by overload
• Intermediate position
• Soft start / stop function
• Manual retraction function during power failure
• Height of mounted drive with rail 32 cm
• *Touch Motion function enabling start of drive by pulling the fabric
