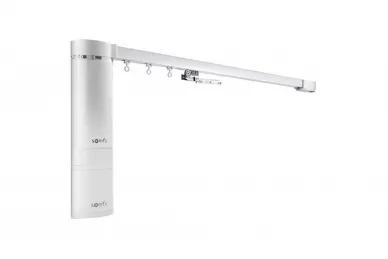

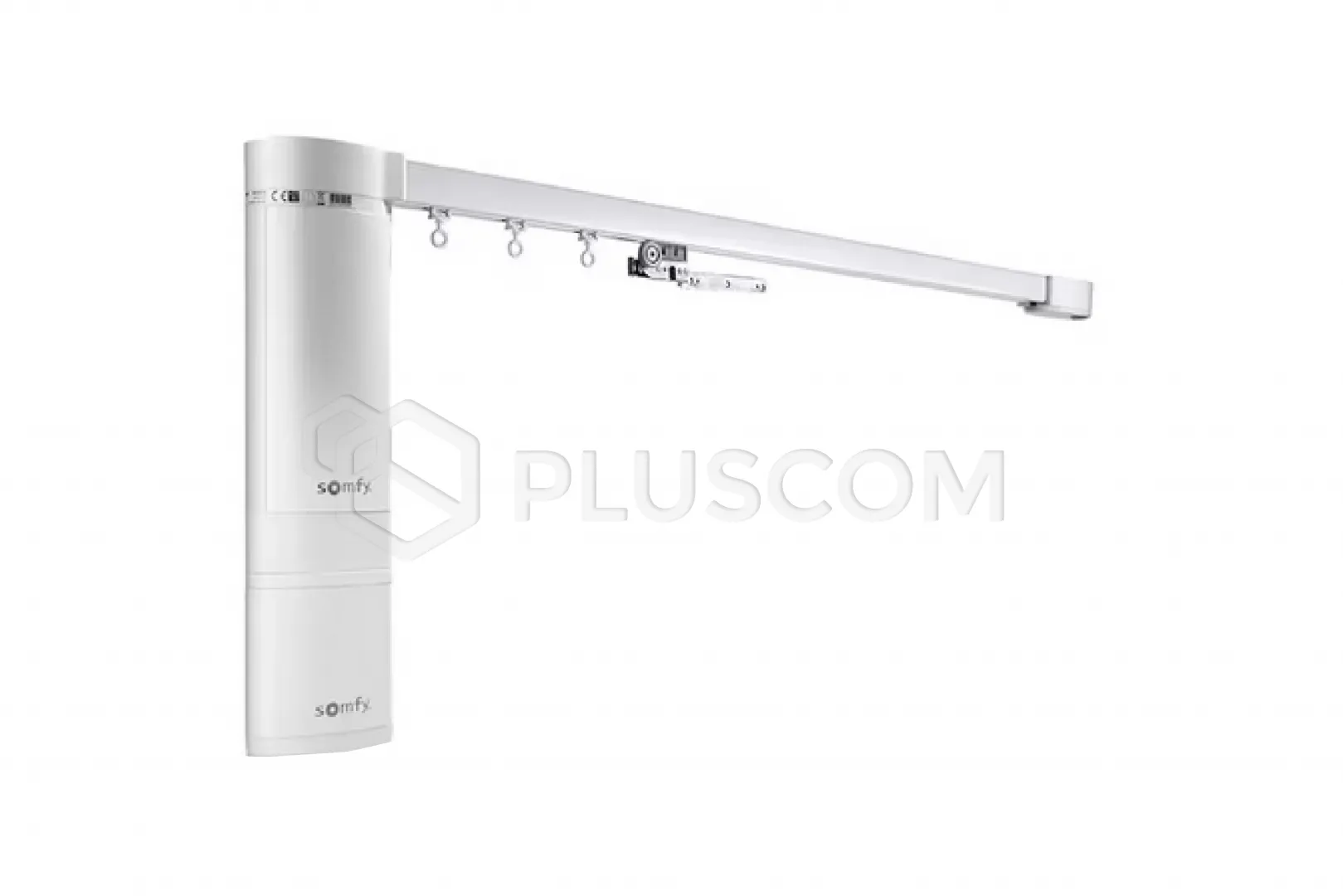

Somfy 1002353 Irismo Wirefree 45 RTS drive with RTS radio control with battery power supply

SOMFY 1002353 Irismo Wirefree 45 RTS drive with RTS radio control with battery power supply

The Wirefree 45 RTS drive - with RTS radio control with battery power supply is designed to automate simple curtains and blinds weighing up to 45 kg and up to 10 m long without mains power supply. The drive is powered by a battery and controlled by radio using the RTS radio control system.

Wireless drive for curtain automation, Plug and Play type.
It does not require effort to operate. It is also comfortable. It is characterized by quiet operation.

Fabric protection

• Soft start and soft stop allow for material protection

Discreet integration in harmony with the finish

• Quick and clean installation, without damaging the walls
• The easiest solution to use, without laying cables

Energy saving

• Long battery life - up to 9 months
• Low energy consumption

It is a completely wireless solution, there is no need to use the services of an electrician. Lightning fast installation in minutes. Ideal for automating hard-to-reach window coverings, offering solutions in areas where the possibility of wiring can be a challenge. The RTS wireless radio control of the drive allows the use of the entire family of RTS transmitters and remote controls. No wiring required between the control point and the drive. Possibility of building a hierarchical radio control system.

Technical data:

• Radio frequency 433 MHz
• Minimum voltage 24 V
• Maximum voltage 24 V
• Type of limit switch Adjustable limits
• Nominal speed 87.5 rpm
• Nominal torque 0.8 Nm
• CE conformity SASO
• Protection class IP30
• Insulation class I
• Rail length 10 m
• Noise level (according to Somfy measurements) 41 dBA
