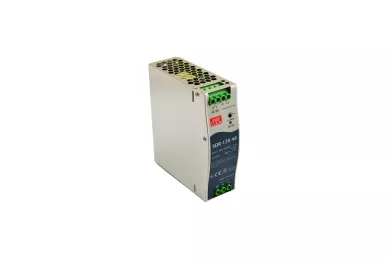

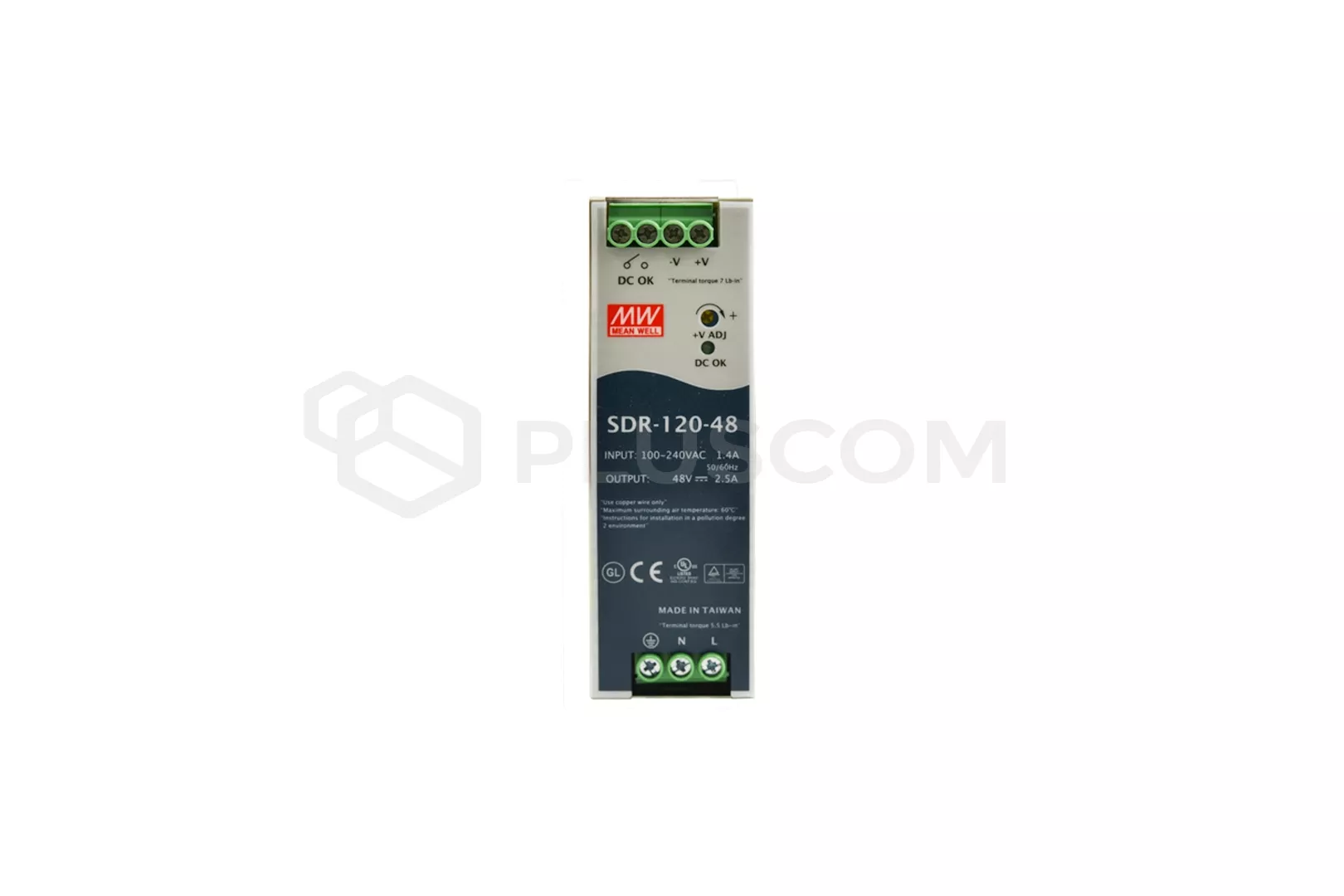

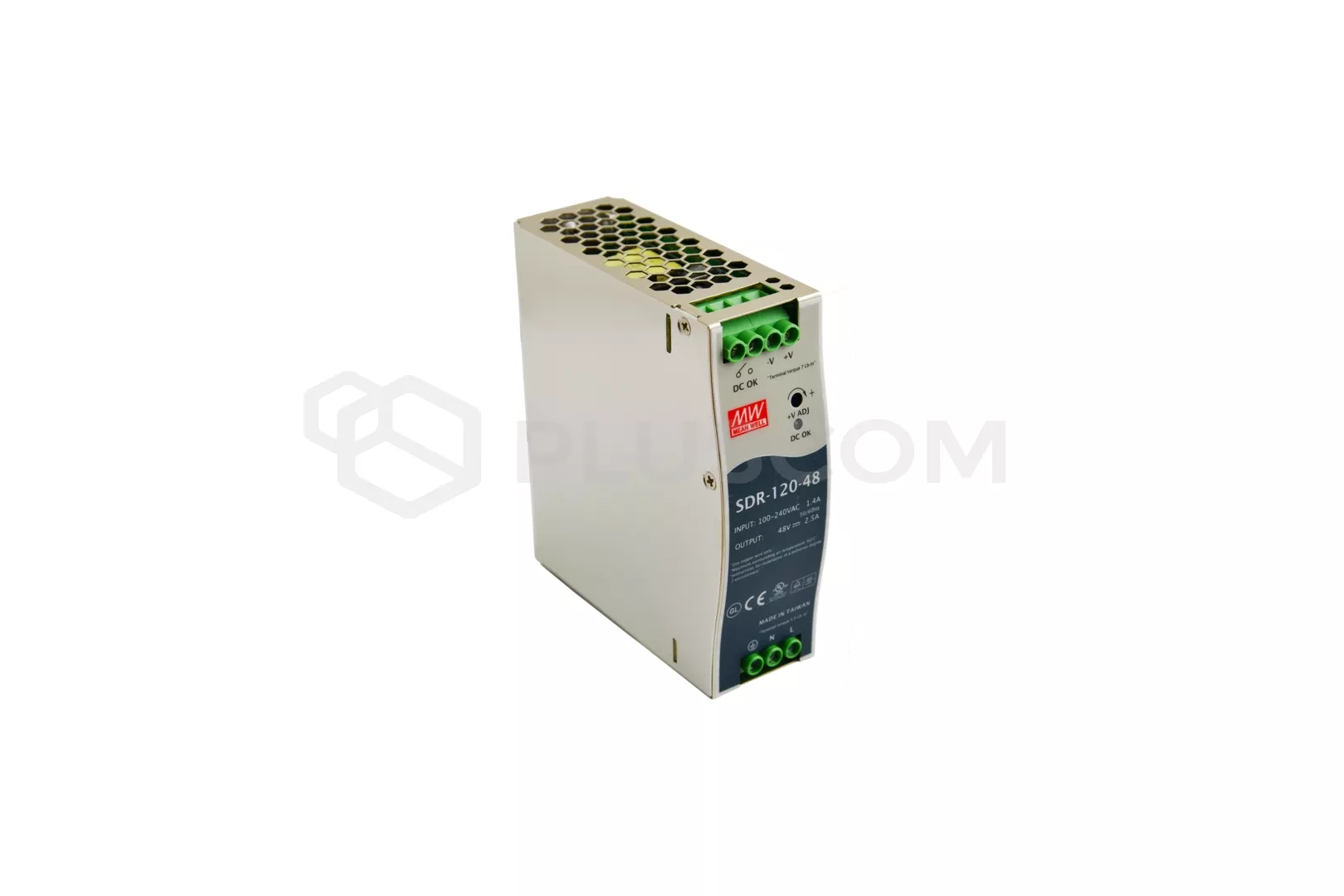

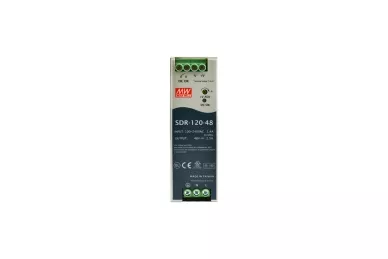

SDR-120-48 Mean Well 48V/2,5A/120W DIN rail power supply

88,26 EUR including 19.00% VAT
Product code: #11290
Manufacturer: Pulsar
  • Output parametrs: DC 48V 2,5A
    max 120W
  • Width: 40mm
  • Depth: 113,5mm
  • LED DC OK

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
SDR-960-24 Mean Well 24V/40A/960W DIN rail power supply Pulsar SDR-480P-24 SDR 24V/480W/20A DIN rail power supply units SDR-75-48 Mean Well 48V/1,6A/75W DIN rail power supply SDR-75-24 Mean Well 24V/3,2A/75W DIN rail power supply SDR-75-12 Mean Well 12V/6,3A/75W DIN rail power supply SDR-480-48 Mean Well 48V/10A/480W DIN rail power supply SDR-480-24 Mean Well 24V/20A/480W DIN rail power supply SDR-240-48 Mean Well 48V/5A/240W DIN rail power supply SDR-240-24 Mean Well 24V/10A/240W DIN rail power supply Pulsar SDR-960-48 SDR 48V/960W/20A DIN rail power supply units

SDR-120-48 Mean Well 48V/120W/2,5A DIN RAIL POWER SUPPLY

SDR-120-48 Mean Well 48V/2,5A/120W

SDR-120-48 Mean Well 48V/2,5A/120W


  • Universal AC input/Full range: 88÷264VAC
  • Protections:
    • Short circuit
    • Overload
    • Over voltage
    • Over temperature: 95°C
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • LED indicator for power on
  • 100% full load burn-in test

Download
Data sheet 0.42 MB
Declaration CE 0.09 MB
