SD-15B-24 Single output DC-DC converter

25,53 EUR including 23.00% VAT
Product code: #22763
Manufacturer: Pulsar
  • Input voltage: DC 18-36V
  • Output voltage: DC 24V
  • Max output current: 0.625A

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
SD-15C-05 Single output DC-DC converter SD-200B-24 Single output DC-DC converter SD-15A-12 Single output DC-DC converter SD-100C-5 Single output DC-DC converter Pulsar SD-500L-24 SD 24V/500W/21A DC/DC converter SD-25C-24 Single output DC-DC converter SD-15C-24 Single output DC-DC converter SD-150C-12 Single output DC-DC converter SD-100B-24 Single output DC-DC converter Pulsar SD-500H-24 SD 24V/500W/21A DC/DC converter

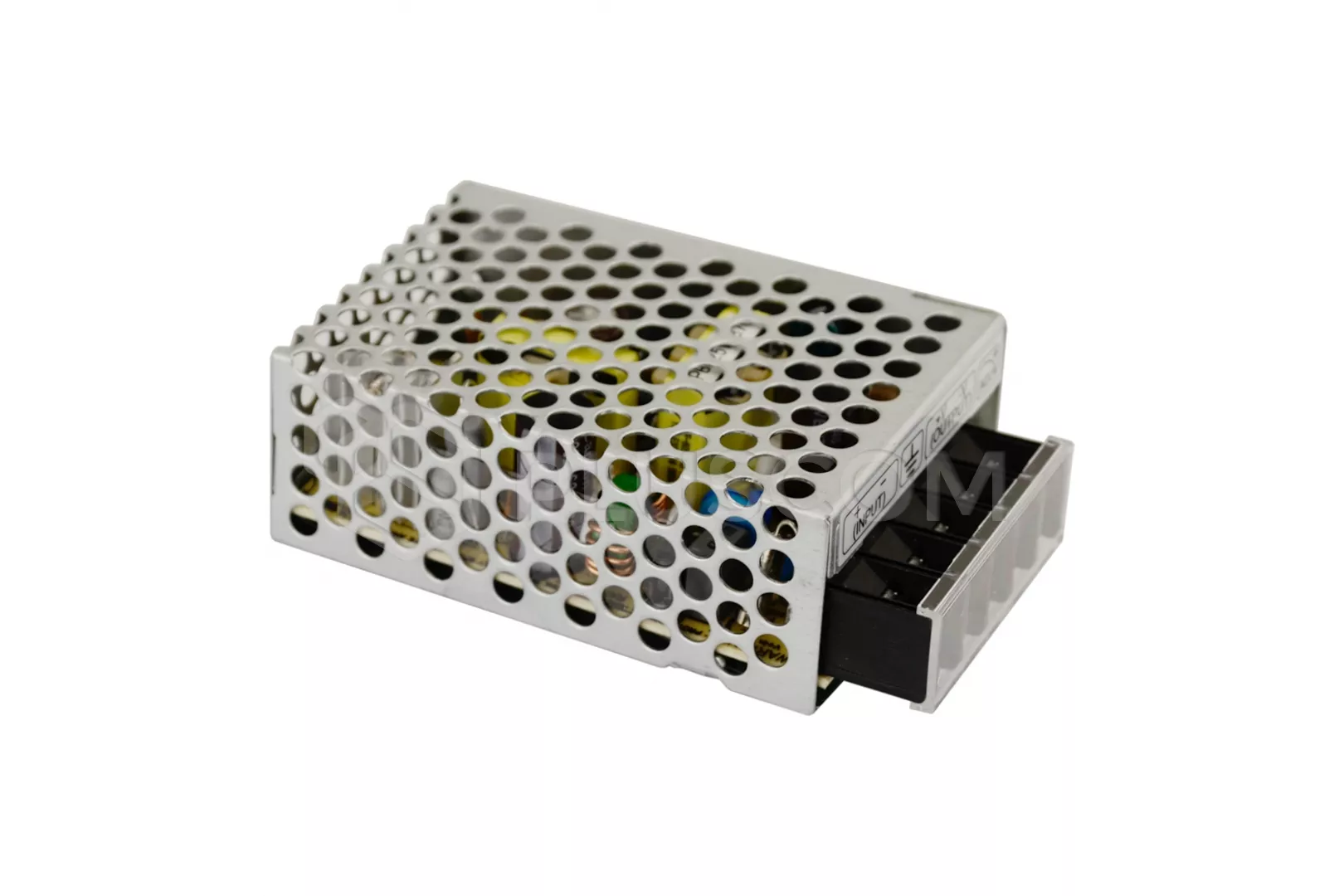

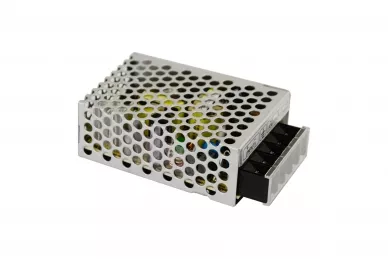

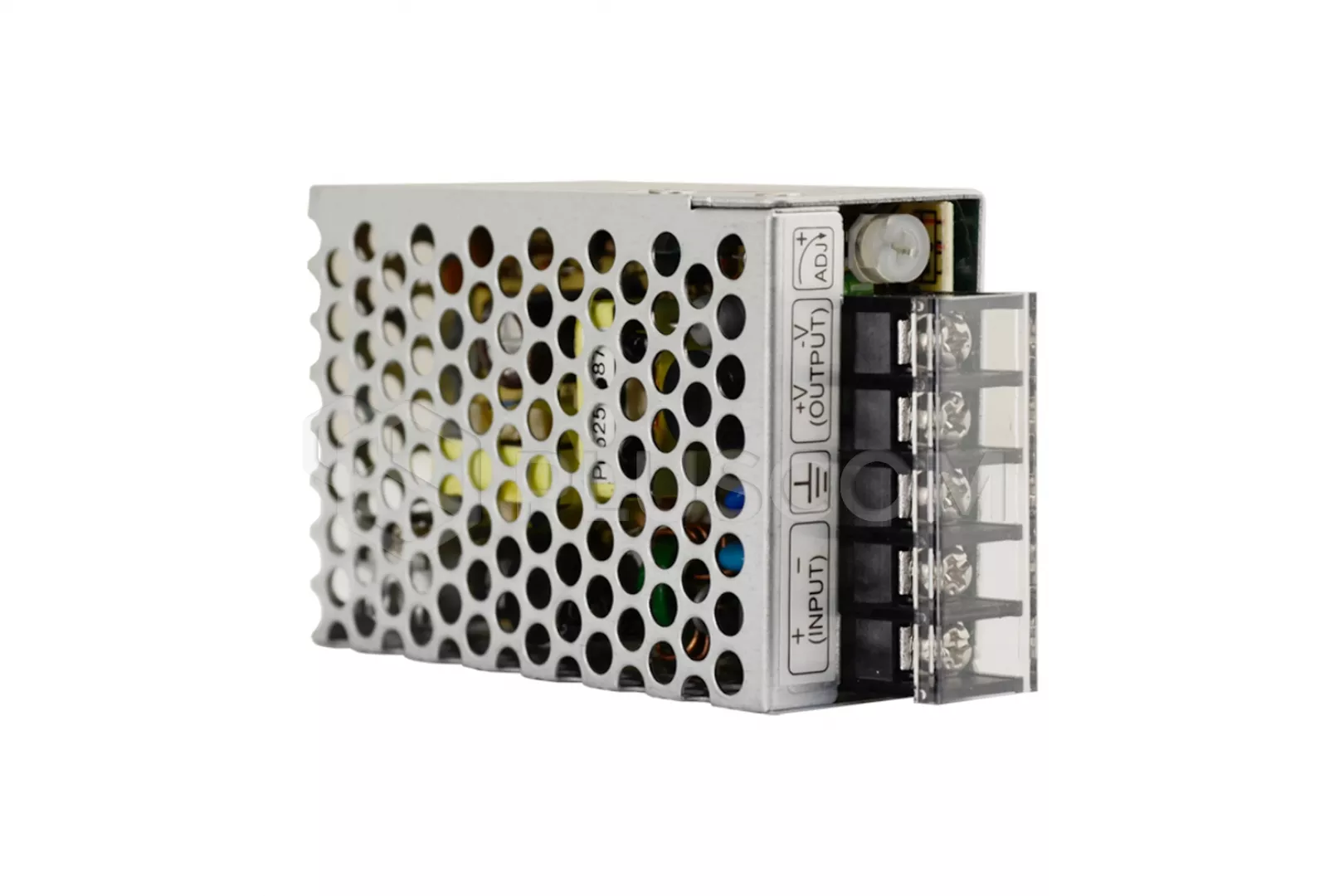

Mean Well DC/DC step-up/step-down converter SD-15B-24


The SD-15B-24 converter has a wide input voltage range. It is characterized by work stability, the possibility of mounting on any surface and passive cooling.

TECHNICAL PARAMETERS:
  • input voltage range: DC 18-36V
  • output voltage: DC 24V
  • output voltage adjustment range: DC 21.6-26.4V
  • maximum output current: 0.625A
  • power: 15W
  • built-in EMI filter, low ripple and noise
  • system efficiency: 77%
  • security:
    • overload
    • over voltage
  • working temperature: -10 ° C ~ + 60 ° C
  • dimensions: 78x51x28mm
  • weight: 0.18kg
