SD-1000L-48 Single output DC-DC converter

468,93 EUR including 23.00% VAT
Product code: #22751
Manufacturer: Pulsar
  • Input voltage: DC 36-72V
  • Output voltage: DC 24
  • Max output current: 14,6A
  • Technical outputs OC type
  • Low profile 1U

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
SD-15C-05 Single output DC-DC converter SD-150D-12 Single output DC-DC converter Pulsar SD-50C-5 SD 5V/50W/10A DC/DC converter SD-50A-5 Single output DC-DC converter Pulsar SD-25C-5 SD 5V/25W/5A DC/DC converter SD-200C-24 Single output DC-DC converter SD-150C-24 Single output DC-DC converter Pulsar SD-50B-5 SD 5V/50W/10A DC/DC converter SD-50A-12 Single output DC-DC converter SD-25B-5 Single output DC-DC converter

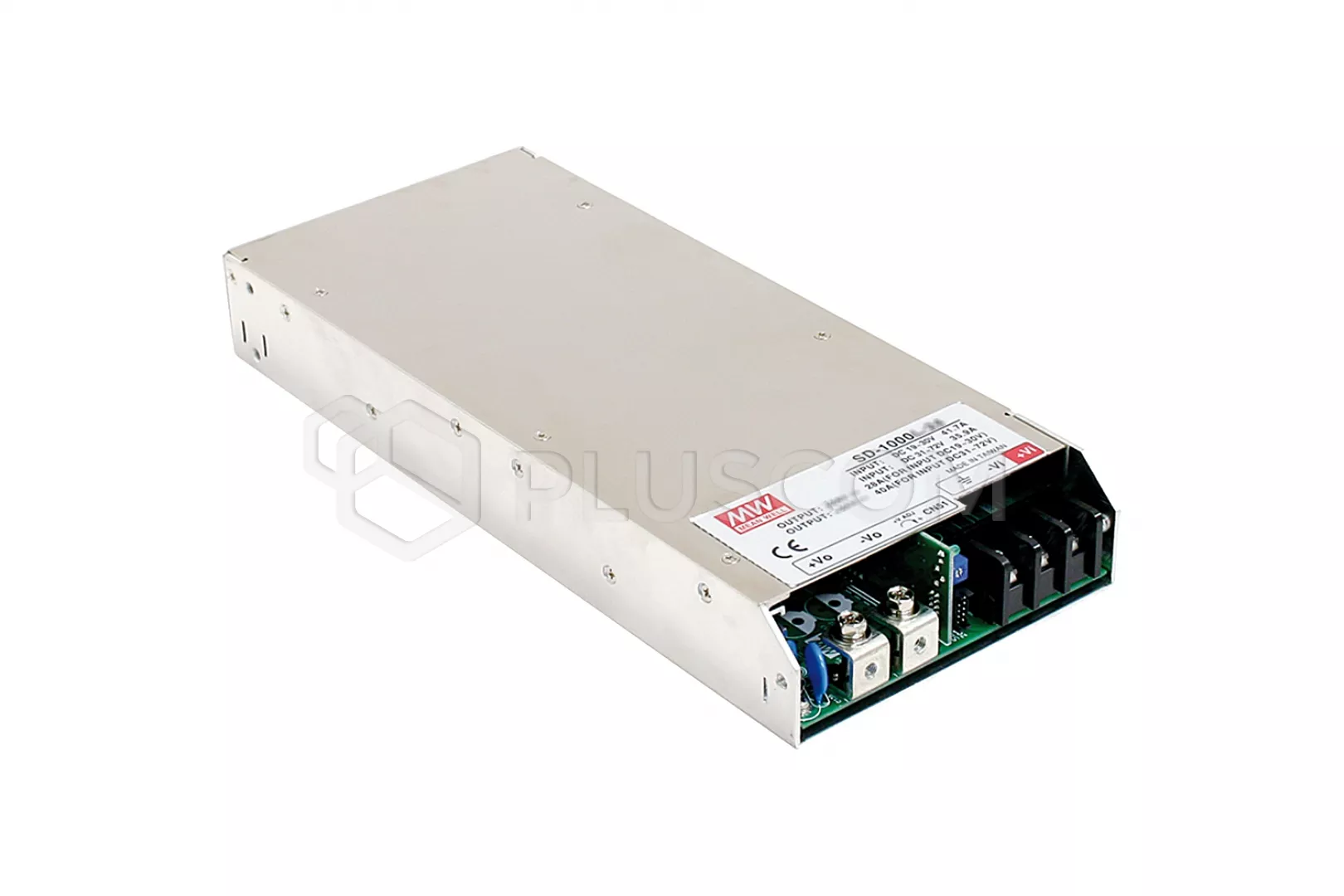

Mean Well SD-1000L-48 step-up/down-voltage DC/DC converter


The SD-1000L-48 converter has a wide input voltage range. Characterizes its stability of operation, efficiency at the level of 90% and the ability to adjust the output voltage. The device is closed in a metal housing with screw terminals and is cooled by means of built-in fan.
The converter has the Output OK technical output - the state of the output voltage.

TECHNICAL PARAMETERS:
  • power supply: 19-72VDC
  • output voltage: DC 48V
  • output voltage adjustment range: DC 46-60V
  • maximum output current: 21A
  • power: 1008W
  • built-in EMI filter, low ripple and noise
  • system efficiency: 90%
  • security:
    • overload
    • overvoltage
    • from overheating
  • efficiency: 90%
  • working temperature: -20°C ~ + 60°C
  • dimensions: 295 x 127 x 41mm
  • weight: 1.94kg

Download
Datasheet 0.08 MB
CE Declaration 0.44 MB
