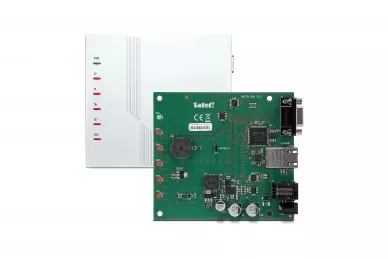

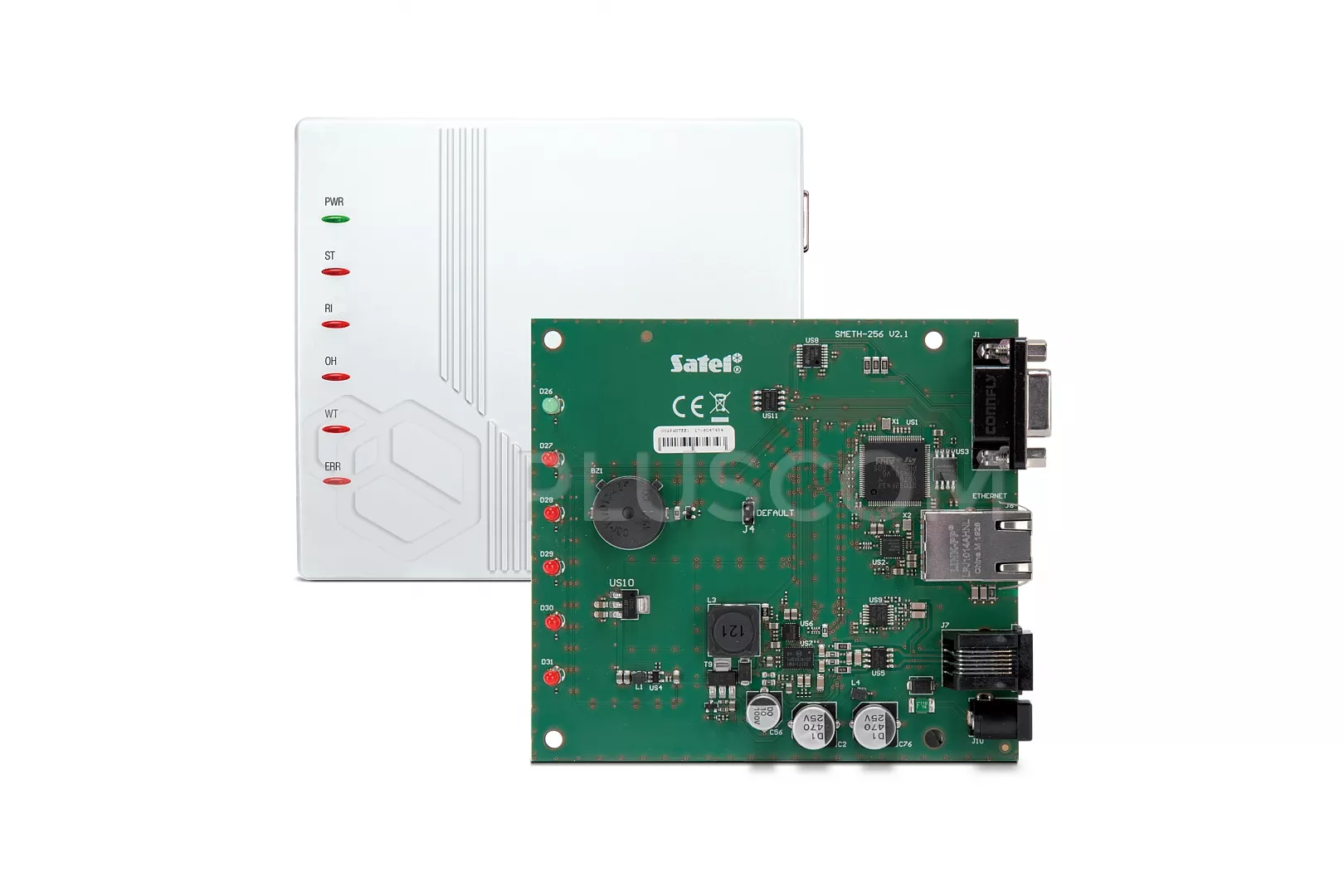

Satel SMET Pro Converter for a monitoring station

Satel SMET Pro Converter for a monitoring station

The SMET Pro converter is designed for companies offering alarm system monitoring services. Thanks to the converter, the companies who do not use a SATEL monitoring station are still able to offer their services to clients who own SATEL devices which send events via the Ethernet / cellular data network. The converter receives events sent via the Ethernet / cellular data network using the SATEL format and converts them to the transmission format supported by the monitoring station. Several different outgoing formats of data transmission are available.

Features

• Receiving events sent in the SATEL format via the Ethernet/cellular data network
• Event receipt acknowledgement
• Buffering the received events in the converter memory until they are sent to the monitoring station
• Support of up to 1024 subscribers in the extended mode (with control of communication with the subscriber)
• Support of additional subscribers in the simple mode (without control of communication with the subscriber)
• Capability to convert the SATEL transmission format to the transmission formats supported by a given monitoring station:
• • simulation of the analog telephone line
  • simulation of the RC4000 VISONIC receiver
  • simulation of the SurGard receiver
  • simulation of the RSM-02 receiver
• Transmitting data to the monitoring station by using a telephone cable, a RS-232 cable or via the Internet
• Support of static and dynamic IP address
• MAC address filtering
• Option to synchronize the time with the NTP server
• Control of the Ethernet cable presence.
• Configuring using a computer with the SMET Soft program installed (communication via RS-232 or the Internet)
• Possibility to update the converter firmware

You can configure the converter by using a computer with the SMET Soft program installed. The SMET Soft program can establish communication with the converter through the RS-232 port or the Internet. If you wish to establish connection over the Internet, configure the network settings first.

Specifications

• Supplied with 12 VDC
• Recommended power supply: 12 VDC / 750 mA
• Operating temperature range: +5°C... +40°C
• Enclosure dimensions: 125 x 114,5 x 31 mm
• Weight: 300 g
