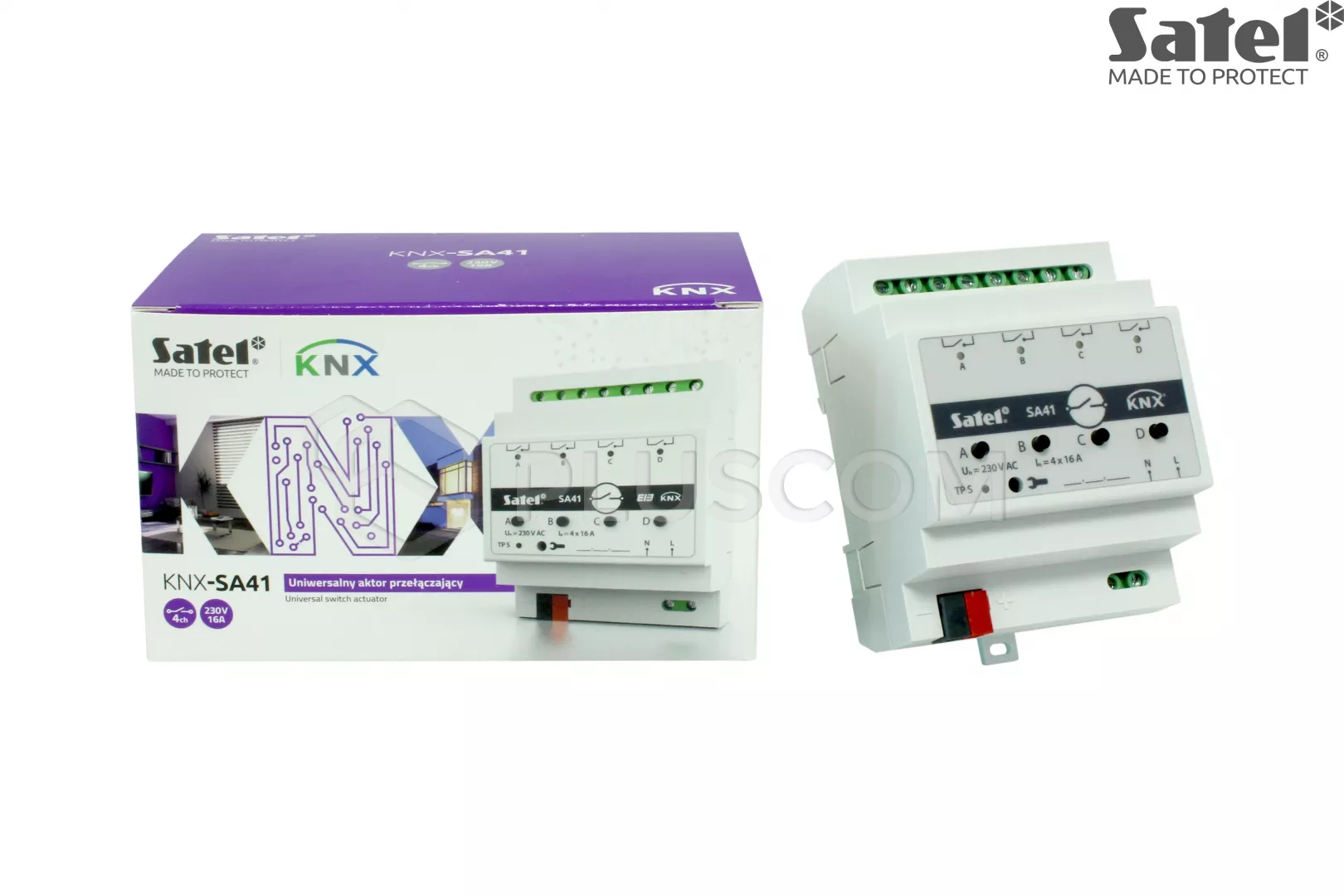

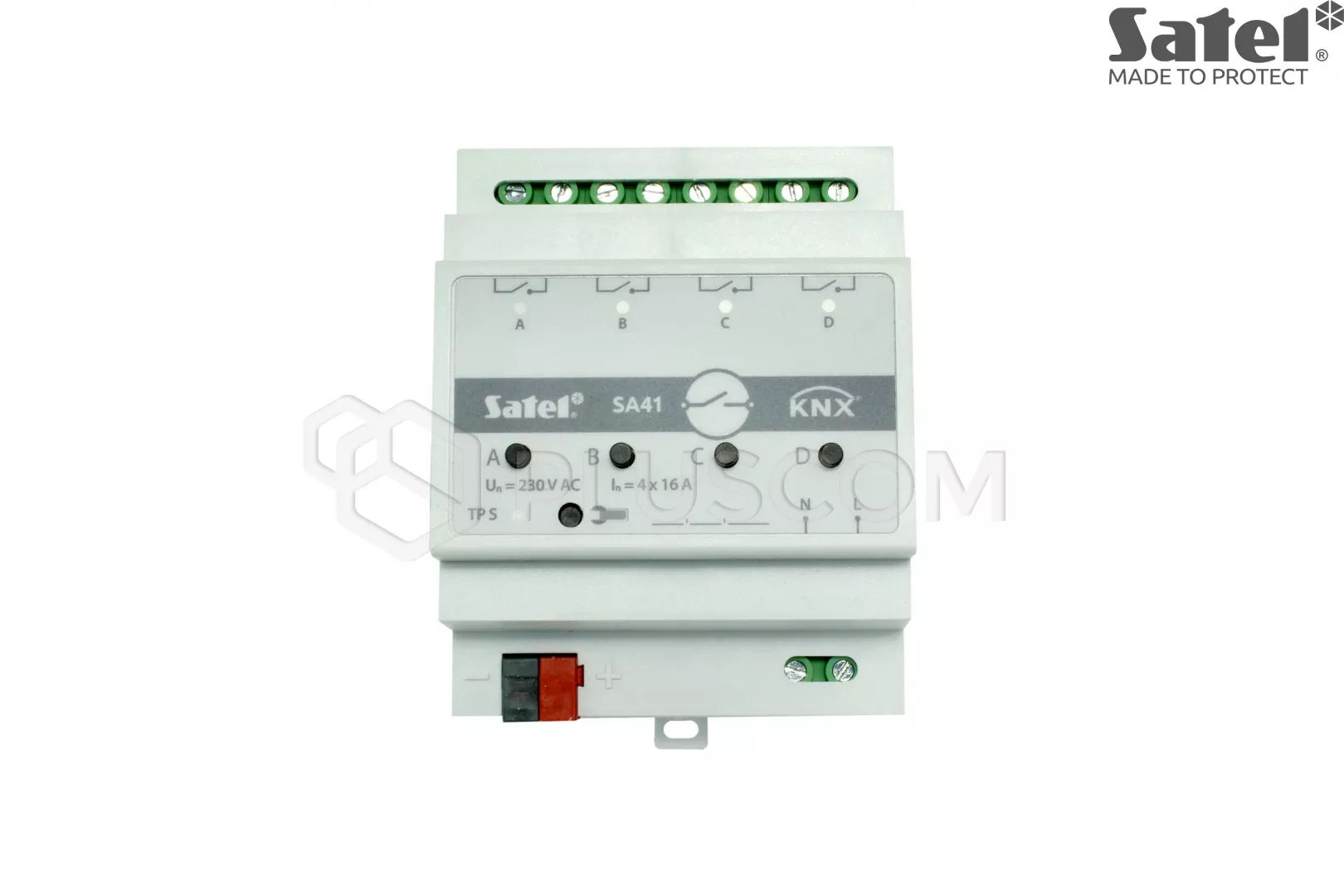

Satel KNX-SA41 Universal Switch Actuator

161,29 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #21410
Manufacturer: Satel
  • 4 relay outputs - 4 independent paths of 1 relay
  • 16A - rated load or relays
  • integrated bus connector
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Satel KNX-SA41 Universal Switch Actuator

The KNX-SA41 module is an universal switch actuator, which makes it possible to control electrical devices (lighting, sirens, ventilation). The module constitutes an interface between the electrical devices and the KNX system. Telegrams received by the module from various KNX devices (sensors, etc.) are converted into concrete actions, such as switching on/off light or fan.

FEATURES

  • Communication with KNX bus via integrated bus connector
  • Feedback on the state of module and individual channels
  • Reaction of each channel can be defined in case of KNX bus voltage loss and recovery
  • Reaction of each channel can be defined in case of mains voltage recovery
  • Time functions (flashing, on/off delay, staircase light function with advance warning option and operating time change)
  • Logic functions (AND, NAND, OR, NOR, XOR, XNOR)
  • Threshold value function
  • Safety functions
  • State forcing functions
  • Scenes for each of the channels can be called up by using 1- and 8-bit commands
  • Manual control of each channel state by using buttons situated on enclosure

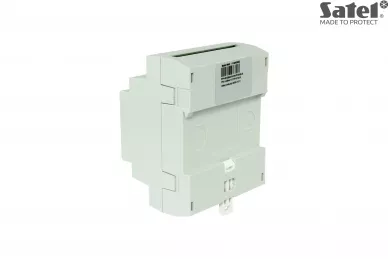

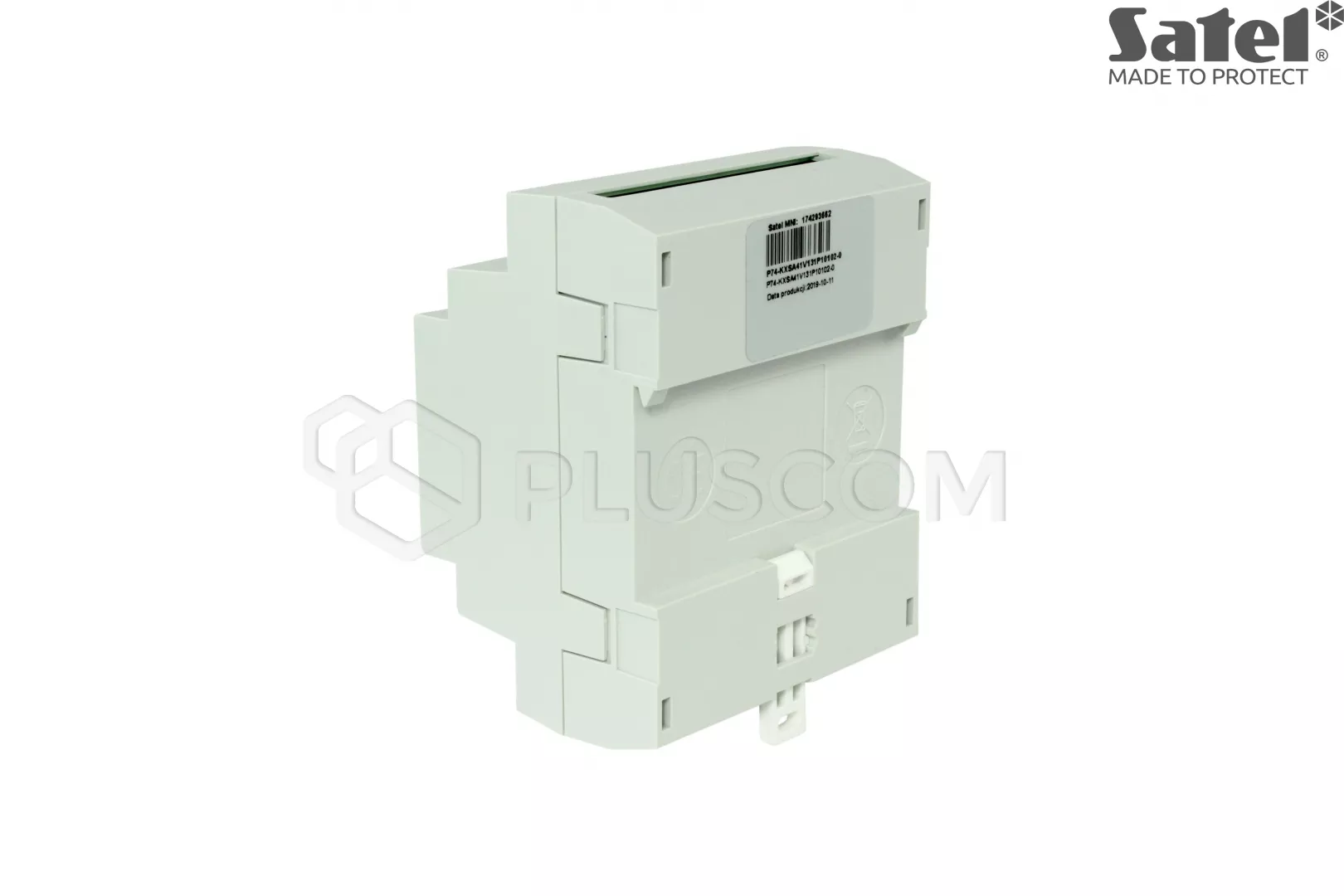

  • Status LEDs for each channel.  Ability to be mounted on DIN rail (35 mm)
  • Module configuration using ETS software
  • Capability of switching between resistive, inductive and capacitive loads.

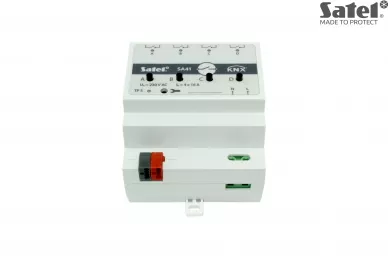

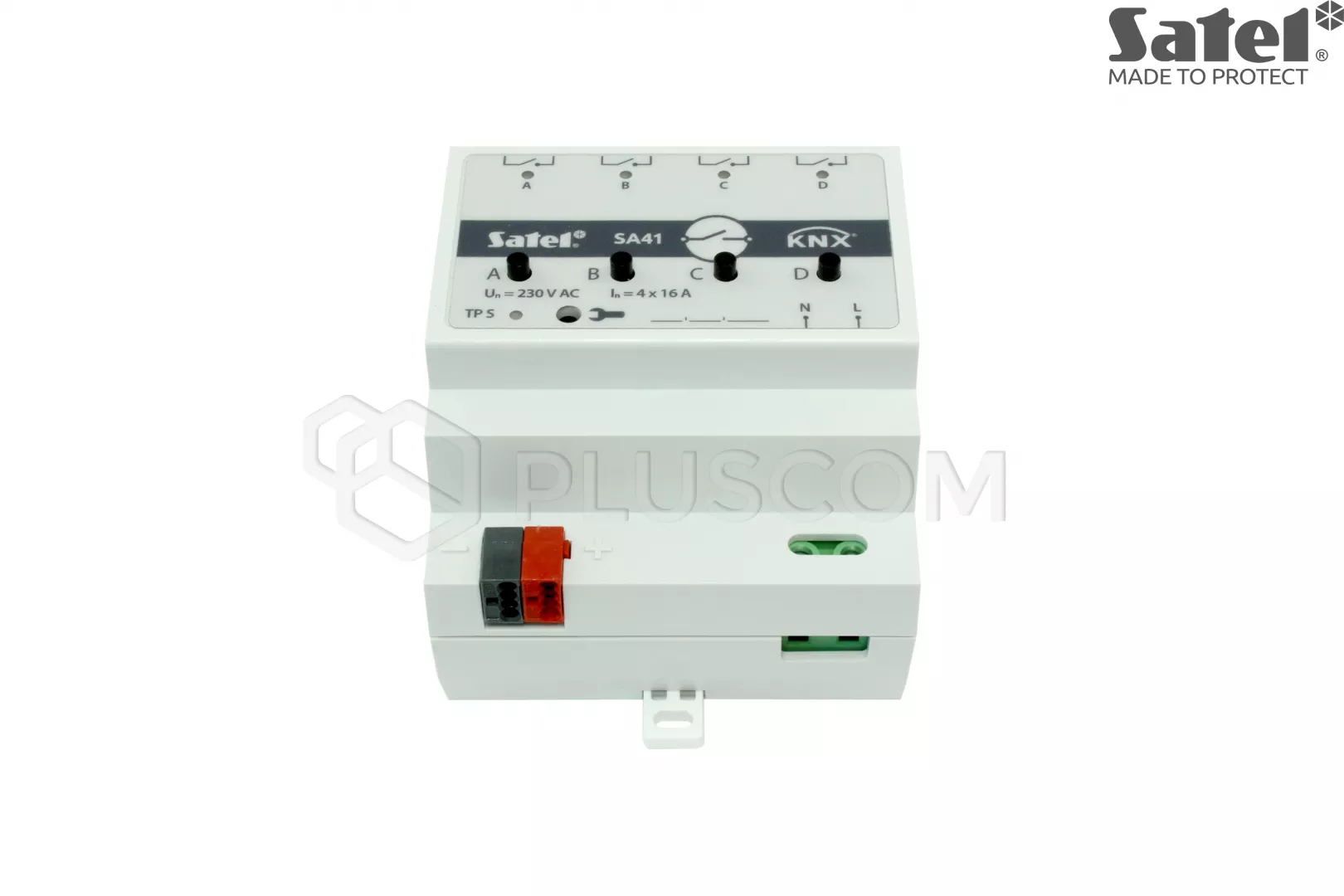

Integrated bus connector:

Integrated bus connector:

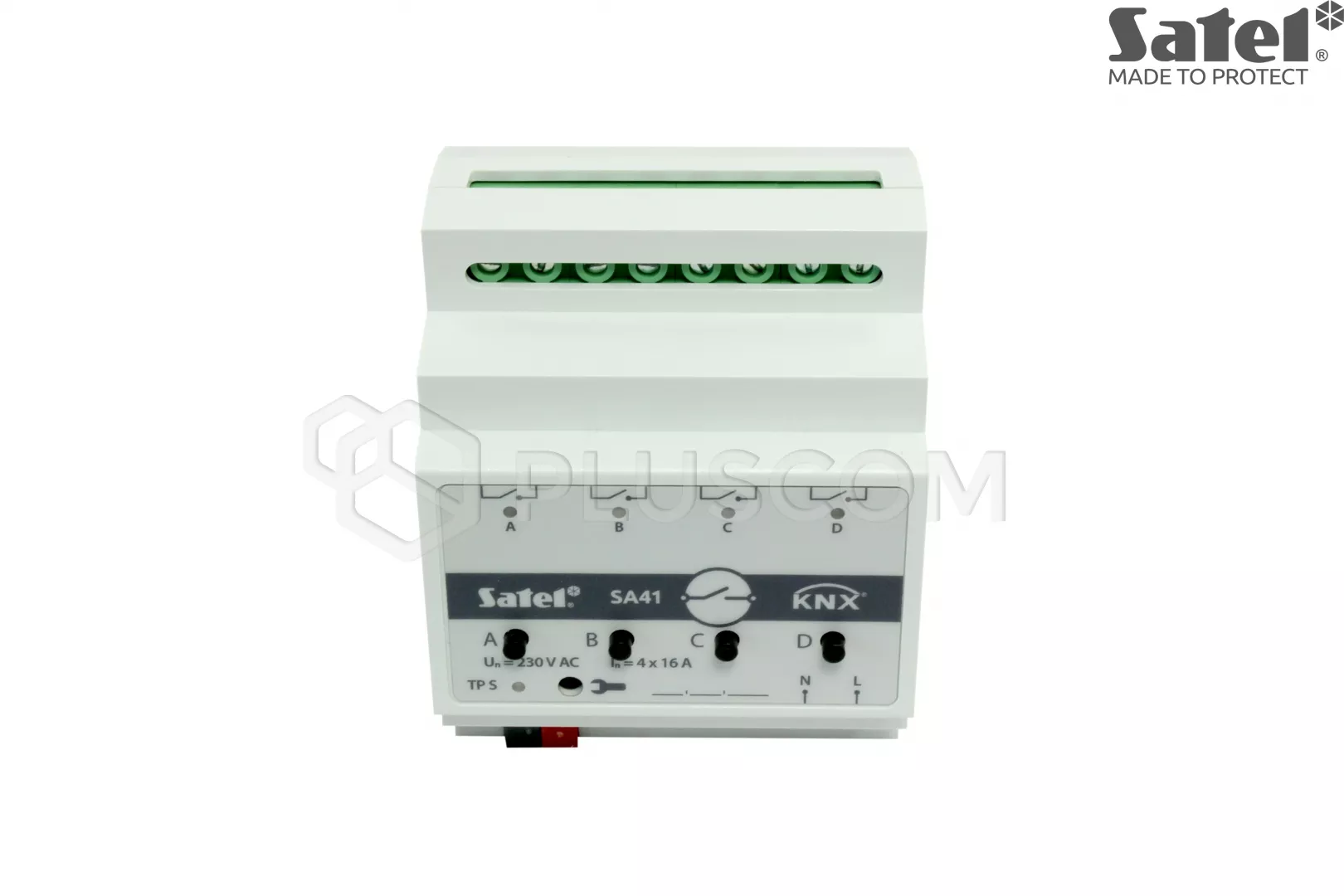

Terminal block:

Terminal block:

Download
Data sheet 1.1 MB
Quick Installer Guide 0.34 MB
Manual 0.94 MB
