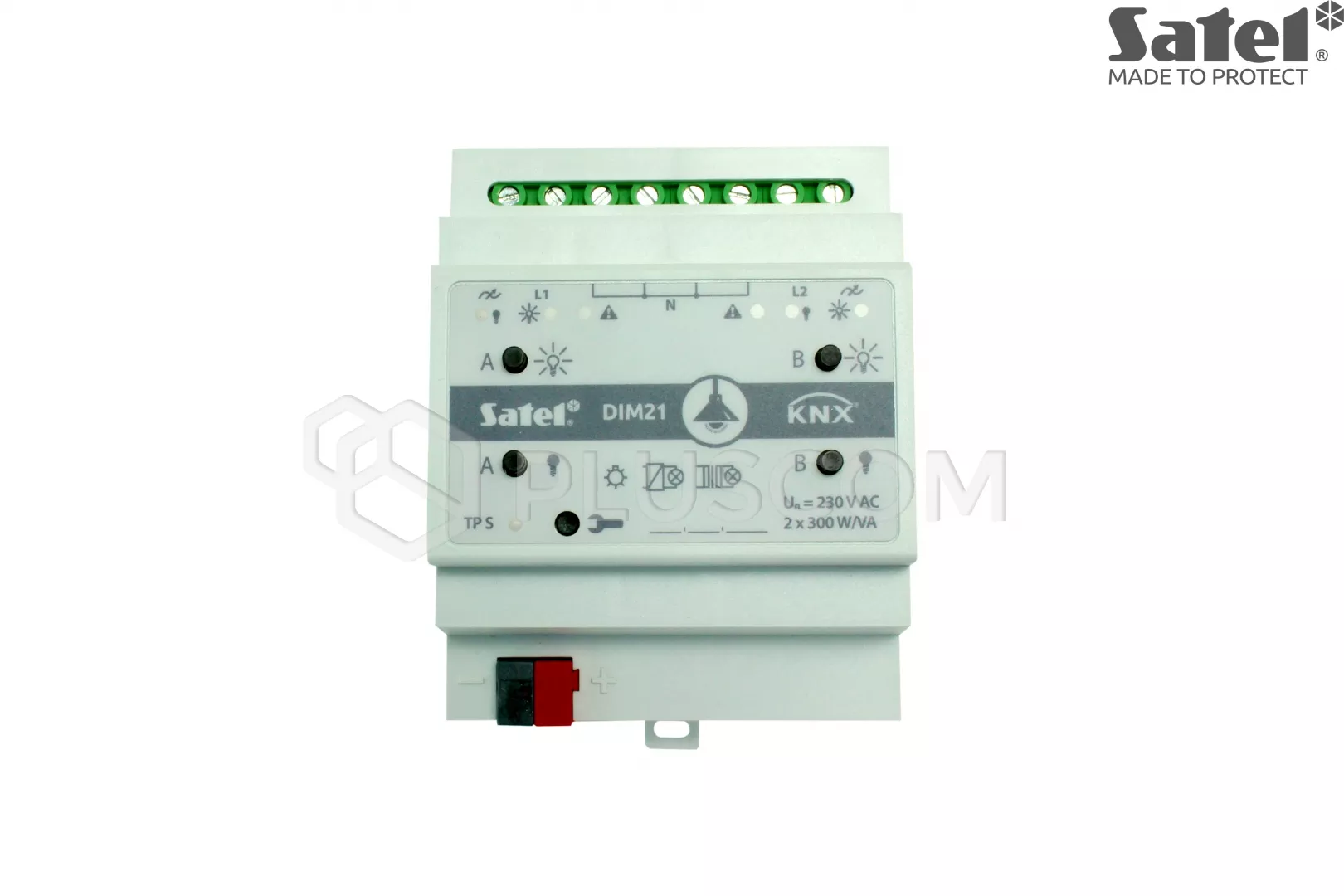

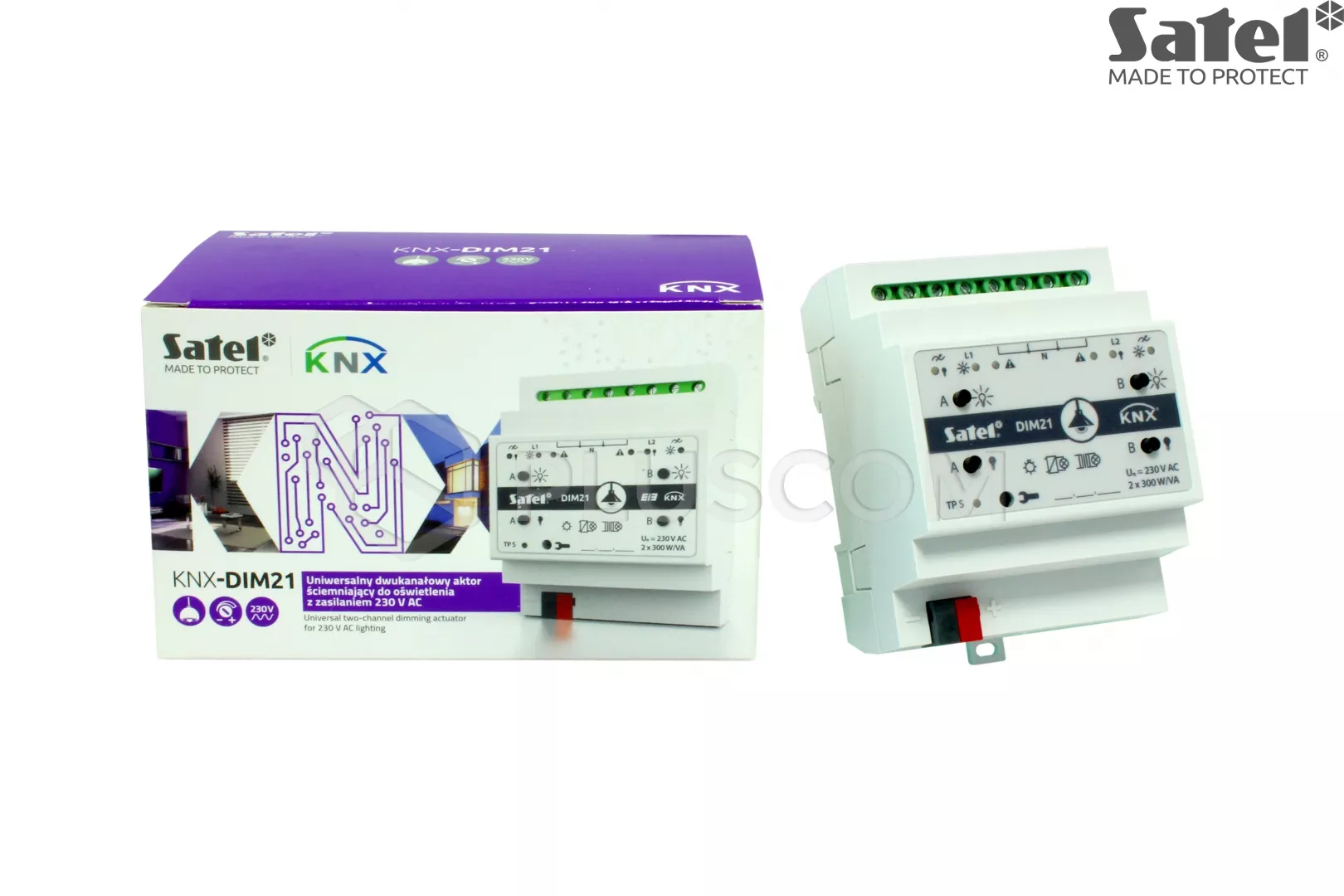

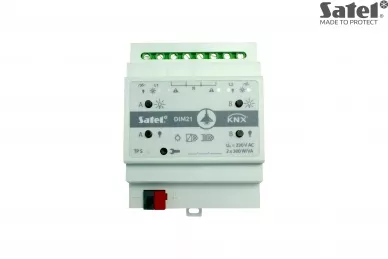

Satel KNX-DIM21 Universal two-channel dimming actuator

201,77 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #21411
Manufacturer: Satel
  • two channels - load up to 300W
  • cooperation with R,L,C loads
  • automatic load type recognition
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Satel KNX-DIM21 Universal two-channel dimming actuator

The KNX-DIM21 module is a universal two-channel dimming KNX actuator that allows stepless control of light sources up to 300 W per channel. The light can be turned on / off, dimmed down (darker) / dimmed up (brighter), set by using a predefined scene or another function via the KNX bus. The actuator can be used with resistive, inductive and capacitive loads (R, L, C).

This module is designed for use with 230 VAC power and may not be used for dimming light sources supplied with DC current, as this might damage the module and the connected load.

FEATURES:

  • Communication with KNX bus via integrated bus connector
  • Automatic recognition of the connected load type
  • Adjustable lighting characteristic to suit the load type
  • Two-stage, firmware-hardware overheating protection system
  • Overload protection
  • Feedback on status of module and individual channels
  • Definable reaction of each channel in case of KNX voltage loss and recovery
  • Definable behavior of each channel in case of voltage recovery
  • Time functions (switching delay, staircase function with warning option and operating time change)
  • Value forcing function.
  • Option to call scenes for each channel by using 1- and 8-bit commands.
  • Manual operation of each channel status by using buttons on the enclosure.
  • LEDs to indicate each channel status and signal troubles.

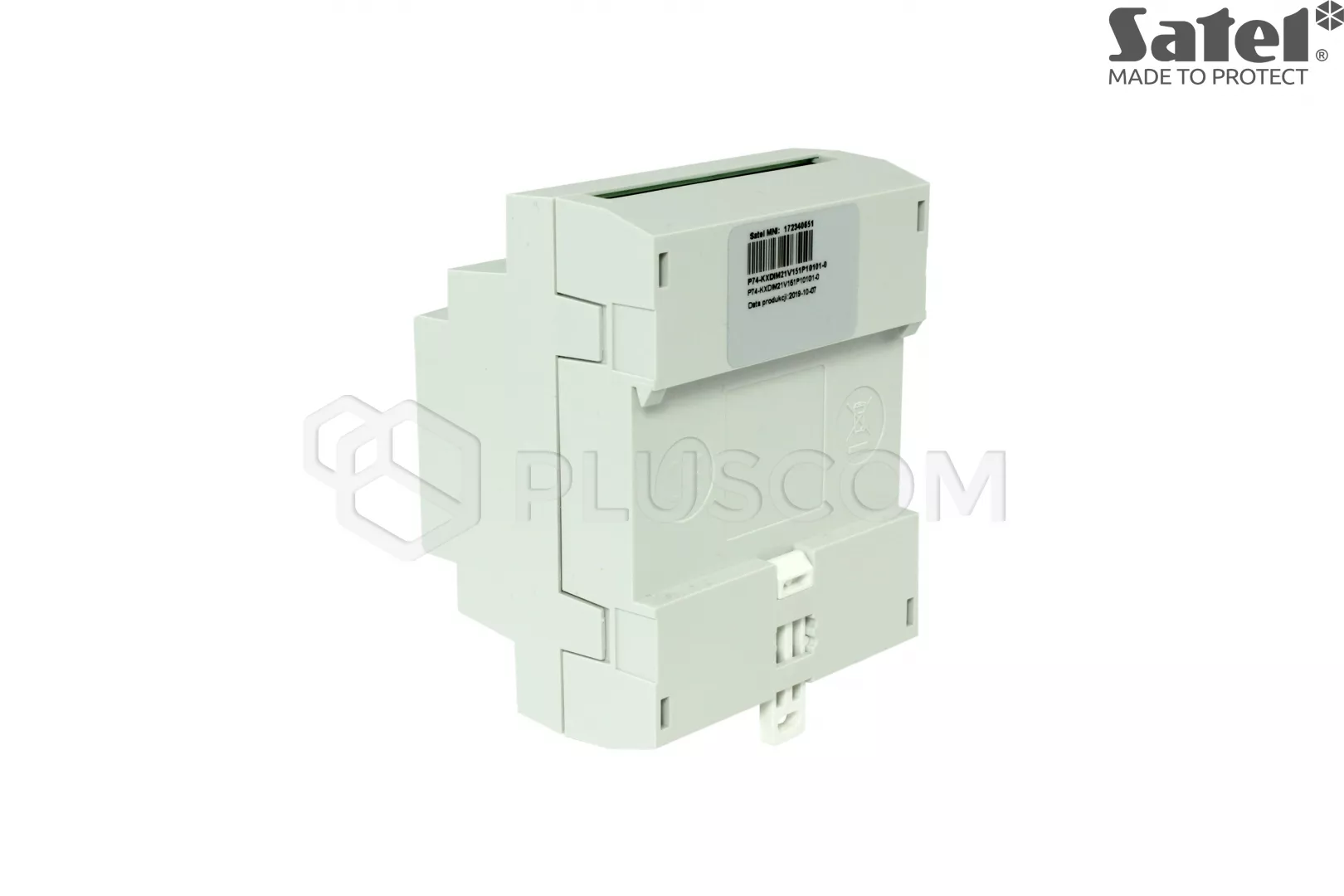

  • Ability to be mounted on DIN rail (35 mm).
  • Module configuration using ETS software.

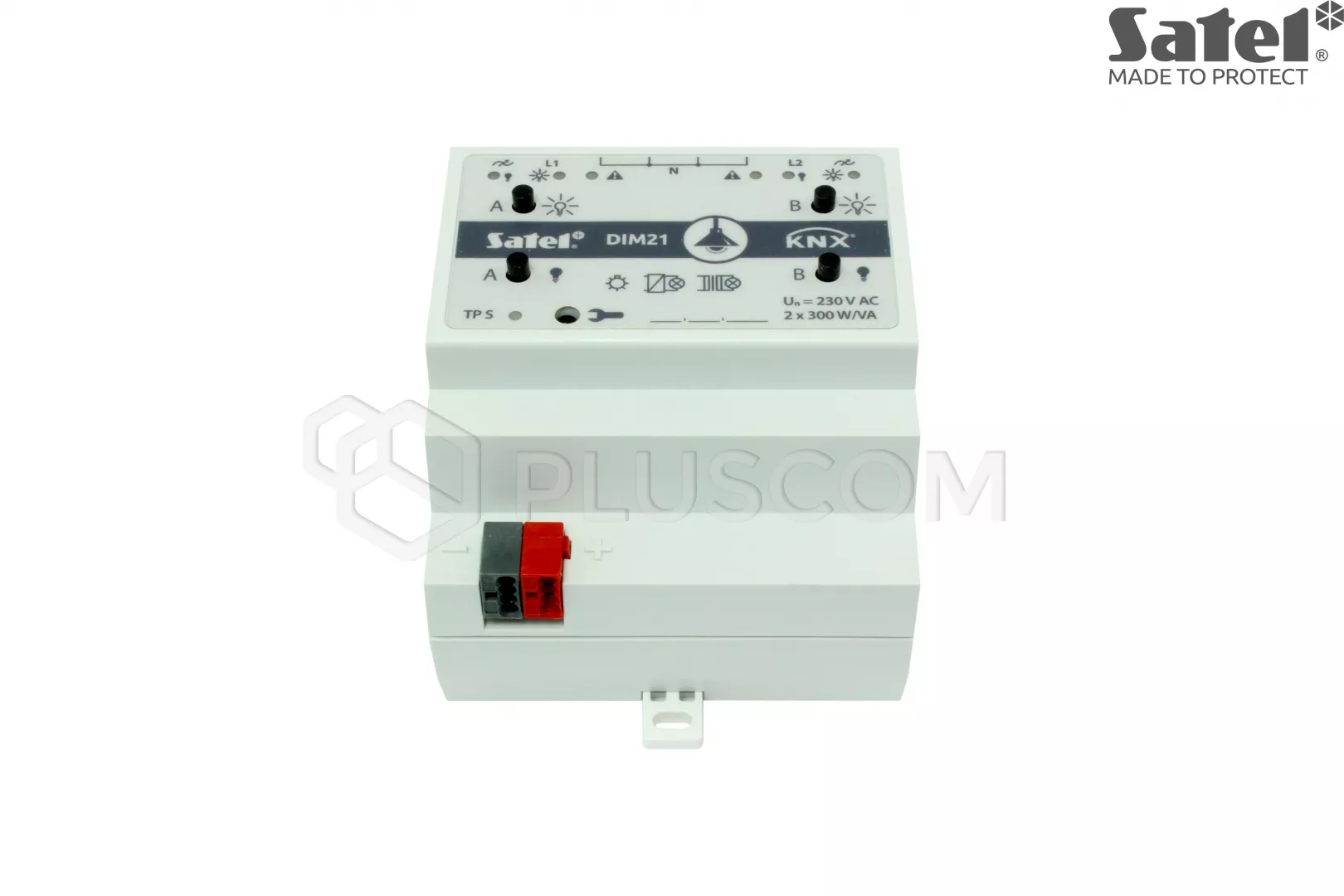

Integrated bus connector:

Integrated bus connector:

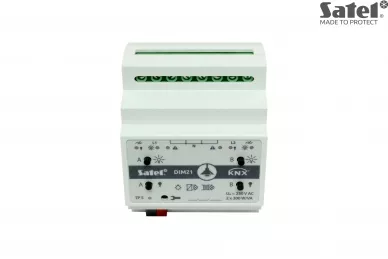

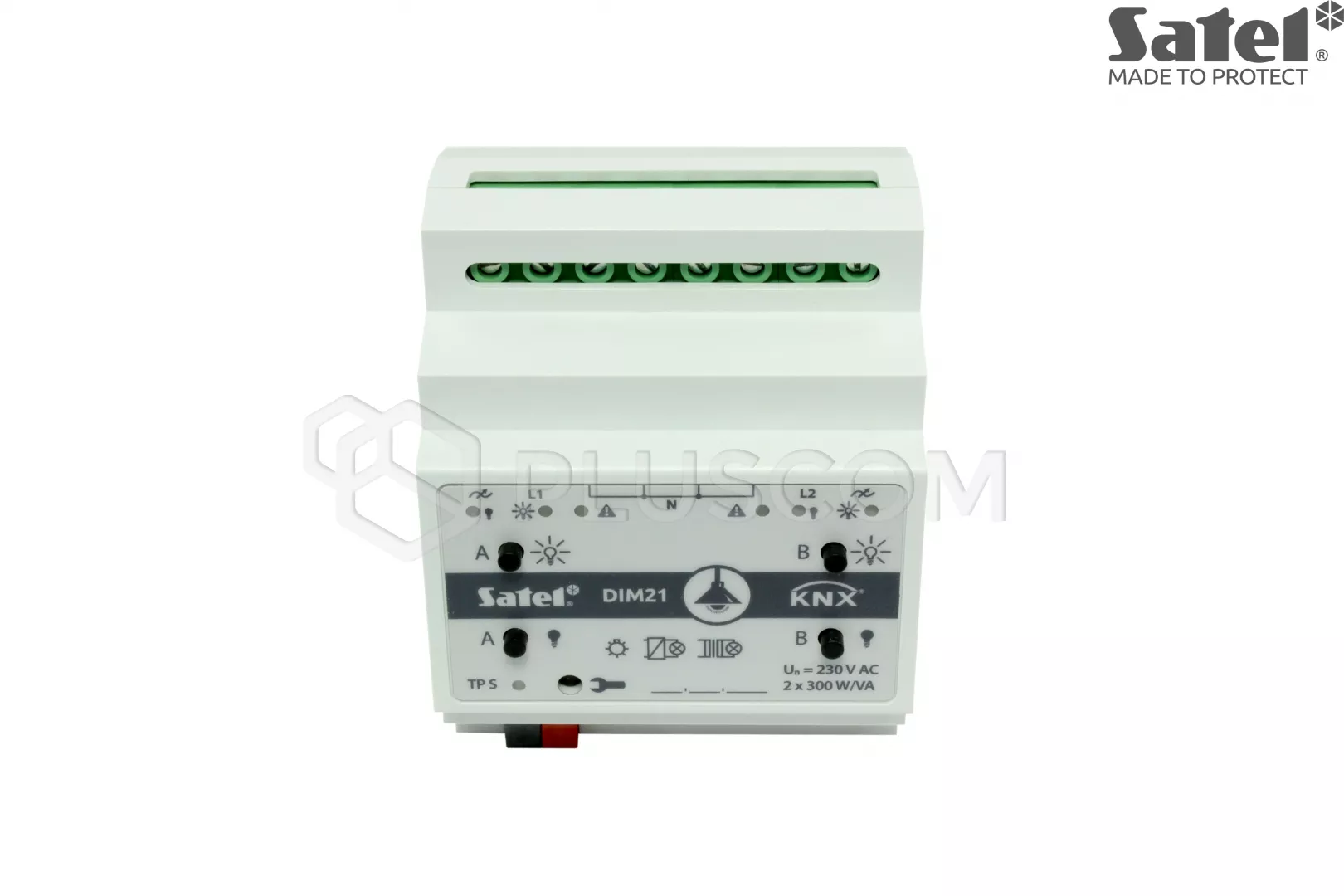

Terminal block:

Terminal block:

Download
Data sheet 1.2 MB
Quick Installer Guide 0.44 MB
Manual 1.11 MB
