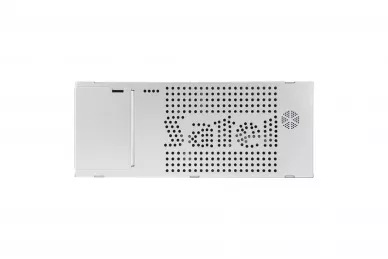

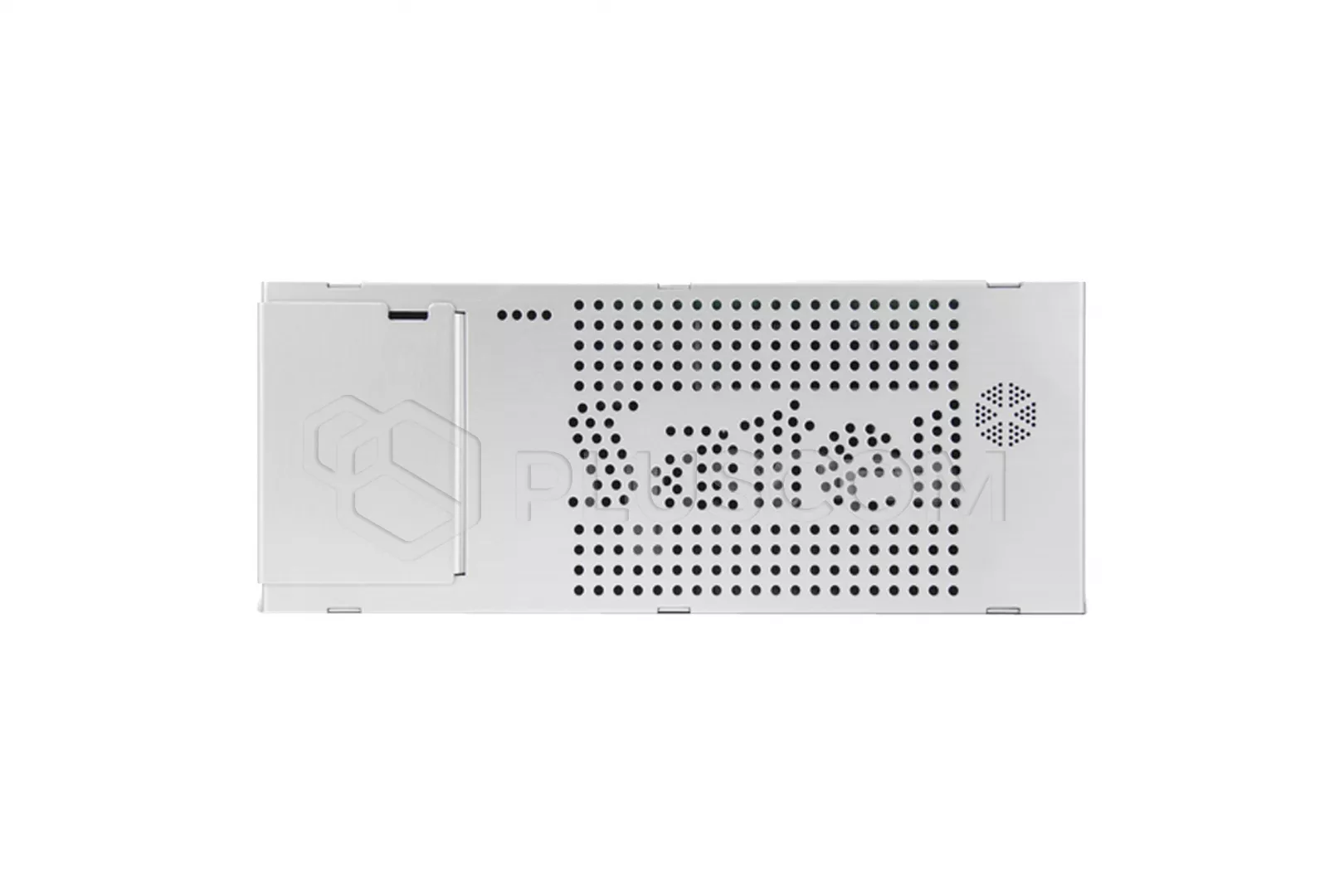

Satel APS-724 Buffer power supply 24VDC/7A

307,91 EUR including 23.00% VAT
Product code: #20716
Manufacturer: Satel
  • 7A power supply load capacity
  • Short circuit and overload protection built-in
  • 4 OC type outputs
  • Complies with EN 55011 Class B
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.
Satel APS-724 Buffer power supply 24VDC/7A

The APS-724 is a 24V switching mode buffer power supply with high current efficiency of 7A. IN in the case of battery charging, the current capacity is reduced to 6A 6 A (device power supply) + 1 A (battery charging). Complies with EN 55011 Class B, in terms of the level of conducted and radiated EMI. It also meets the requirements of the EN 60950-1 safety standard.

The power supply is characterized by high energy efficiency - 94% and stable parameters work through the active power factor correction system PFC.

In the event of a power source failure, we can connect the batteries to the device lead-acid (or other with similar charging characteristics).

FEATURES OF THE POWER SUPPLY:

  • 4 OC type outputs signaling failure:
    • no AC power
    • no battery, dead battery or too high resistance internal battery
    • power supply overload
    • exceeding the permissible operating temperature
  • 4 signaling LEDs:
    • power output status
    • battery status
    • AC power status
    • power supply temperature too high
Acoustic failure signaling is also available
The power cable is connected to the IEC C14 connector.

TECHNICAL PARAMETERS:

  • supply voltage: 230 V AC
  • rated output voltage (at IEC 38): 24 V DC
  • actual voltage output: 27 V DC
  • coutput current:
    • operation without a battery connected: 7 A
    • work with connected battery: 6 A
  • battery charging current: 1 A
  • PF (Power Factor Correction): do 0,98
  • energy efficiency: do 94%
  • operating temperatures: -10°C...+55°C
  • housing dimensions: 101 x 68 x 291 mm
  • weight: 1.34kg
