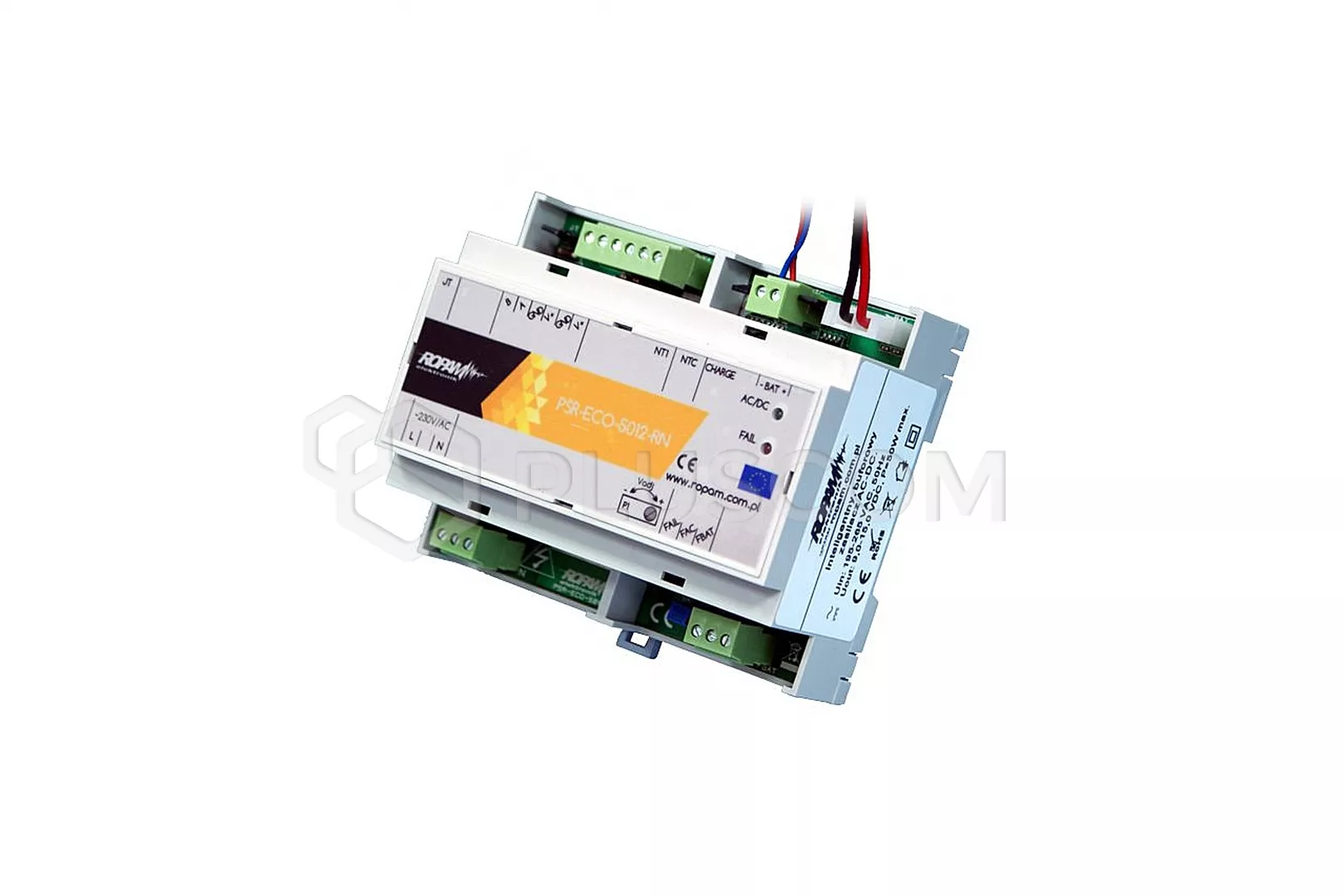

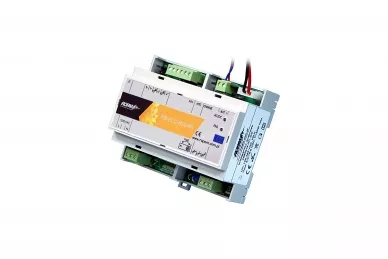

Ropam PSR-ECO-5012-RN Backup power suppply

69,86 EUR including 20.00% VAT
Product code: #6625
Manufacturer: Ropam
  • input: AC 230V
  • output: DC 13.8V/3A
  • DIN rail mounting (6M)
  • AC integrates three functions in one
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam DIN-35-100 TH-35 rail 100mm long
Ropam PSR-ECO-5012-RN is a smart modern design, buffer and supervised power supply. Very big emphasis on service back-up battery. With the use of the proper two-phase process of charging the direct-current and constant-voltage (I/U) and self-temperature compensated charging voltage of the battery is extended operation under normal conditions to the design value manufacturer. Keeping the battery in good condition is important for system reliability and brings tangible economic benefits extending the time to replace the batteries and maintenance service.

The power supply integrates three functions in one:
  • adjustable power supply,
  • battery charger,
  • UPS 12V DC

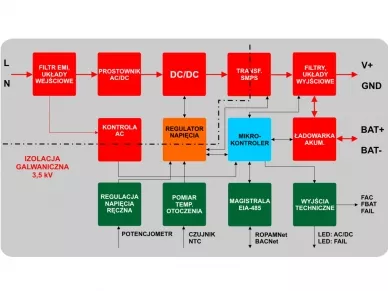

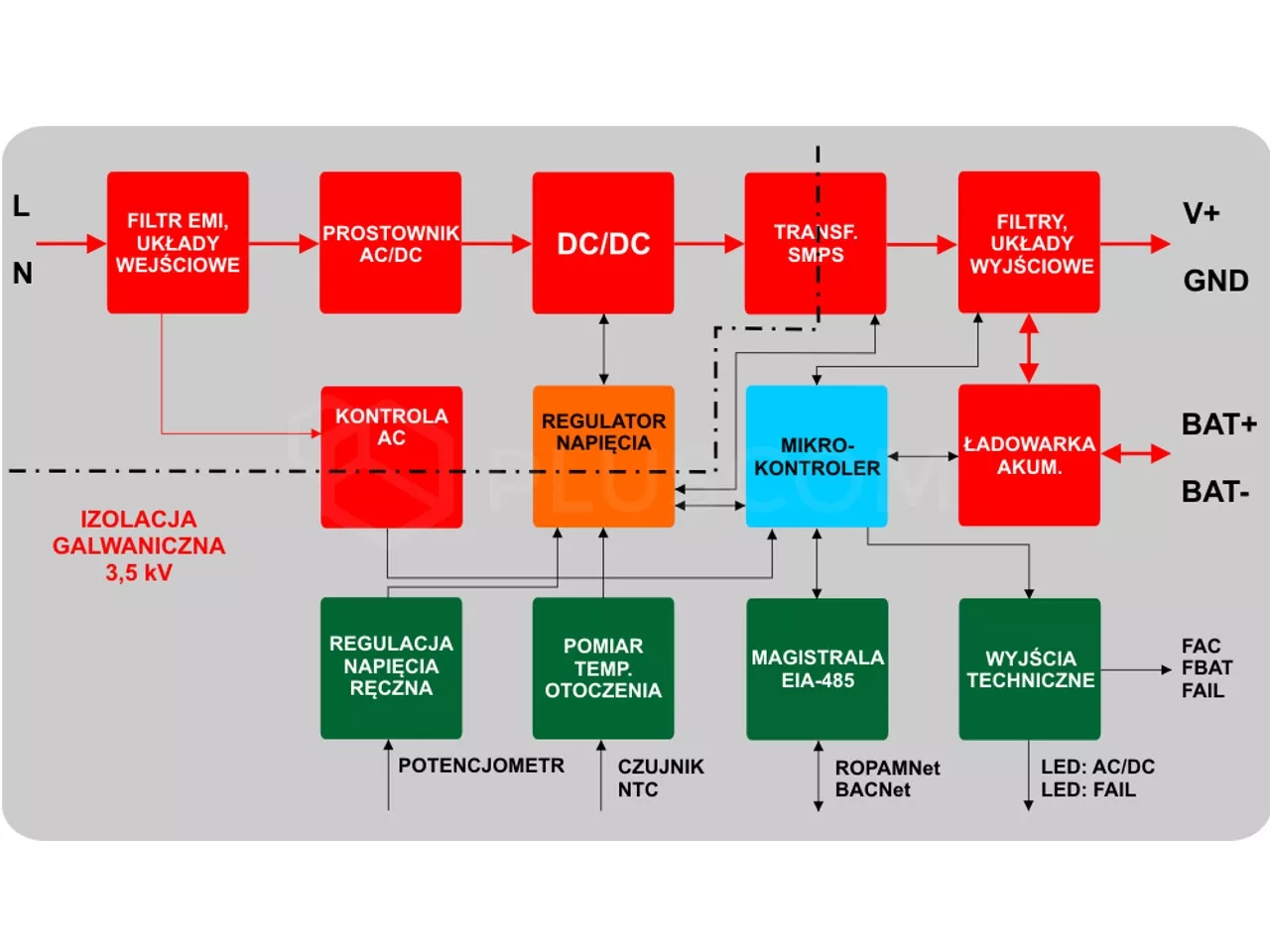

Block diagram of the power supply:

Block diagram of the power supply:

">
Block diagram of the power supply:

Block diagram of the power supply:



FEATURES:
  • the nominal output voltage of 13.8V/3A
  • AC input voltage 195-265V
  • high energy efficiency is typically 88% up to 91%
  • passive cooling, low heat emission
  • 50W output power available in the full range of work
  • increased galvanic isolation PRI/SEC 3.5 kV
  • DIN 6M modular housing
  • electronic and autonomous protection with automatic reset:
    • overload OCP,
    • SCP,
    • OHP temperature,
    • OVP,
    • UVP undervoltage
  • 12V battery service 5-28Ah
  • control the charging process
  • technical output for reporting the state: the state of the AC, battery status, and other failures
  • surveillance and communication systems NEO, NeoGSM, OptimaGSM
  • microprocessor diagnostics and control of power supply operation
  • measurement of the basic parameters of the power supply voltages, currents, temperature
APPLICATION:
  • NEO system power, NeoGSM, OptimaGSM
  • power systems, home automation
  • LED lighting power supply 12V DC
  • power supplies for access control systems,
  • power supplies for CCTV systems
  • 12V DC power supply systems
PROGRAMMING:
  • PARTNER GSM software supplied with the control panel
Download
