Ropam O-R4D Metal housing

43,03 EUR including 19.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #6614
Manufacturer: Ropam
  • for the unit and GSM modules Ropam
  • DIN 35-100 -rail mounted
  • space for battery 12V 7Ah or 17Ah
  • internal dimensions: 320x300x90mm

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,83 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam BP 18Ah 12V AGM battery Ropam BP 7Ah 12V AGM battery Ropam TAMPER A microswitch for housing tamper signaling

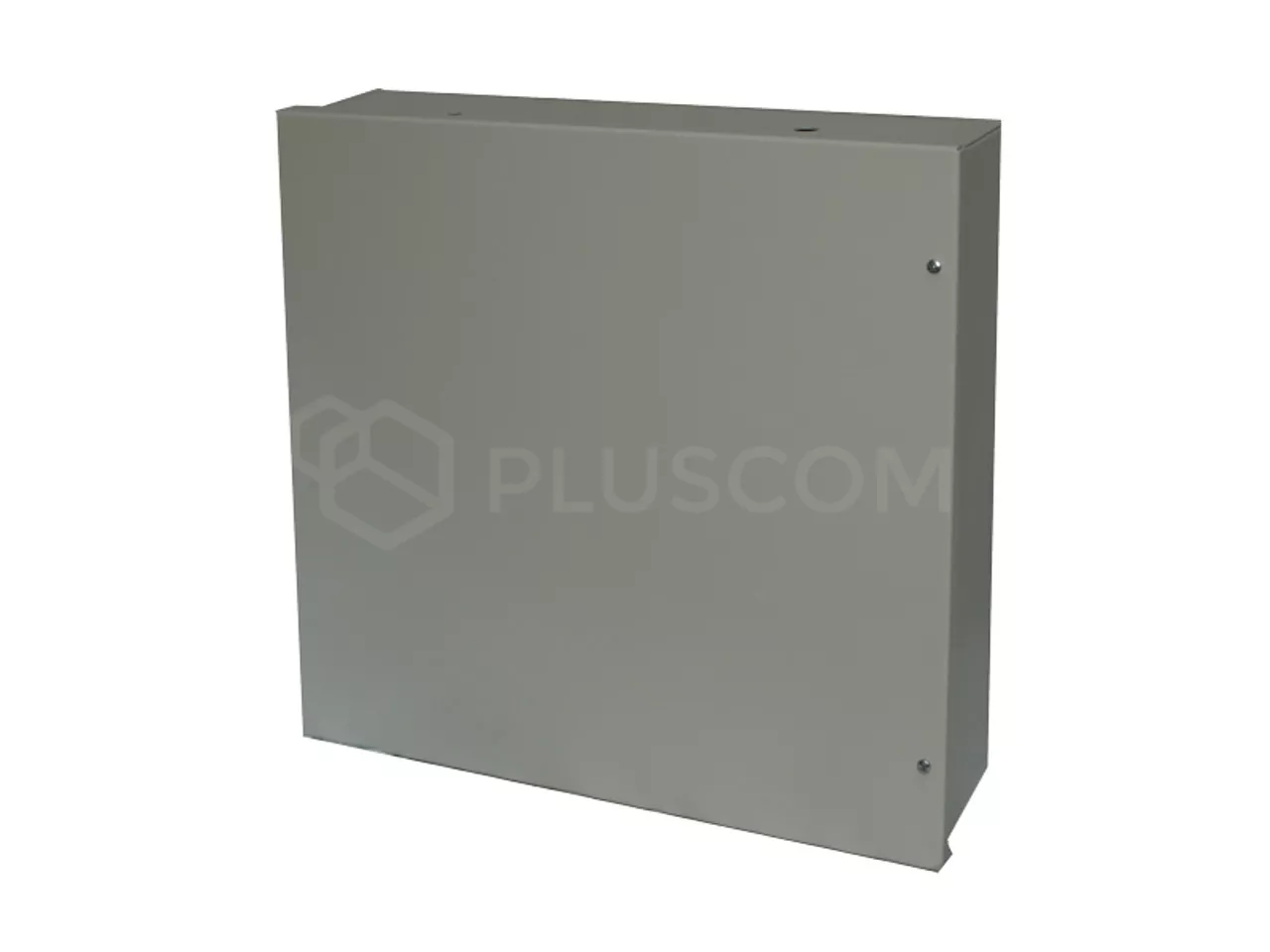

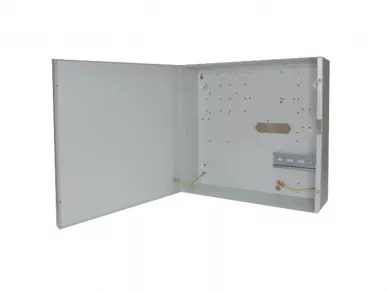

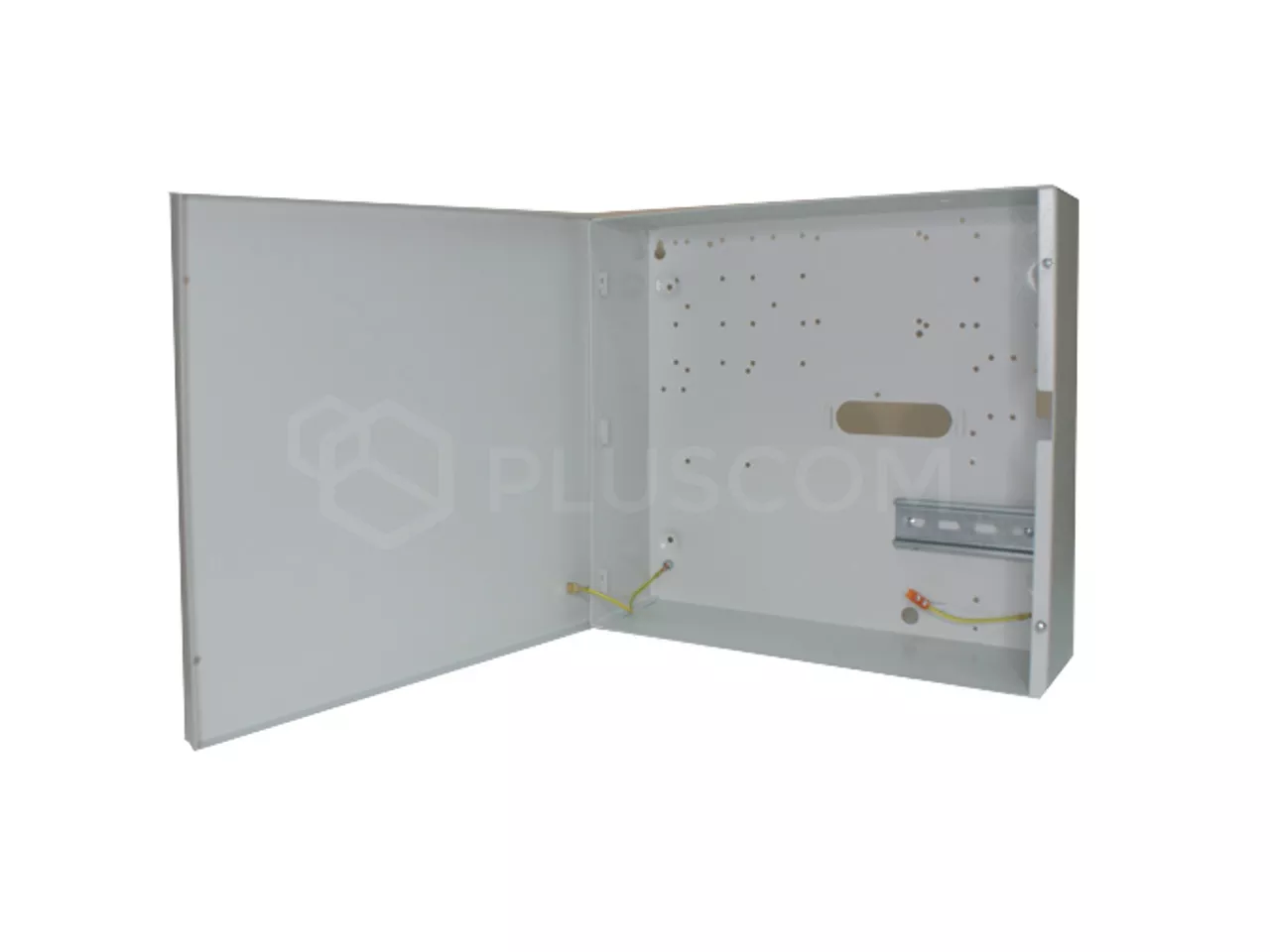

Metal housing O-R4D for mounting GSM modules ROPAM company.
Dedicated
to the following modules:
  • NEO-PSR-ECO + VSR-2/VAR-1 + RF-4+ FGR-4 +IPS-4,
  • NEO-PSR-ECO + VSR-2/VAR-1+ FGR-4+ IPS-4,
  • BasicGSM +VSR-2 + PSR-ECO-5012-RN + IPS-4,
  • MultiGSM + VSR-2/VAR-1 + PSR-ECO-5012-RN+ IPS-4,
  • NEO-PSR-ECO = zestaw NEO + PSR-ECO-5012-RS,
Features:
  • hole fi-10 mm for antenna adapters (FME)
    • fitting the AT-GSM-MINI or AT-GSM-90/180) on the top of casing
  • hole fi-6,7mm for antenna AT-433
    • fitting the AT-433on the top of casing
  • dimensions 325x305x95 / 320x300x90* [mm] (WxHxD, * inside)
  • space for battery: 7Ah/12V 17Ah/12V (SLA)
  • tamper - special microswitch C/NC with terminal blocks
  • tamper - opening and remowal from wall, according with PN-EN 50131 Grade 2
  • material: steel 1mm, color light gray (RAL7035)
  • closed: screwed x2
