Roger Technology SET C40/3301 Set for gates up to 2.3m high

Roger Technology SET C40/3301 Set for sectional doors up to 2.3m high and 18m2 surface area

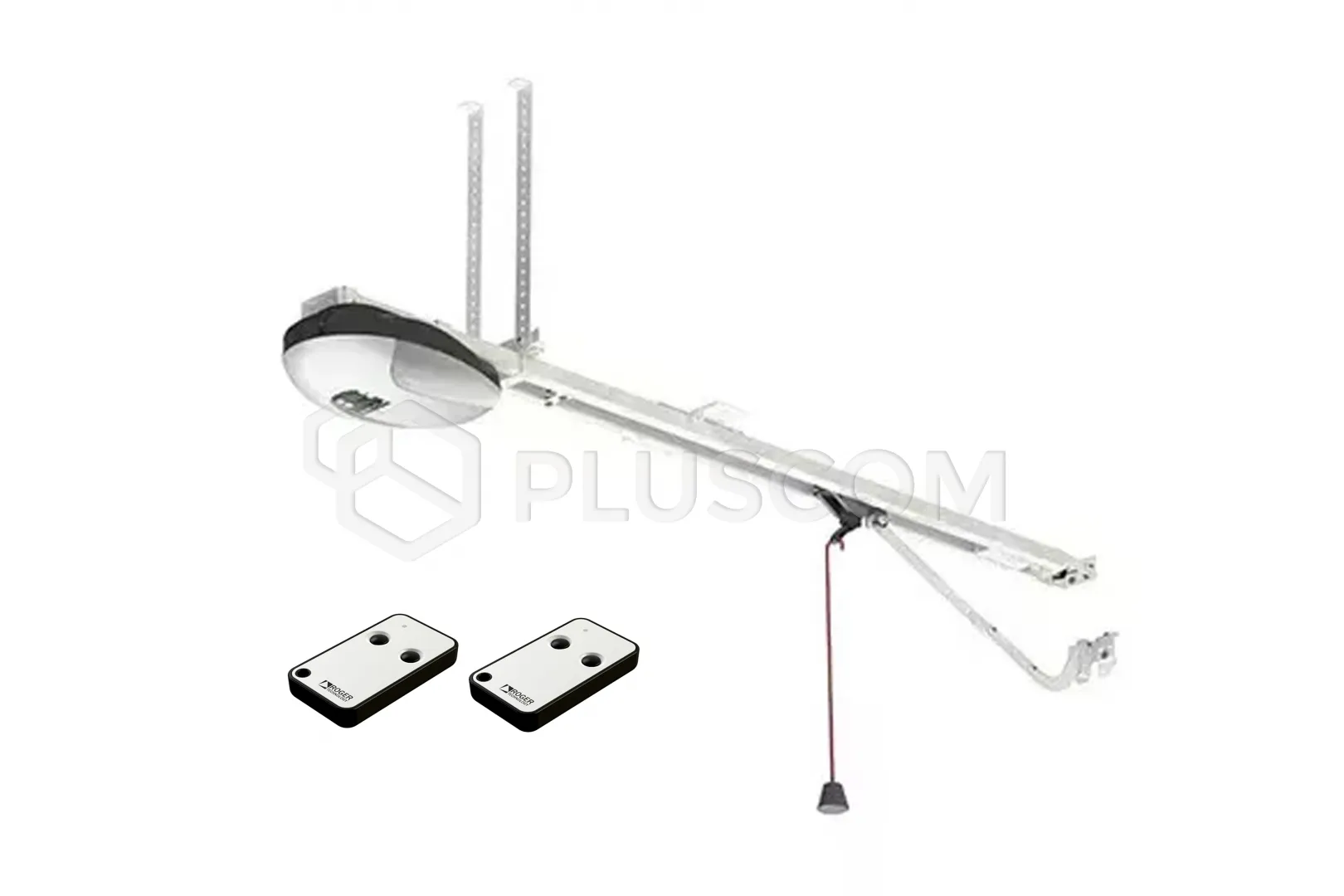

The set consists of: C40/1000 24V actuator with a thrust of 1000N with a built-in control unit and radio Single-piece rail with 3.3m transmission belt Roger Technology E80/TX52R/2 2-channel copy remote control x 2 pcs

Roger Technology SET C40/3301 Set for gates up to 2.3m high

Set for sectional garage doors up to 18 m² and 2.3m high.
The C40/1000 actuator has a built-in C70/1CC control unit with an integrated radio receiver, display and additional LED lighting, 24V motor with a power of 1000N. Included with a one-piece steel guide with a reinforced belt and two 2-channel E80/TX52R/2 remote controls.

FEATURES:

• 24v motor
• 1000N force
• easy installation
• additional LED lighting
• built-in control unit
• durable steel rail with strap
• modern design

TECHNICAL DATA:

• Mains power supply: 230V AC 50Hz
• Motor power supply: 24V DC
• Max. gate height: 3.3 m
• Max. surface: 18m²
• Nominal power: 200W
• Force: 1000N
• Speed: 12 m/min
• Use frequency: 70%
• Gear motor type: irreversible
• Encoder: analog with Hall effect
• Protection class: IP 40
• Operating temperature: -20°C to +55°C
• Head dimensions: 226 x 345 x 115 mm
• Guide dimensions: 3300 x 29 mm
• Weight: 6.65 kg
