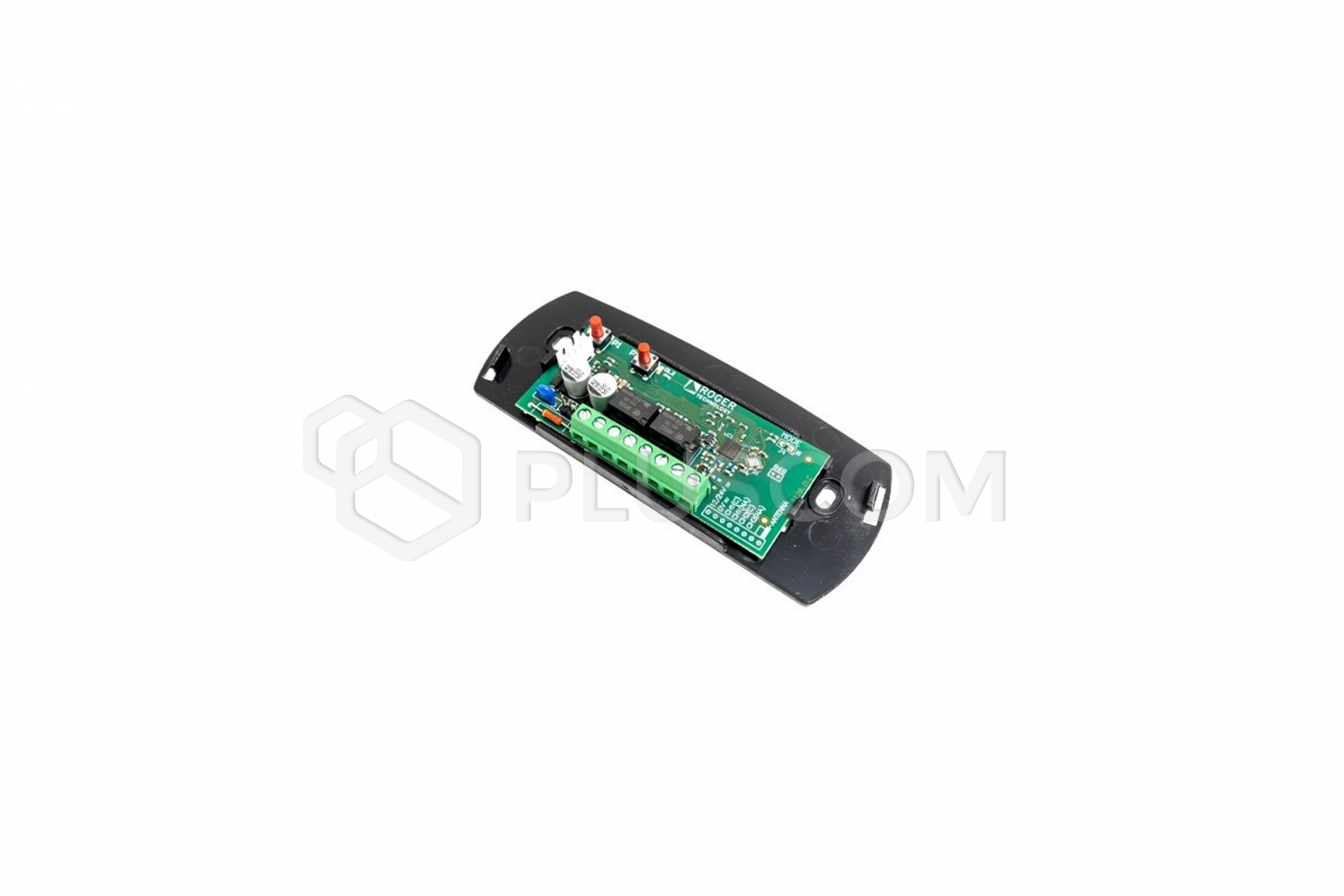

Roger Technology R93/RX433/U 2-channel radio receiver in a housing

93,23 EUR including 23.00% VAT
Product code: #43248
Manufacturer: Roger Technology
  • Number of supported remote controls: 1000 (fixed code)
  • Number of channels: 2
  • Power supply: DC/AC 12-24V
  • Radio receiver in the housing
  • Radio route: Roger
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Roger Technology R93/RX433/U 2-Channel Radio Receiver in Housing


2-Channel R93/RX433/U radio receiver with fixed/rolling code 433.92 MHz, universal in housing, memory for up to 1000 Roger remote controls with fixed code.

TECHNICAL DATA:

  • Standard mains power supply: 12/24V AC/DC
  • Absorption: 30mA
  • Operating temperature: -10+55°C
  • Number of channels: 2
  • Codification: Fixed code / Rolling code
  • Modulation: AM/ASK - FM/FSK
  • Carrier frequency: 433.92 Mhz
  • Maximum relay current: 0.5A
  • Maximum relay voltage: 24V AC/DC
  • Outputs: Relay
  • Code registration: Fixed code: 1000 - Rolling code: 250 (in basic mode), 1000 (in advanced mode)
  • Sensitivity: -107 dBm
  • Input impedance: 50 Ω
  • Dimensions: 126 x 52 x 25 mm
  • Weight: 70 g
Download
Datasheet 0.19 MB
