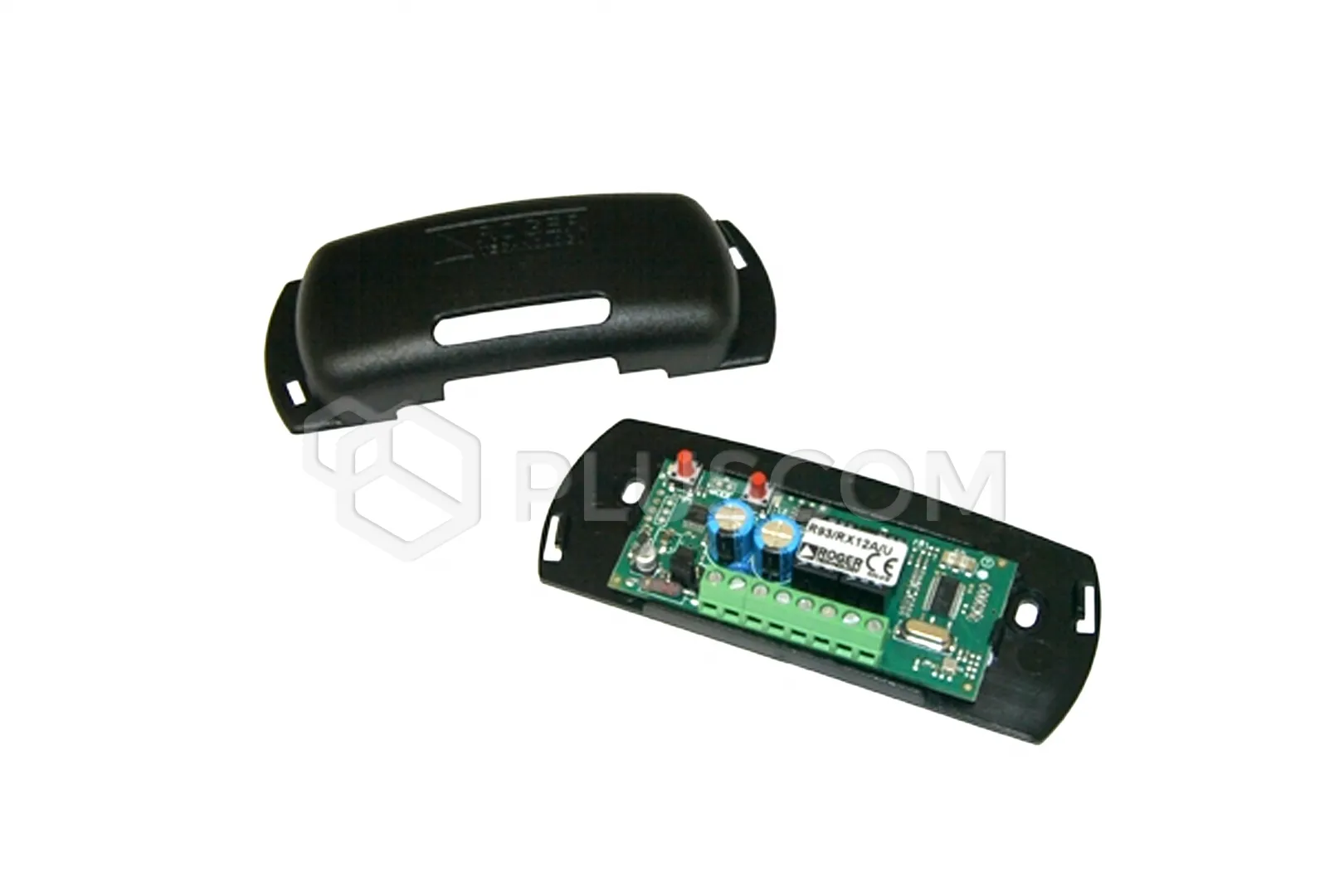

Roger Technology R93/RX12A/U 2-channel radio receiver in housing

79,40 EUR including 23.00% VAT
Product code: #33308
Manufacturer: Roger Technology
  • Number of supported remotes: 500 (permanent code)
  • Number of channels: 2
  • Power supply: 12/24V AC/DC
  • Radio receiver in the housing
  • Radio Path: Roger
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Roger Technology R93/RX12A/U 2-channel radio receiver in housing


Universal 2-channel radio receiver R93/RX12A/U universal for Roger control units from the H70, B70, EDGE and CTRL series.
Memory for 500 Roger remotes with a fixed code of 433.92MHz.

TECHNICAL DATA:

  • Power supply 12/24 V AC/DC
  • Current consumption 30 mA
  • Number of channels: 2
  • Code type: fixed
  • Modulation: AM/ASK
  • Frequency 433.92 MHz
  • Max current on relay 0.5A
  • Max voltage on relay 24 V AC/DC
  • Output type: relay
  • Memory 500 remotes
  • Sensitivity: -107 dBm
  • Resistance: 50 Ohm
  • Operating temperature: -10°C +55°C
  • Dimensions 126 x 52 x 25 mm
  • Weight 0.1 kg
