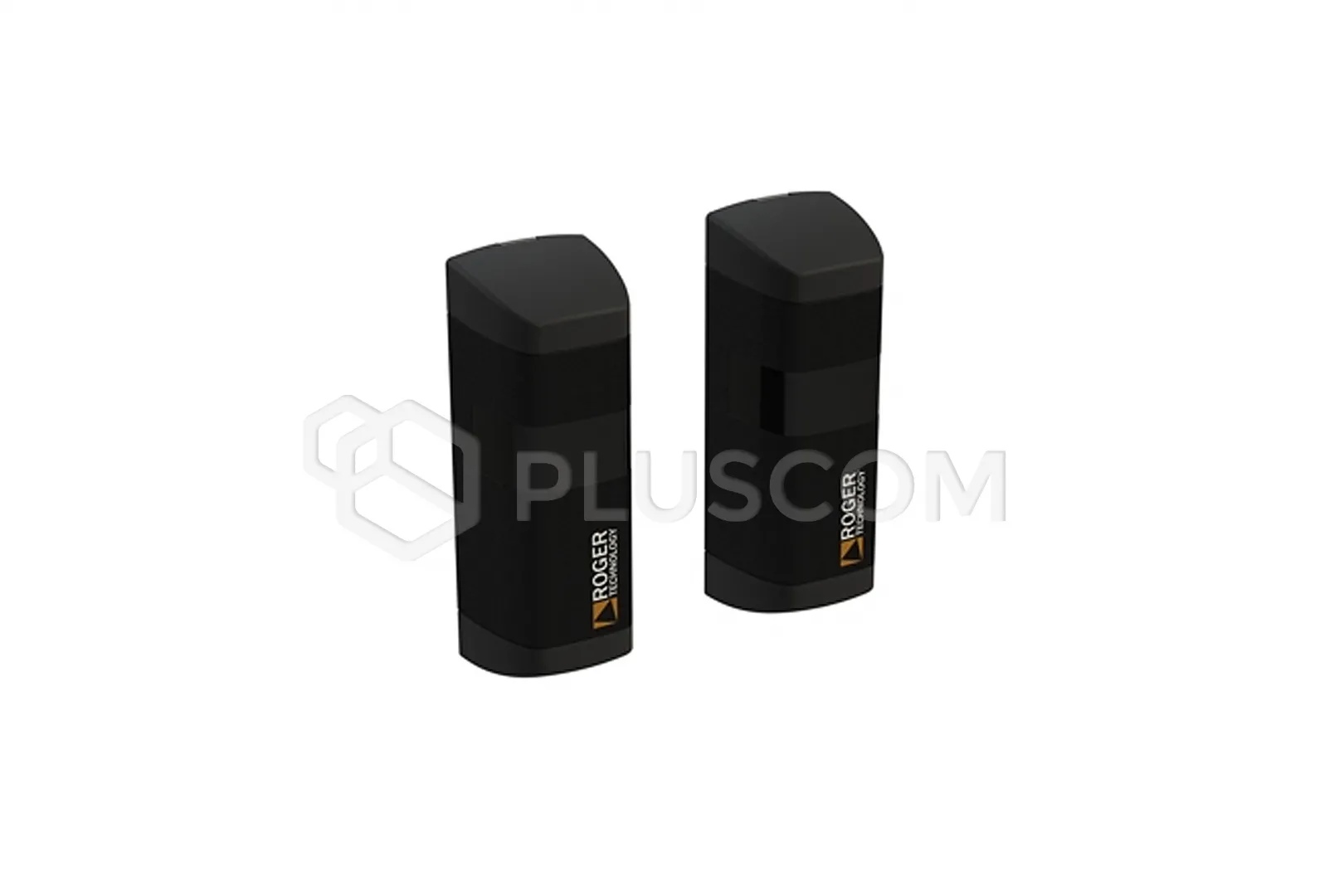

Roger Technology M90/F4ESO Complete set of rotating photocells synchronized

101,19 EUR including 23.00% VAT
Product code: #33282
Manufacturer: Roger Technology
  • Power: 12/24V AC/DC
  • Range: max. 15m
  • Adjustable viewing angle
  • For devices with classic PHOTO/STOP input
  • Max. 2 pairs of photocells in one system
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology DEF/01 Complete set of vandal-proof housings

Roger Technology M90/F4ESO Complete set of rotating photocells synchronized


Synchronized photocells for swing gates controlled by 2 BRUSHLESS motors, based on infrared technology, which enable detection of obstacles on the optical axis between the transmitter and receiver photocells.
Classic relay version used for devices with a classic PHOTO/STOP input.
Possibility to install up to 4 pairs of photocells in one system.

They are designed for mounting on flat and parallel mounting surfaces, which allows for proper centring between TX and RX photocells.

TECHNICAL DATA:

  • Power supply: 12/24V AC/DC 50 Hz
  • Range: 10-15 m (in open field)
  • Relay version (for devices with classic PHOTO/STOP input)
  • Max. relay contact voltage: 30V
  • Protection class: IP 55
  • Operating temperature: -20°C to +55°C
  • Dimensions: 1130 x 45 x 40 mm
  • Weight: 0.2 kg
