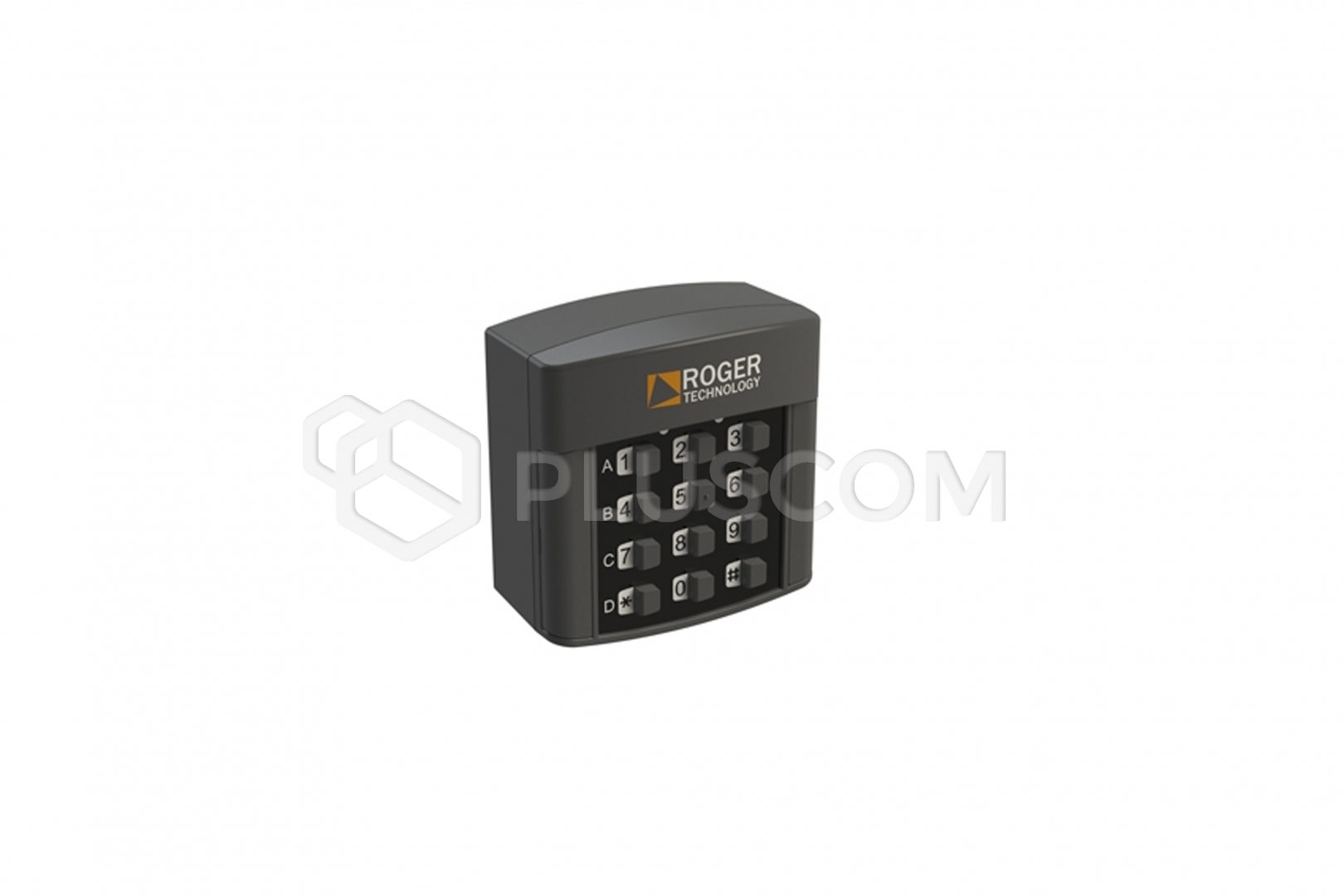

Roger Technology H85/TDS/E Wired Keyboard

Roger Technology H85/TDS/E Wired Keyboard

The H85/TDS code keypad consists of 12 keys, 4 of which also have a command activation function, to manage entry using a code. It has two indicator LEDs, one green LV and one red LR, and a buzzer. Up to 500 user codes can be stored, each of which must have a minimum of 3 digits and a maximum of 6. User codes are stored in the interface. The keypad is backlit with white LEDs, which are brighter when the keys are pressed.

The H85 code-based control system enables automated motorized systems to be controlled by entering a code. The system comprises minimum 1 to maximum 4 H85/TDS numeric code keypads compatible with the H85/DEC interface card, or minimum 1 to maximum 2 H85/TDS keypads compatible with the H85/DEC2 interface card.

TECHNICAL DATA:

• Power supply: 24 V AC-DC; 12 V DC
• Absorption: 20 mA
• Maximum number of user codes that can be stored: 500
• Maximum number of digits per user code: 6
• Minimum number of digits per user code: 3
• Maximum number of connectable keypads: 4
• Number of available outputs: 4 control; 1 alarm
• Relay activation delay: 100ms
• Maximum cable length from interface to keypad: 100m (2-core cable with a cross-section of 0.5 mm²)
• Keypad backlight: 6 white LEDs, two intensity levels
• Installation type: Outdoor
• Operating temperature: -10°C ~ +55°C
• Protection rating: IP54
• Dimensions: 75 x 77 x 42mm
• Weight: 0.2kg
