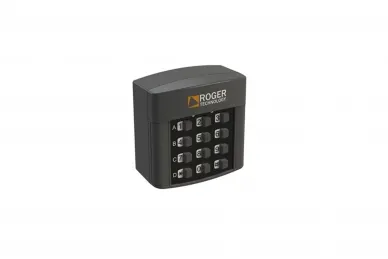

Roger Technology H85/TDR/E Wireless Digital Keyboard

133,66 EUR including 20.00% VAT
Product code: #40612
Manufacturer: Roger Technology
  • Four-channel code keyboard
  • 12 buttons
  • Frequency 433.92MHz
  • Fix code - Rolling Code
  • Power supply: 2 x CR2032 battery
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Roger Technology H85/TDR/E Wireless Digital Keypad


4-channel 12-button numeric keypad with column or surface mounting option, for gate automation control. Radio frequency 433.92 MHz using variable and fixed code.

TECHNICAL DATA:

  • Power supply: 2 x CR2032 battery
  • Average consumption with activated keypad: 12 mA
  • Carrier frequency: 433.92 Mhz
  • Maximum number of user codes that can be stored: 450
  • Maximum number of digits per user code: 6
  • Minimum number of digits per user code: 3
  • Codification: Fixed code / Rolling code
  • Modulation: AM/ASK
  • Number of combinations:
    • 65536 (Fixed code)
    • 4.294.967.296 (Rolling code)
  • Number of bits of the identification code:
    • 16 (Fixed code)
    • 32 (Rolling code)
  • Number of bits sent:
    • 28 (Fixed code)
    • 144 (Rolling code)
  • Operating temperature: -10°C +55°C
  • Protection class: IP54
  • Installation type: Outdoor
  • Dimensions: 75 x 77 x 42
  • Weight of the packed product: 0.2kg
