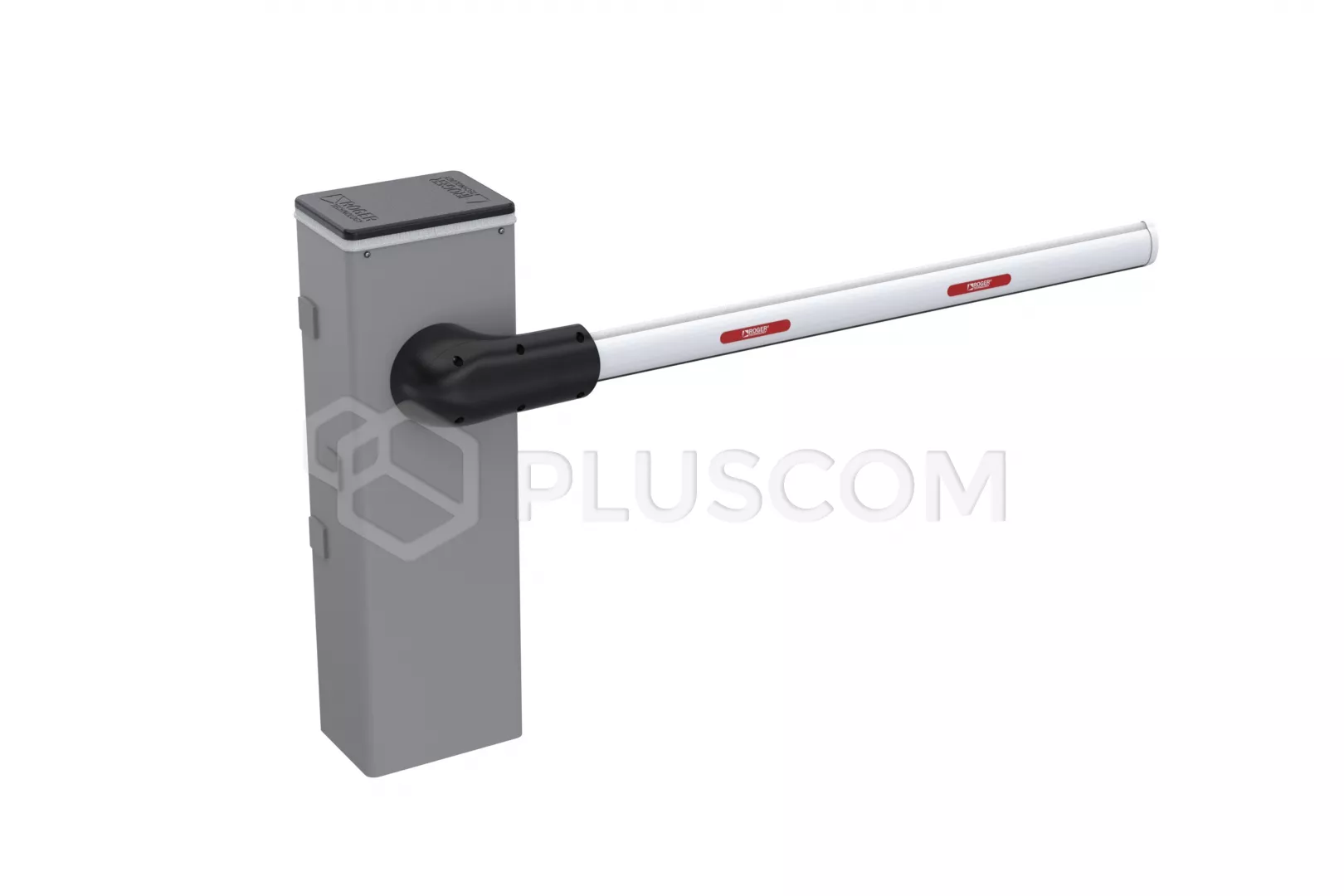

Roger Technology BI/006/IS Electromechanical brushless barrier column 36V

Roger Technology BI/006/IS Electromechanical brushless barrier column 36V in a stainless steel housing

THE BARRIER CONSISTS OF THE FOLLOWING ELEMENTS:

36V brushless electromechanical barrier column digital encoder built-in CTRL switchboard LED column lighting foundation base arm holder stainless steel housing

Ditex Roger BI/006/IS Electromechanical brushless barrier column 36V

The barrier guarantees intensive work cycles and can be installed on it ramoin up to 6m. It is equipped with a CTRL control unit, a digital encoder, LED lighting of the column, mounting base with anchoring elements and incl double conical arm holder, made of cast aluminum and stainless steel housing.

BRUSHLESS 36V digital motor with constant magnetic field and digital encoder SENSORED, allows you to use the barrier without any limits extremely low energy consumption.
An innovative and precise encoder mounted on the reducer shaft makes it possible managing arm movement with accuracy down to the tenth of a degree angle. It also allows the barrier to operate without being restarted after power return or manual release.

To ensure the durability of the entire barrier and high stability during maneuvers, steel and bronze were used, which are of the highest quality. Windproof aluminum frame with elliptical and internal cross-section ribs additionally increase stability.
Cast aluminum double conical handle, holds perfectly and secures the arm. it is directly connected to the reducer via system 3 internal flanges, which allows for safe and reliable movement of the arm.

SPECIAL FEATURES:

• 36V brushless motor
• Super intensive use
• Continuous use 4000 cycles per day
• Avg. failure-free operation time 12,000,000 cycles (MCBF)
• Metal alloy gear, no plastic, no Teflon, no nylon
• Low energy consumption
• Very quiet operation
• LED lighting of the column and arm
• Strong construction
• Aluminum arm
• Stainless steel housing

---
