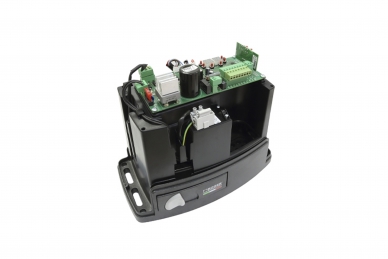

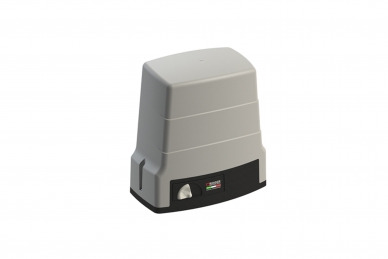

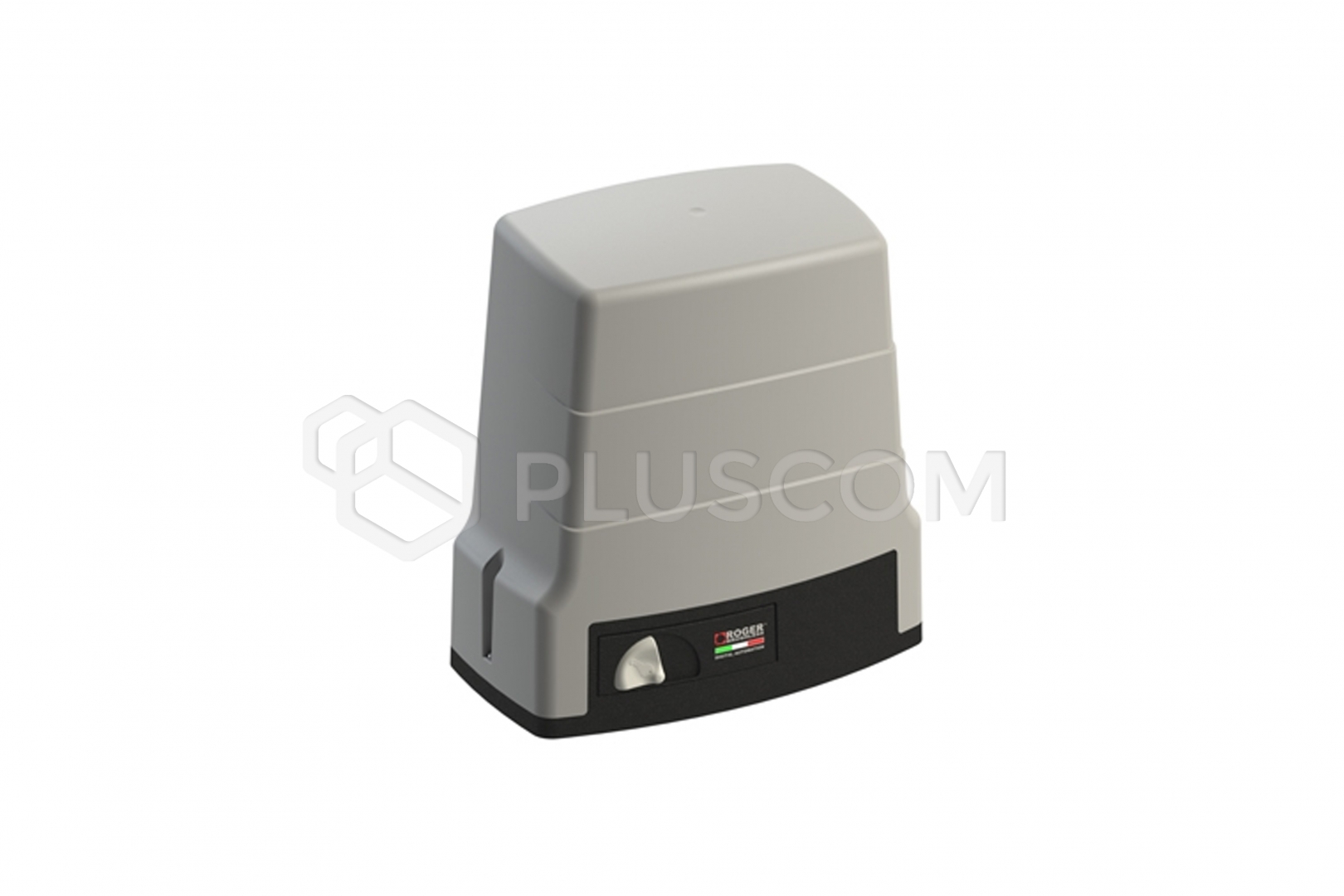

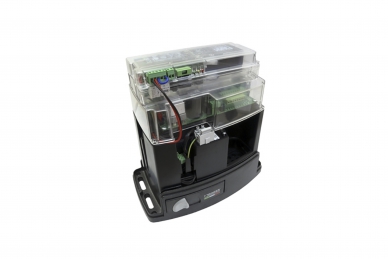

Roger Technology BH30/804/R Gate operator for gates up to 800 kg

1134,27 EUR including 23.00% VAT
Product code: #43227
Manufacturer: Roger Technology
  • Gate weight: up to 800 kg
  • 24V brushless motor
  • Built-in B70/1DC control unit
  • Speed: 18 m/min
  • Magnetic limit switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology POST BASE Adjustable base for H30 drives Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology B71/BC Battery Charging Card Roger Technology CROSS PP1M Nylon Toothed Bar 100cm Roger Technology B70/1DC Control unit with 1 brushless motor 24 V DC Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology UNI-3 BASE Bases for mounting H30 and BH30

Roger Technology BH30/804/R 24V Brushless Motor Drive for Sliding Gates up to 800 kg


24V Brushless Motor Drive for very intensive use, for sliding gates weighing up to 800 kg, with an absolute encoder, built-in B70/1DC control unit and magnetic switches, as well as a base and mounting screws.

FEATURES:

  • Maximum gate weight: 800 kg
  • 24V brushless motor
  • Intensive use - 1000 cycles per day (non-stop)
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Built-in absolute encoder
  • High operational smoothness
  • Very low energy consumption
  • Option to configure solar power supply

  • TECHNICAL DATA:

    • Mains power supply: 230V AC 50Hz
    • Motor power supply: 24V
    • Rated power: 140 W
    • Force: 610 N
    • Speed: 18 m/min (0.30 m/s)
    • Operating intensity: 1000 cycles/day (opening/closing 24 hours non-stop)
    • Gear motor type: irreversible
    • Encoder: built-in digital + magnetic digital SENSORED (4094 pulses per revolution)
    • External gear: Z15/mod. 4
    • Max. Gate weight: 800 kg
    • Protection rating: IP 44
    • Operating temperature: -20°C to +55°C
    • Dimensions: 315 x 329 x 165.8 mm
    • Weight: 12.6 kg
