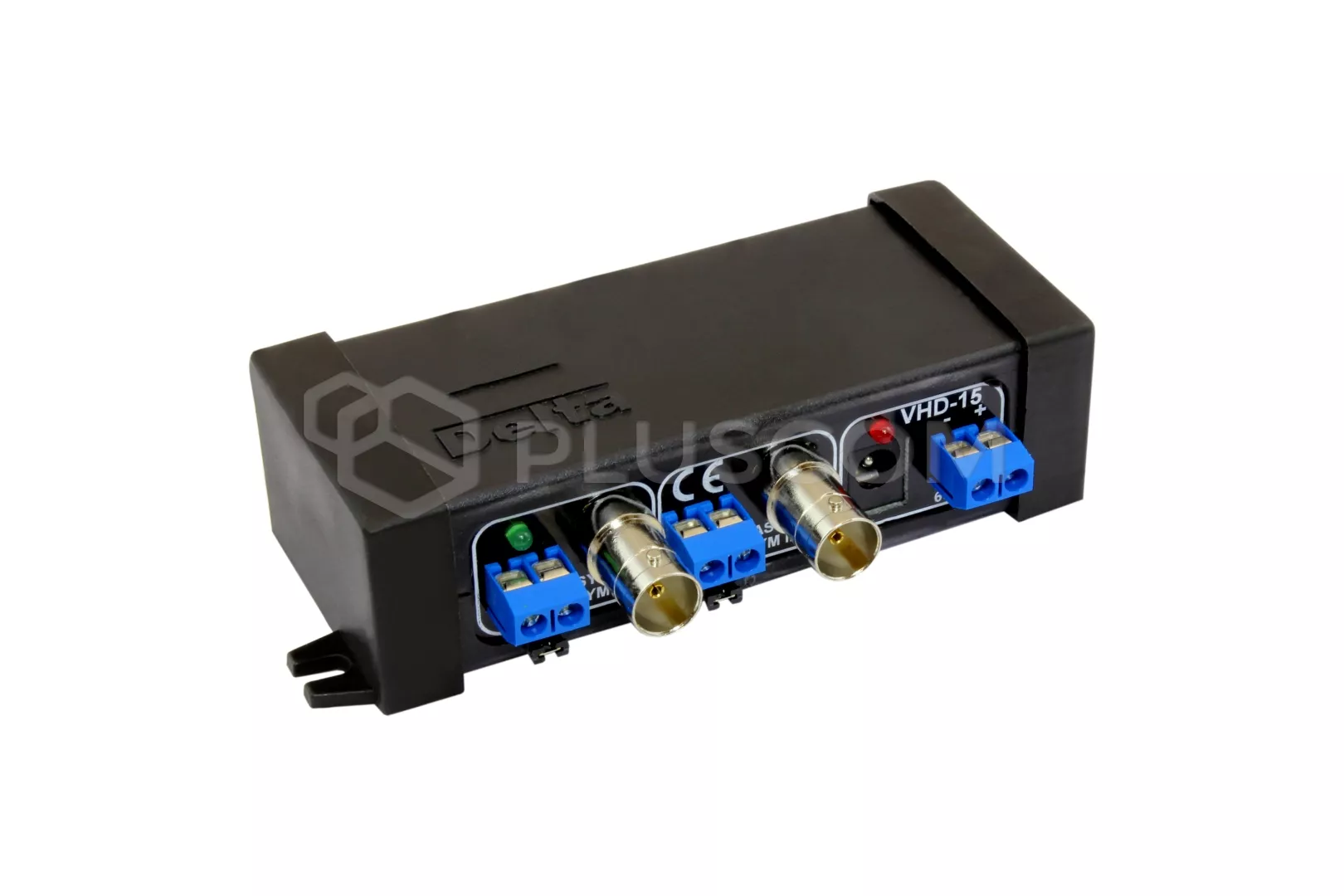

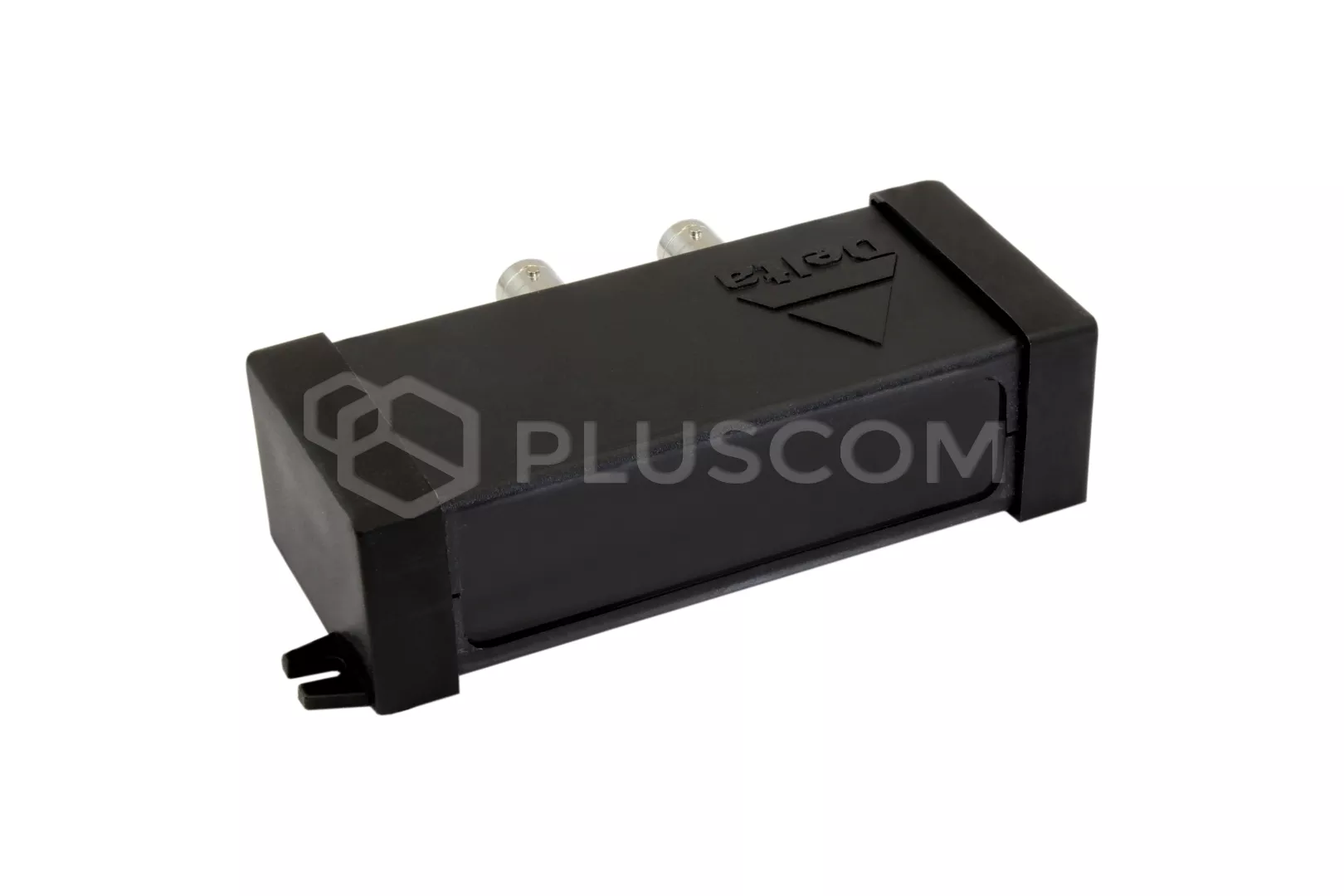

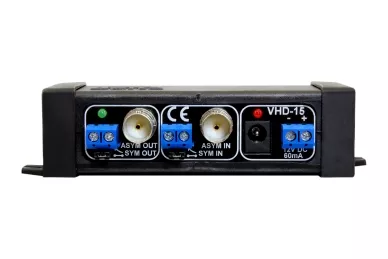

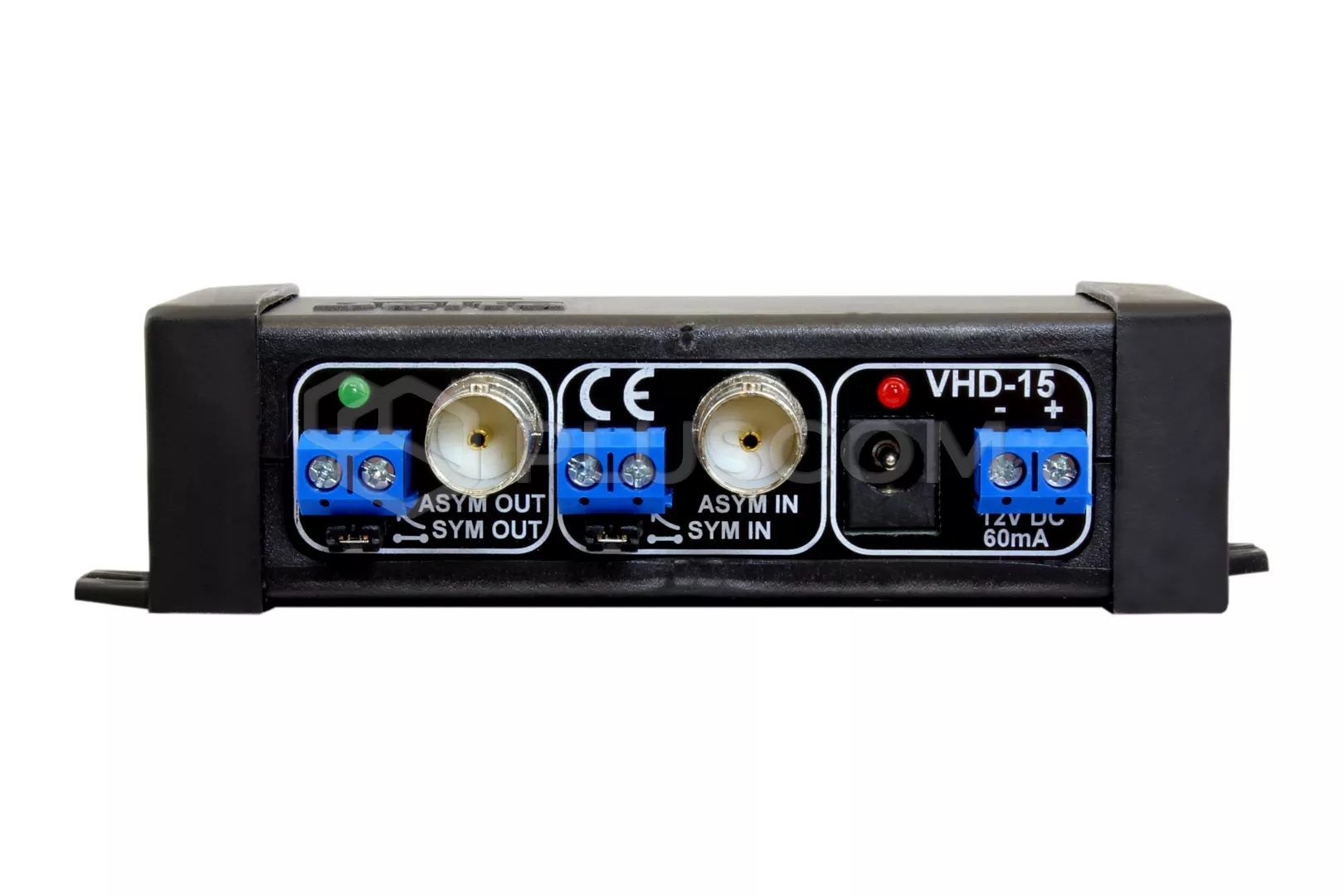

Repeater VHD-15 HD video signal amplifier

46,70 EUR including 23.00% VAT
Product code: #18310
  • amplifies, regenerate HD video signal
  • installation based on UTP twisted pair cable or coaxial cable
  • requires DC 12V power locally or remotely
  • embedded video transformers

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Repeater VHD-15 HD video signal amplifier

The VHD-15 signal regenerator amplifies a high-definition analog video signal sent via a twisted-pair cable or a coaxial cable.
Repeater VHD-15 HD video signal amplifier

Repeater VHD-15 HD video signal amplifier

Repeater VHD-15 HD video signal amplifier

Repeater VHD-15 HD video signal amplifier

SPECIFICATION
  • Standard:
    • AHD - 4 Mpx,
    • HD-CVI - 1080p,
    • HD-TVI - 5 Mpx,
    • CVBS - PAL / NTSC
  • Device type: Active
  • The ability of signal regeneration:
    • 150 m - Twisted-pair cable
    • 300 m - RG-59
    • 500 m - Triset-113
  • Power supply:
  • 8 V...24 V DC (power adapter not included)
  • The possibility of remote powering through the unused pairs of twisted-pair cable
  • Current consumption: < 50mA
  • Coaxial socket impedance: 75 Ω
  • Symmetrical socket impedance: 100 Ω
  • Number of inputs: 1
  • Number of outputs: 1
  • Coaxial socket type: BNC socket
  • Symmetrical socket type: terminals
  • Weight: 0.080kg
  • Dimensions: 103x62x29mm
