Relay module PK4 Pulsar AWZ515
The PK4 (AWZ
515) relay module is to be used in low-voltage installations. It is intended
for controlling and status indication in e.g. alarm or access control systems.
It may be used to control devices of high power consumption via OC outputs of
alarm systems. Moreover, it ensures galvanic isolation of signals, power
sources relating to the outputs of the module. It features a serial fuse in the
circuit of the relay(BELL+, SYGNAL+).

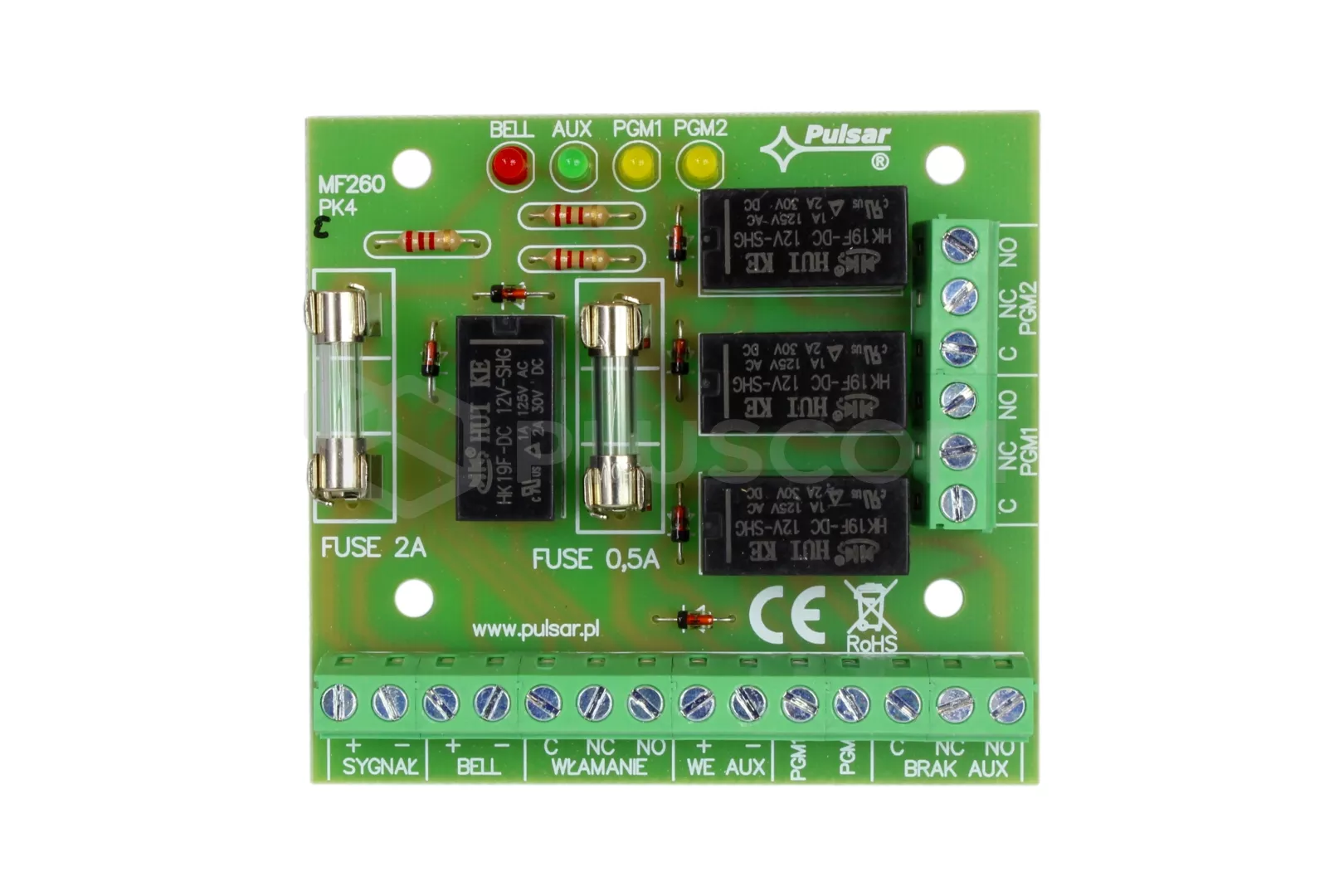

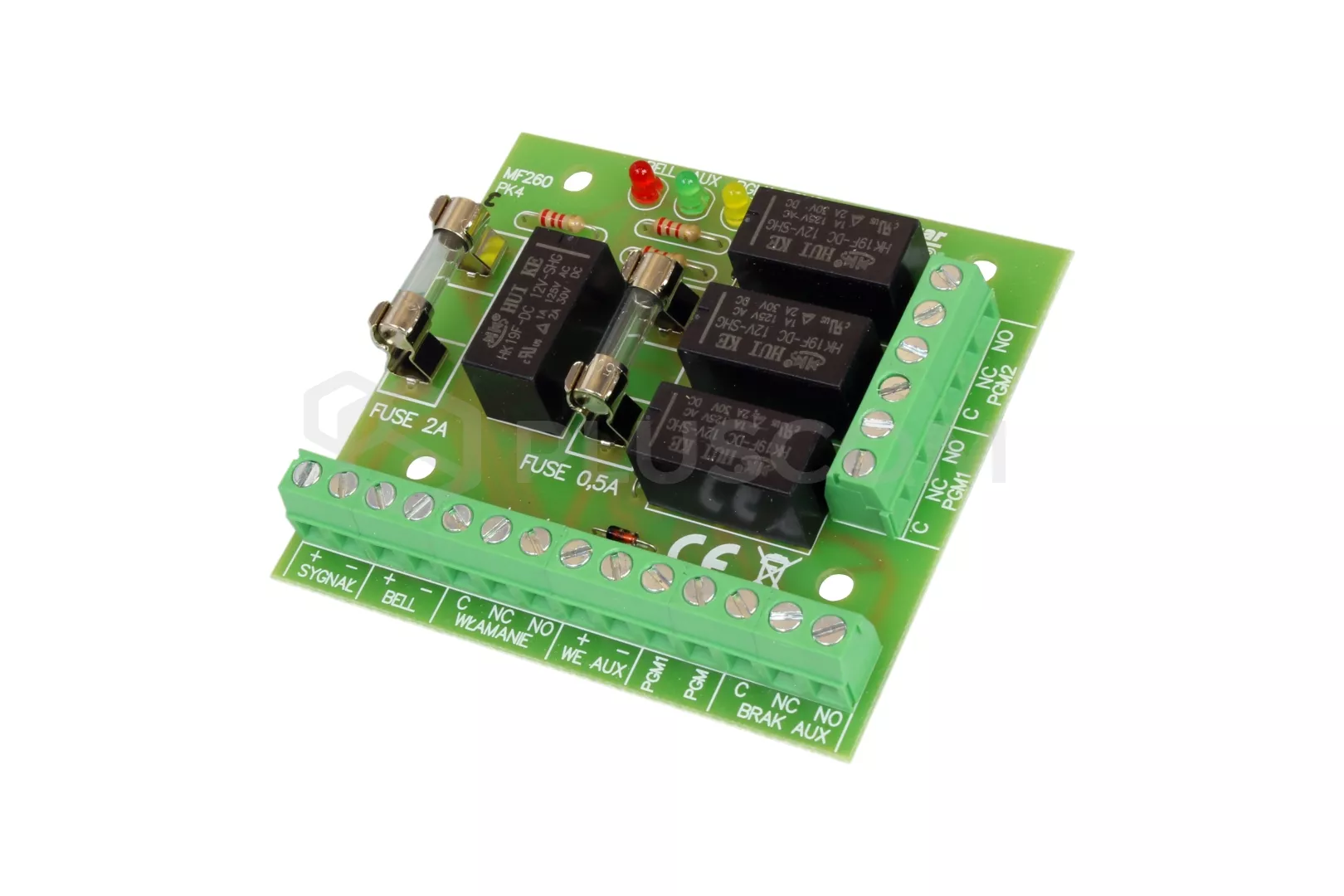

Relay module Pulsar AWZ 515
SPECIFICATIONS:
Voltage of the relay’s coil: 10-14V DC(-/+5%),
Current of the relay’s coil: 25mA@12VDC
Number of relays: 4
Voltage of the relay’s contacts: 30VDC/50VAC max
Current of the relay’s contacts: 2A max.
Contacts of relay: C/NC/NO (leads Φ2.05 mm: AWG 24-12)
ON/OFF time: 15ms/8ms (-/+5%)
Fuses: F1=2A, F2=0,5A
Operating conditions: 2nd environmental class, -10°C÷ 40°C
Enclosure: open-frame design, IP00
Dimensions: W=75, L=70, H=20 [mm,+/-2]
Net/gross weight: 0,063 / 0,092[kg]
Installation: Mounting pins x4
Notes: leads on connections:Ø 0,41-1,63 (AWG 26-14), Ø 0,51-2,05 (AWG 24-12) -
relay contacts

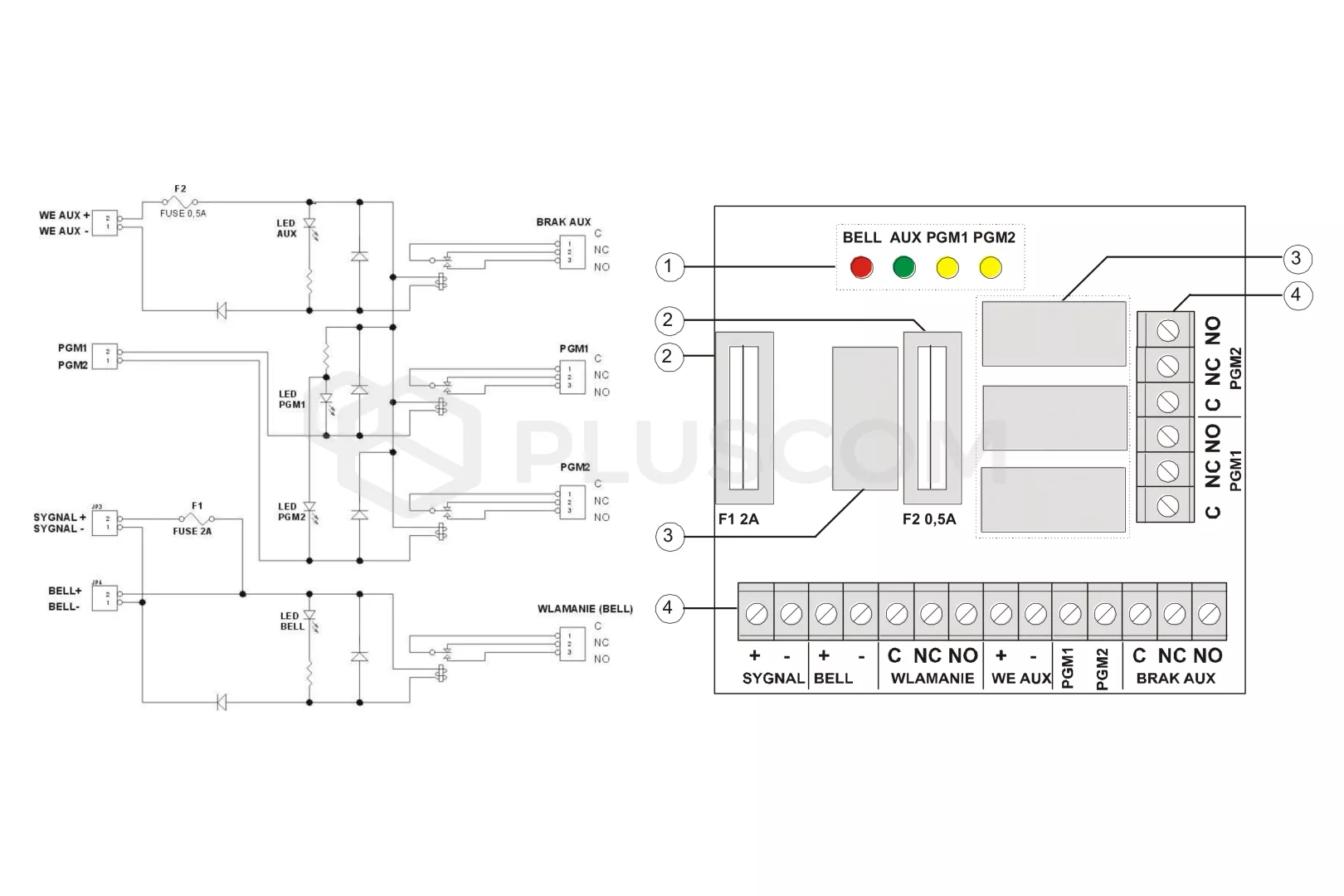

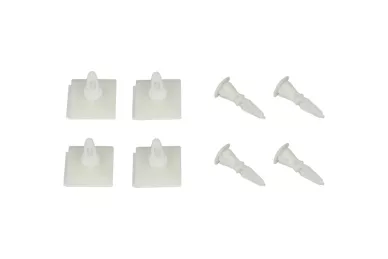

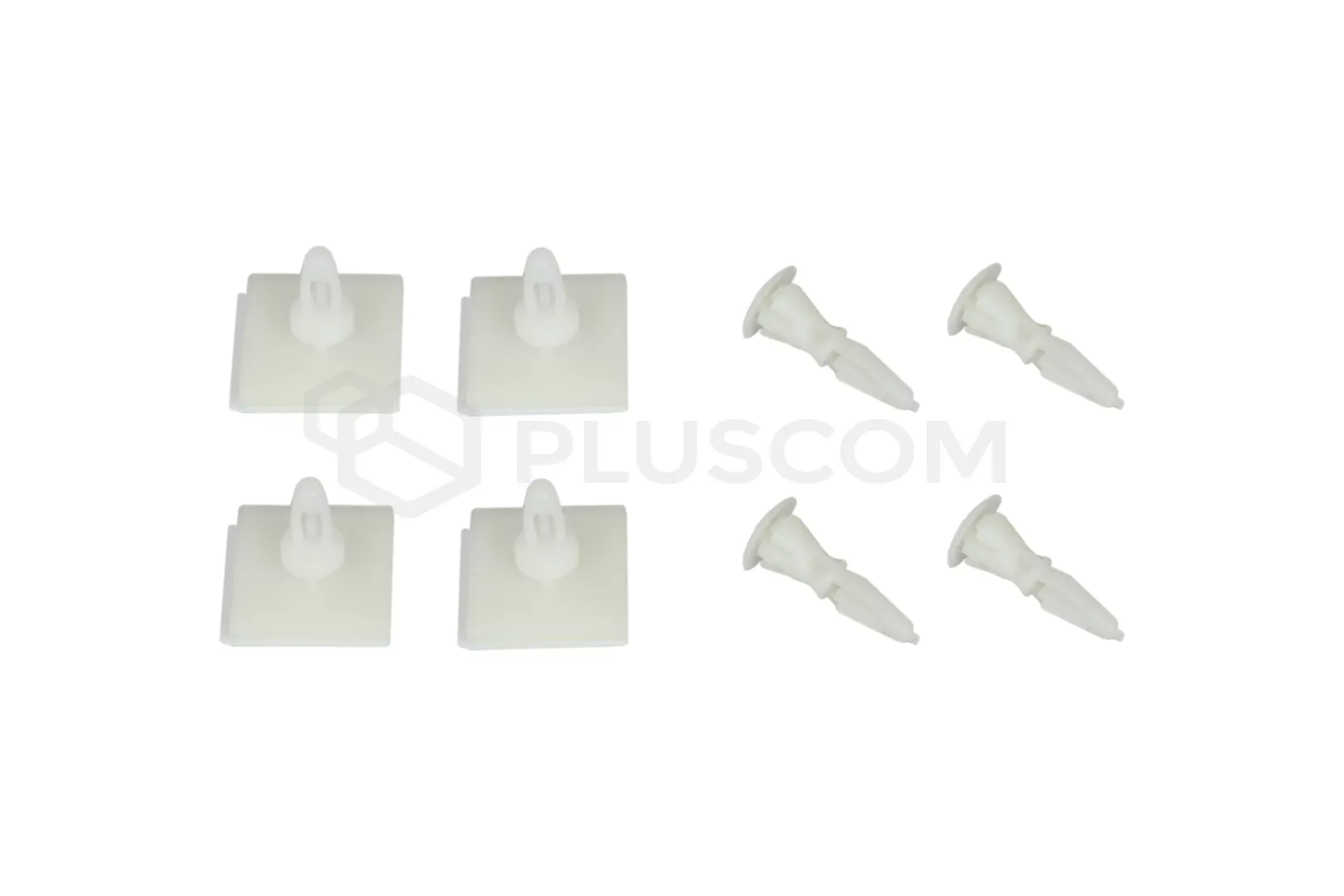

Spacers:
