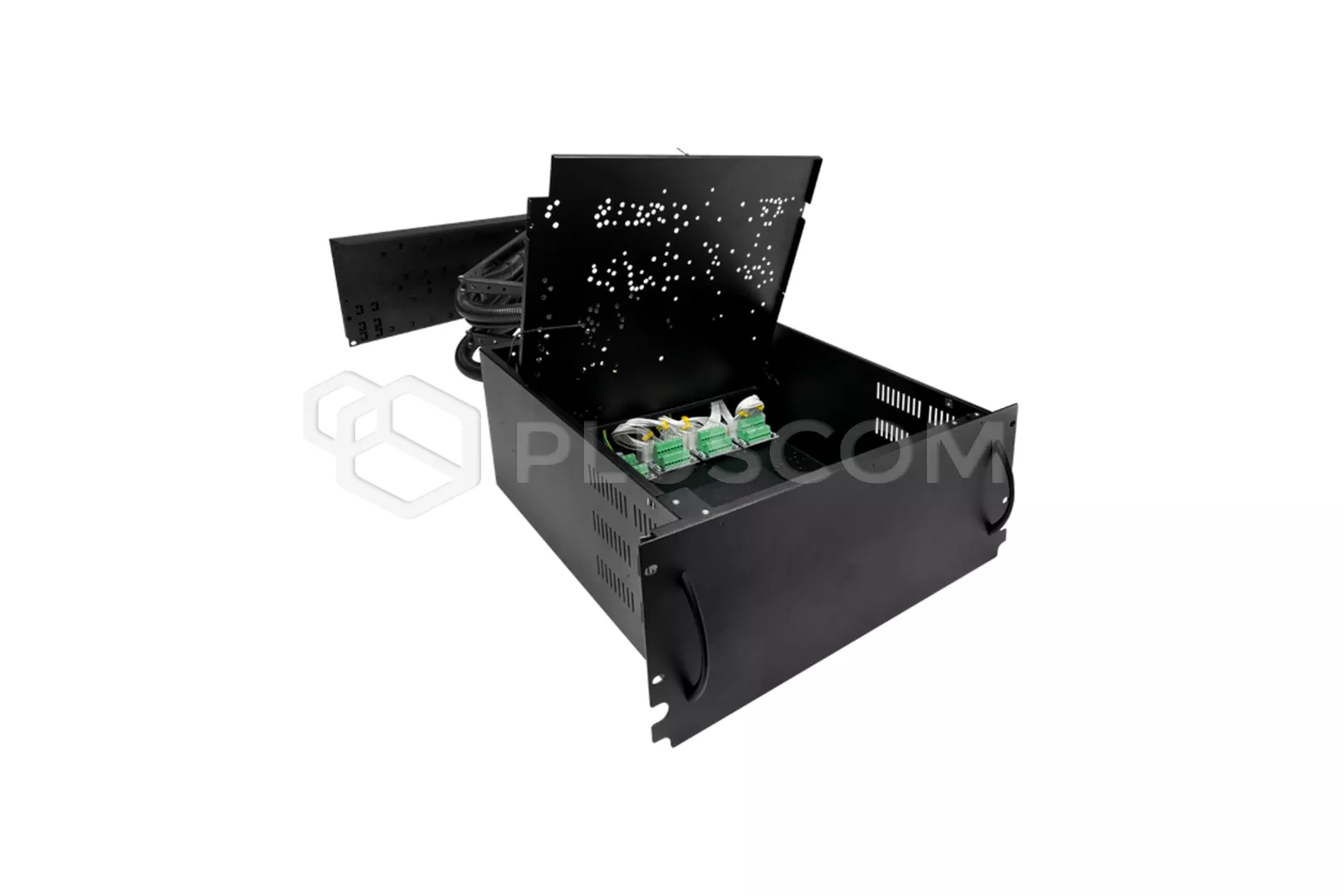

Rack 19'' two-level enclosure Pulsar ARAD-S4

710,55 EUR including 23.00% VAT
Product code: #15299
Manufacturer: Pulsar
  • width 19'', height 4U
  • dimensions: 395x159x400mm
  • tampering protection
  • mounting plate and a hinged shelf
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Battery 12V 18Ah CJ12V-18 12V 7Ah Battery GP 1272 F2 Fan with temperature sensor 45C Pulsar ARAW45 Battery 12V 18Ah CS12V-18 Battery 12V 7.2Ah LT12-7.2 Battery 12V 7Ah CJ12-7 Cable protection conduit fi 21mm Pulsar MM020 Battery 12V 18Ah LTL12-18 Rail for RACK enclosure ARAS800

Pulsar ARAD-S4 (v. 1.0) Security enclosure 4U/400mm/48/17Ah for RACK 19" cabinets two-level

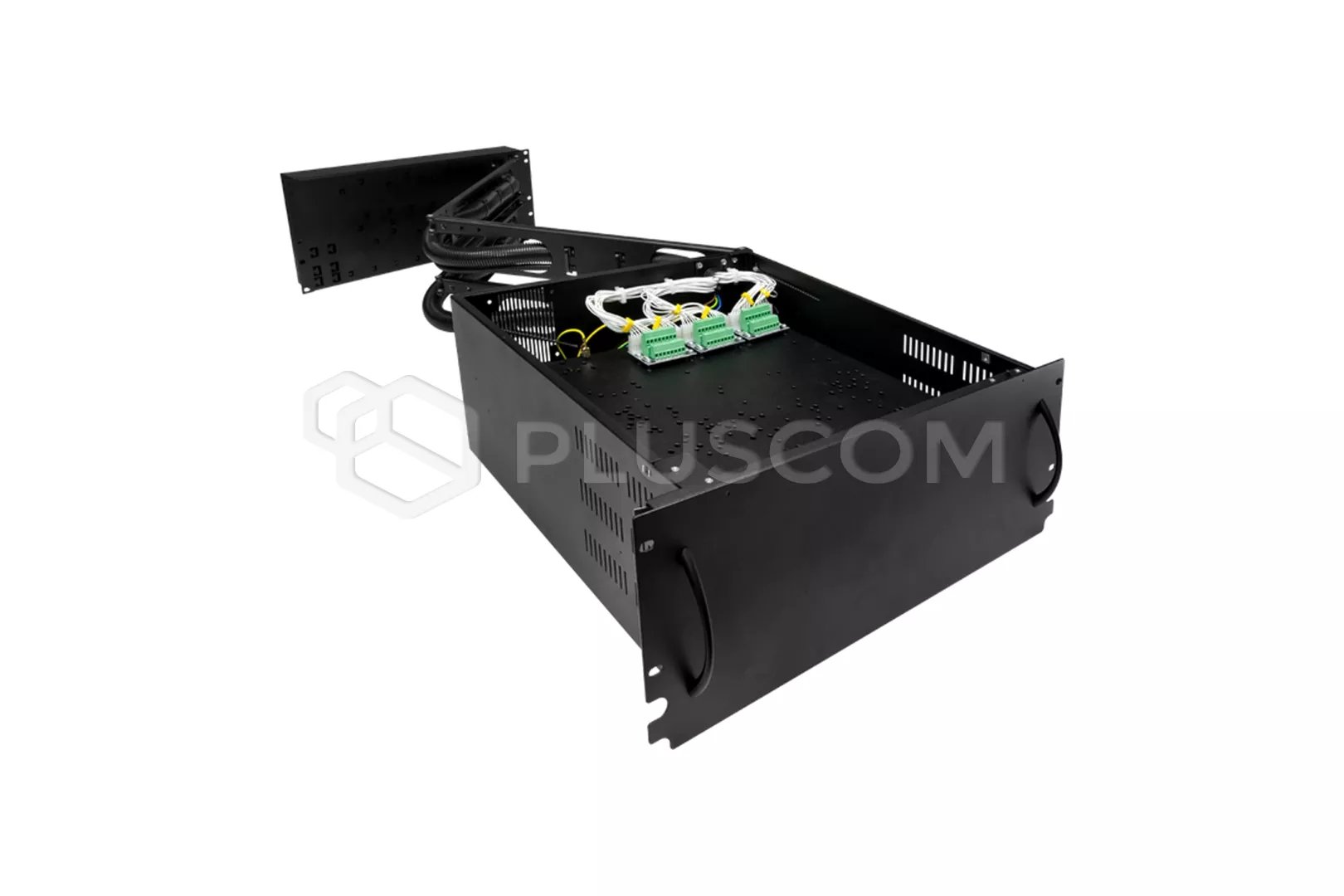

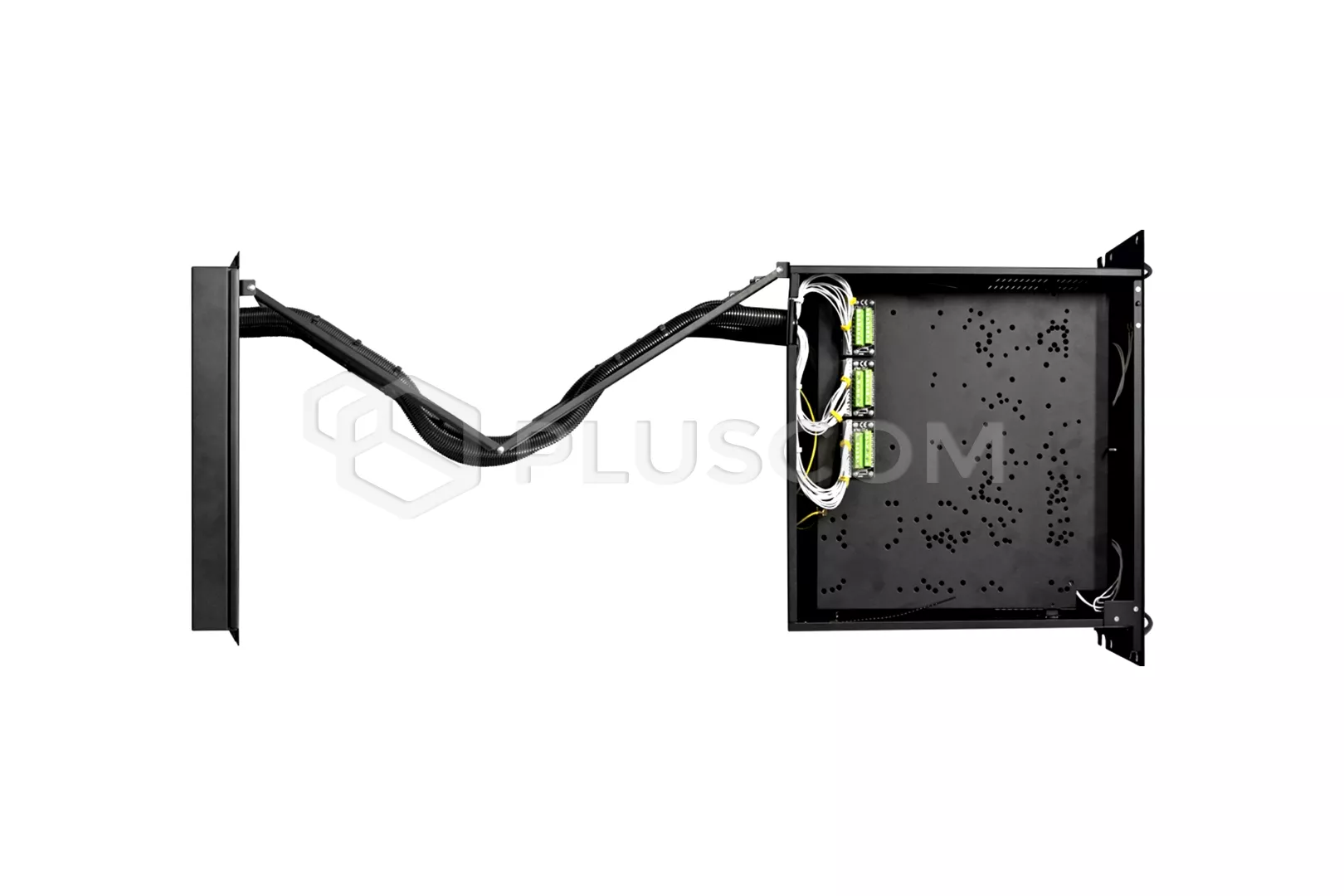

The metal RACK-Security enclosure is designed for mounting the alarm control panel and the input/output modules in free-standing RACK19” cabinets with depths in the range from 800 to 1000mm.
It consists of two elements:

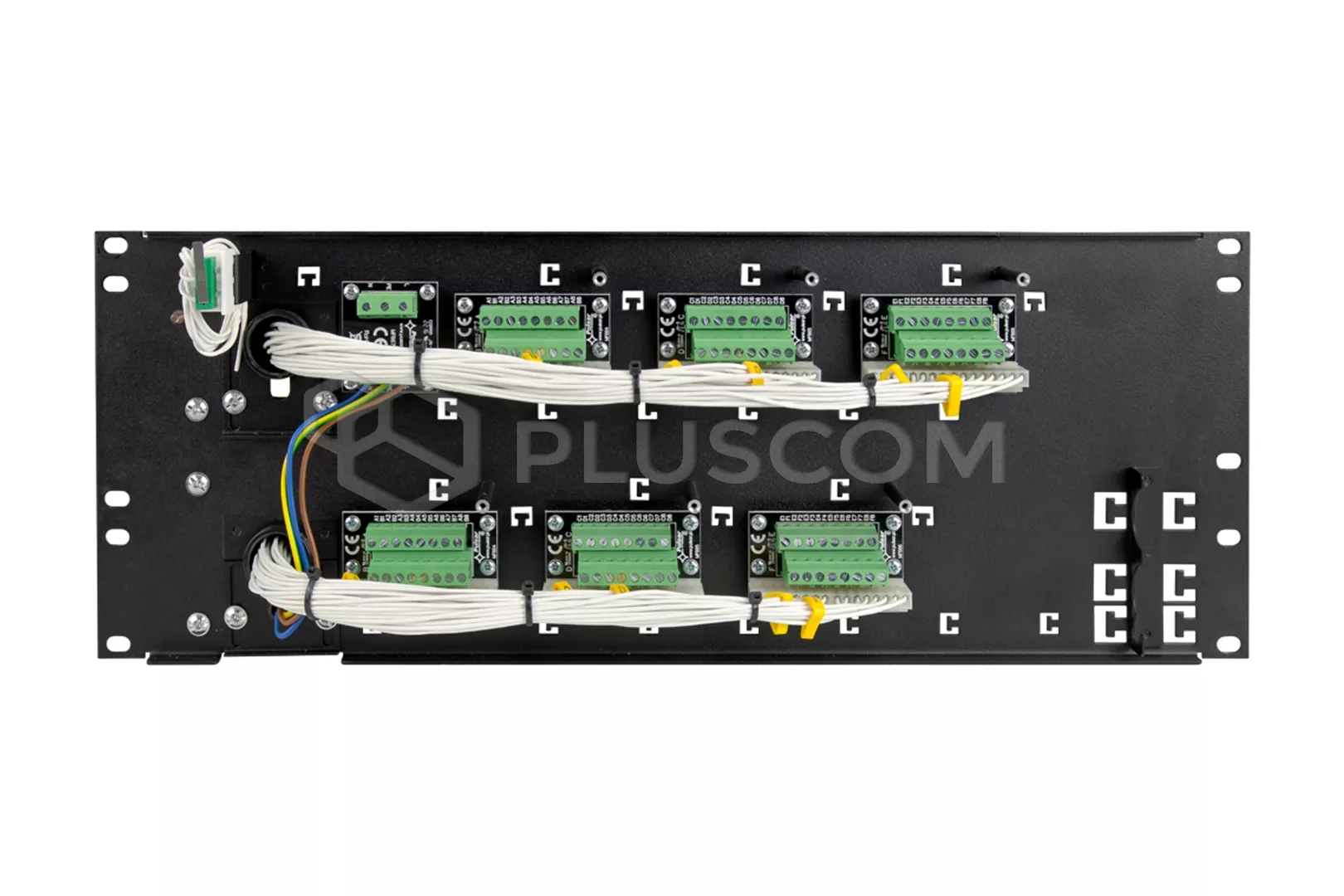

  • Patch panel - is used to switch between the YTDY 6x0,5 cable with copper cores and the elastic cable supplying signals and power to the control panel

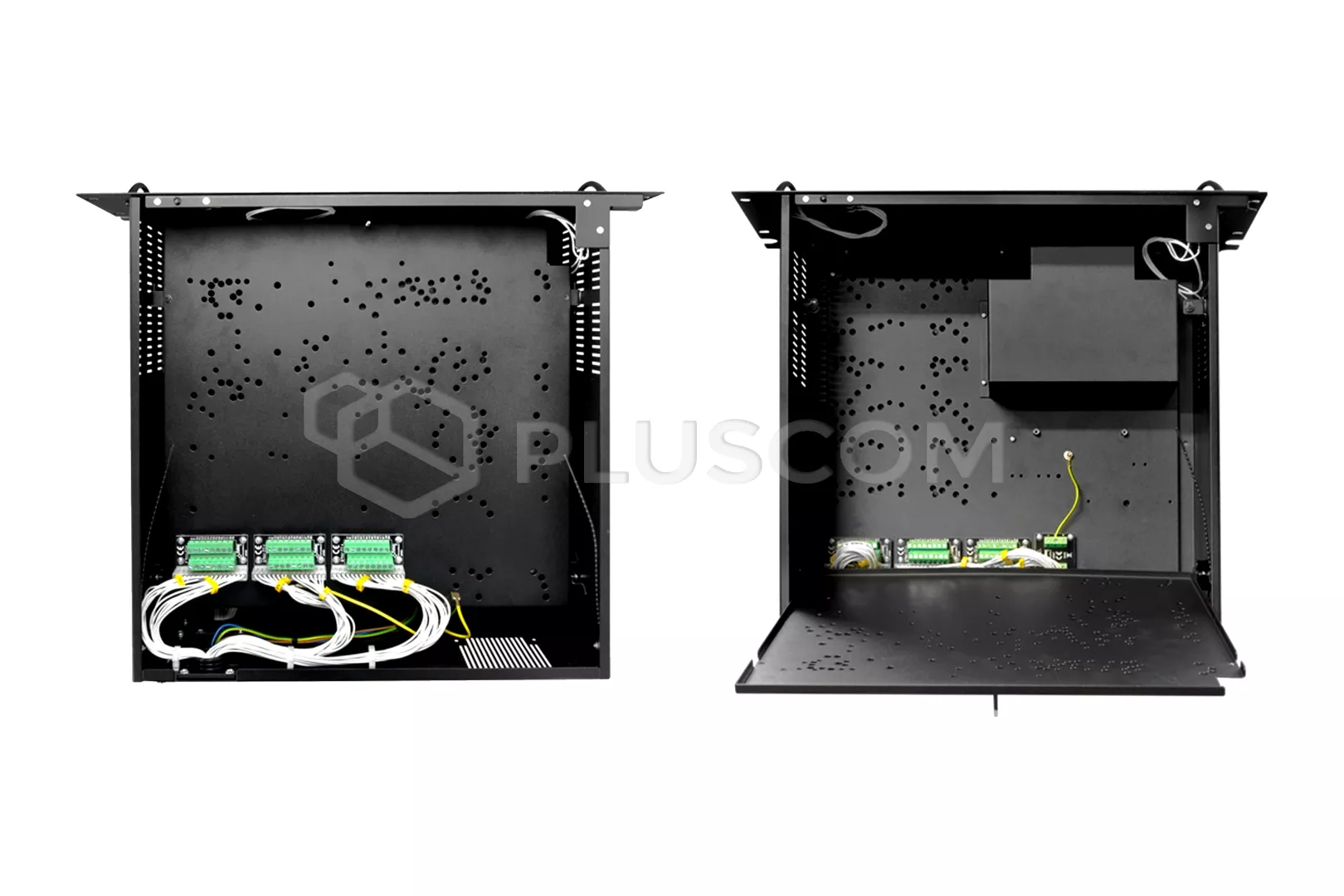

  • Pull out enclosure with a 4U height - alarm control panel and input and output modules are mounted in this section - with a space for 17Ah battery, transformer, and the ARAW45 fan (transformer and fan are not included).

Pulsar ARAD-S4

Pulsar ARAD-S4

Theenclosure is fitted with 3 tamper switches:
  • Pulling out the enclosure from RACK profiles
  • Enclosure opening
  • Patch Panel opening
Universal holes in the enclosure allow mounting of control panels and expansion modules of the following companies DSC, PARADOX, RISCO, SATEL, PYRONIX, CROW, ROGER

Pulsar ARAD-S4

Pulsar ARAD-S4

Pulsar ARAD-S4

Pulsar ARAD-S4



SPECIFICATIONS:
  • Mounting dimensions: W=19", H=4U
  • Dimensons: 395x159x400mm
  • place on battery: 12V/17Ah
  • tamper protection:
  • Tamper protection:
    • 3x – pulling out the enclosure from RACK profiles
    • enclosure opening
    • patch panel opening
  • Material:  1 / 1,5mm, kolor RAL9004
  • PCB Signal Boards: A/B (C/D, E/F) Board – 8 signal lines - 30VDC/1,5A – 1 pair
  • PCB Power Board: 230VAC/max.5A
  • weight: 15kg

Pulsar ARAD-S4

Pulsar ARAD-S4


PANELS WHICH CAN BE MOUNTED:

  • DSC: (PC 1404, 1616, 1832, 1864, 4020, 4204, 4216, 4580, 5400, 5204, 5580, 5200) + 5 x 5108 (4108, 5208, 5100, 4116)
  • PARADOX: (728ULT, E55, E65, SP4000, SP5500, SP6000, SP7000, EVO48, EVO192) + 5 x ZX8 ( ZX4, PGM4, APR3 - HUB2)
  • RISCO: (PRO24, PRO116, PRO128, PRO140) + 5 x EZ04 (EZ8, EZ16, RP296EPS)
  • SATEL: (CA4V1, CA5, CA6, CA10, VERSA5, 10, 15, INTEGRA24, 32, 64, 128, CA64 PTSA, CA64 PP) +5x CA64E(CA10E, PP, EPS, ADR, O-R, O-ROC, O-OC,OPS- OC, OPS- R, OPS- ROC, VGM- 16, SR, PTSA)
  • PYRONIX: MATRIX 424, 832, 832+
  • TEXECOM: PREMIER412, 816, 832, 48, 88,168, 640
  • TELMOR: TCA-824 + 5 x TEX800 (TMT1)
  • ROGER: PR402, CPR 32- SE
  • EBS: PX 202A
  • PULSAR: 5x (MS1012, MSR1012, MSRK1012), 5x (MS2012, MSR2012, MSRK2012)
  • ROEL: SIGMA6 / SIGMA8 / CERBER
  • CROW: RUNNER 4/8

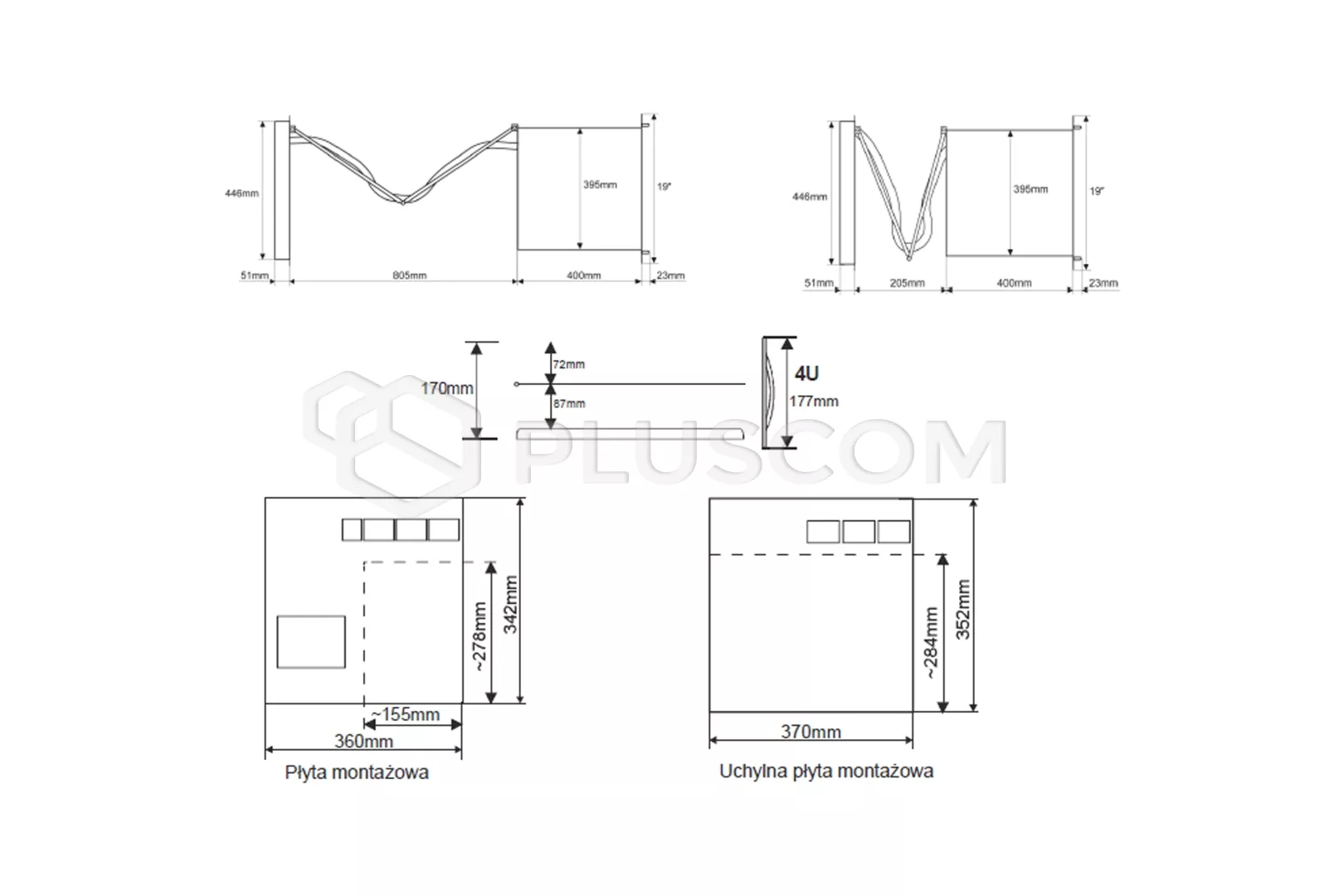

Dimensions:

Dimensions:


The enclosure is dedicated to standing cabinets

Download
Datasheet 0.36 MB
Instruction 1.15 MB
