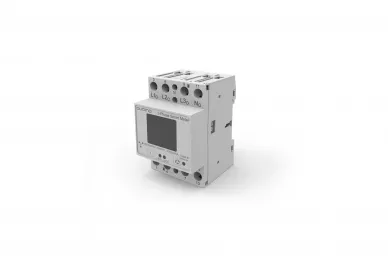

Qubino 3-Phase Smart Meter 3-phase energy meter

Qubino 3-Phase Smart Meter 3-phase energy meter and controller

Qubino 3-Phase Smart Meter is an energy meter installed directly on DIN rail and compatible with Z-wave control panels:

• FIBARO Home Center 3
• FIBARO Home Center 2 (from version 4.550)
• FIBARO Home Center Lite (from version 4.550)
• Vera Edge (kWh and Watt information)
• OpenHAB2
• others described on the manufacturer's website

The meter allows you to monitor the voltage and energy consumed independently on 3 phases and transmitting this information to the headquarters smart home. The built-in microprocessor calculates energy, power and power factor based on measured signals.

Measured electricity:

• Connection: three-phase (4u)
• Reference current (Iref): 5 A
• Maximum current (Imax): 65 A
• Minimum current (Imin): 0.25 A
• Starting current: 20 mA
• Voltage (Un): 230 V (±15-20%)
• Device power consumption: < 8VA
• Frequency (fn): 50 and 60 Hz

Main terminals (1I, L2I, L3I, NI, L1O, L2O, L3O, NO)

• Contact capacity: 2.5…16 (25) qmm
• Connecting screws: M5
• Maximum torque: 3.5 Nm

Optional terminals (DI, DO)

• Contact capacity: 1…2.5 qmm
• Connecting screws: M3
• Maximum torque: 1.2 Nm

The device can be controlled via the Z-Wave network and operate as amplifier, improving the range and stability of the Z-Wave network. Data reading is in real time.
The meter is designed to be mounted on a DIN rail.

TECHNICAL DATA:

• Frequency range: 868.4 MHz*, Z-Wave
• Complying UL94 V
• Degree of pollution: 2
• AC voltage test: 4 kV
• Distance: up to 30 m indoors (depending on building materials)
• IP50
• Operating temperature -25...55°C
• Installation: Din rail 35mm
• Dimensions: 53,6 x 84 x 65 mm
• Weight (with packaging):: 220g (240g)
