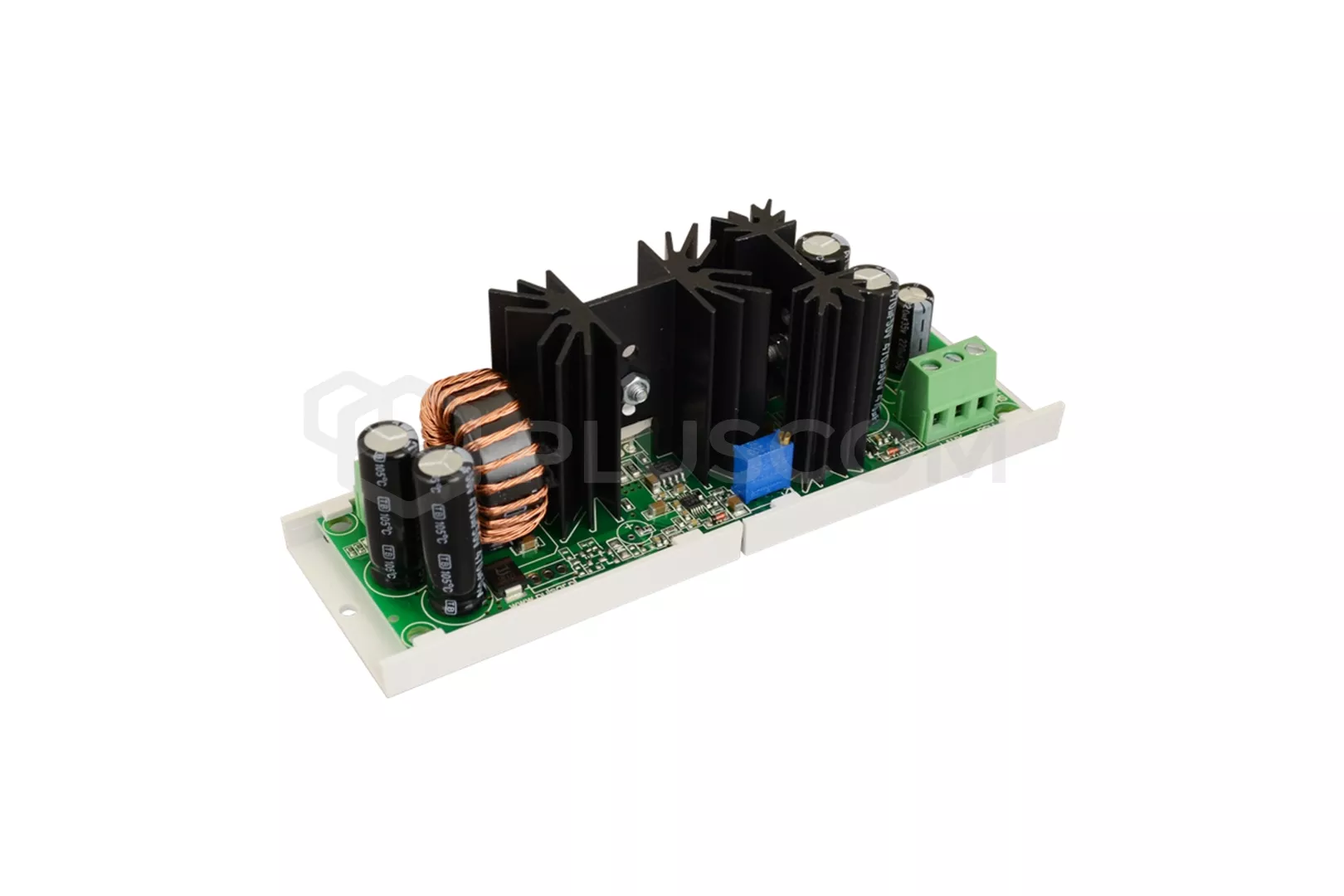

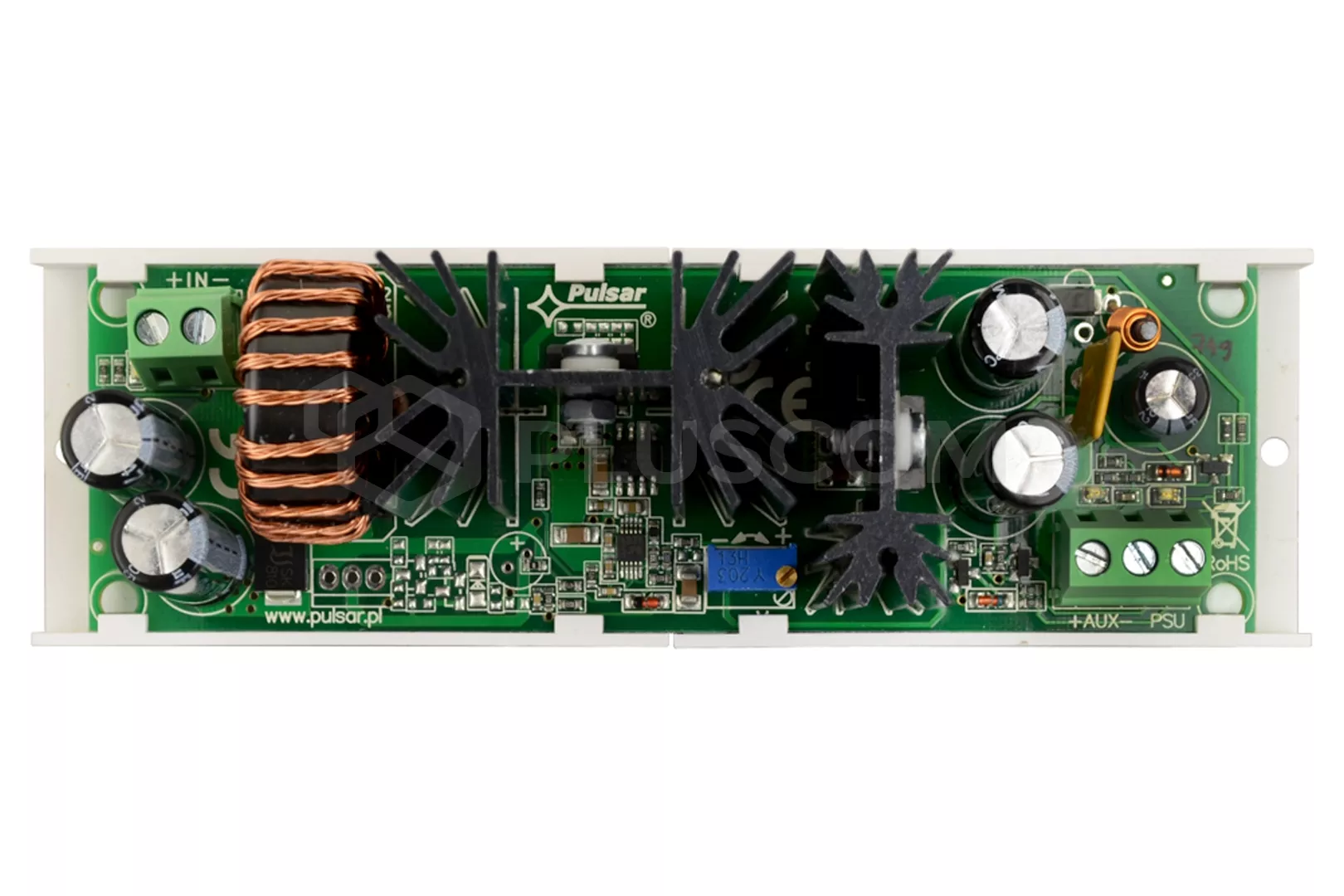

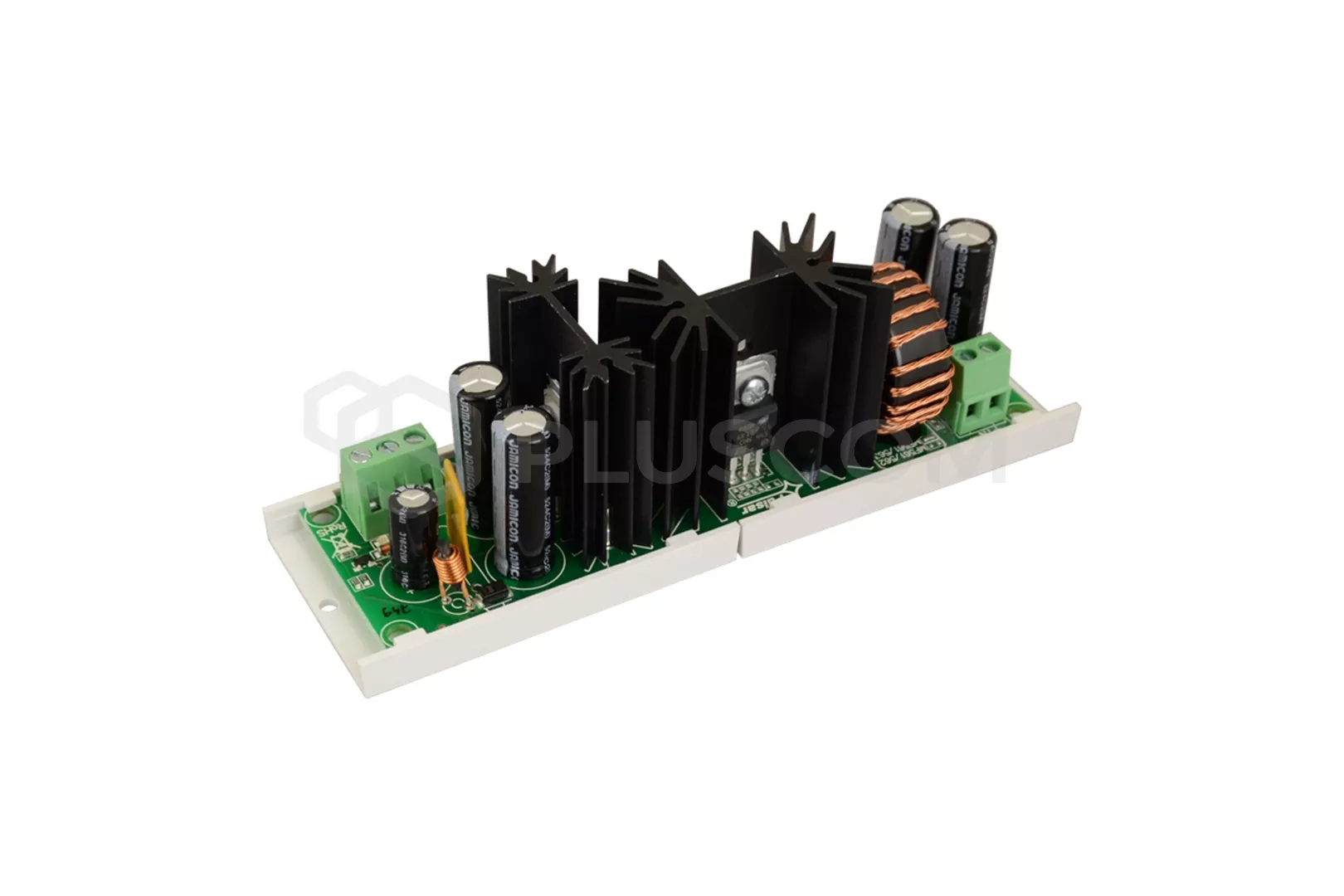

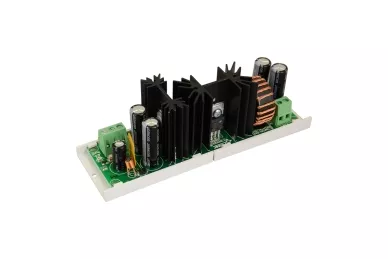

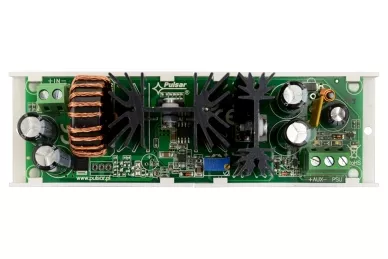

Pulsar step up converter DC/DC25SU

24,33 EUR including 23.00% VAT
Product code: #10701
Manufacturer: Pulsar
  • Input voltage: 9,5-16VDC
  • Output voltage: 24V
  • Output current/Power: 2,5A/60W
  • PSU technical output
  • Optical LED indication

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar DC/DC20SE DC/DC 2A Step up/step down DC/DC converter with adjustable output voltage

The DC/DC 2,5A (DC/DC25SU) step up converter increasing the input voltage from the range between 9,5V÷16V DC to the voltage range of 18V÷28V DC at the output, adjusted with the VADJ potentiometer. The maximum load current is Imax=2,5A (Pmax = 60W). The module does not feature galvanic isolation between input/output (IN-AUX) and operates on common "ground" (0V) potential (IN- and AUX- terminals are galvanically connected = common terminal).

FEATURES:
  • power supply: 9,5-16VDC
  • power supply output: 2,5A/24VDC
  • voltage adjustment range: 18-28VDC
  • PSU technical output indicating converter failure
  • Optical LED indication
  • efficiency: 90-94%
  • protections: SCP, OLP,

Converter DC/DC25SU

Converter DC/DC25SU

Converter DC/DC25SU

Converter DC/DC25SU


Download
Data Sheet 0.06 MB
Instruction 0.53 MB
Declaration CE 0.32 MB
