Pulsar step down/step up converter DC/DC20SE

38,35 EUR including 23.00% VAT
Product code: #10700
Manufacturer: Pulsar
  • Input voltage: 9,5-16VDC
  • Output voltage: 12V
  • Output current/Power: 2A/24W
  • PSU technical output
  • Optical LED indication

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar DC/DC20SE DC/DC 2A Step up/step down DC/DC converter with adjustable output voltage

The DC/DC 2A (DC/DC20SE) voltage- step up / step down converter is used for maintaining a constant output voltage in the range between 5÷15V DC, adjusted with the VADJ potentiometer, regardless of the input voltage fluctuations in the range of 9,5V ÷ 16V. When the input voltage at the output is lower than needed, the converter increases it to the set value. When the input voltage at the output is higher than needed, the converter lowers it to the needed value set by the potentiometer The maximum load current is Imax=2A(Pmax=24W). The module does not feature galvanic isolation between input/output (IN-AUX) and operates on common "ground" (0V) potential (IN- and AUX- terminals are galvanically connected = common terminal).

FEATURES:
  • power supply: 9,5-16VDC
  • power supply output: 2A/24VDC
  • voltage adjustment range: 5V÷15VDC
  • PSU technical output indicating converter failure
  • Optical LED indication
  • efficiency: 84-89%
  • protections: SCP, OLP,

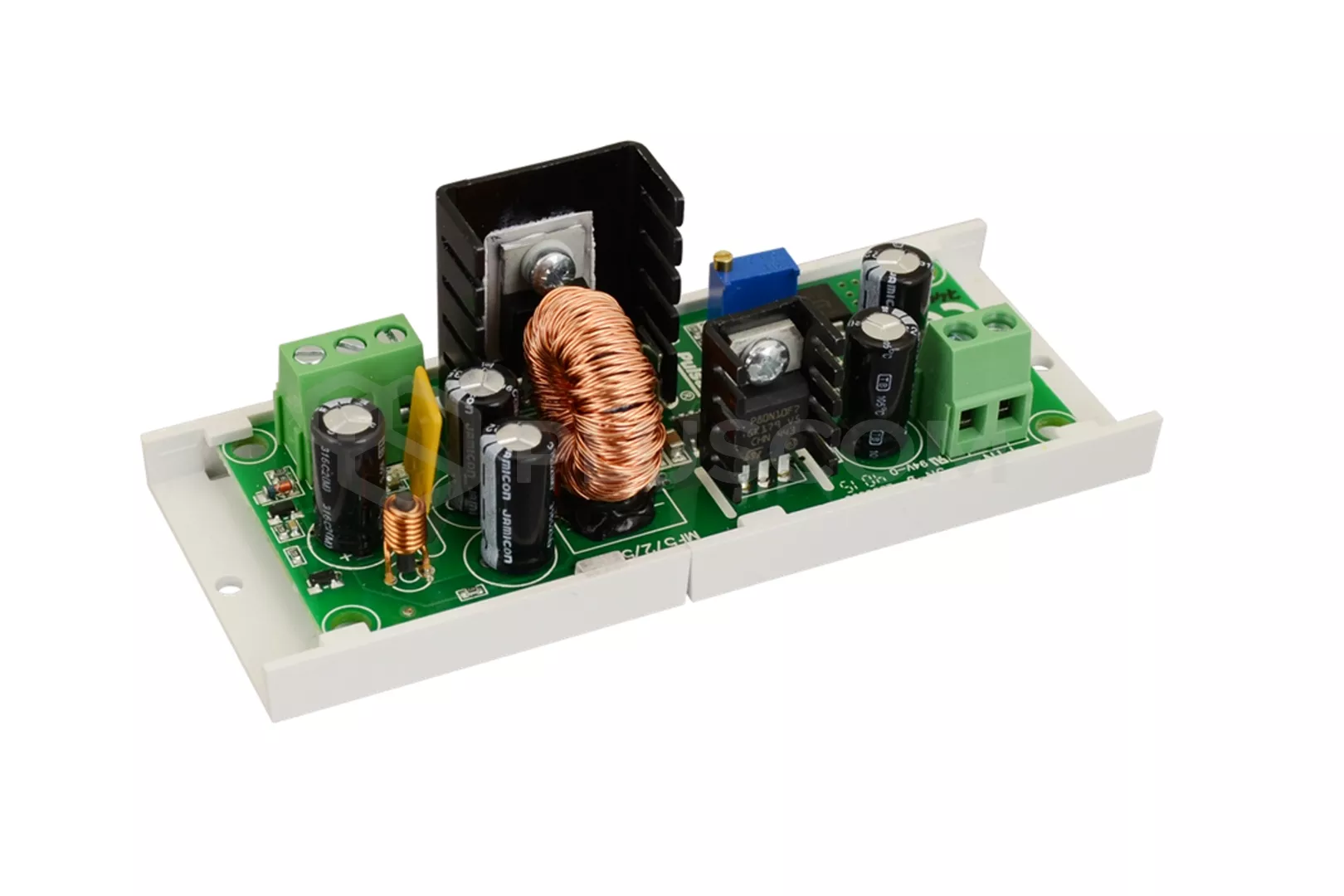

Converter DC/DC20SE

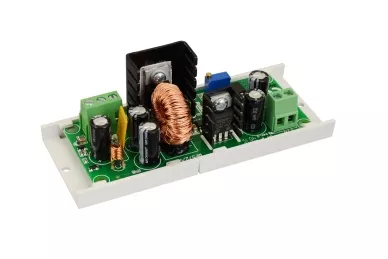

Converter DC/DC20SE

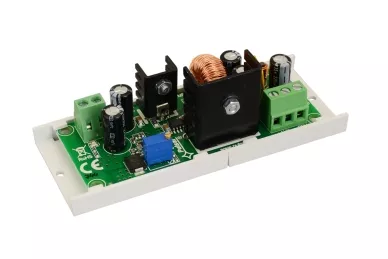

Converter DC/DC20SE

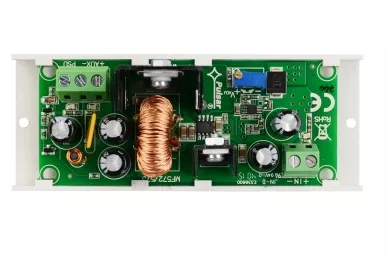

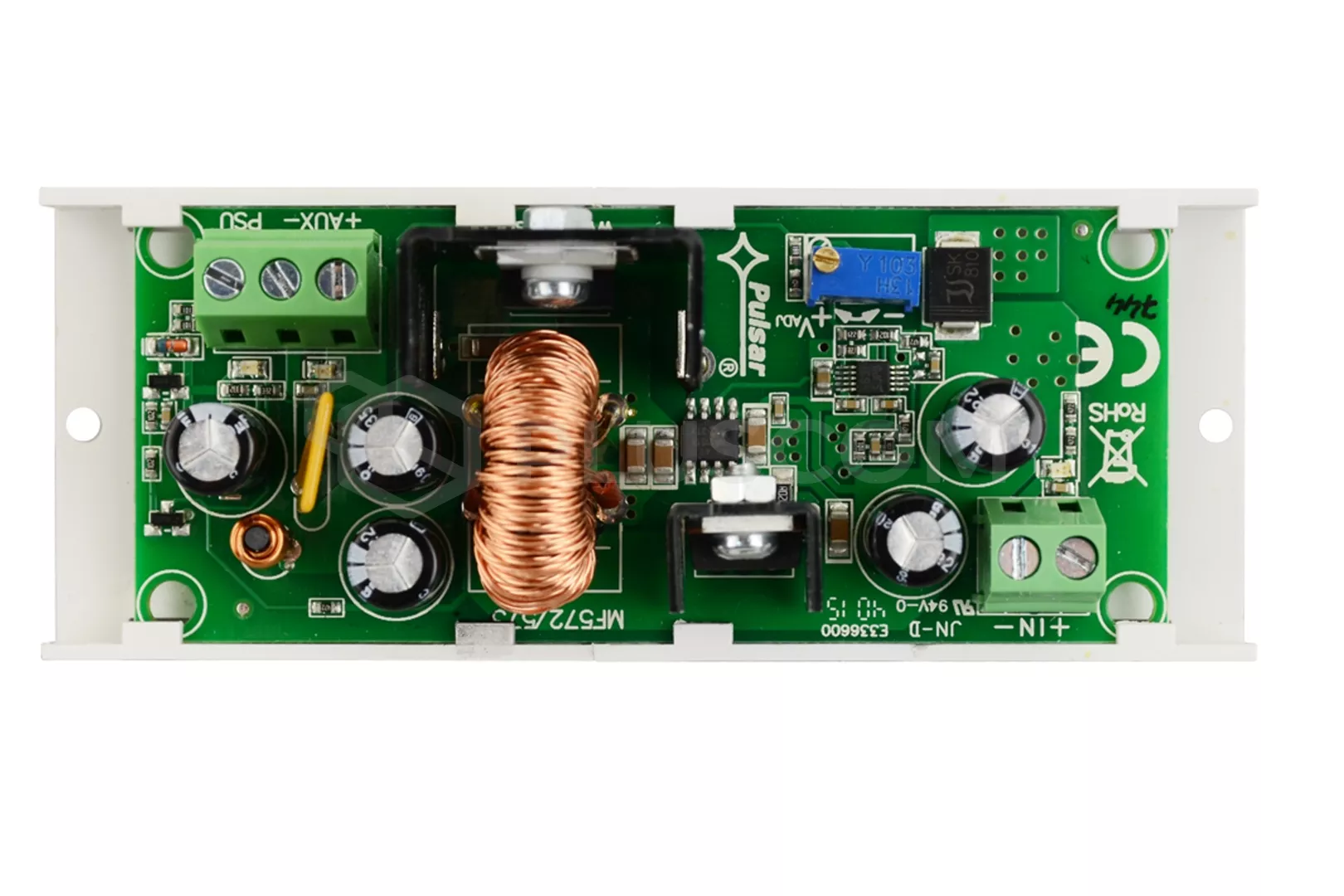

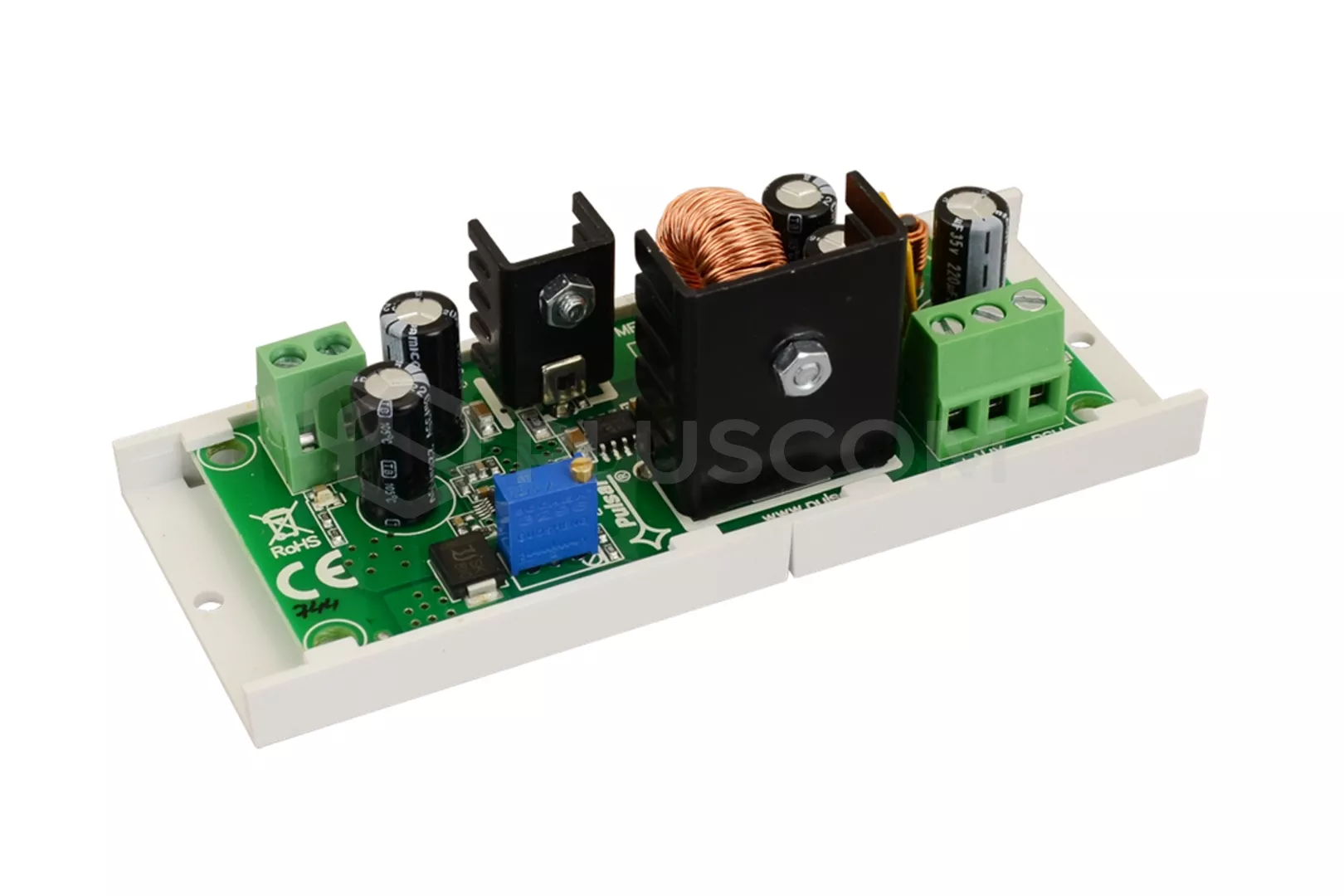

Converter DC/DC20SE


Download
Data Sheet 0.07 MB
Instruction 0.49 MB
Declaration CE 0.32 MB
