Pulsar step down converter DC/DC10SD

14,01 EUR including 23.00% VAT
Product code: #11409
Manufacturer: Pulsar
  • Input voltage: 8-28V
  • Output voltage: 12V
  • PSU technical output
  • Optical LED indication
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

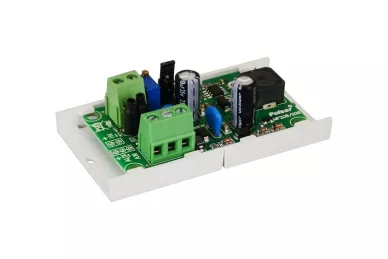

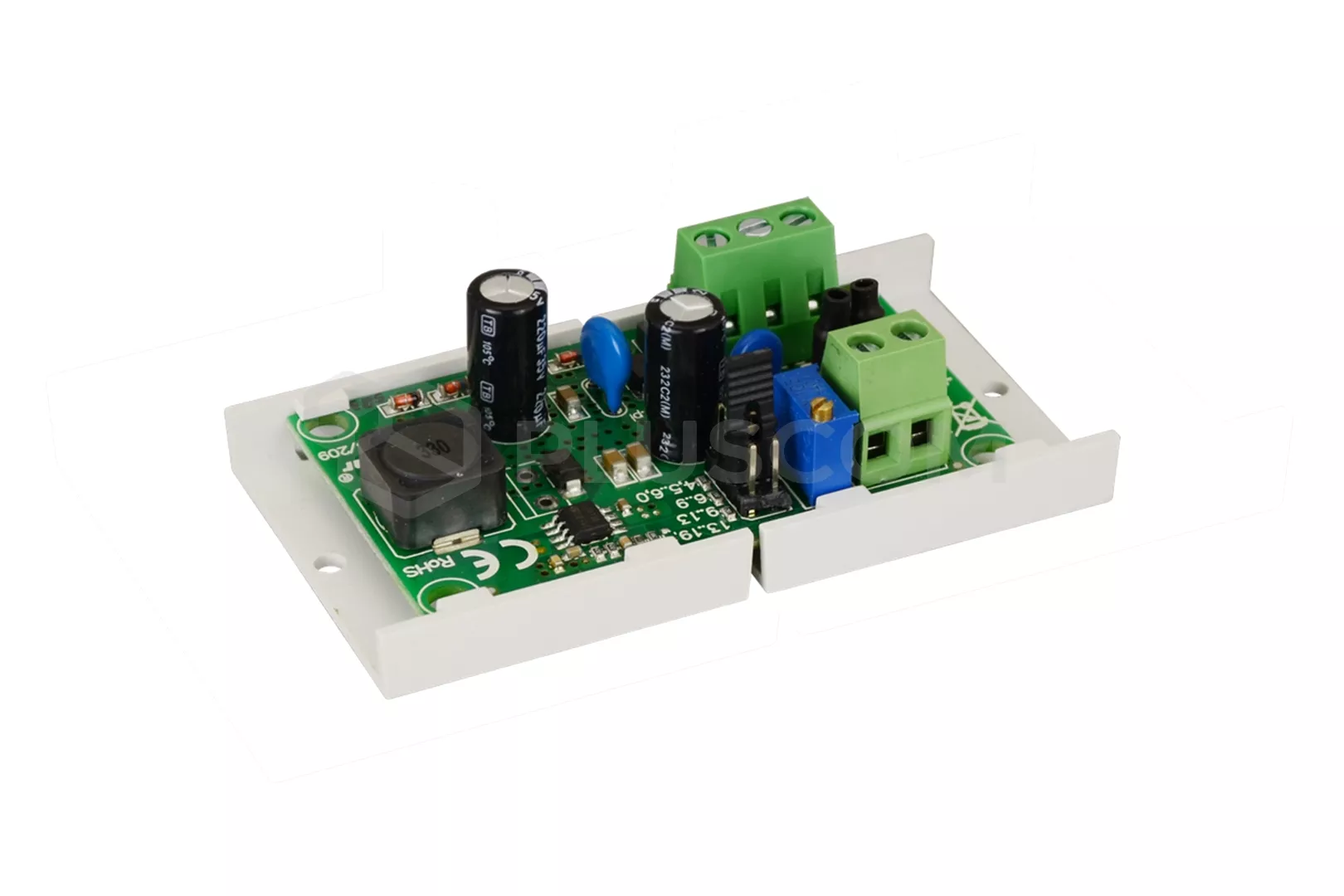

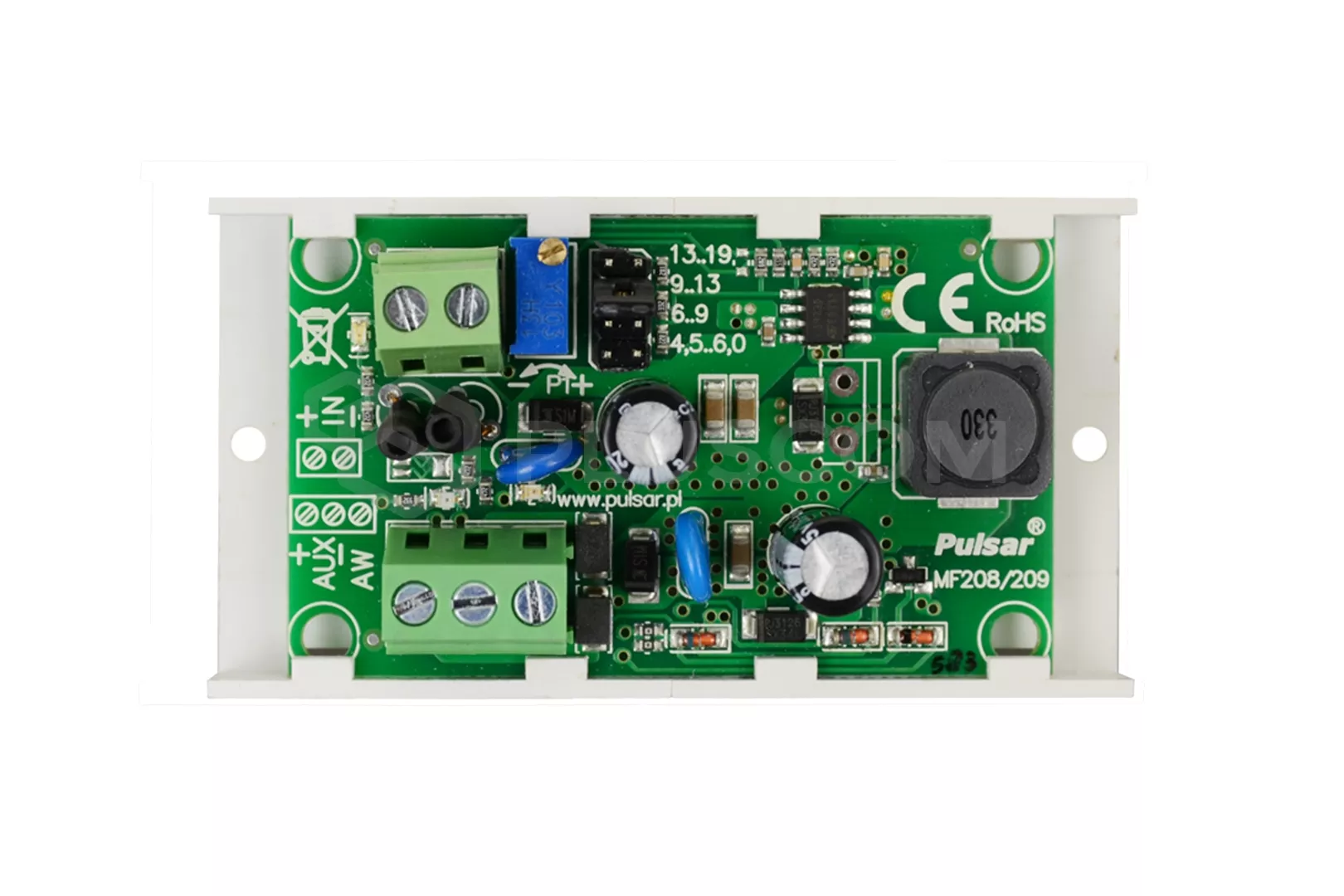

Pulsar DC/DC10SD Step down DC/DC converter with adjustable output voltage

The step down converter DC/DC 1A (DC/DC10SD) is used for step down the input voltage from the range between 8V÷28V DC to the voltage range of 4,5V÷19V DC at the output, adjusted with the P1 potentiometer. The maximum load current is Imax=1A (Pmax=12W). The 3V difference between the input (lowered) and output voltage is required for the proper operation of the converter. The module does not feature galvanic isolation between input/output (IN-AUX) and operates on common "ground" (0V) potential (IN- and AUX- terminals are galvanically connected = common terminal).

FEATURES:

  • power supply: 8-28VDC
  • power supply output: 1A/12VDC
  • voltage adjustment range: 4,5V÷19VDC
  • PSU technical output indicating converter failure
  • Optical LED indication
  • efficiency: 80-90%
  • protections: SCP, OLP,
DC/DC10SD

DC/DC10SD

DC/DC10SD

DC/DC10SD

Download
Data Sheet 1.49 MB
Instruction 0.49 MB
Declaration CE 0.32 MB
