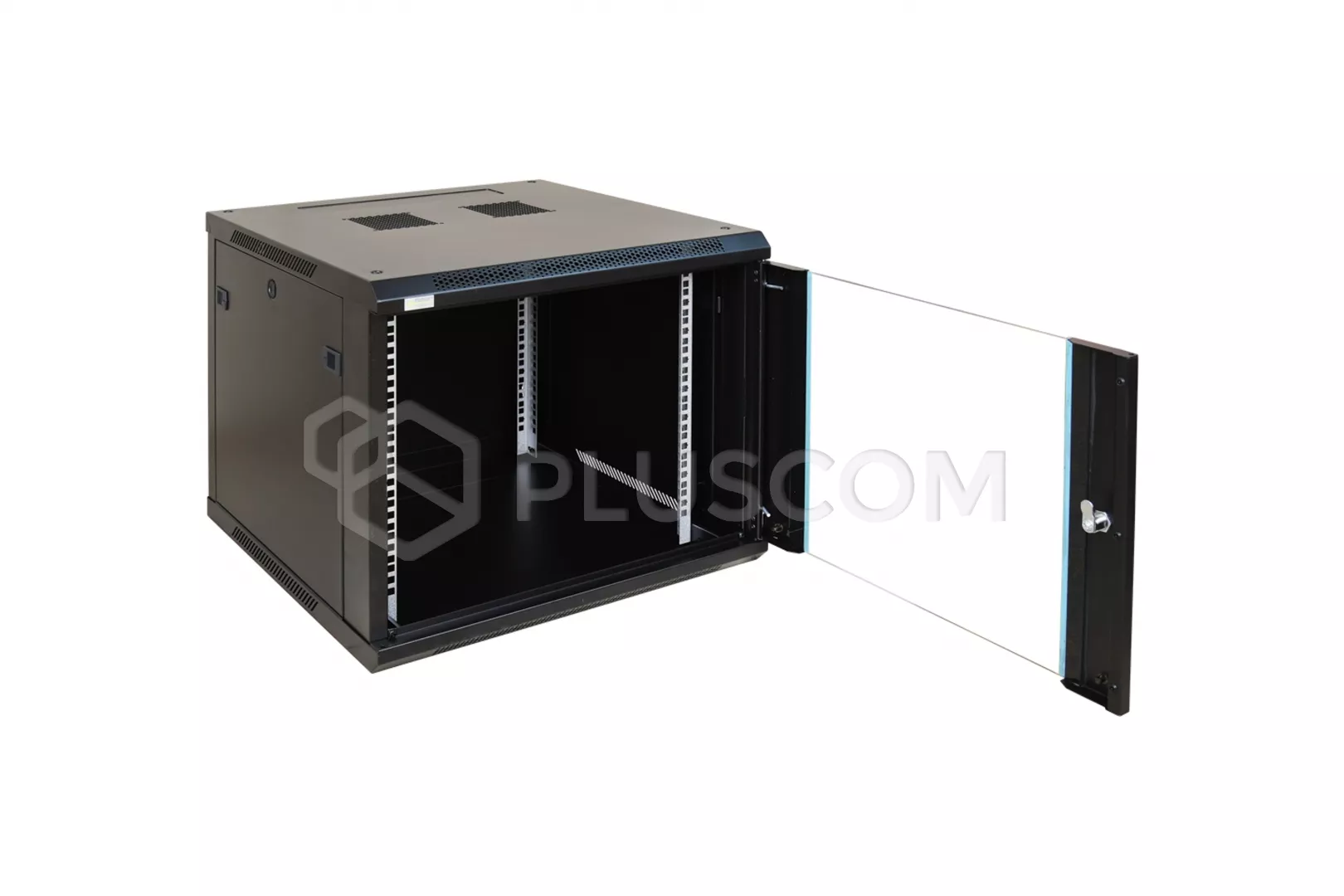

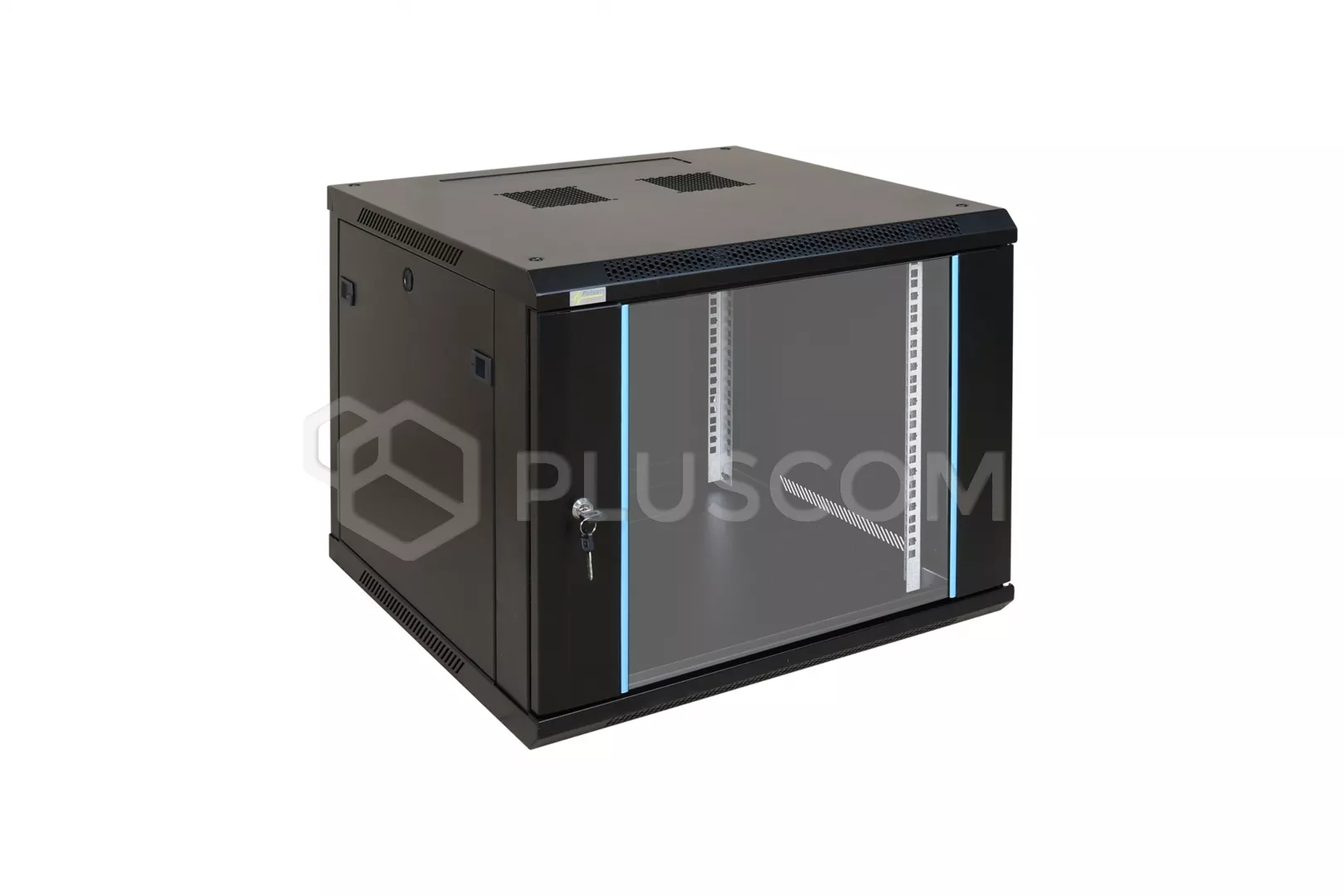

Pulsar RWA966 12U 19'' Fixed Wallmount Cabinet glass front door D: 600mm black to assemble

169,69 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #19976
Manufacturer: Pulsar
  • Wall Rack: 9U
  • Depth: 600mm
  • Height/width: 502/600mm
  • To assemble
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,62 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar RAZB16 Side panel lock, round 16

Pulsar RWA1266 9U 19'' Fixed Wallmount Cabinet glass front door D: 600mm black to assemble


The RACK 19” cabinet enables integrating CCTV, KD, SSWiN, RTV, LAN, or other systems in small companies or households. It is intended for devices manufactured in enclosures of the 19'’ standard. Due to the RACK cabinets, the devices are aesthetically mounted and protected against mechanical damage.
The front door of the wardrobe is locked with a key, in addition to the side door you can mount the RAZB16 lock.

FEATURES
  • the possibility of changing the spacing between RACK 19 ”profiles - front - back
  • ventilation holes in the top plate (2 x 105x105mm - dimension mounting)
  • cable entries in the bottom and top of the cabinet (340x56mm)
  • it is possible to change the front door - opening left / right

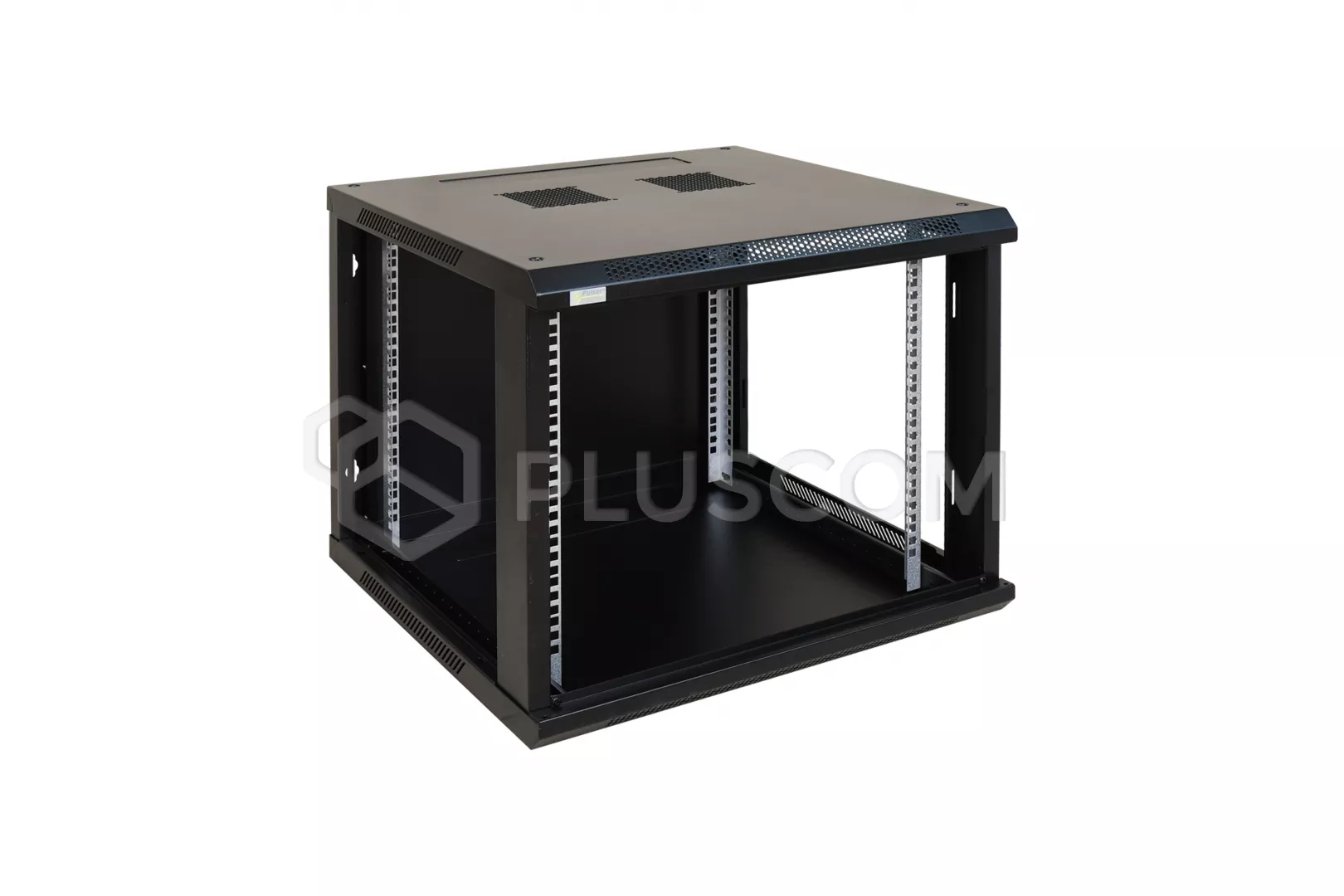

  • back plate removable (518x434mm)

PARAMETERS:
  • Mounting dimensions:
    • height: 9U
    • width: 19''
  • External dimensions: 600x600x502mm (Width / depth / height)
  • Weight: 25kg
  • Static lo 70kg
  • Materials: cold-rolled steel SPCC 1,2mm, 1,5mm - RAL 9004
  • IP20
INSTALLATION NOTES:

The wardrobe requires assembly. This solution reduces costs shipments and save storage space. After turning we receive solid construction withstands static loads up to 70kg

Installation steps are simple and should not take more than 30 minutes.

Download
Datasheet 0.98 MB
Instruction 1.37 MB
declaration CE 0.32 MB
