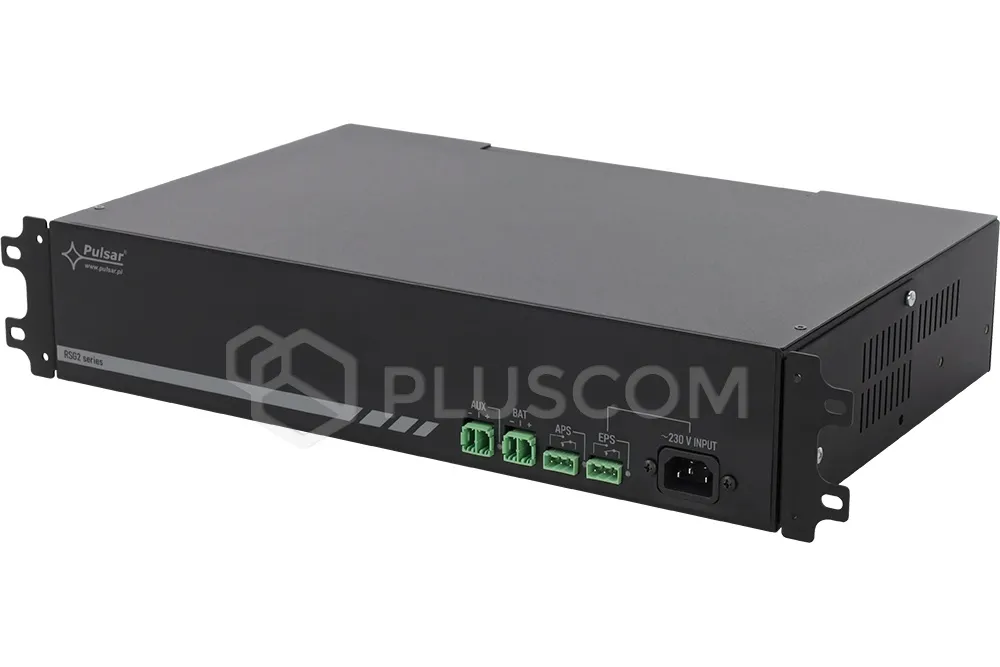

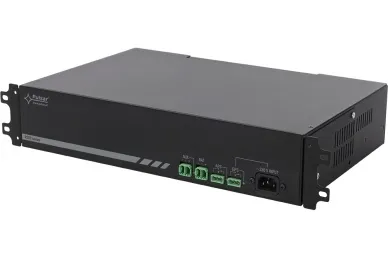

Pulsar RSG2-12V20A RSG2 13,8V/20A switch mode power supply with battery backup in RACK 19" 2U enclosure

269,14 EUR including 23.00% VAT
Product code: #45103
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC; ~230 V INPUT – C14 male connector
  • Power supply output: 20 A / 13.8 V DC / 276 W (total output current with charging); AUX – 2-pin…
  • Battery charging current: 2A/4A/8A; - BAT – 2-pin pluggable screw connector (7.62mm pitch)
  • Efficiency: 87%
  • Mounting dimensions: 19" x 2U; front mounting, 4 M6 screws + cage nuts included; recommended mount…
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,46 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar RSG2-12V20A RSG2 13,8V/20A switch mode power supply with battery backup in RACK 19" 2U enclosure


TECHNICAL DATA:

  • Power supply: 200 - 240 V AC; ~230 V INPUT – C14 male connector
  • Power supply output: 20 A / 13.8 V DC / 276 W (total output current with charging); AUX – 2-pin pluggable screw connector (7.62mm pitch)
  • Battery charging current: 2A/4A/8A; - BAT – 2-pin pluggable screw connector (7.62mm pitch)
  • Efficiency: 87%

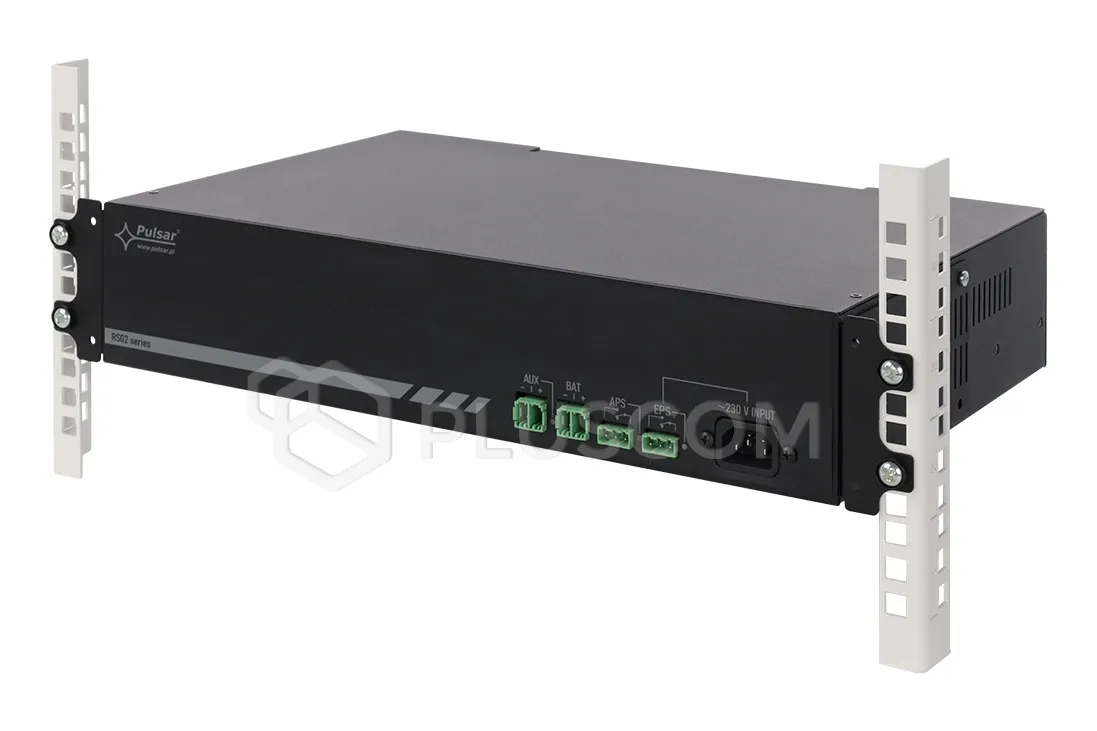

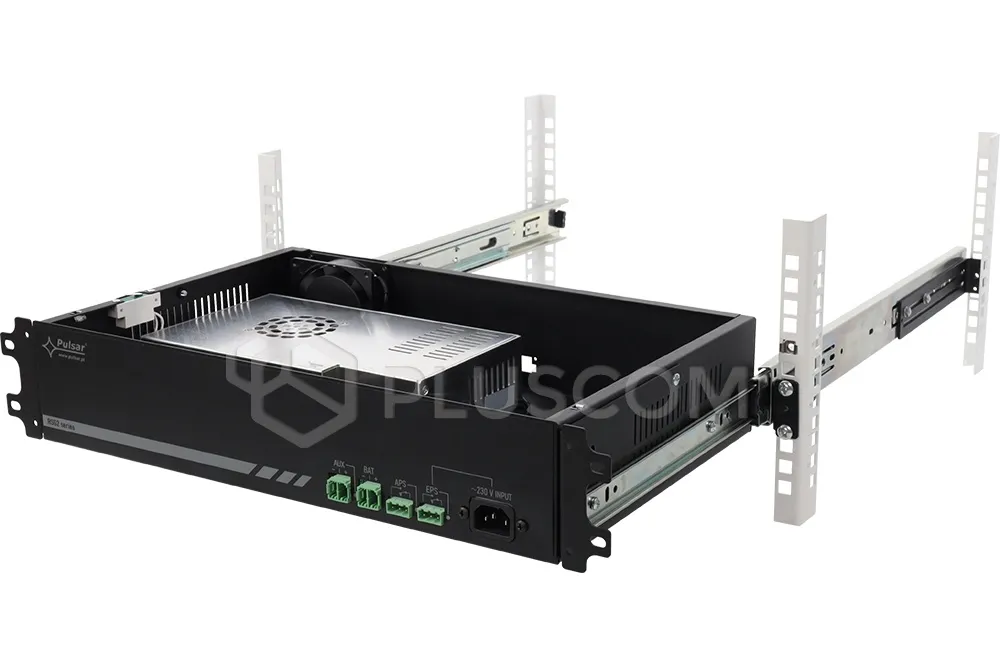

  • Mounting dimensions: 19" x 2U; front mounting, 4 M6 screws + cage nuts included; recommended mount by using ARAS...N / RASM... rails – additional accessory
  • Technical outputs relay type: EPS – AC power failure; APS – battery failure; technical output – 3-pin pluggable screw connector (5.08mm pitch)

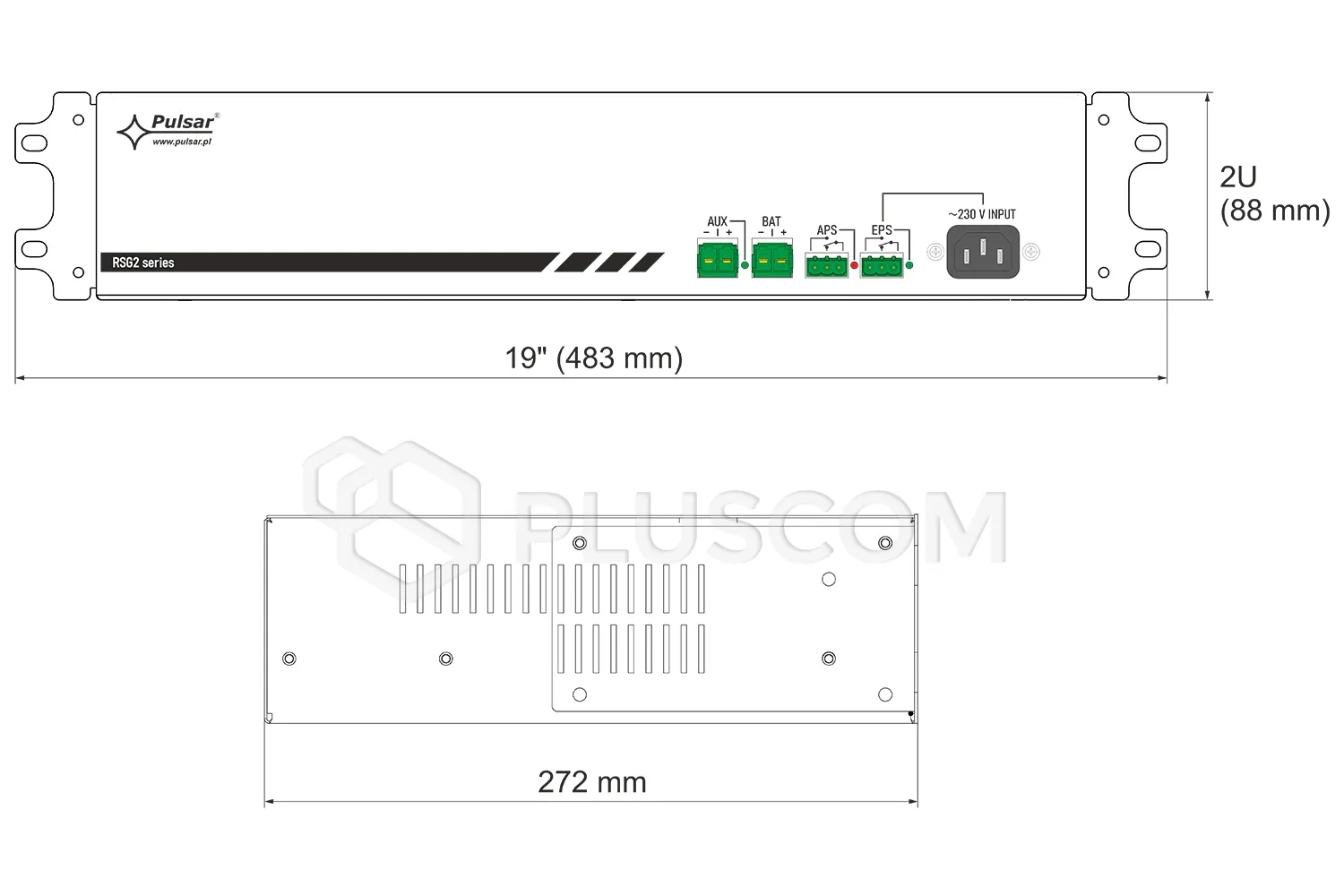

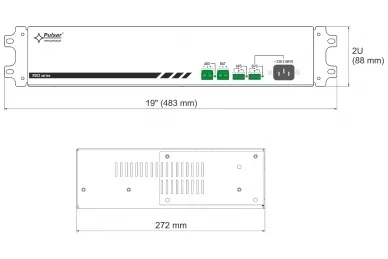

  • Dimensions: 481 x 88 x 274 [+/-2 mm]
  • Protections: OVP, OLP, UVP, tamper – opening of enclosure, SCP
  • Installation: RACK 19"
  • Indication: LED optical indication
  • Protection grade EN60529: IP 20
  • Warranty: 2 years
  • Notes:
    • an automatic battery test performed every 5 minutes
    • forced cooling – built-in fan
Download
