Pulsar RCB24V battery controller for RACK 19

14,01 EUR including 23.00% VAT
Product code: #18271
Manufacturer: Pulsar
  • Designed to operate with a 27.6VDC uninterruptible power supply unit
  • Maximum current: 10A
  • Mounting dimensions: W=19”, H=2U, D=425
  • Acoustic indication of failure – BUZZER

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar RCB48V battery controller for RACK 19

Pulsar RCB24V battery controller 24VDC/10A for RACK 19'' cabinets

The RCB24V battery is designed for monitoring the status of the 4 battery pack based on the measurements of resistance, continuity of the battery circuit, voltage, and the charge level. It is also protected against reverse connection and short circuit in the charging circuit. In the case of failure, a LED light is activated, which is accompanied by switching of relay contacts and acoustic indication..
The controller is fitted with the ALARM technical output of collective failure. The failure status is also signaled acoustically by means of a piezoelectric indicator. The collective failure can be triggered by:
  • high resistance of the BAT circuit
  • undercharged battery
  • no battery
  • low battery voltage (DC operation)
  • low battery voltage - disconnection (DC operation)

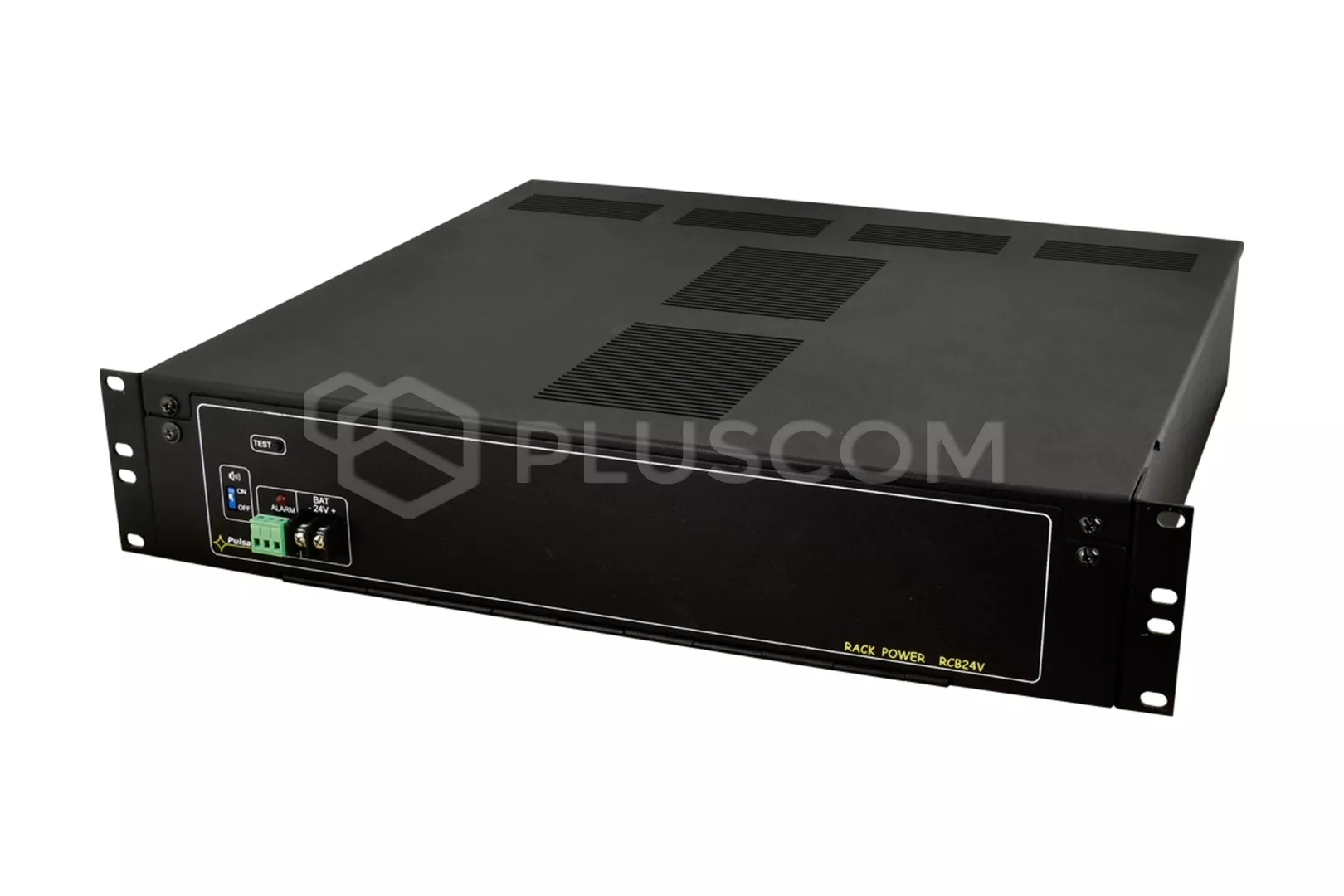

Pulsar RCB24V battery controller for RACK 19

Pulsar RCB24V battery controller for RACK 19



TECHNICAL DATA:

  • Input: BAT 24V
  • The BAT output voltage: 27.6V DC max.
  • Maximum current: 10A
  • Battery: 4x17Ah/112V
  • Optical indication of operation: ALARM LED
  • Acoustic indication of operation: Piezoelectric indicator ~75dB /0,3m
  • Mounting dimensions: W=19”, H=2U, D=425
  • Dimensions: 435x88x425mm(+/- 2mm)
  • Weight: 5.9kg

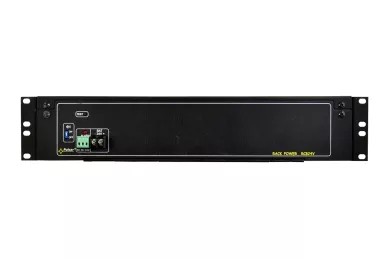

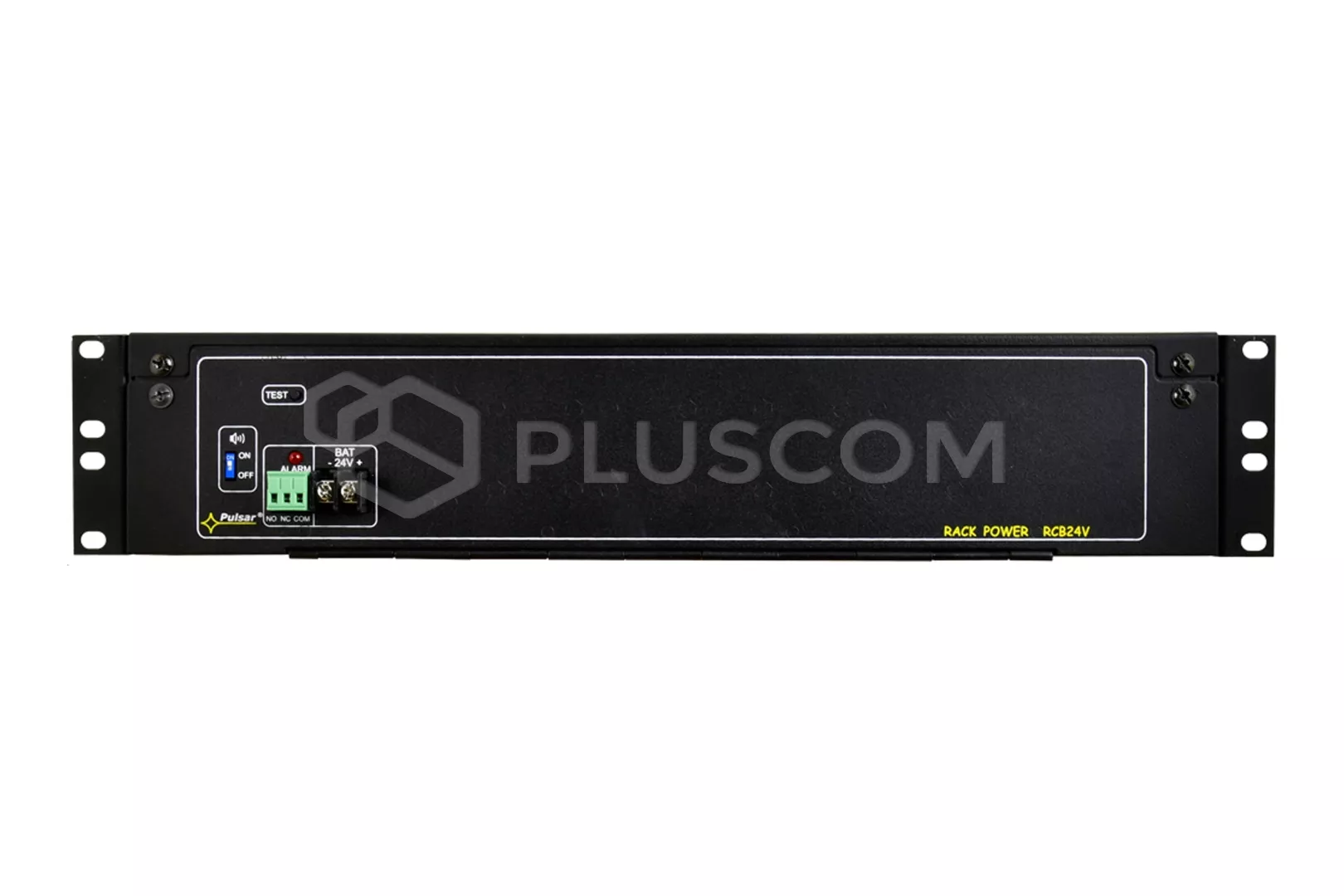

Pulsar RCB24V

Pulsar RCB24V

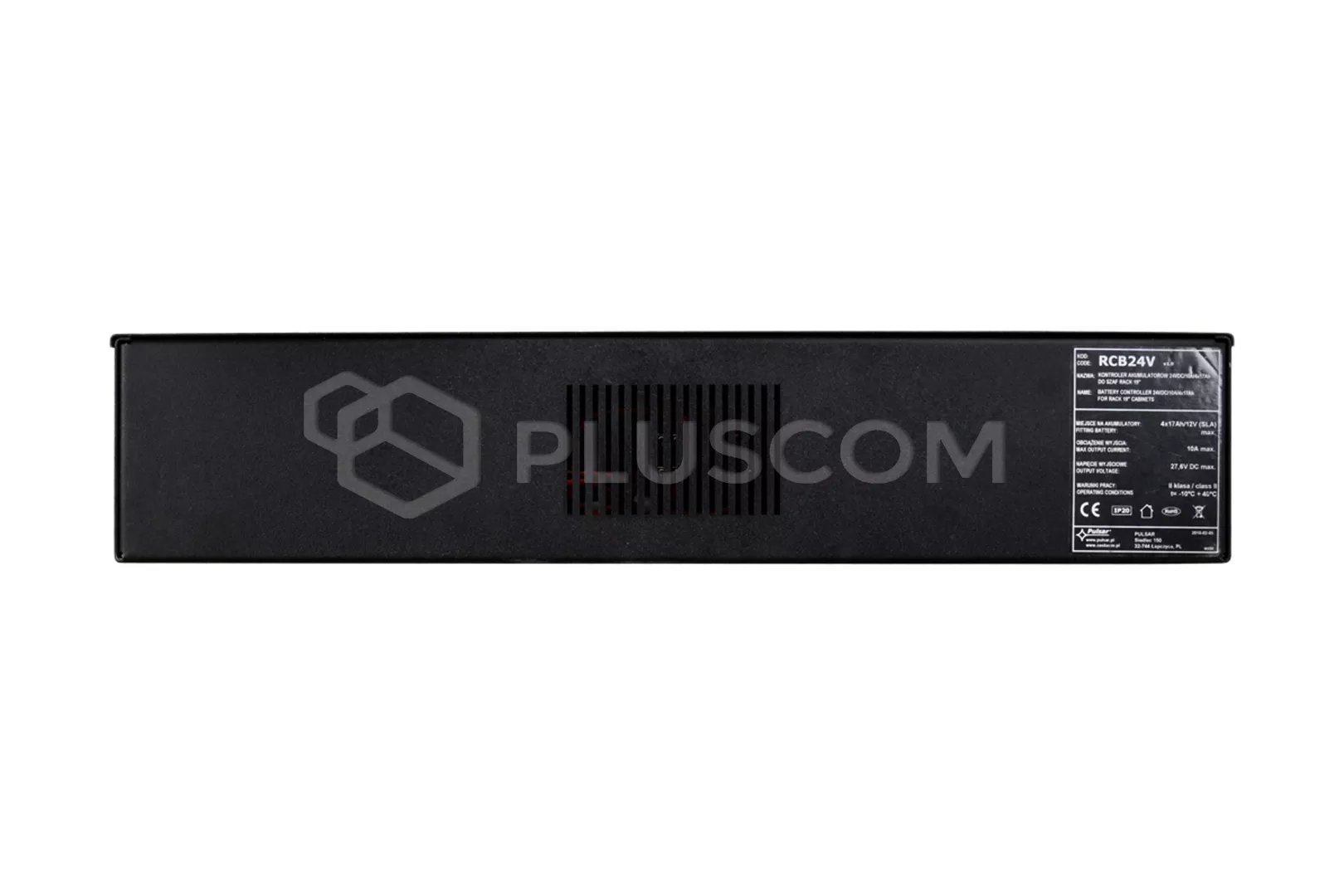

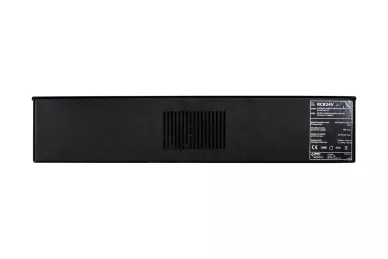

View from the back:

View from the back:
