Pulsar RC48V battery controller for RACK 19

4,67 EUR including 23.00% VAT
Product code: #18269
Manufacturer: Pulsar
  • Designed to operate with a 54VDC uninterruptible power supply unit
  • Maximum current: 5A
  • Mounting dimensions: W=19”, H=2U, D=60
  • Acoustic indication of failure – BUZZER

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar RC24V battery controller for RACK 19 Pulsar RC12V battery controller for RACK 19

Pulsar RC48V battery controller 48VDC/5A for RACK 19'' cabinets

The RC48V battery controller is designed for monitoring the status of the 4x17Ah/12V (SLA) battery pack based on the measurements of resistance, continuity of the battery circuit, voltage, and the charge level. It is also protected against reverse connection and short circuit in the charging circuit. In the case of failure, a LED light is activated, which is accompanied by switching of relay contacts and acoustic indication.
The controller is fitted with the ALARM technical output of collective failure. The failure status is also signaled acoustically by means of a piezoelectric indicator. The collective failure can be triggered by:
  • high resistance of the BAT circuit
  • undercharged battery
  • no battery
  • low battery voltage (DC operation)
  • low battery voltage - disconnection (DC operation)

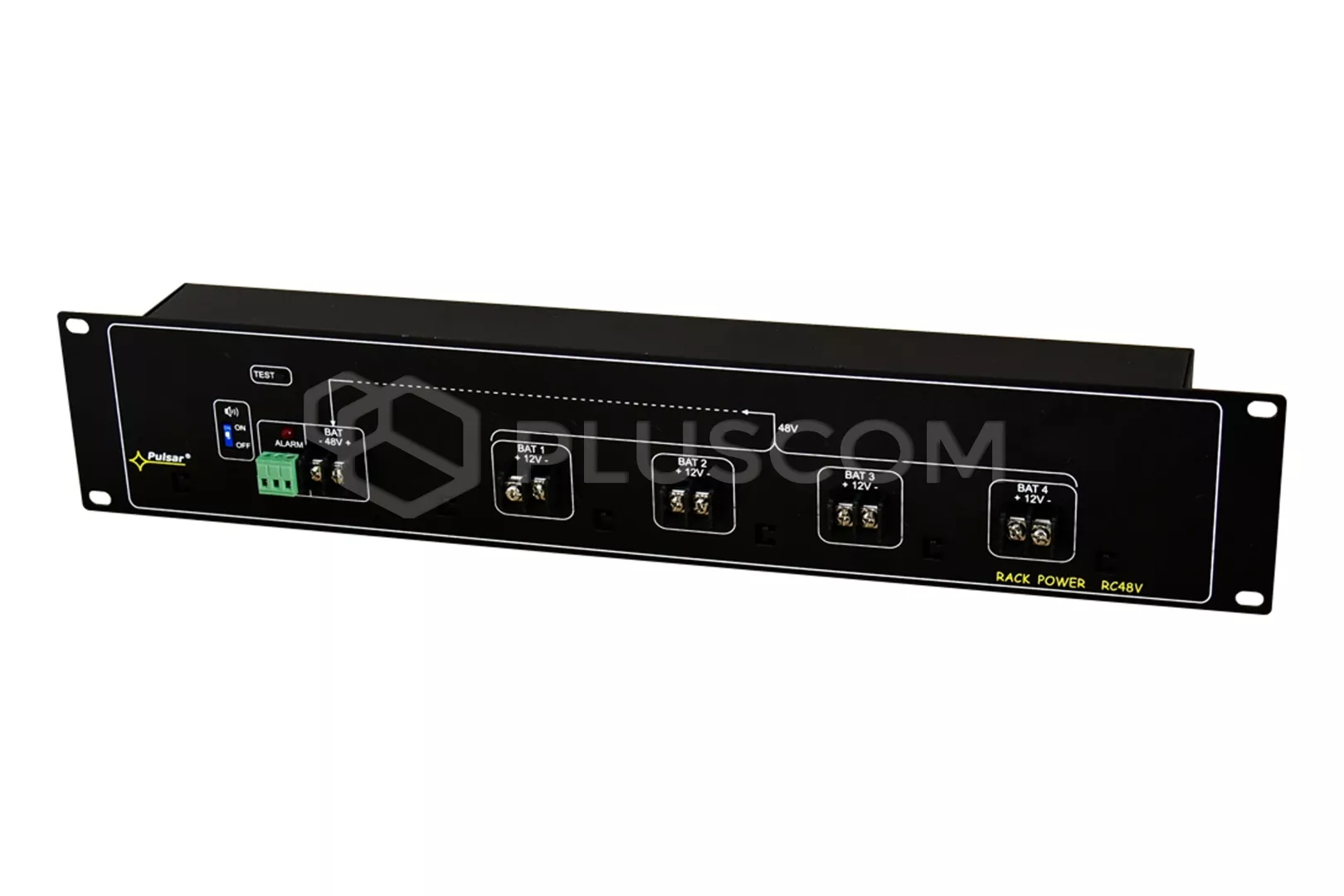

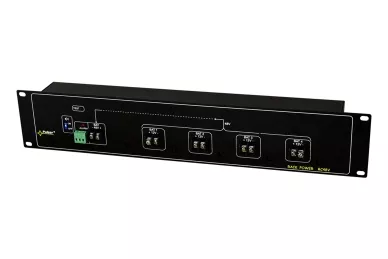

Pulsar RC48V battery controller for RACK 19

Pulsar RC48V battery controller for RACK 19



TECHNICAL DATA:

  • Input: BAT1 ÷ BAT4
  • The BAT output voltage: 54V DC max.
  • Maximum current: 5A
  • Battery: 4x17Ah (the total capacity 68Ah/12V max.)
  • Optical indication of operation: ALARM LED
  • Acoustic indication of operation: Piezoelectric indicator ~75dB /0,3m
  • Mounting dimensions: W=19”, H=2U, D=60
  • Dimensions: 483x88x60mm(+/- 2mm)
  • Weight: 1.6kg
Battery wires in set

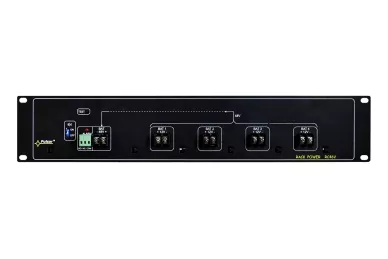

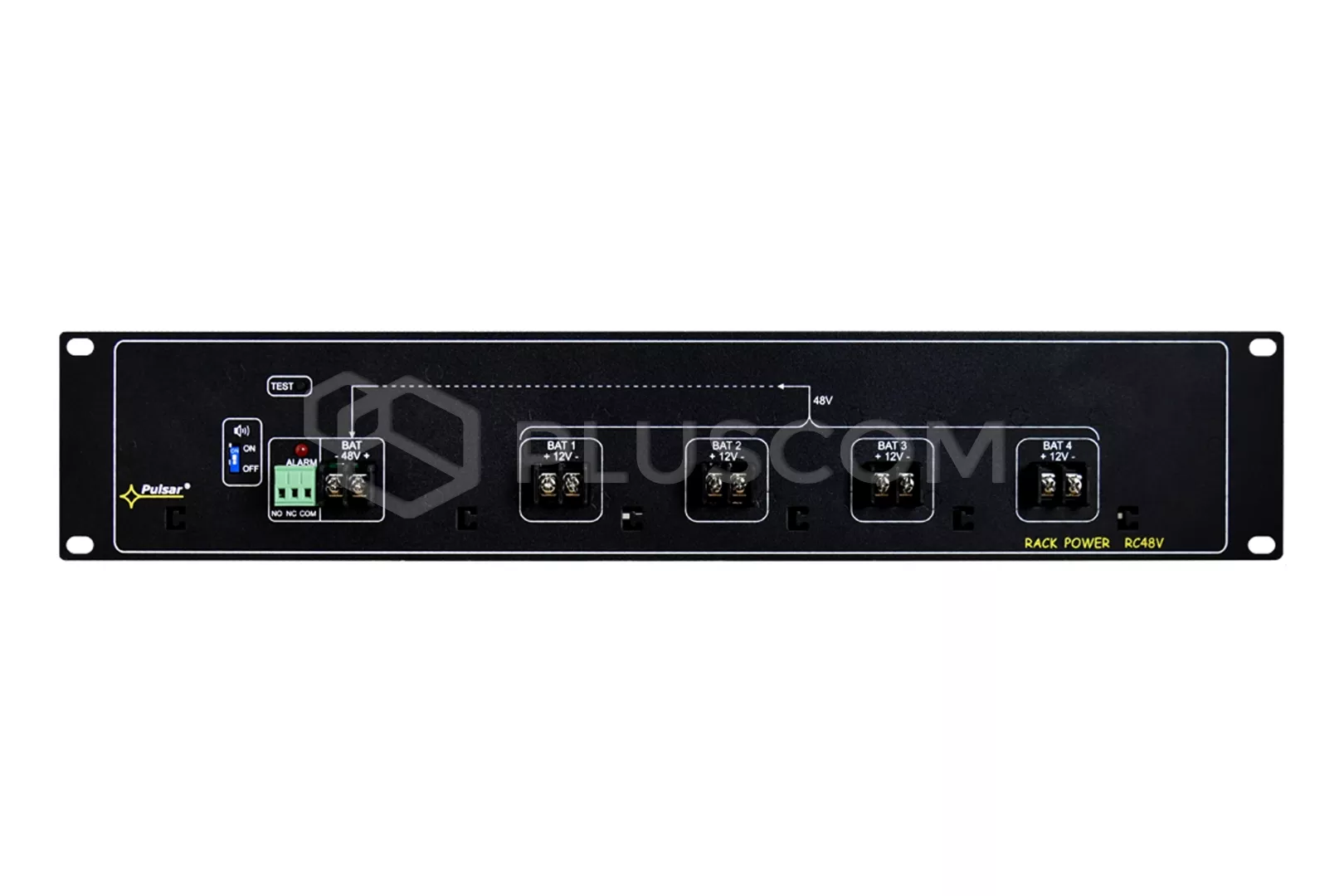

Pulsar RC48V

Pulsar RC48V

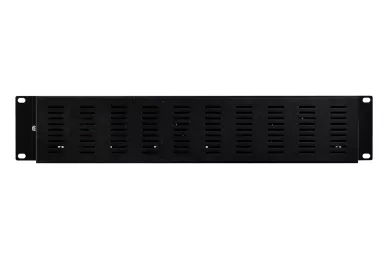

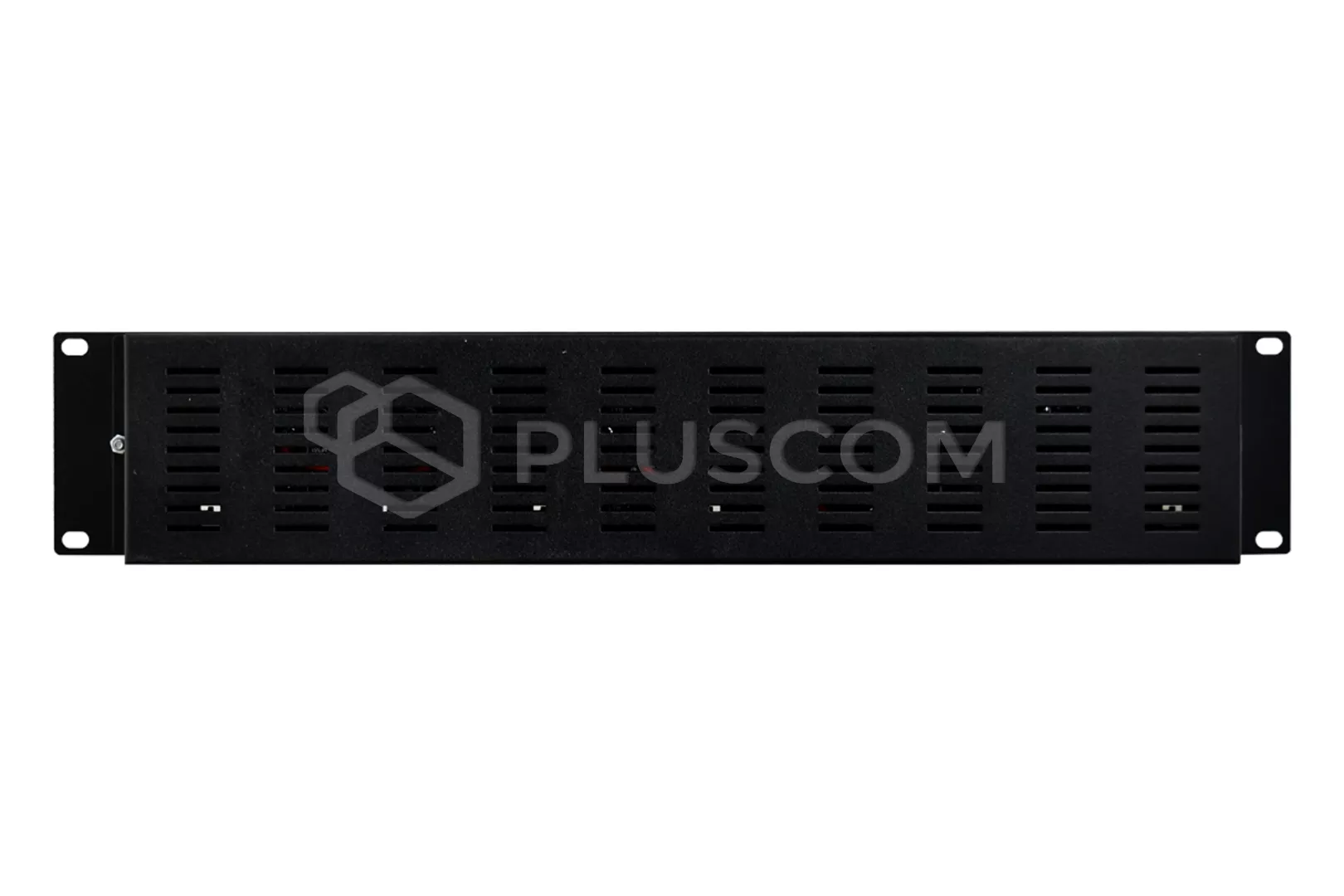

View from the back:

View from the back:


Download
Datasheet 0.14 MB
Declaration CE 0.32 MB
Instruction 0.62 MB
